Week 4 Challenge : CFD Meshing for BMW car

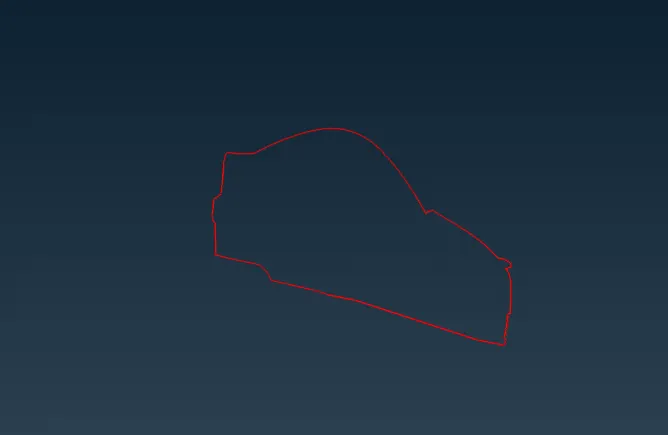

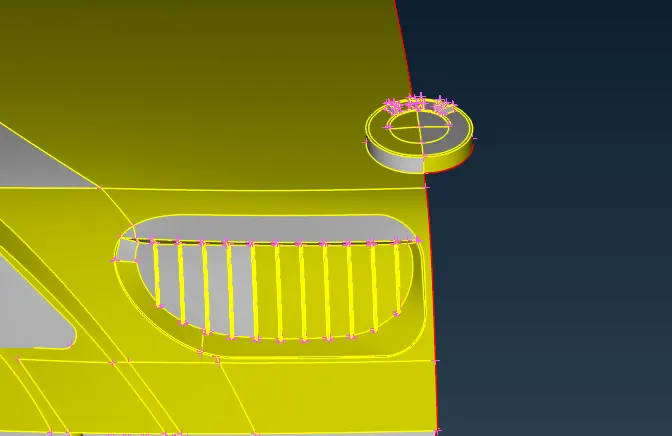

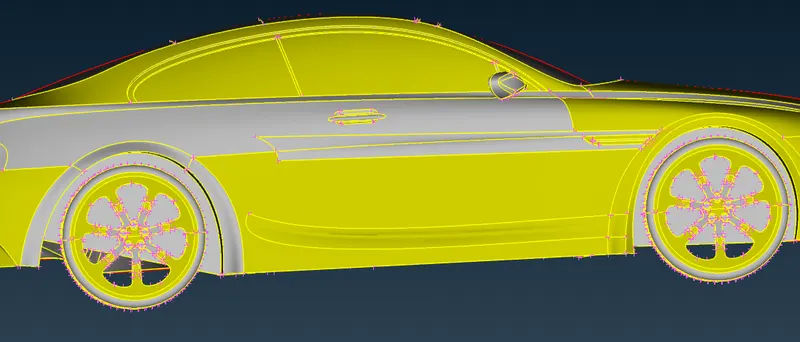

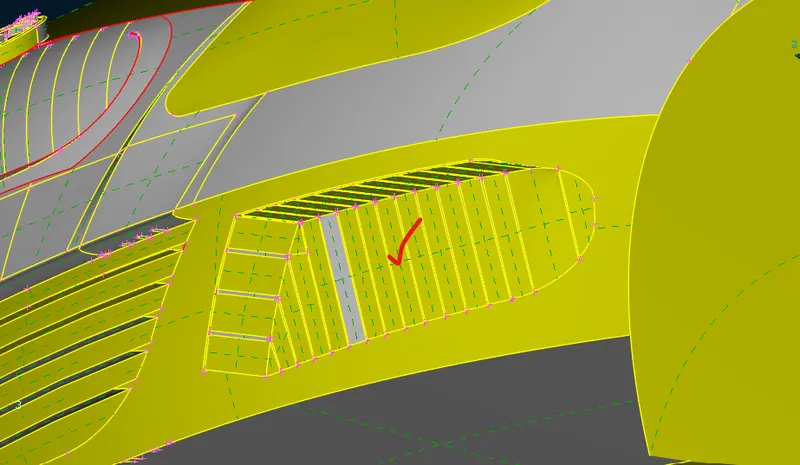

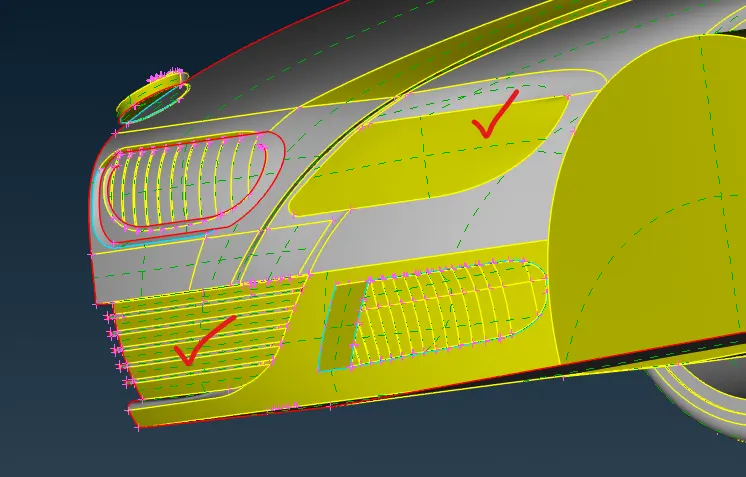

Topo cleanup:

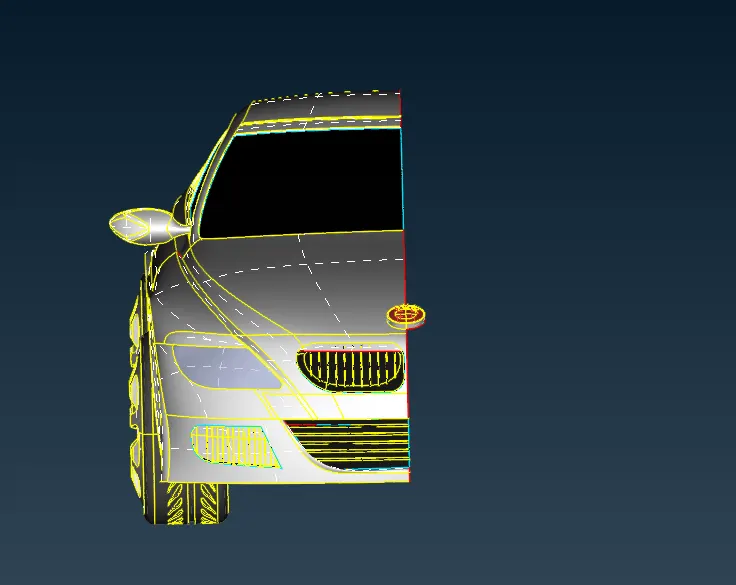

Initially, split the car in half and remove and patch up the surfaces.

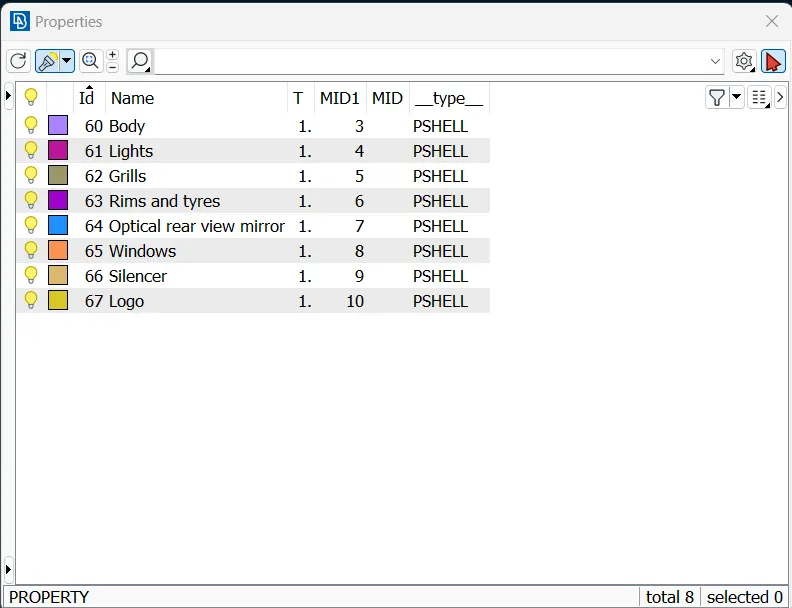

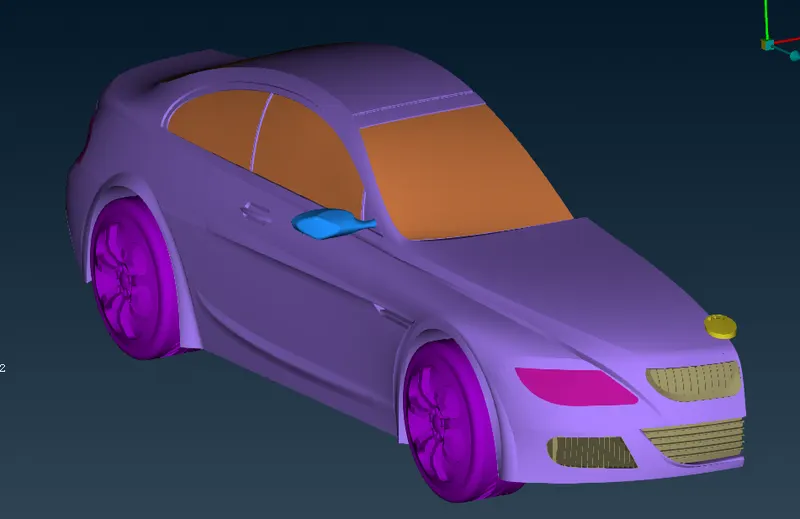

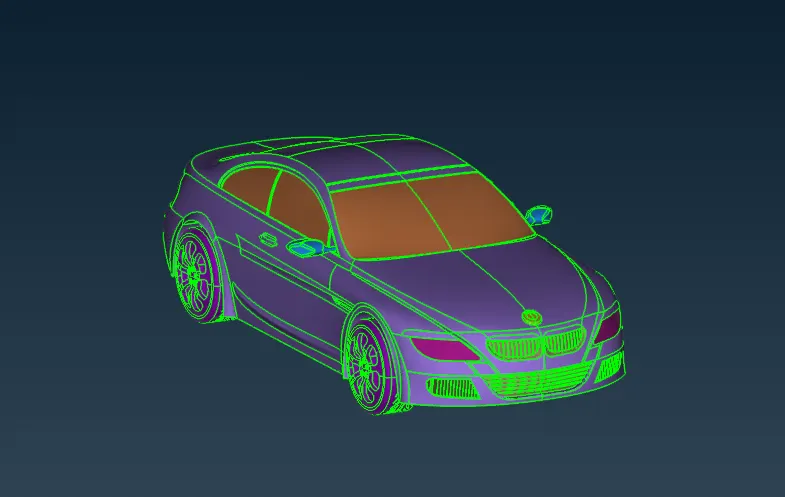

PID:

Create new PSHELL and apply them.

Meshing:

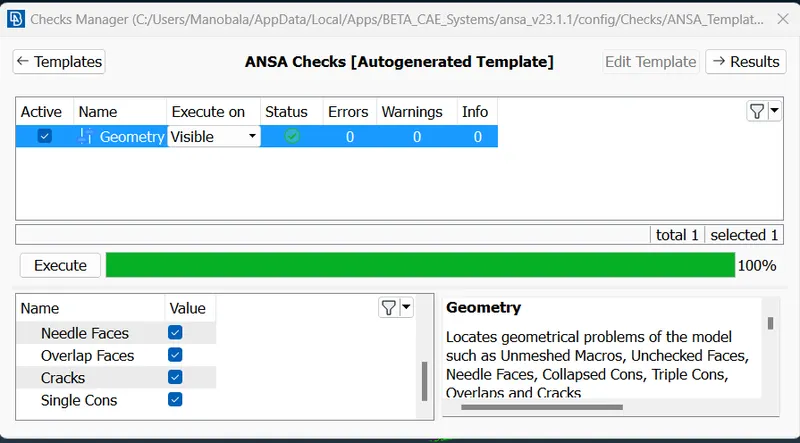

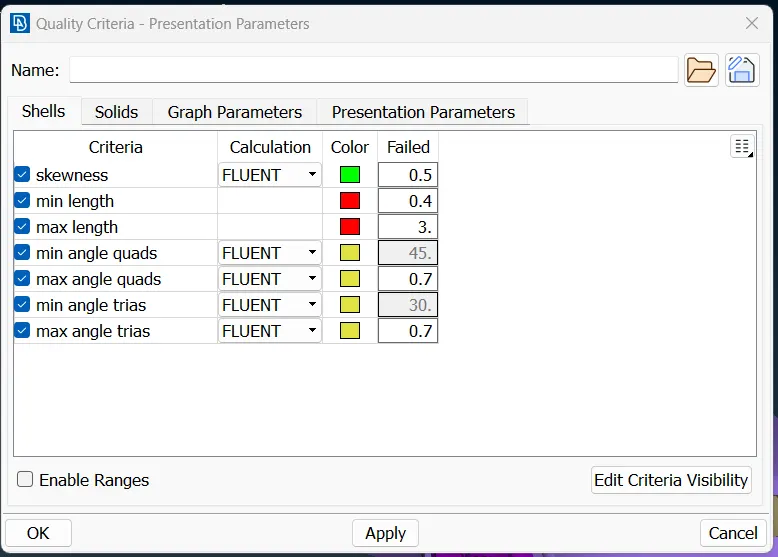

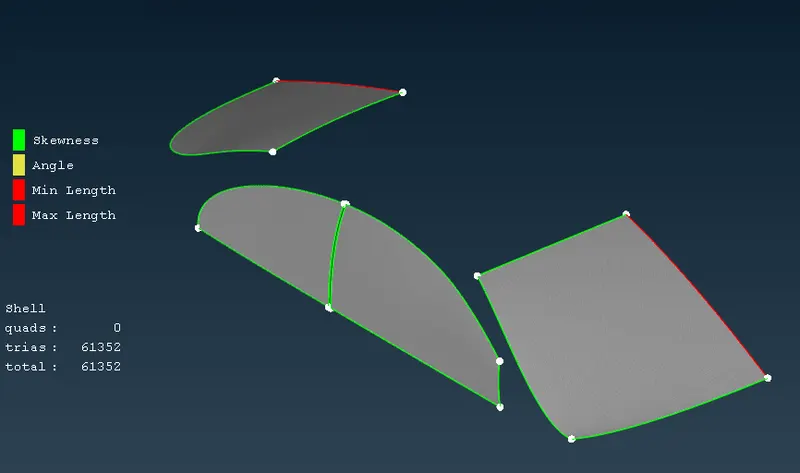

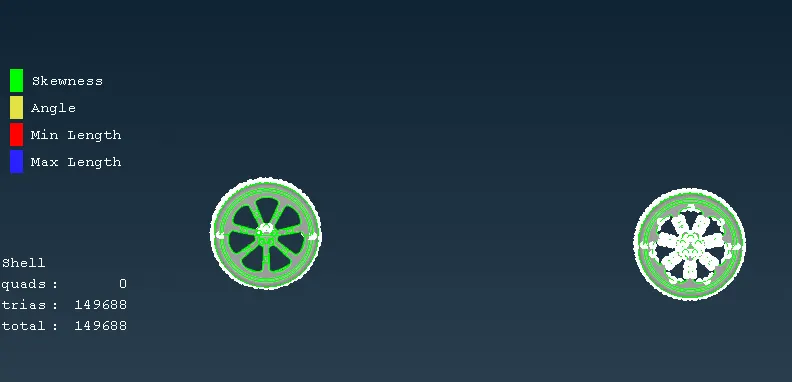

Before meshing, check for certain quality criteria and verify them with each PID region.

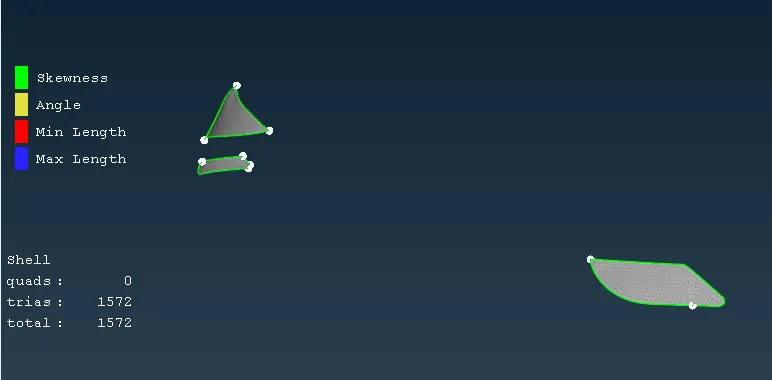

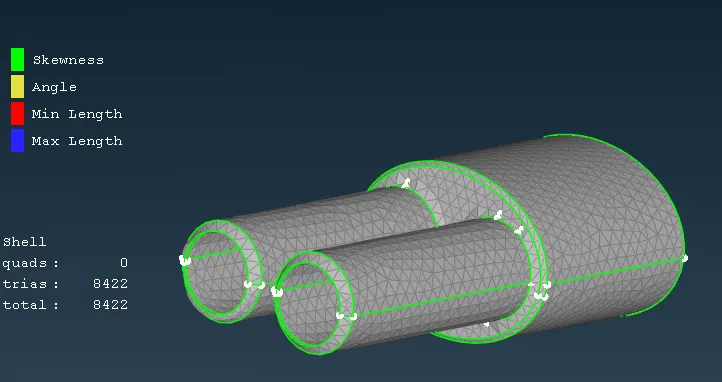

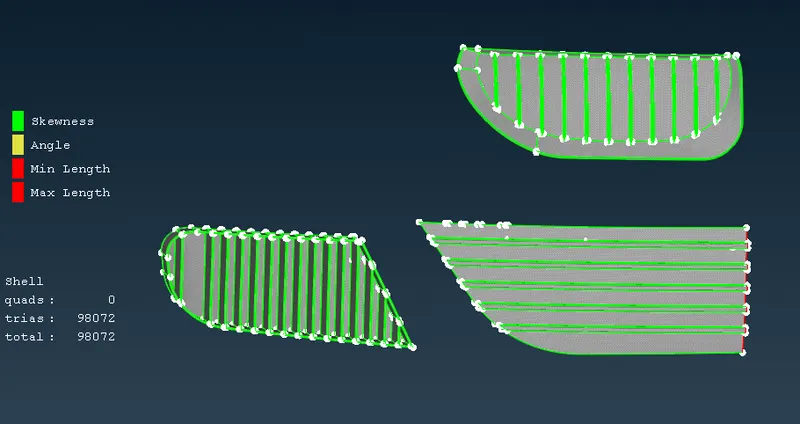

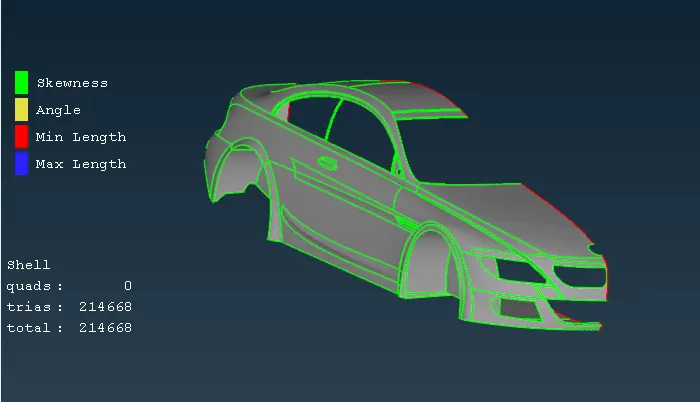

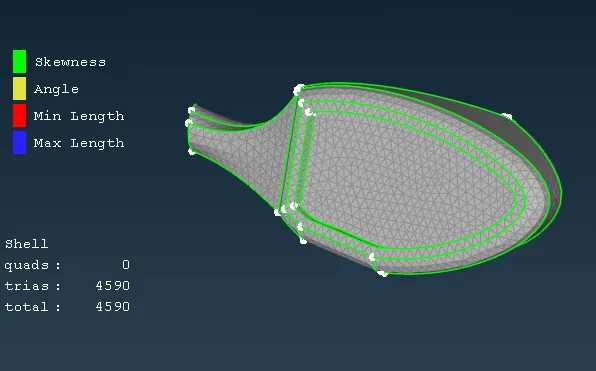

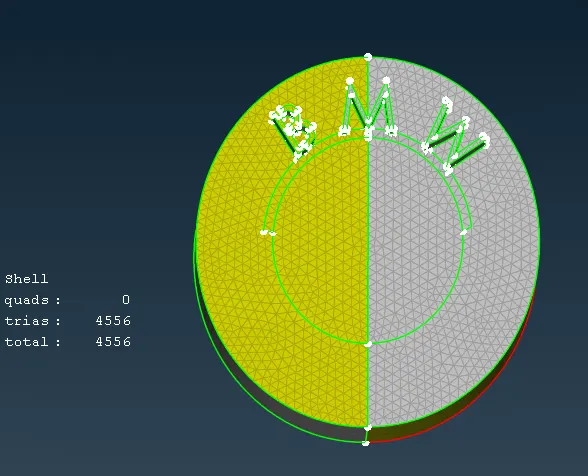

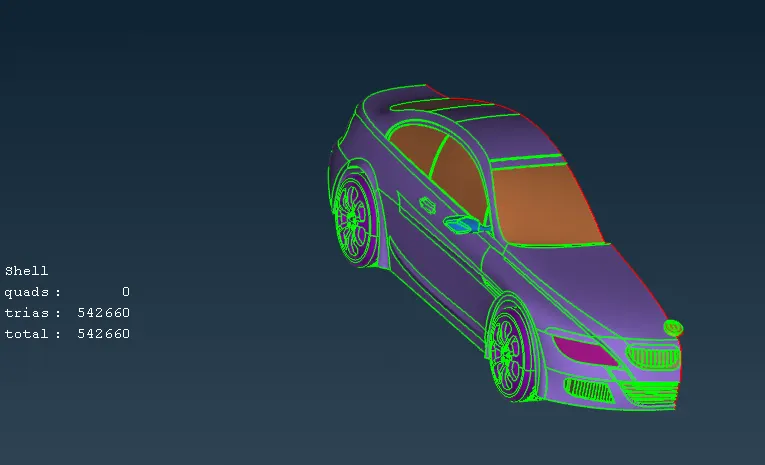

Surface mesh:

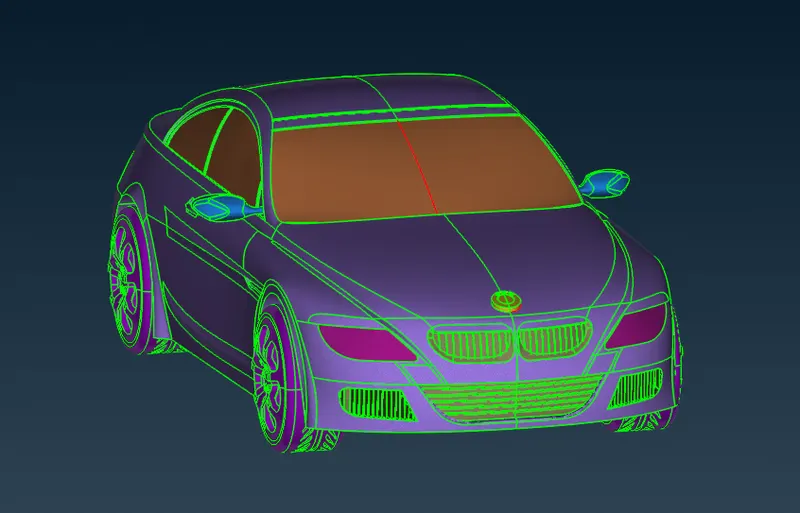

Symmetry:

Perform symmetry using transform and remove the single cons.

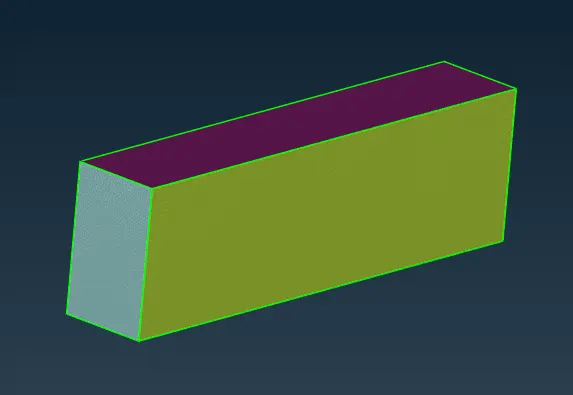

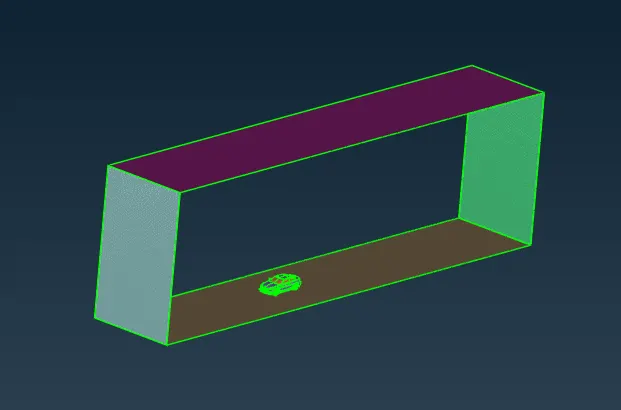

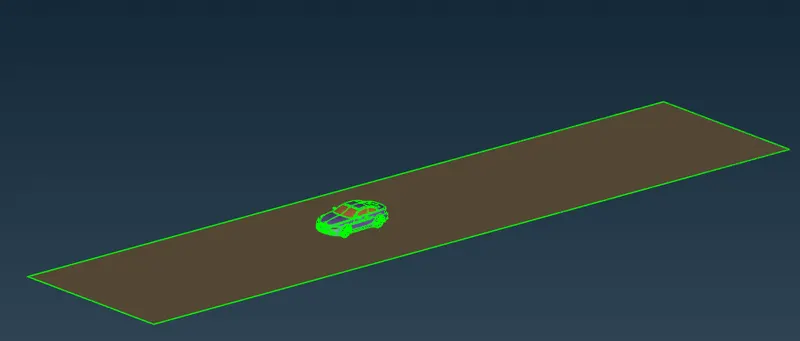

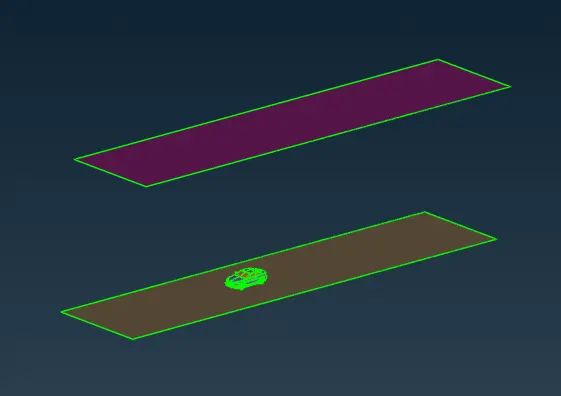

Wind tunnel:

Create a wind tunnel using points and faces tools. Remember to follow the wind tunnel rules. Assign PIDs and mesh them.

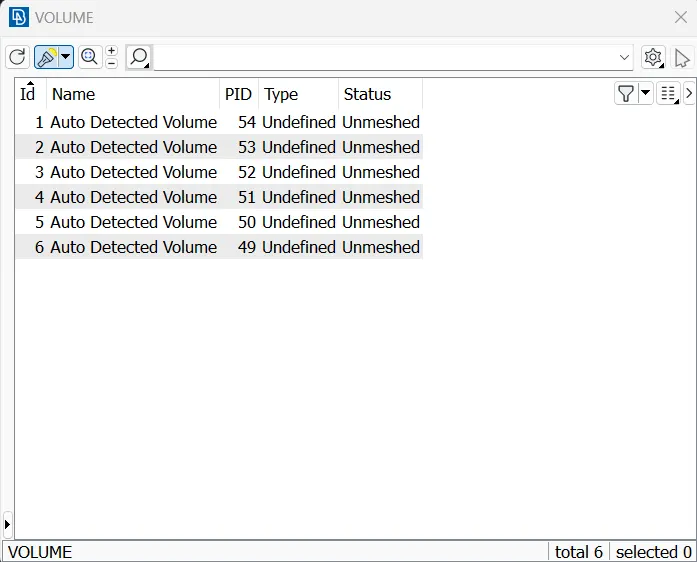

Since, volumetric mesh takes time, it is not performed.
