Week 4 Challenge

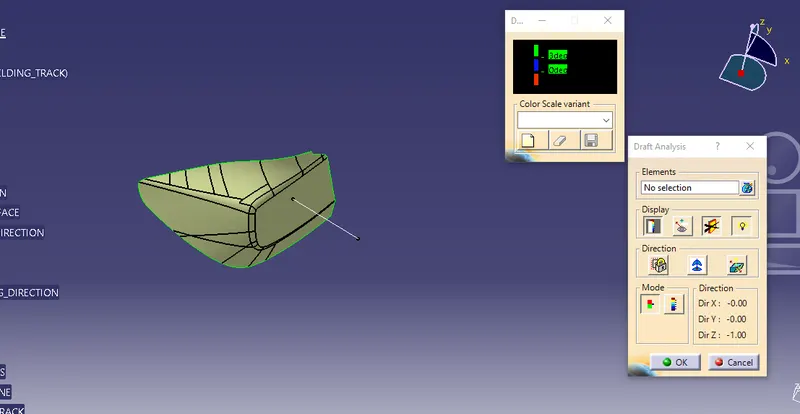

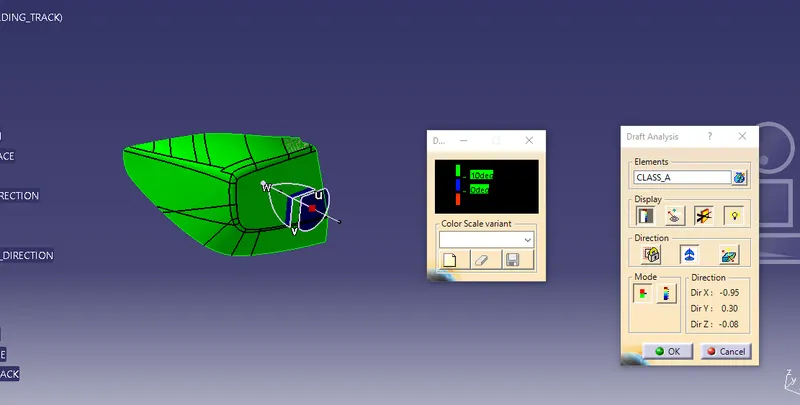

DRAFT ANALYSIS REPORT

3.PARTING LINE:

When designing core and cavity for the molding process, it is decided that which areas of the part will be in the core part and in the cavity part. there will be a specific line that splits the surface area of the object into 2 segments. This line is commonly known as parting line. Usually parting line is incorporated along the edges of the model.

4. Making of B surface for the lens Class A:

generative shape design workbench is used For this process. it has the tools necessary for making complexx surface geometries.

Part thickness= 4mm

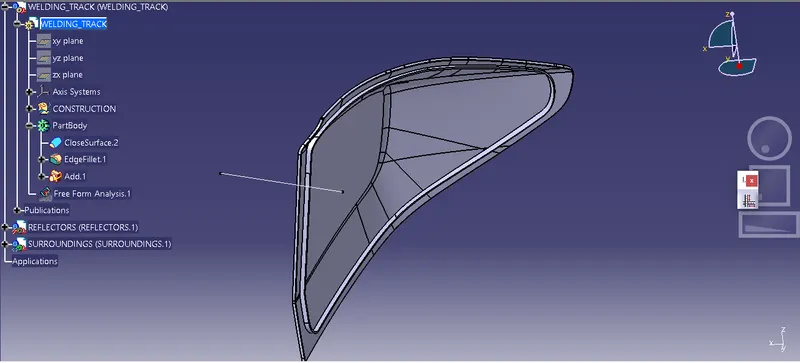

process starts by offseting the class A to -4mm. it generates the B surface.
