Week 8 - Challenge 2 - Base Bracket Design

A DETAILED REPORT ON TOOLING AXIS CREATION

AS THE BASE BRACKET HAD A LARGE FLAT SURFACE AND HOLES FROM THE Z DIRECTION I CHOOSE THE Z DIRECTION AS A TOOLING DIRECTION AND I USED THE BISECTING METHOD TO GET MY TOOLING AXIS

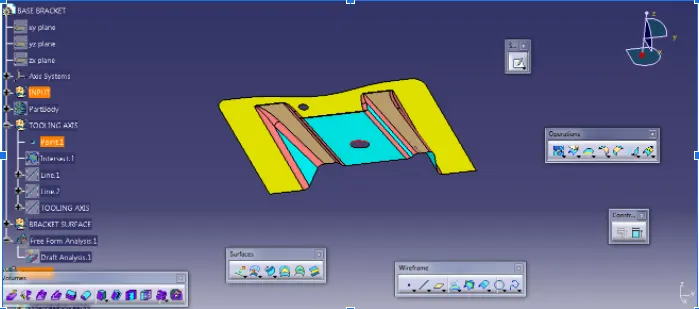

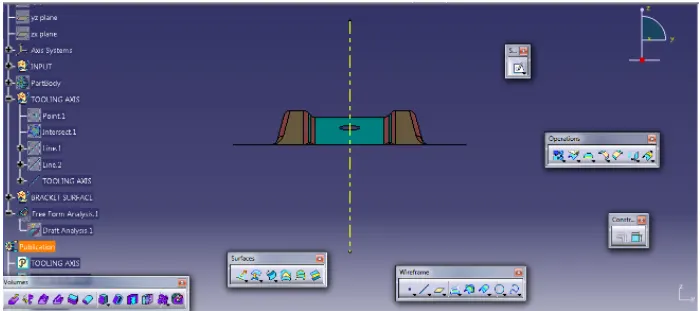

CREATION OF POINT ON THE HOLE TO GET THE DUMMY TOOLING AXIS

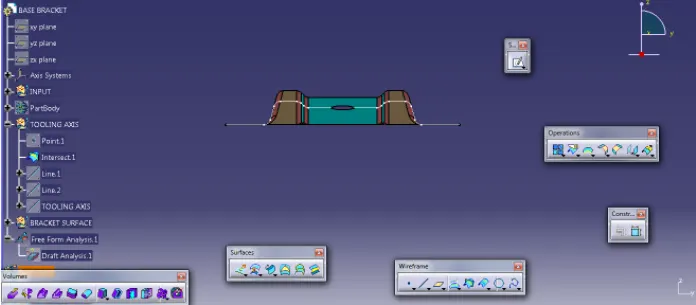

DONE A INTERSECT OPERATION ON THE Y DIRECTION WHICH HAD THE MAXIMUM DRAFT

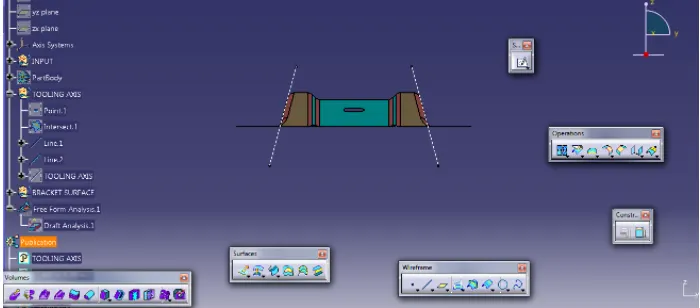

CREATION OF THE LINE ON THE MOST POSSIBLE DRAFT SIDE

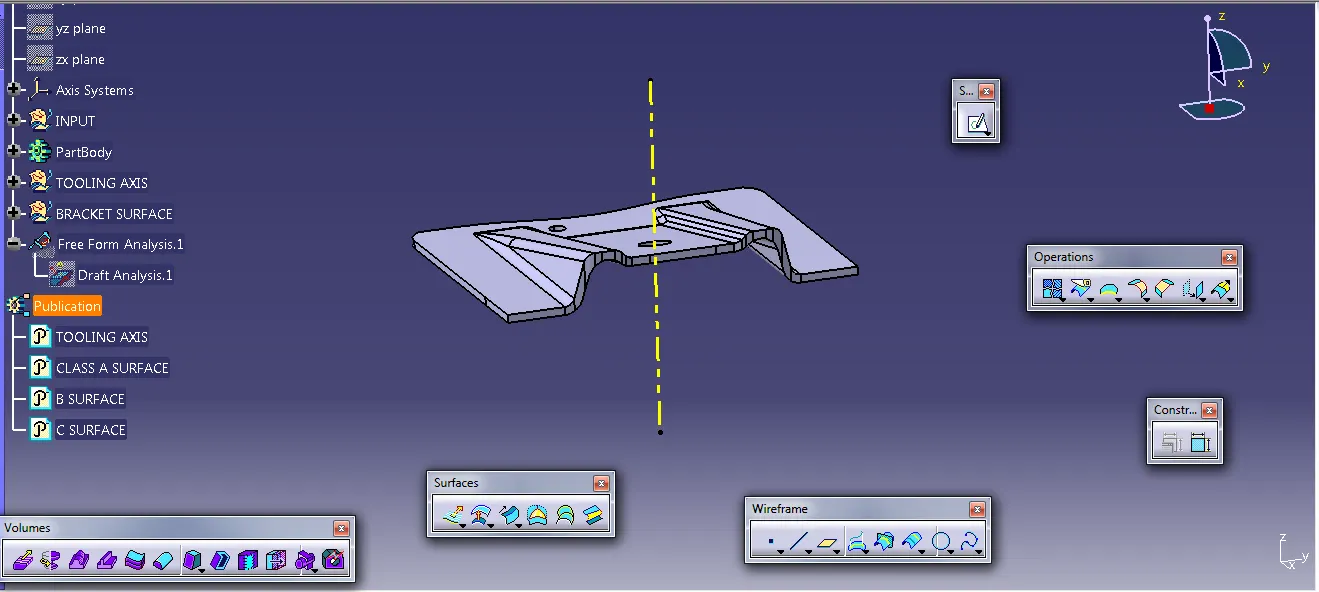

BISECTING THE TWO LINES WHICH HAS CREATED RESULTED IN THE TOOLING DIRECTION

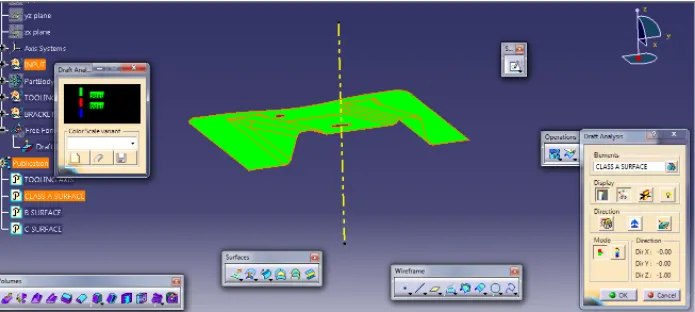

DRAFT ANALYSIS

THE COMPONENT HAS MAINTAINED WITH THE CONDITION OF 3 DEGREE

THE GREEN COLOUR OF THE SURFACE A INDICATES THAT IT IS IN A SAFE CONDITION

THE COMPASS HAS BEEN PLACED IN THE DIRECTION OF THE AXIS

THEN IT IS LOCKED

WE HAVE SELECTED THE OBJECT TO RUN THE DRAFT ANALYSIS

THE BLUE CONDITION SAYS THAT THE DRAFT IS BETWEEN 0 TO 2.9 DEGREE OF DRAFT

WHEREAS THE RED INDICATES IF DOESN’T SATISFY THE CONDITION OF DRAFT

IMAGES OF COMPLETE MODEL

THERE IS A RUNNING DRAFT TOOL WHICH ALLOWS TO CHECK THE DRAFT ON DYNAMIC POINT
