Week 4 Challenge

WEEK 4 CHALLENGE

1.The tooling direction is basically the direction that the mold pulls apart .

• The mold is built in two sepatare piece ,basically. You have a cavity side and you have the core side .The core pulls apart from the cavity and thats tha dyeline or the tooling direction

2. we have to create the tooling from class A 10 dergee draft

3. Parting line in industrial casting of molds is the bordrr line in which draft angle change direction

• one can check the parting line in the mold are product which devides the two half i.e the core and cavity of a molded parts
• In engineering drawing a parting line is often abbrivated as PL

4. We create a B surface of giving lens in surface model with 4mm

5. We create a parting line thickened line

6.REPORT

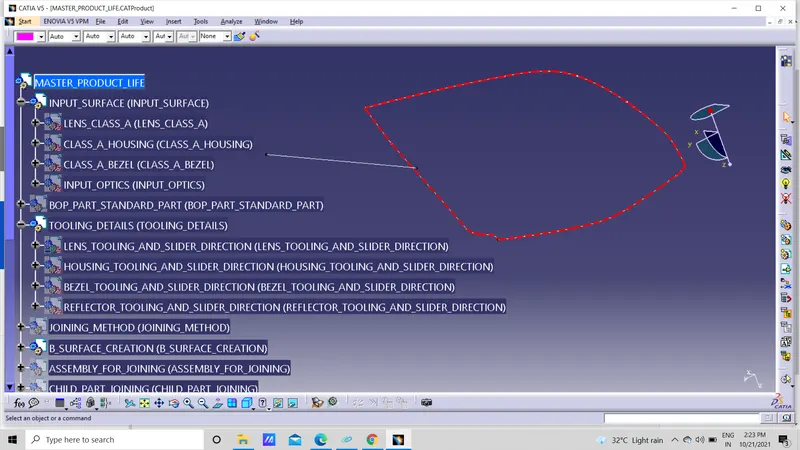

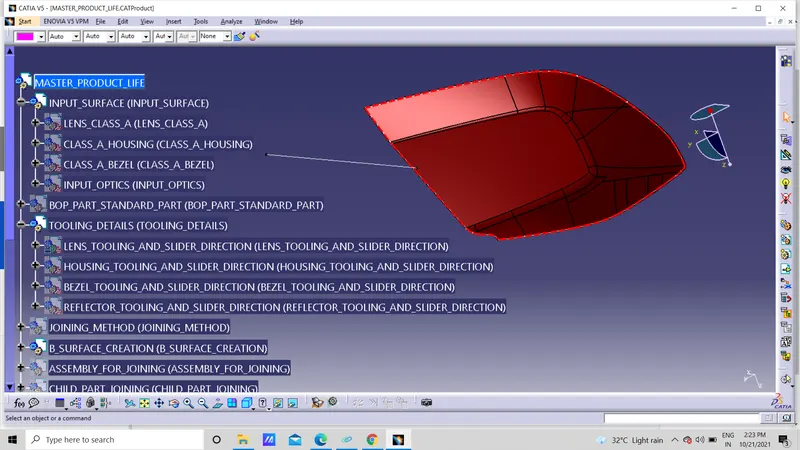

1. In this challenge we have to create a master product file after that we have to copy the cat part to the input surface < lens class A surface
2. Then to joining the surface by using the joining comand and publicatin it
3. Afterwords we have to copiying the file and to past the tooling details <lens tooling and slider direction and creati the name it like input
4. Then we creating the toling axis for the draft angle

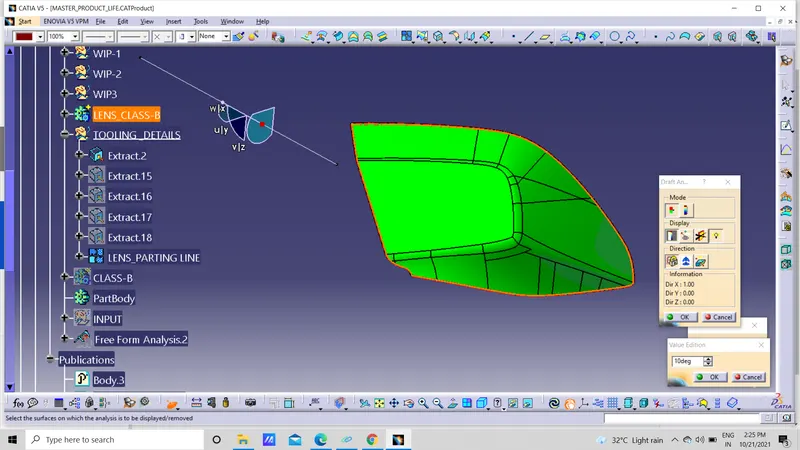

5. After completing the tooling direction we chang the mode to material and we can create the draft in this tooling direction with 10 degrees

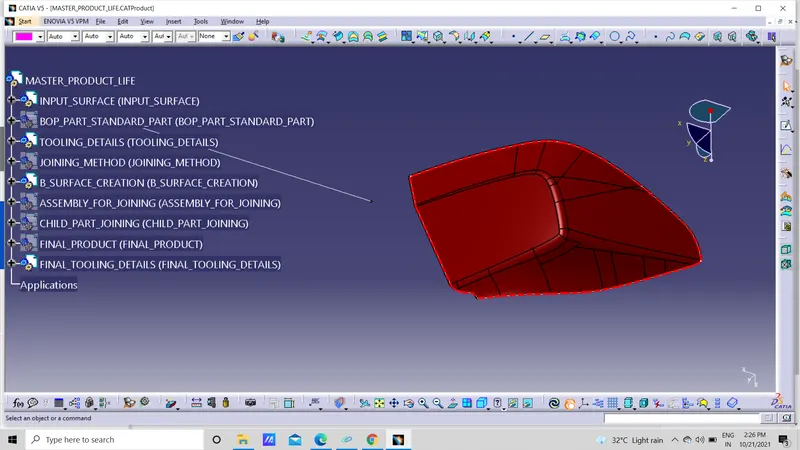

6. we can vreate a B surface by coping tha ,lens class A surface and past (past special) to the B surface tooling direction and we have to create he b surface by using offset and extract them and sweep and using blend command to create the cloosed body
7. finally we have to create the parting line oft the cloosed surface
8.

CONCLUSION

Finally we have to create like this .
