Week 4 Challenge

from the above information apply the loads to week 3 done

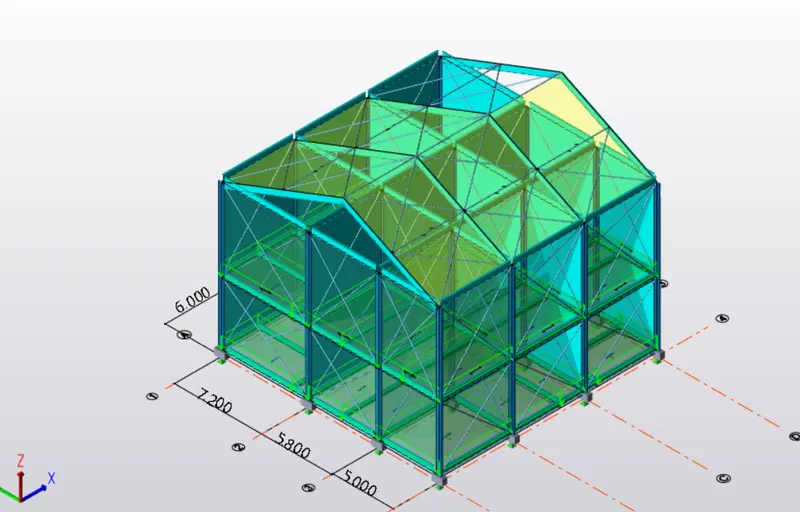

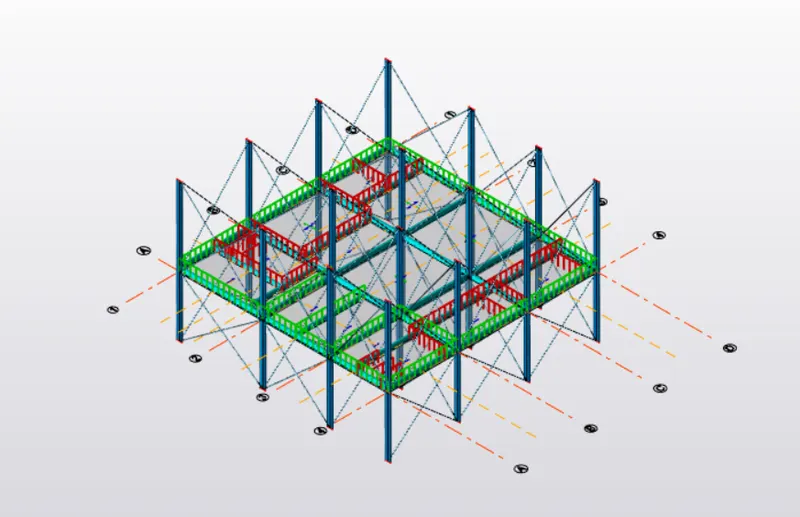

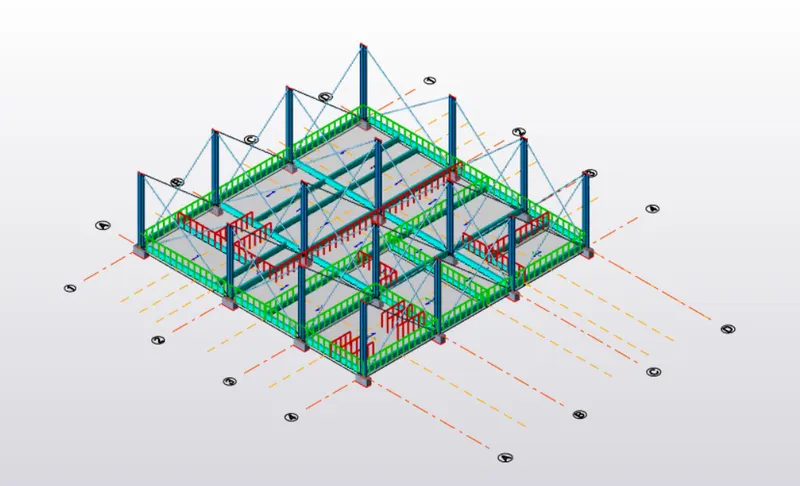

open the week 3 model

go loads

load cases ( add the loads over there )

combine loads as well

after that at bottom left there is tool bar option none is avaible, replace it as dead or some other which is required

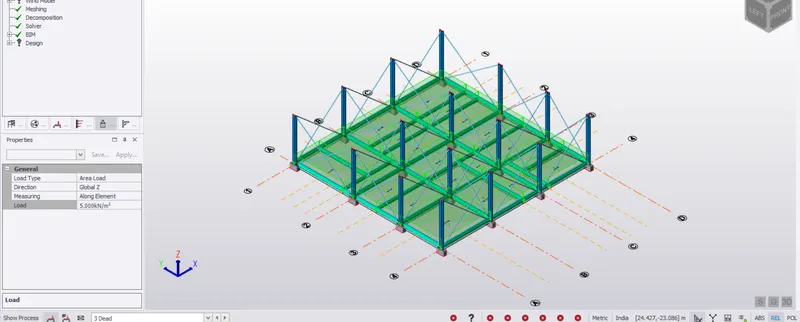

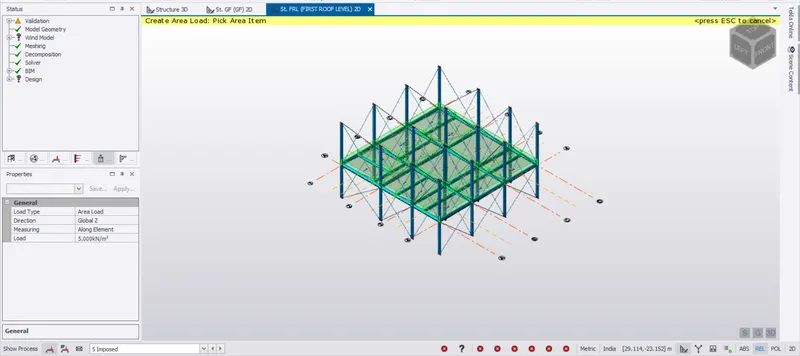

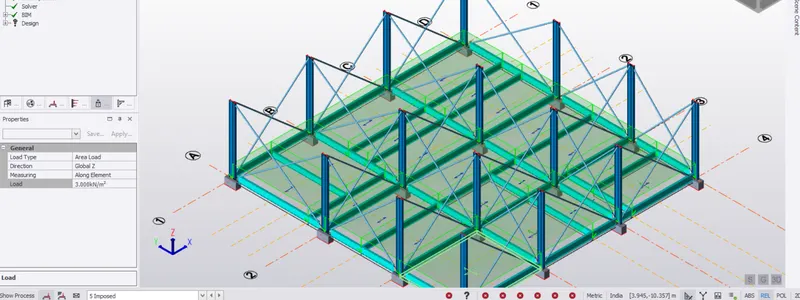

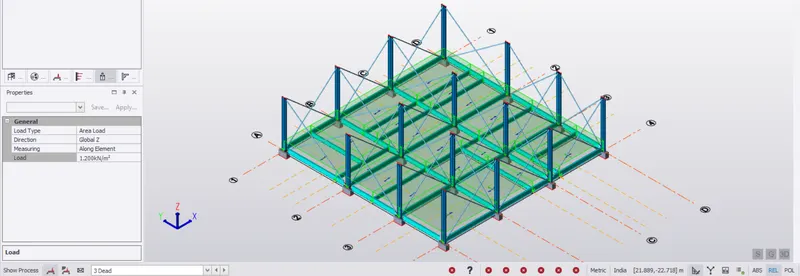

after that select the either the udl or line or area according to assuctions

before applying enter the value of KN

WALL LOAD

UDL AND LINE LOAD

LIVE LOAD OF MACHINARY

MACHINARY LOAD

FLOOR LOAD

LOADS

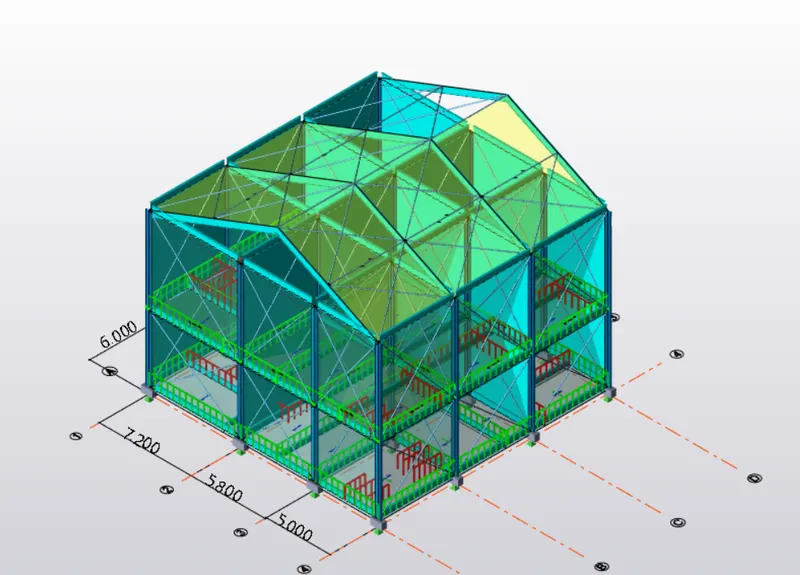

ROOF LOAD

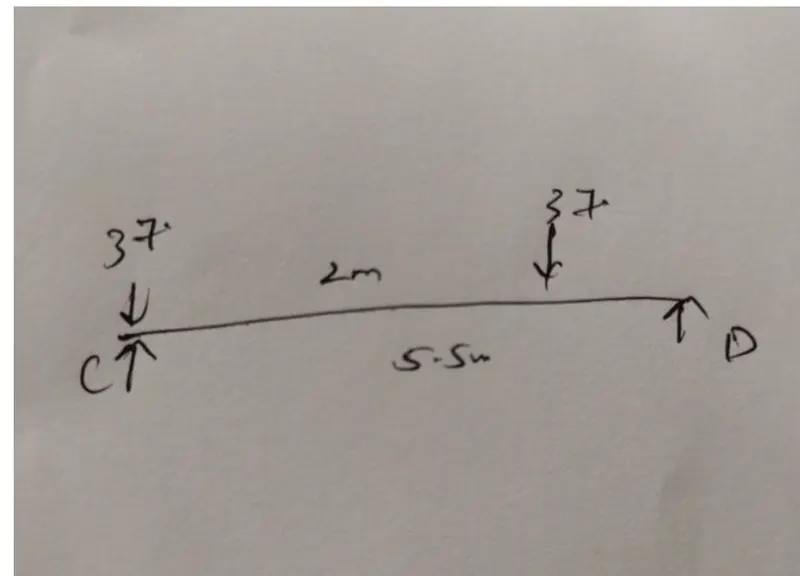

3)

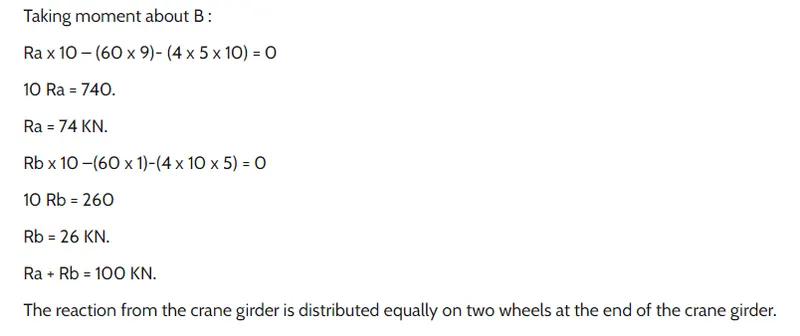

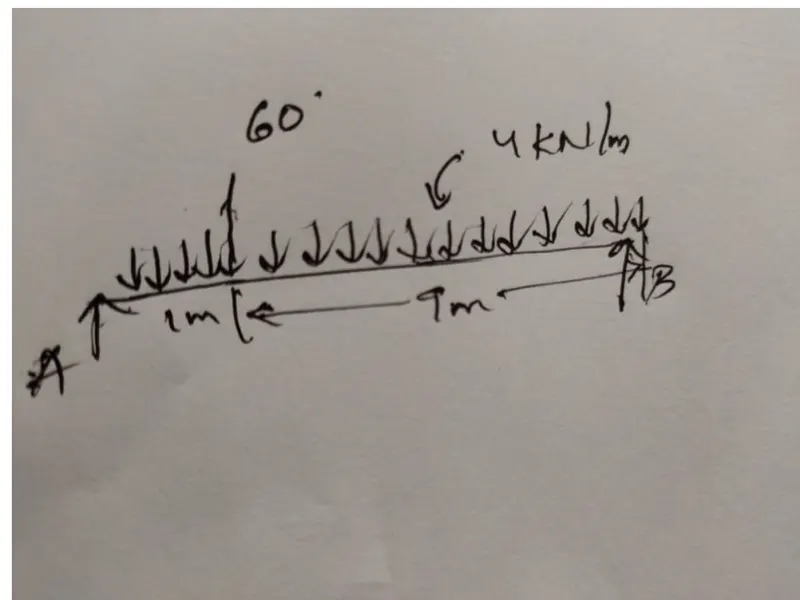

MAX LOAD = 60KN

UDL = 40/10=4KN

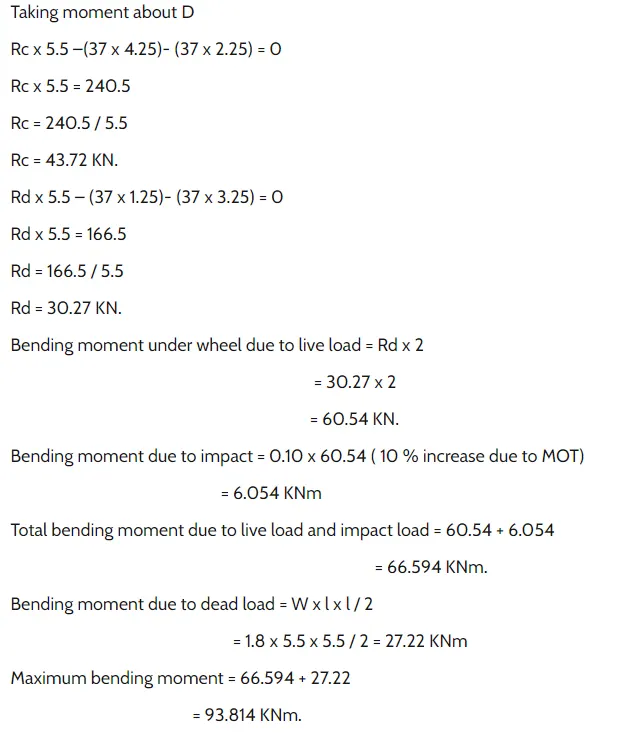

Max Bending Moment

self weight =1.5KN/m
