Week 4 Challenge

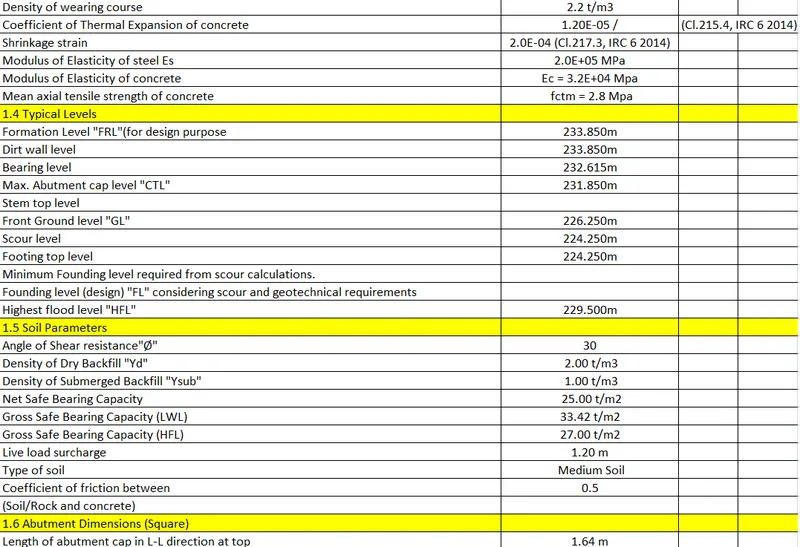

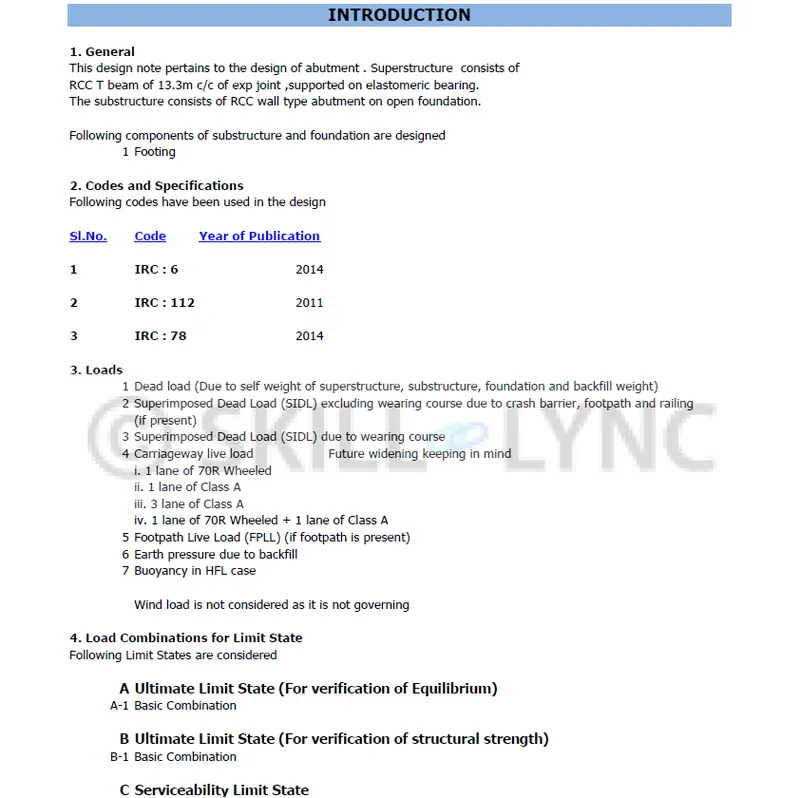

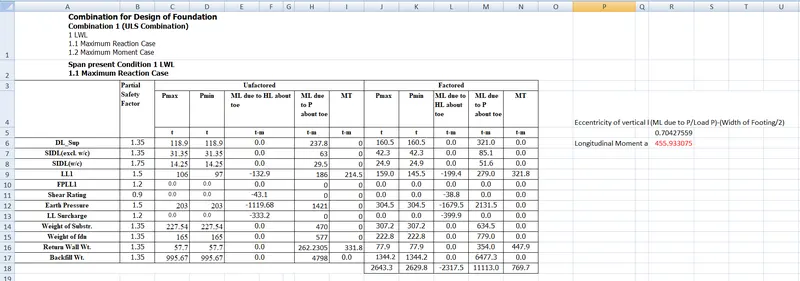

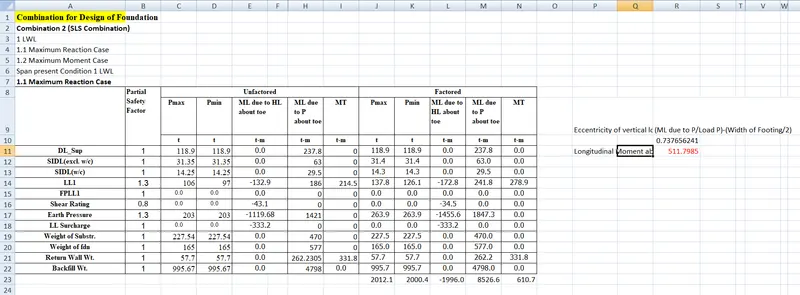

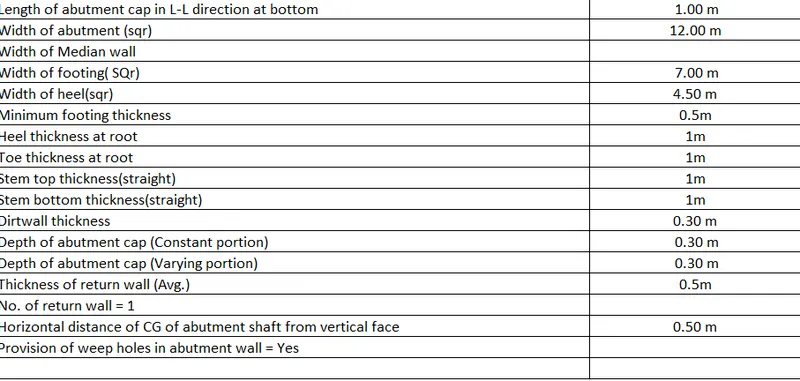

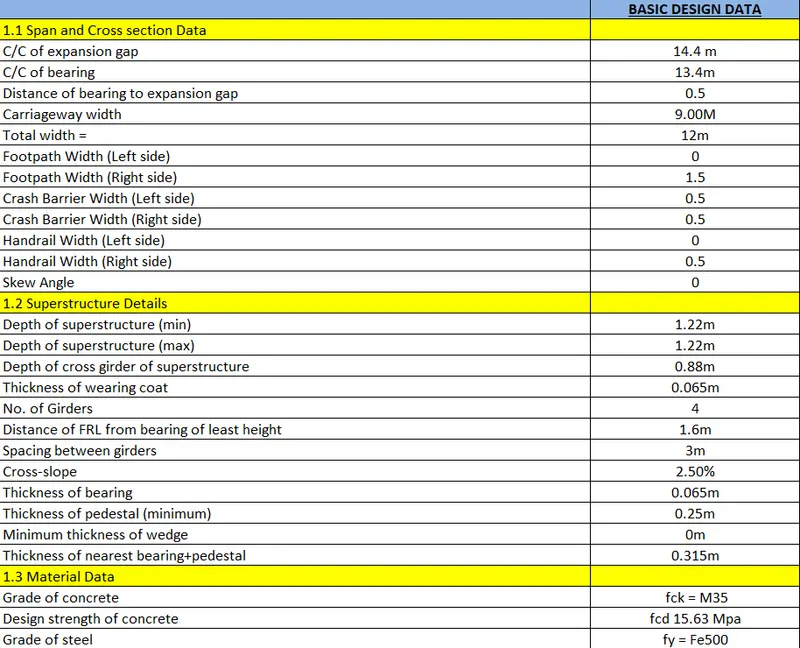

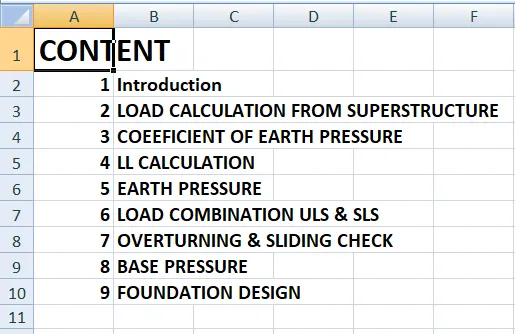

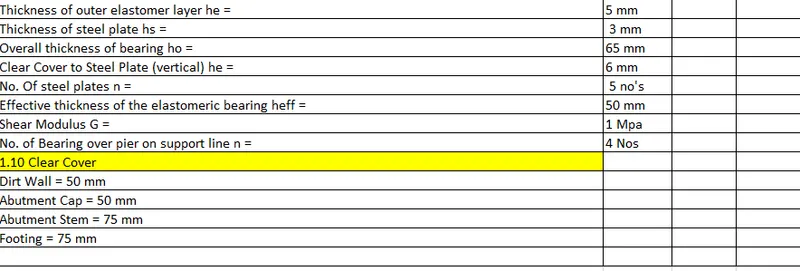

BASIC DESIGN DATA

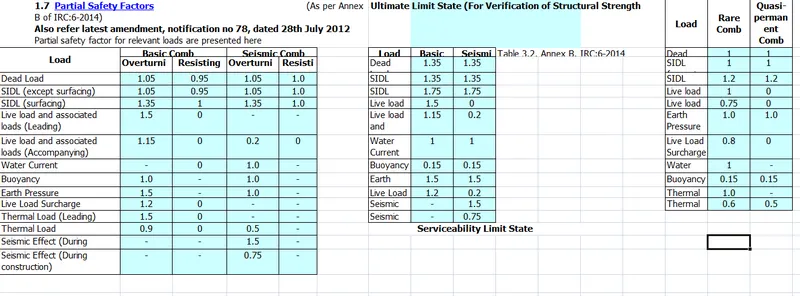

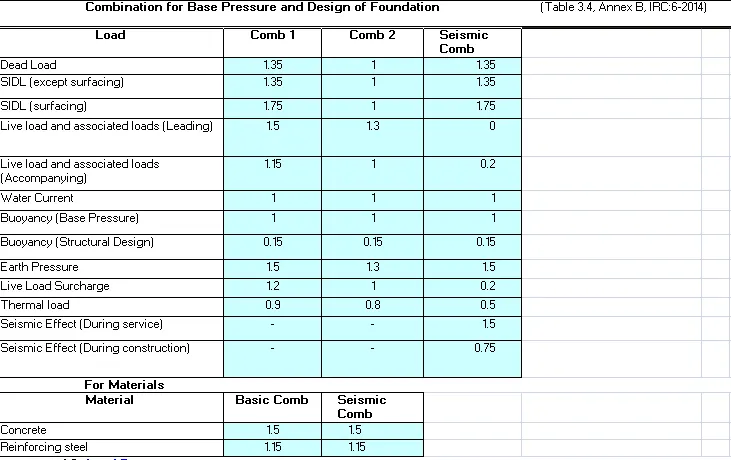

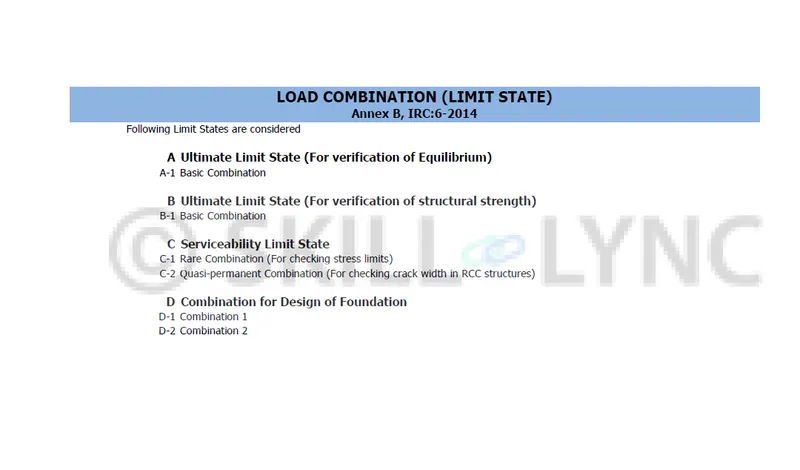

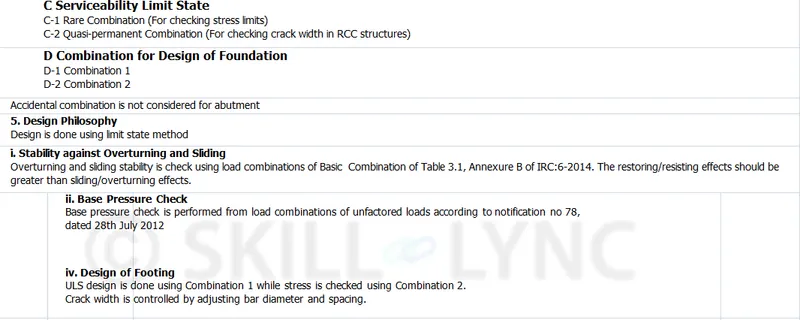

PARTIAL SAFETY FACTORS

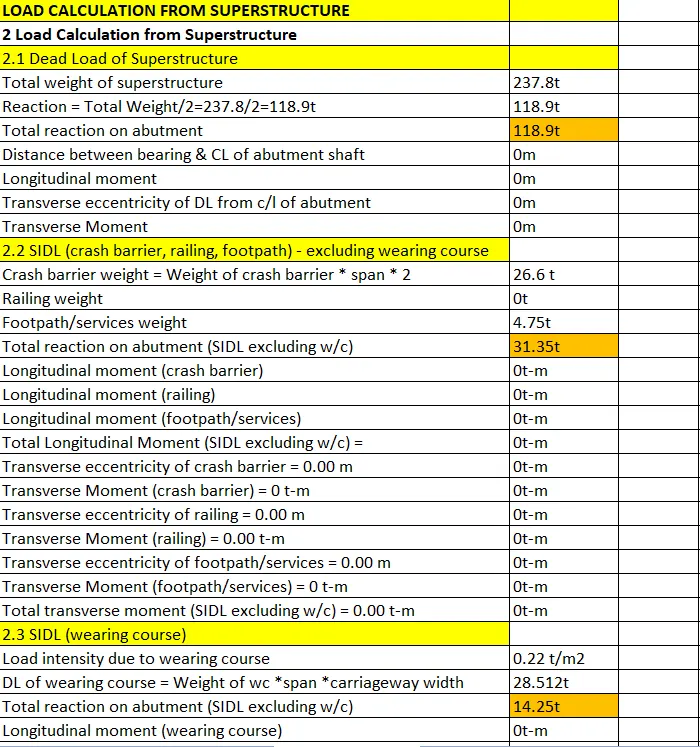

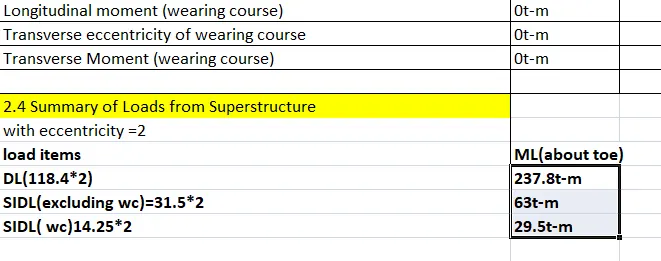

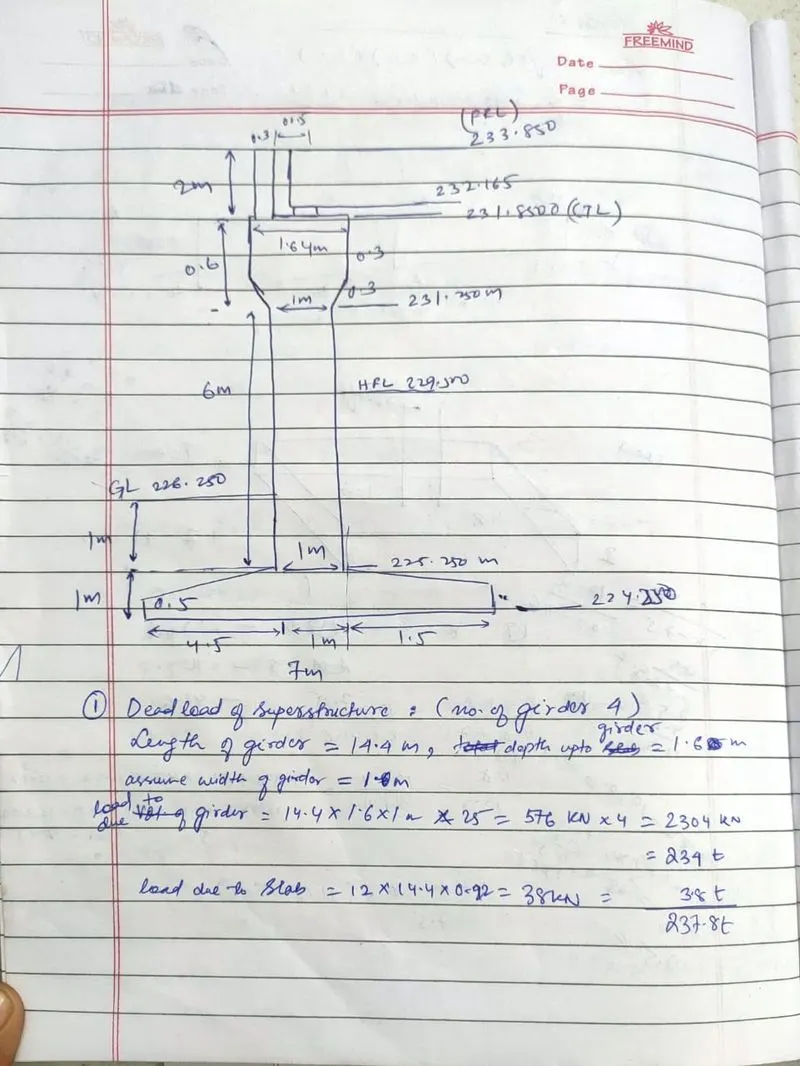

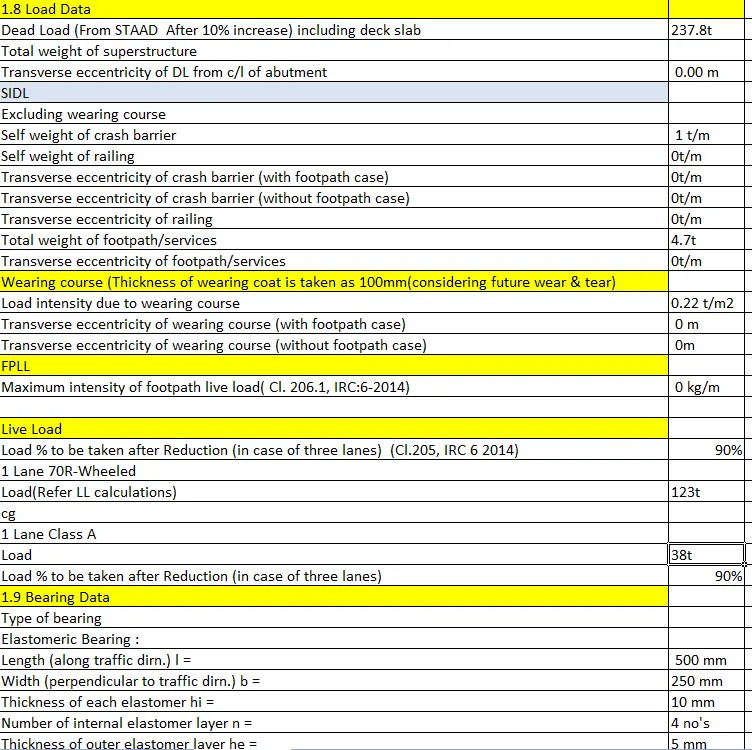

LOAD CALCULATION FROM SUPERSTRUCTURE

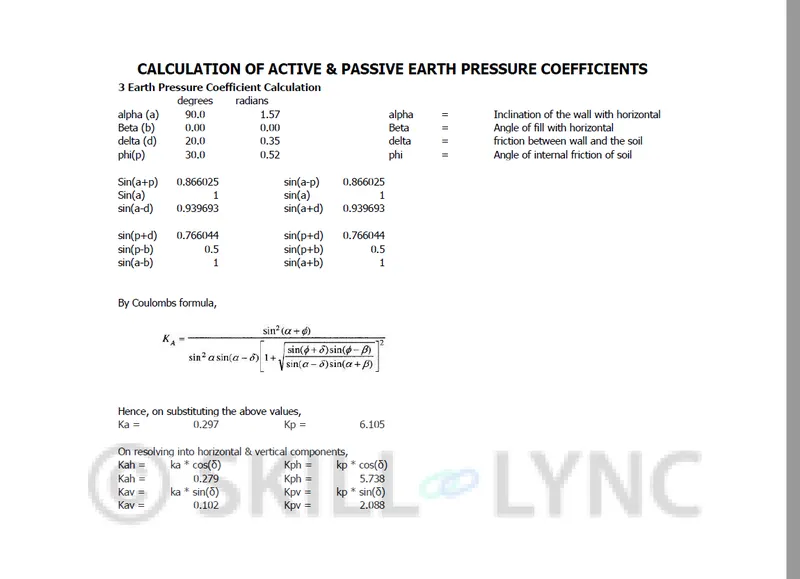

COEFFICIENTS OF EARTH PRESSURE

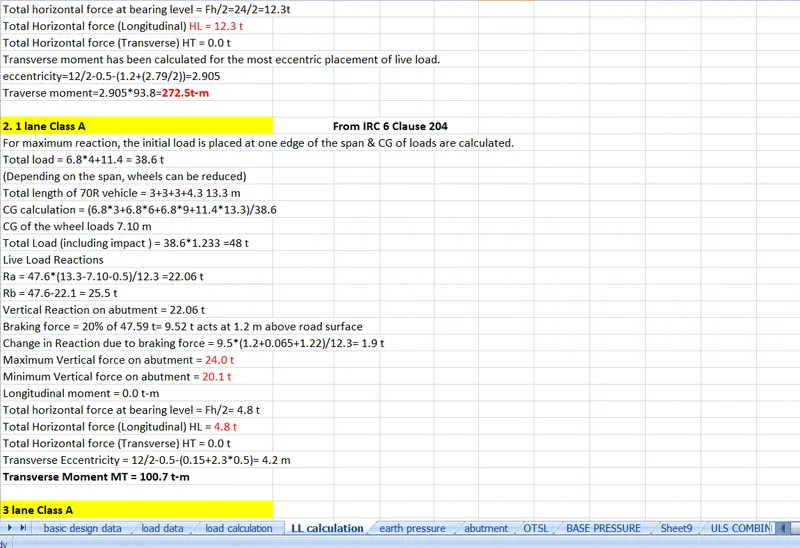

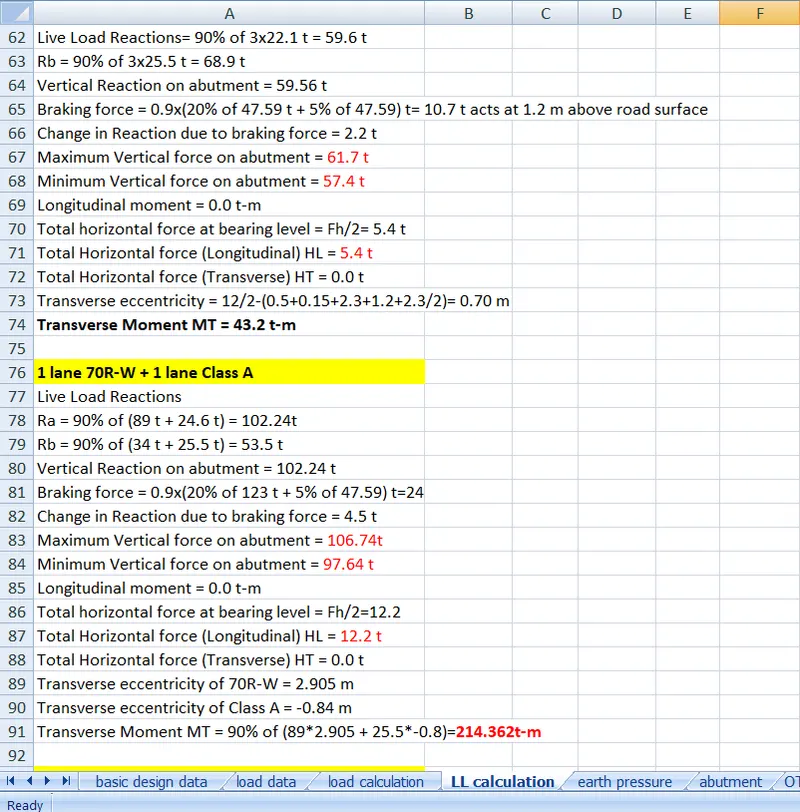

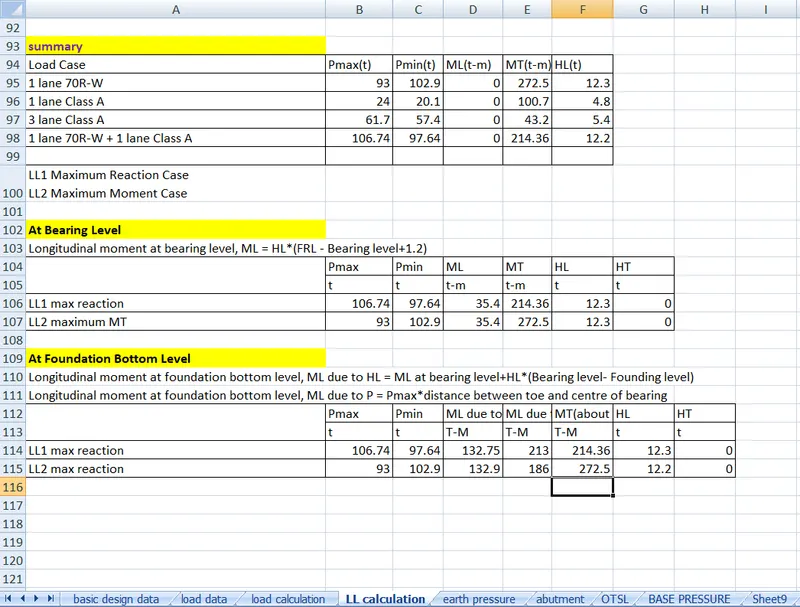

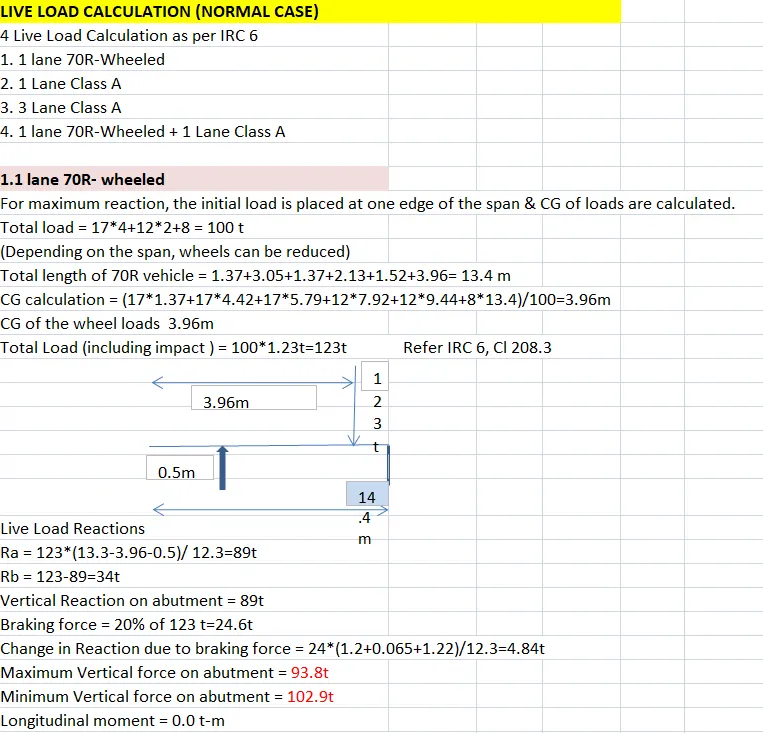

LIVE LOAD CALCULATION

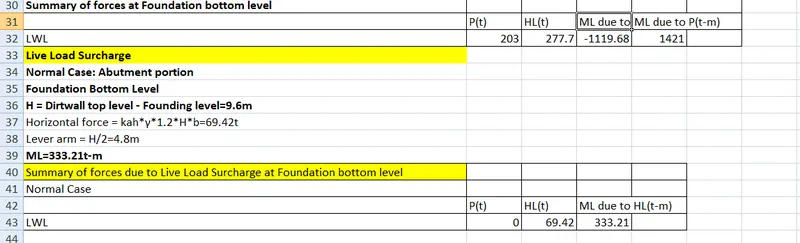

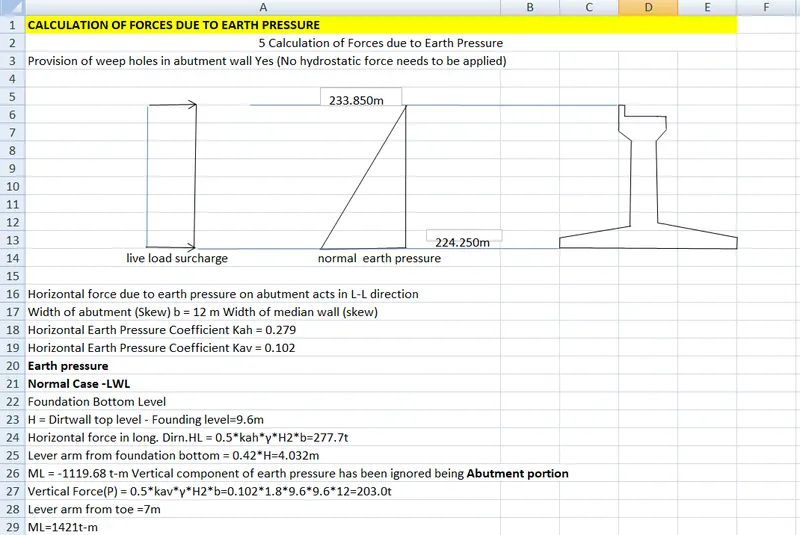

EARTH PRESSURE CALCULATION

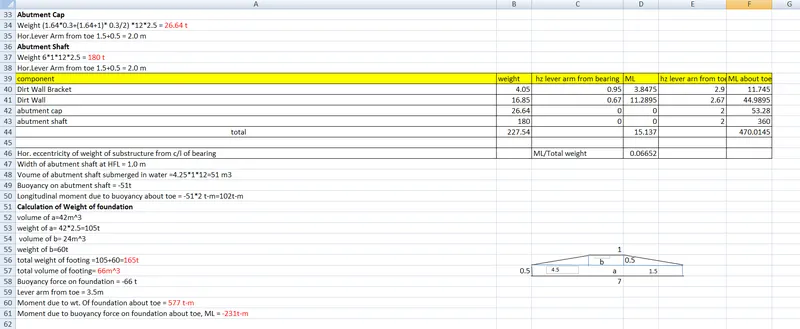

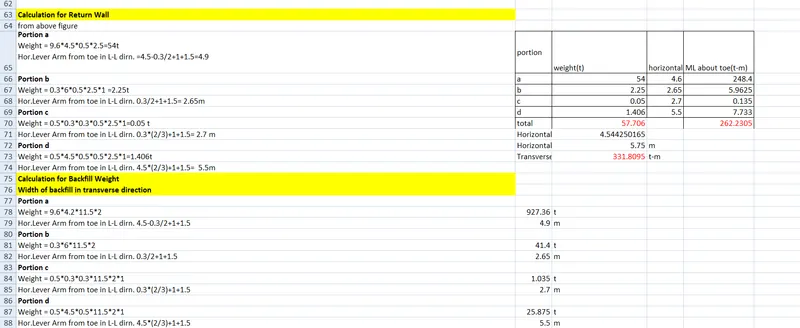

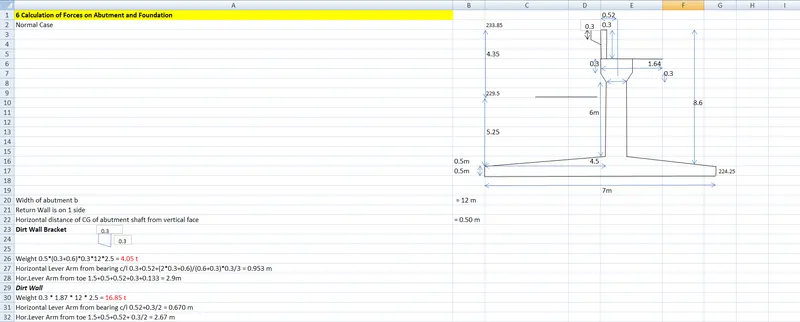

ABUTMENT CALCULATION

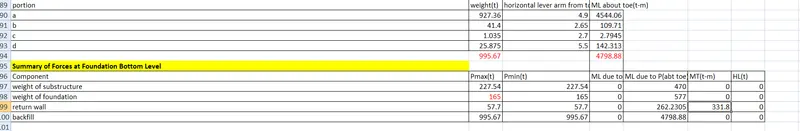

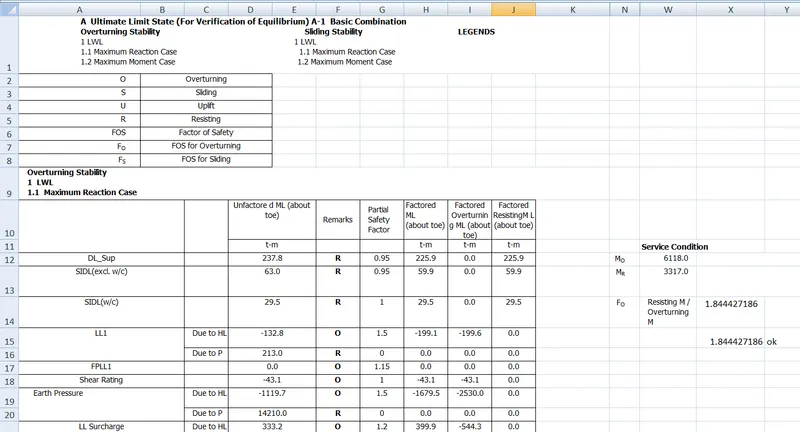

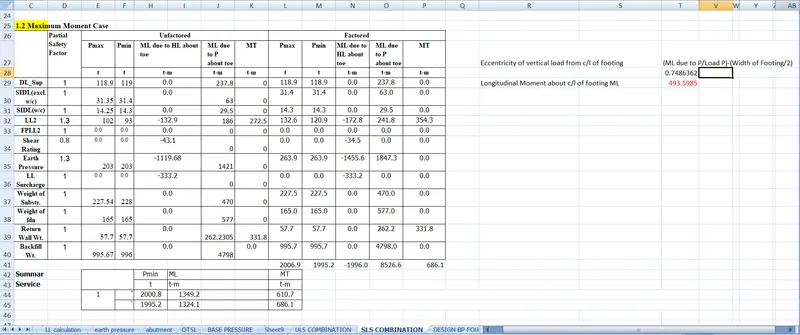

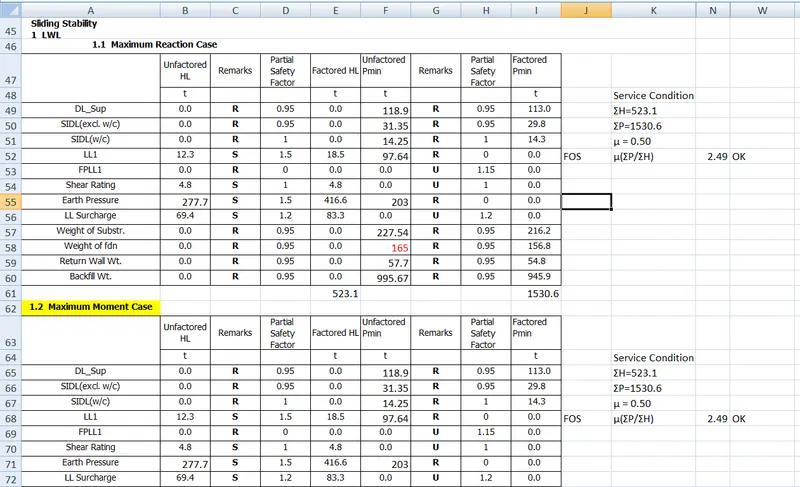

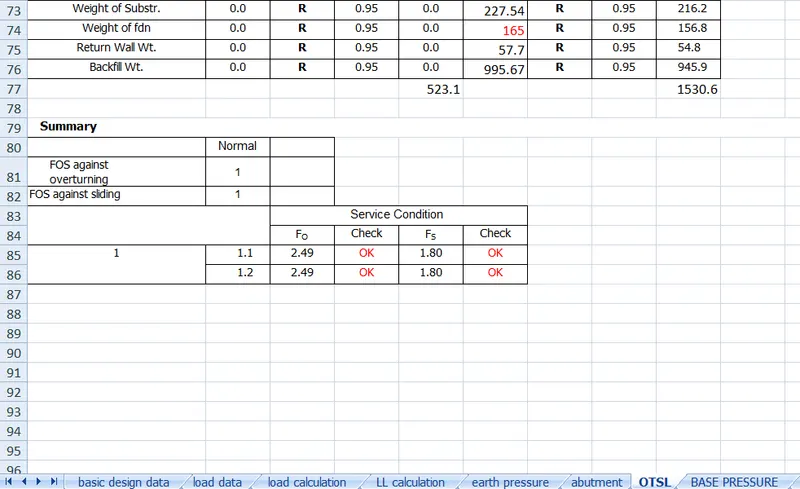

OVERTURNING & SLIDING CHECK

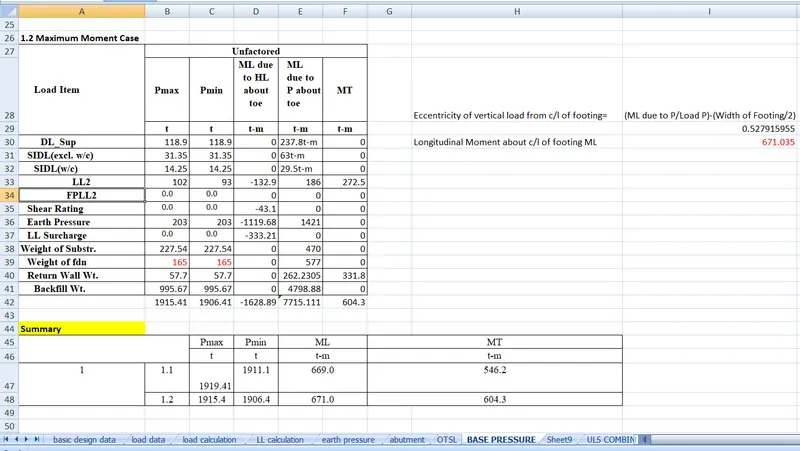

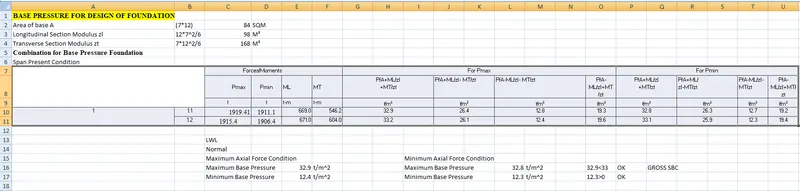

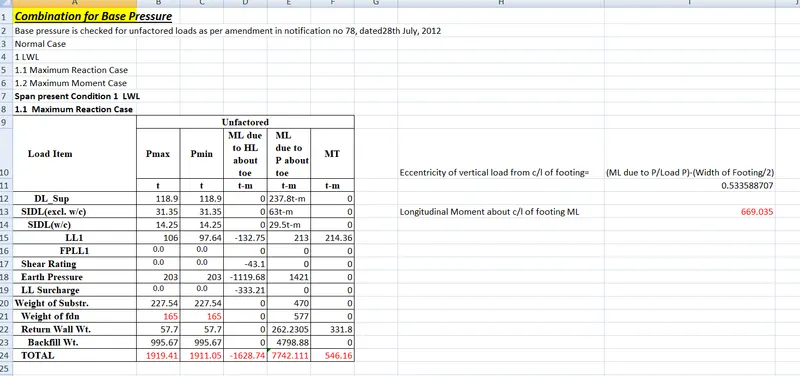

BASE PRESSURE CHECK

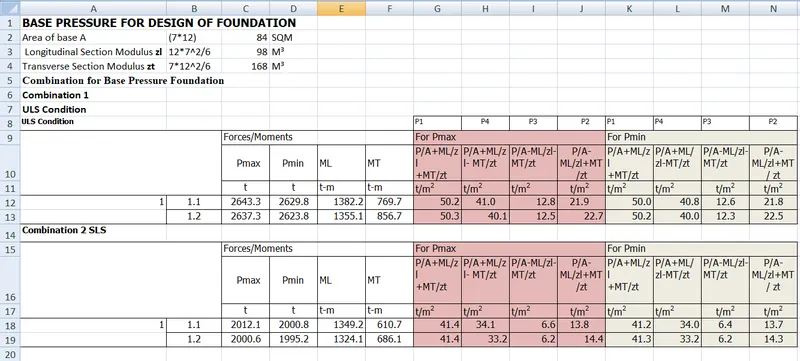

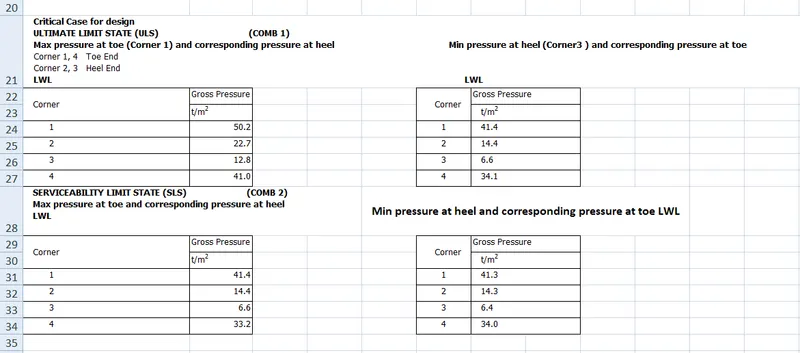

BASE PRESSURE FOR DESIGN

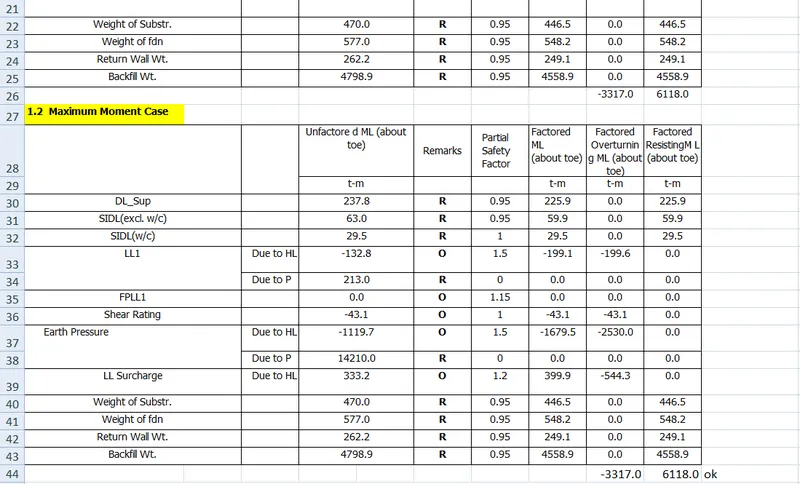

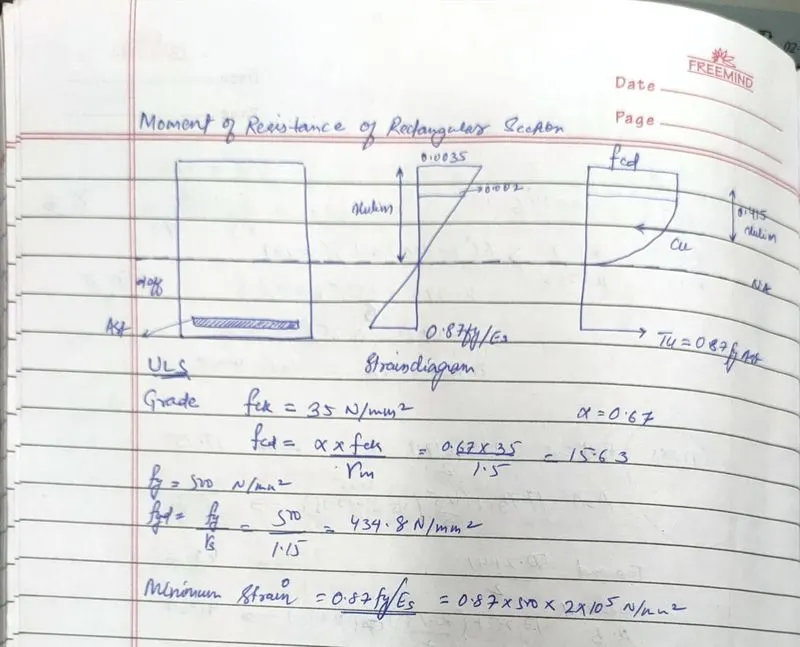

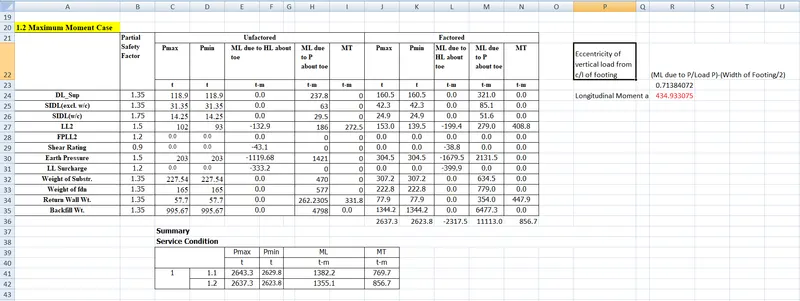

MOMENT OF RESISTANT CALCULATION

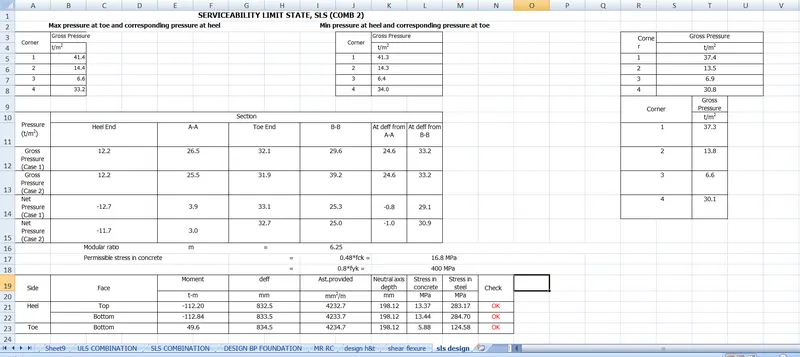

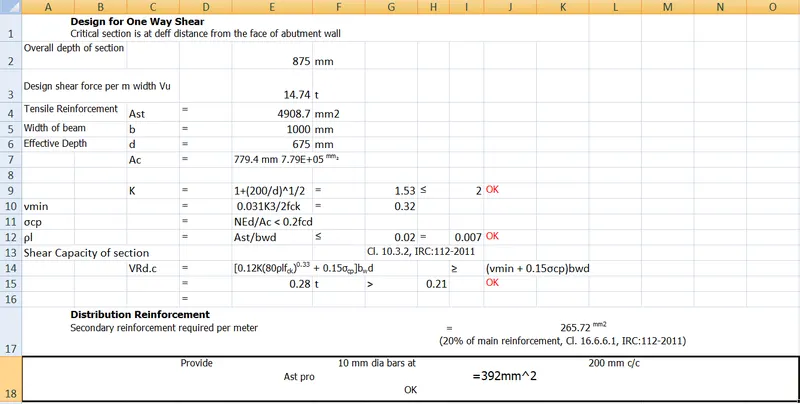

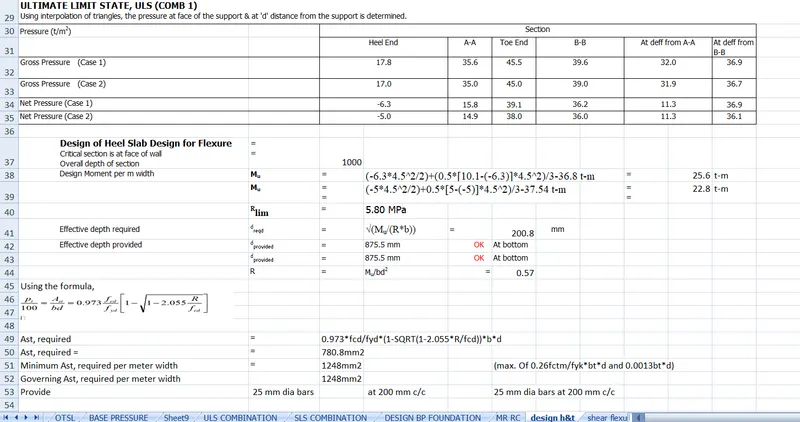

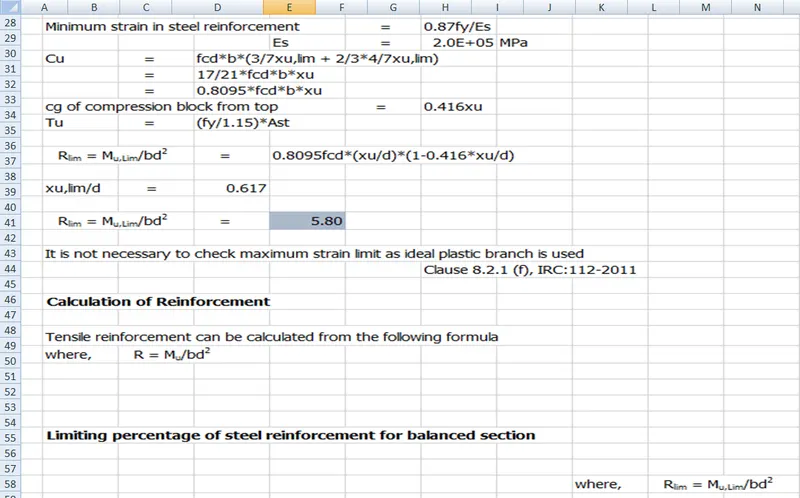

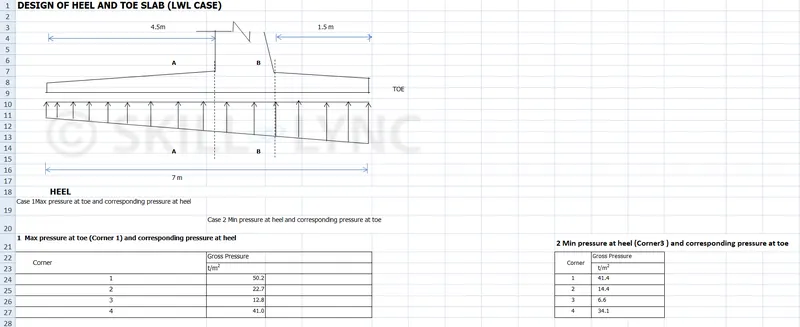

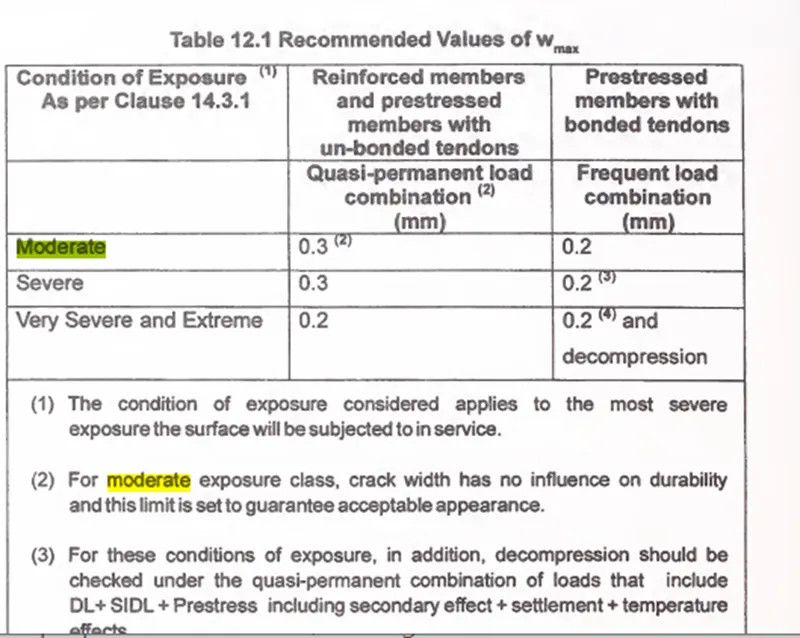

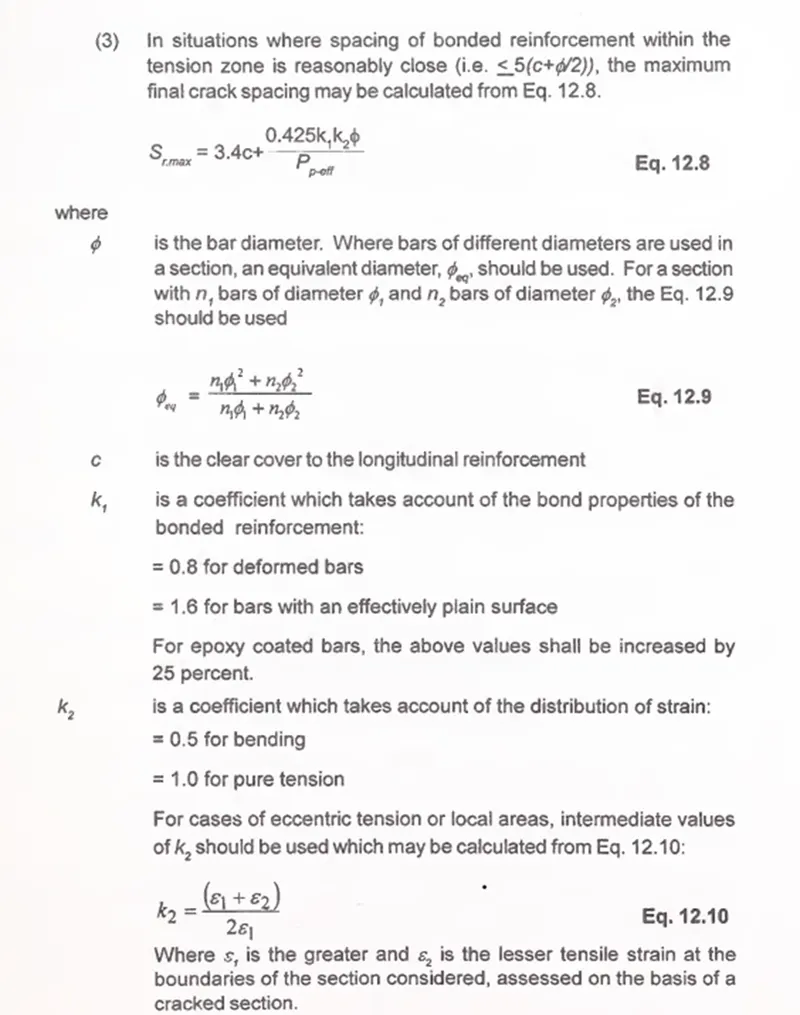

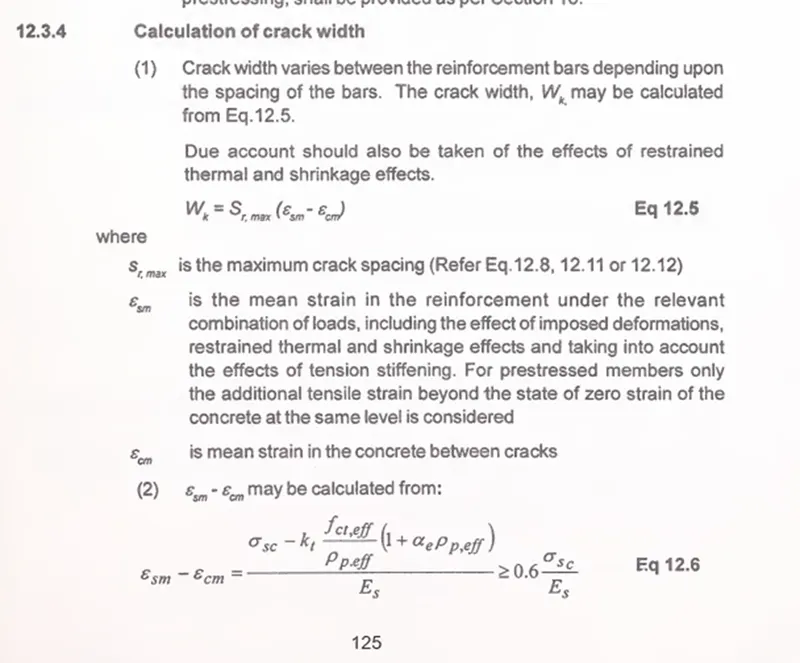

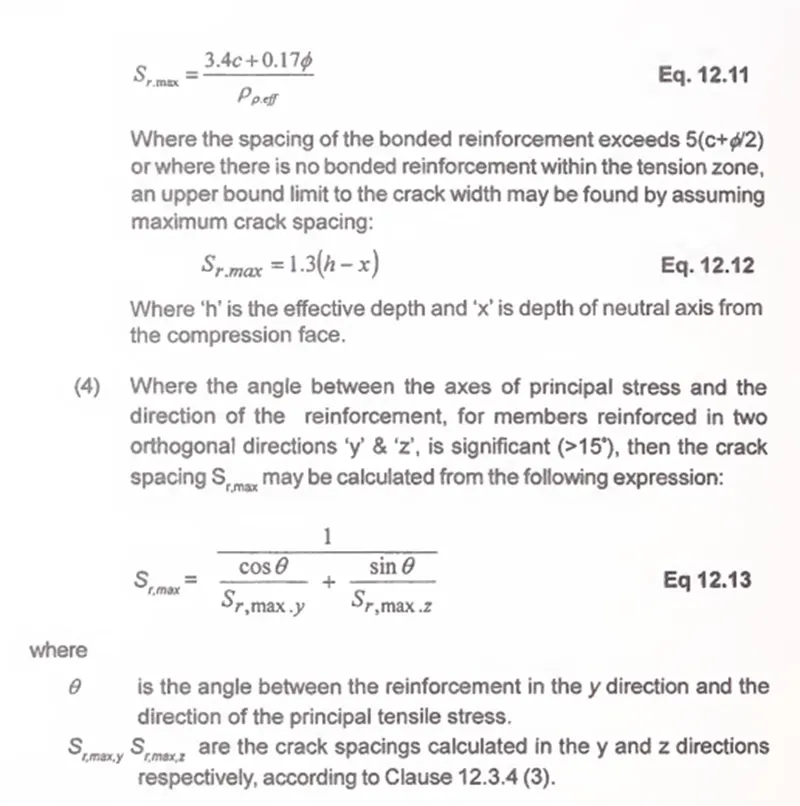

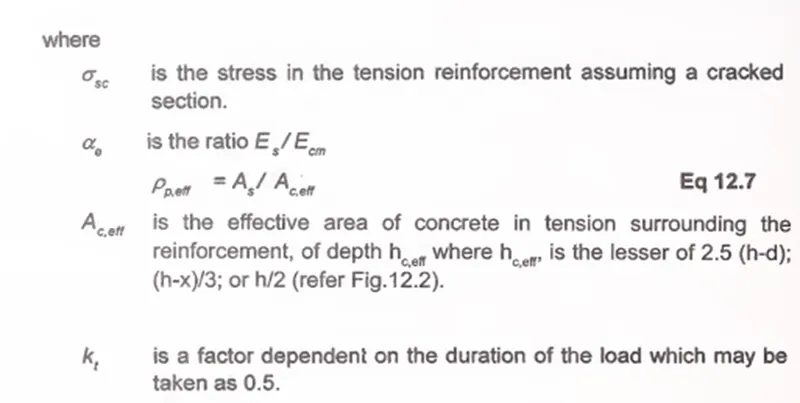

DESIGN OF TOE AND HEEL

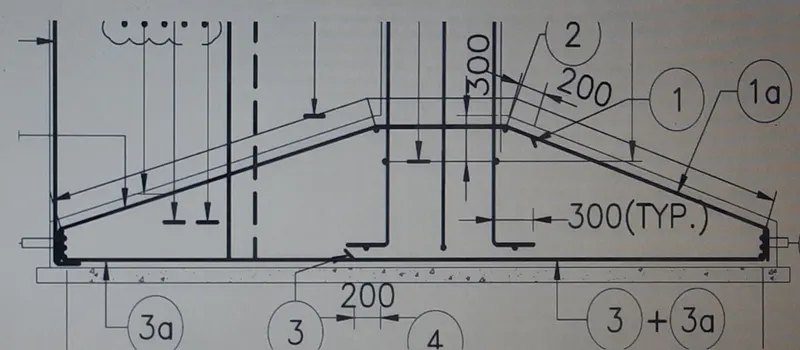

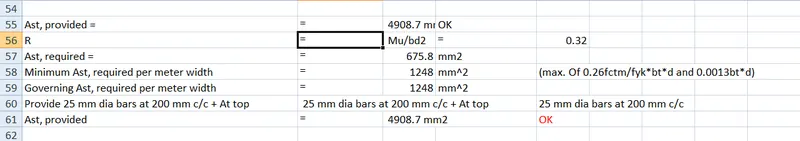

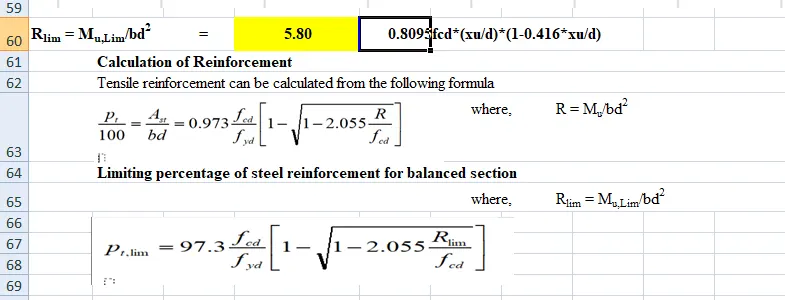

2. Detail the steel in shallow foundation for abutment.
Ans.
| Reinforcement summary for foundation | ||||||
| Face | Dia mm | Spacing mm | Dia mm | Spacing mm | ||
| Heel slab | Bottom | 25 | 200 | |||
| Top | 25 | 200 | + | 25 | 200 | |
| Toe slab | Bottom | 25 | 200 | + | 25 | 200 |
| Top | 25 | 200 | ||||
| Distribution | 10 | 20 | ||||

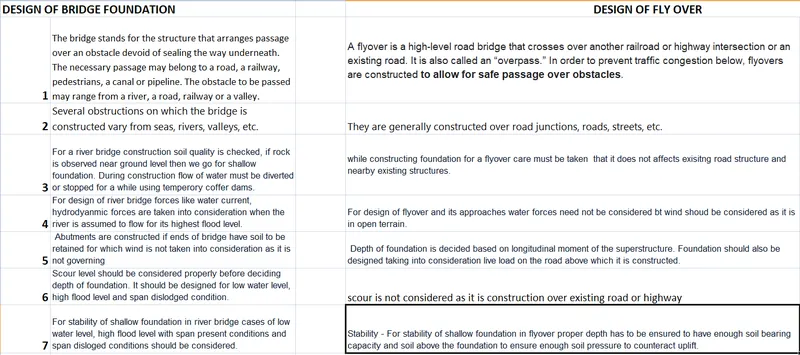

3) How a shallow foundation in terms of stability,designing,construction different in flyover and in river bridge?
ans-:
