Week - 4

Ques-1

sol-1

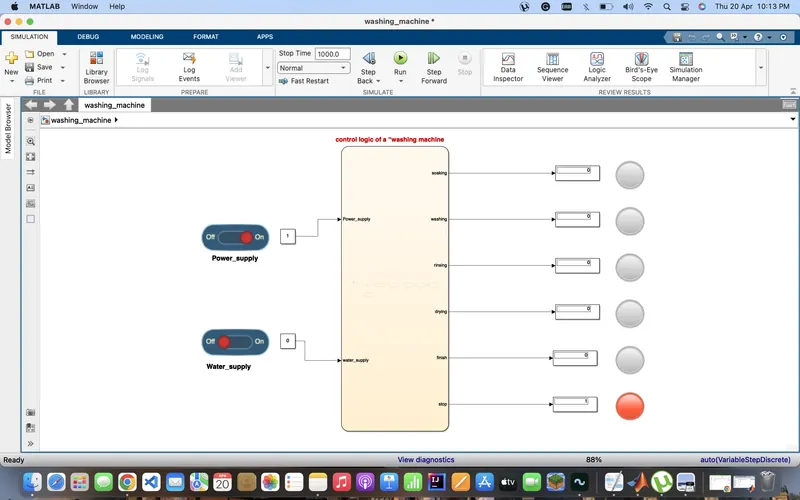

When power supply and water supply are not available system will be in the deactivated state:-

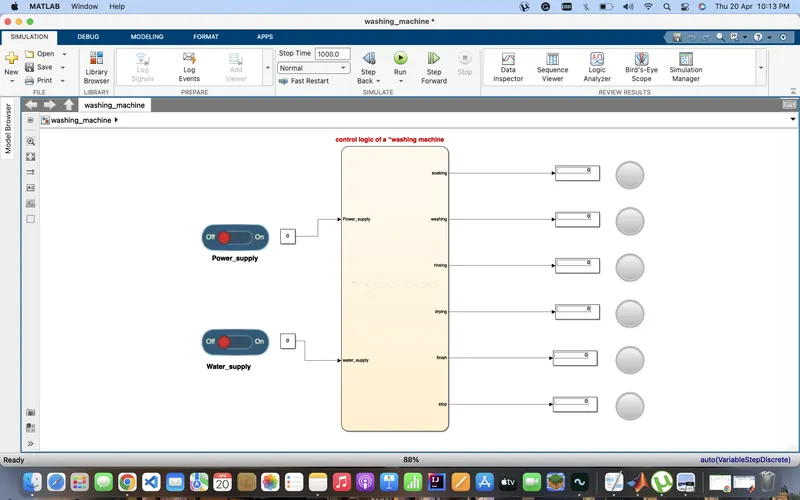

When the power supply is available but water supply is not available:-

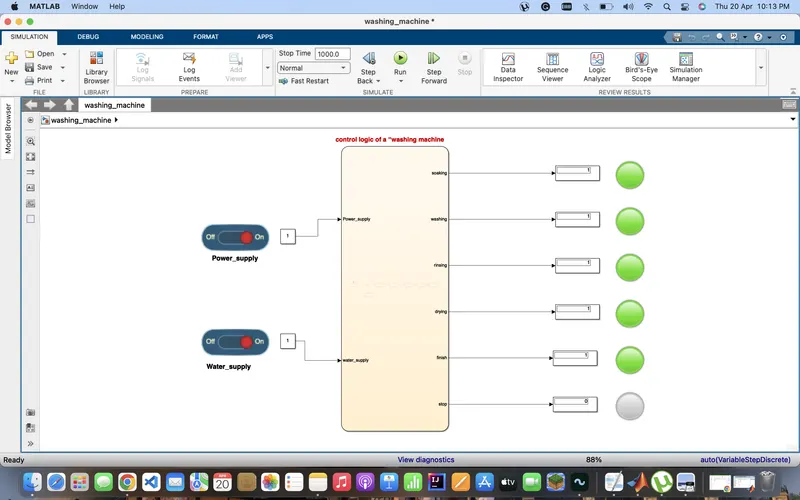

When the power supply and water supply both are available system gets activated:-

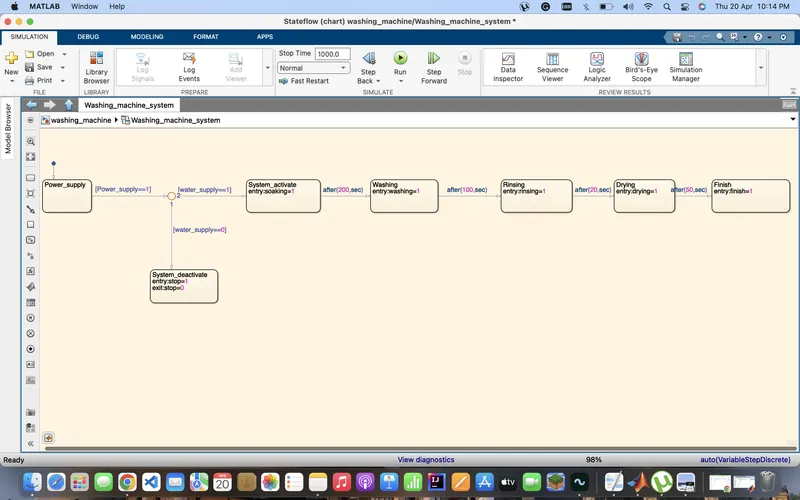

The control logic of a “washing machine” using Stateflow

When the power supply is available but the water supply is not available:-

Ques-2

sol-2

Speed Range(kmph) Gear

0 to 15 1

16 to 25 2

26 to 40 3

41 to 60 4

Above 61 5

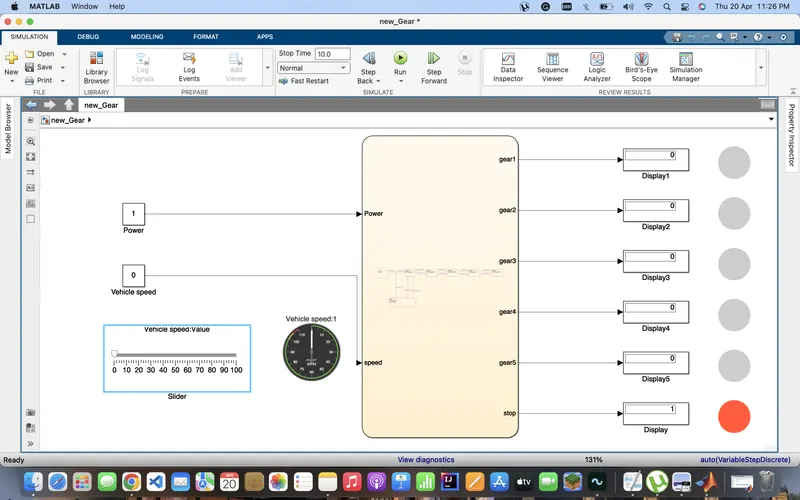

When speed is 0 , vehicle is in the stop state

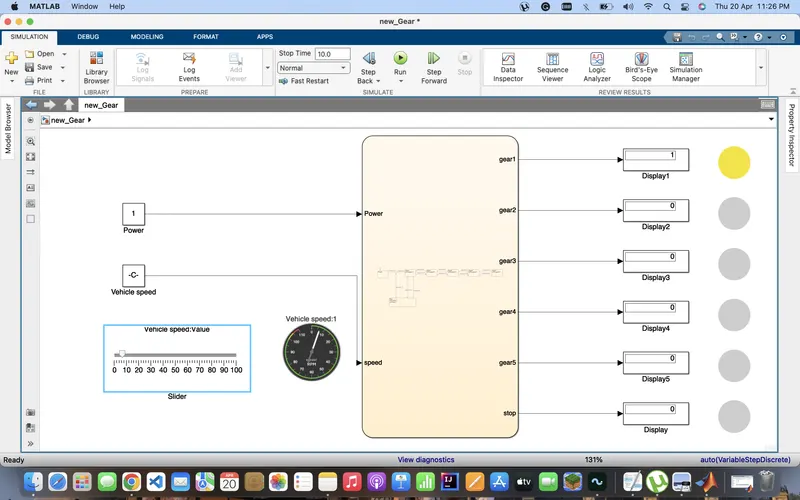

Gear1- When vehicle speed range is 0-15

Gear2- When vehicle speed range is 16-25

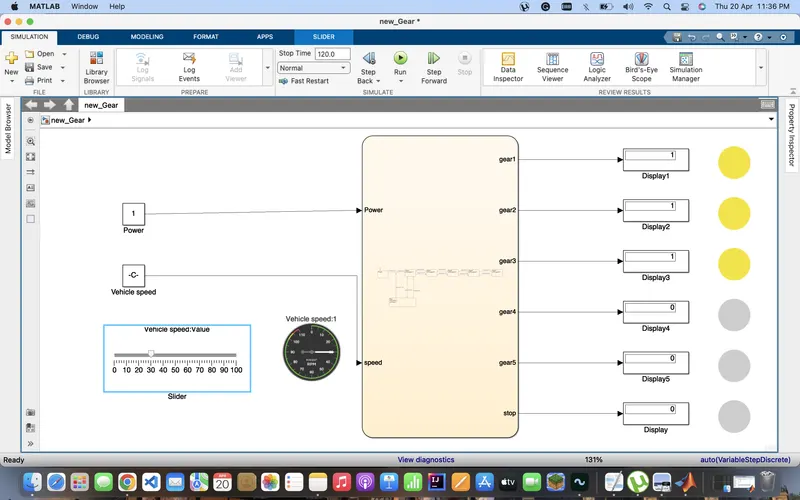

Gear3- When vehicle speed range is 26-40

Gear4- When vehicle speed range is 41-60

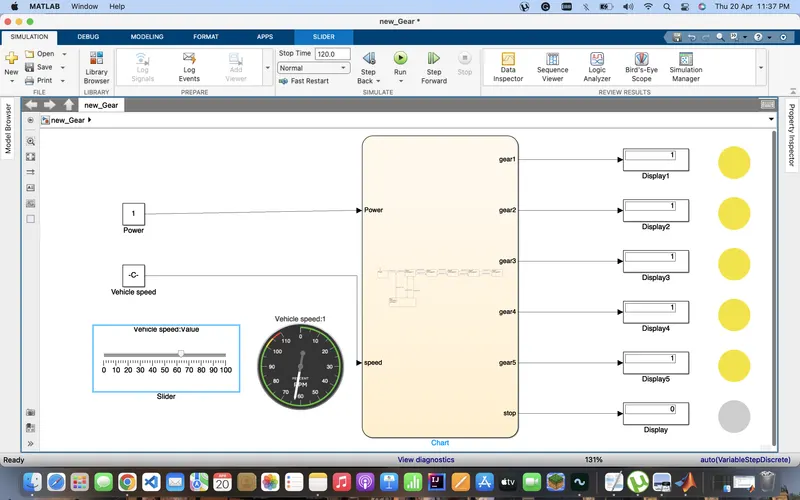

Gear5- When the vehicle speed is above 61

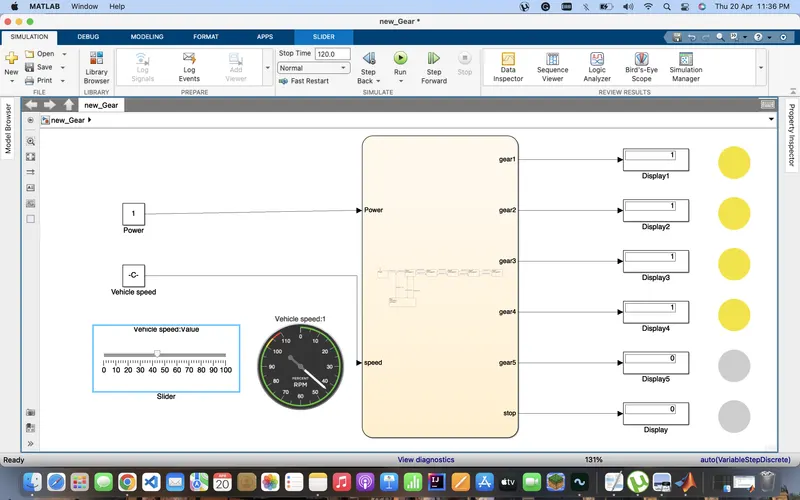

Simulink chart for the “Gear shift” logic
