CHALLENGE - 1 : Implement Control Logic of a Washing Machine using State Flow.

Module contain Constant Block, Chart Block, Rocker Switch Block, Lamp Block & Display Block.

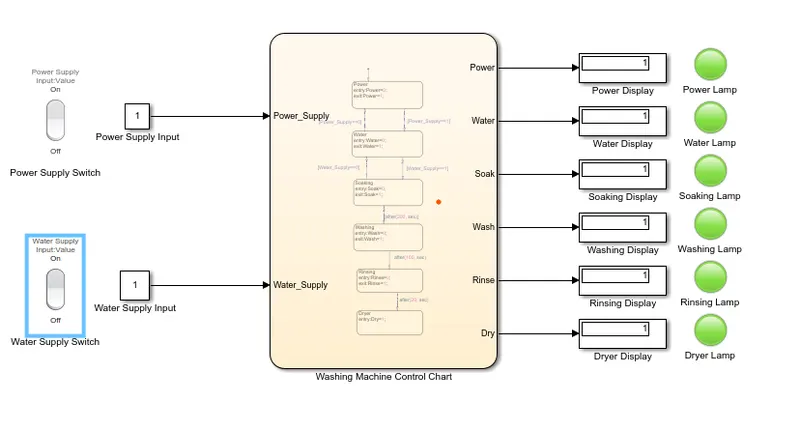

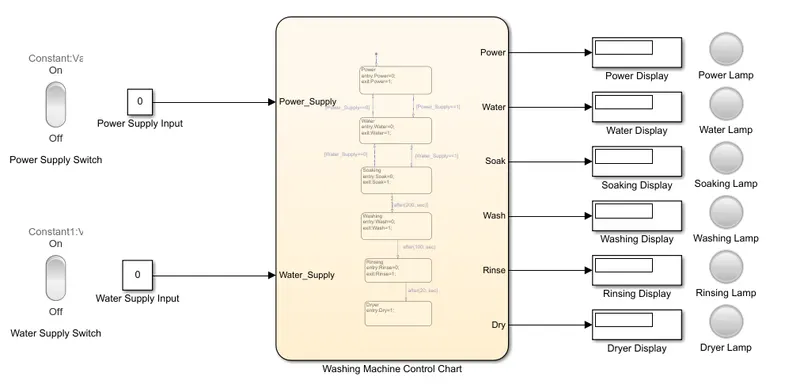

• Block Diagram :

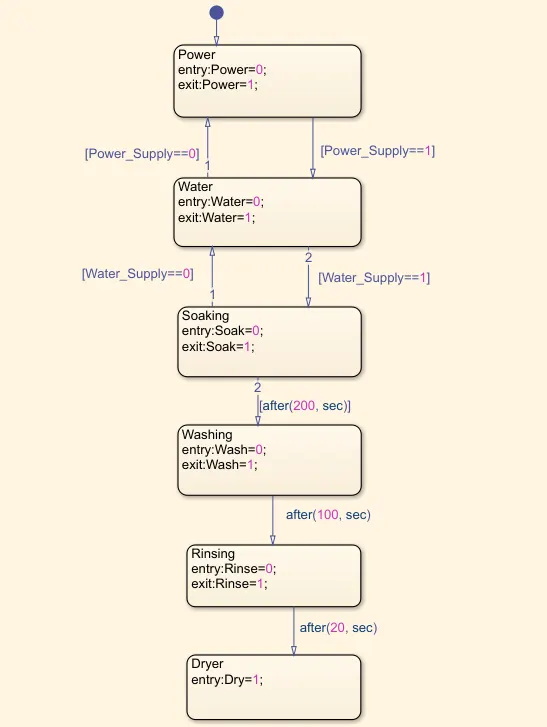

• Chart Diagram :

• Parameters :

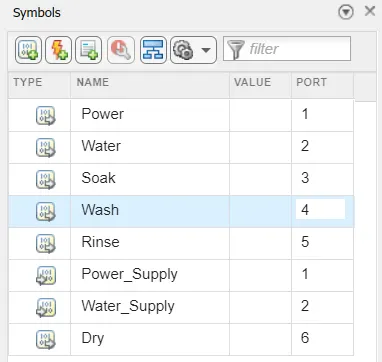

• INPUT Type given for Power_Supply & Water_Supply & OUTPUT Type Given for Water, Soak, Wash, Rinse & Dry.

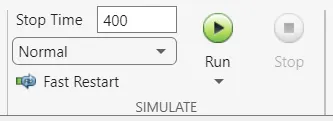

• Time taken for Simulation is 400 seconds, so that it can cover the whole cycle & sufficient time to store & solve the parameter.

CONDITION - 1

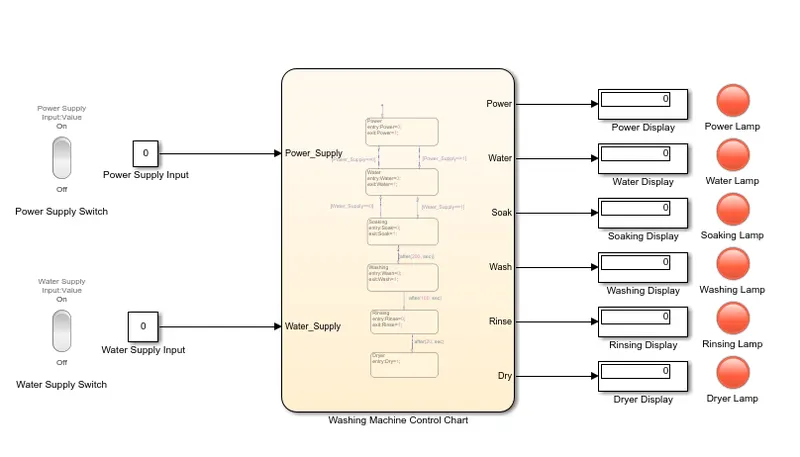

When Power Supply & Water Supply is OFF -

• Lamp is shown in RED i.e., When there is no Power & Water Supply the Lamp Glows Red.

CONDITION - 2

When Power Supply & Water Supply is ON.

• All Lamp is shown in Green i.e., When the Power & Water Supply is turn On the Lamp of perticular Option (Like Soaking, Washing, Rinsing & Dryer) started glowing according to given time.

CHALLENGE - 2 : Simulation Chart for Gear Shift Logic.

Module contain Constant Block, Chart Block, Slider Gain Switch Block, Lamp Block & Display Block.

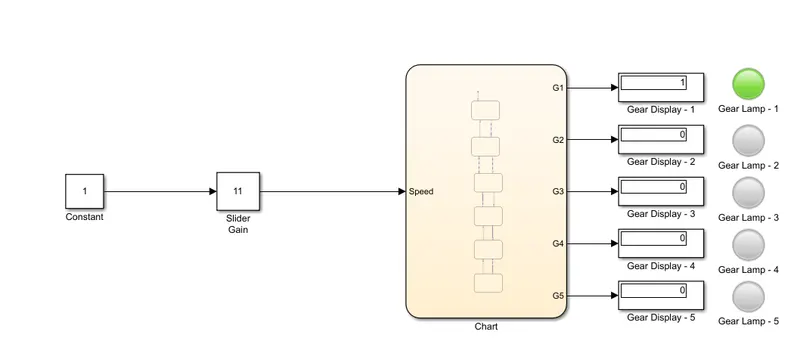

• Block Diagram :

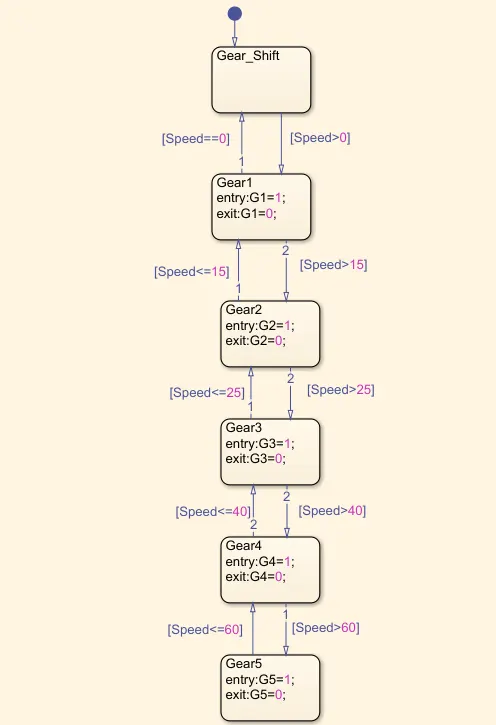

• Chart Diagram :

• Parameter :

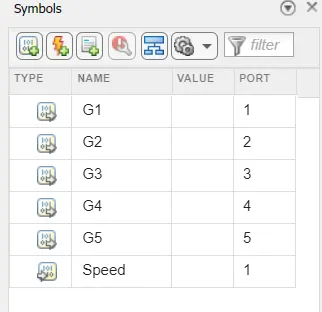

• INPUT Type given for Speed & OUTPUT Type given for G1, G2, G3 & G4.

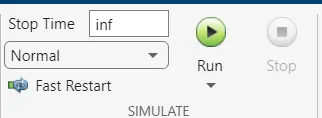

• Time taken for Simulation is Infinite, so iyt will run untile we stop it.

INPUT -

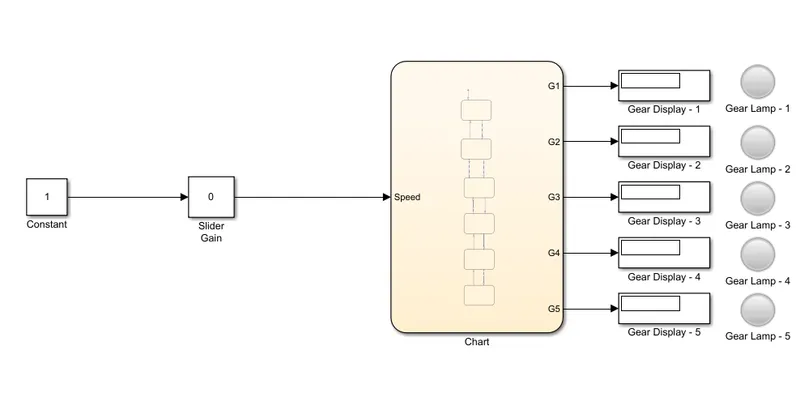

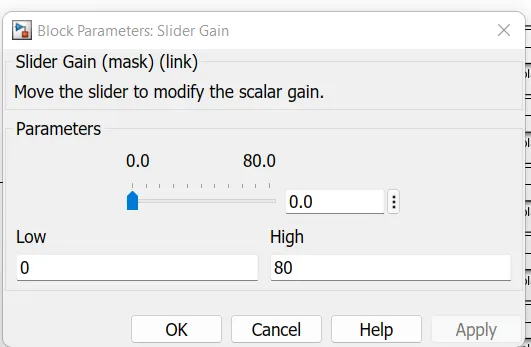

• Slider Gain Block is used as Speed Input to a chart. In which Low value is kept as '0' & High value as an '80' as per the requiement.

OUTPUT -

• Gear -1 : Speed Rang : 0-15kmph, Input Speed : 11Kmph, Lamp Color - Green.

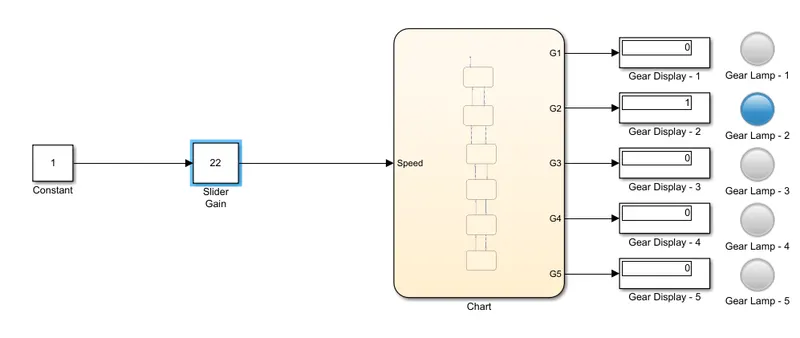

• Gear - 2 : Speed Range :16-25Kmph, Input Speed : 22Kmph, Lamp Color - Blue.

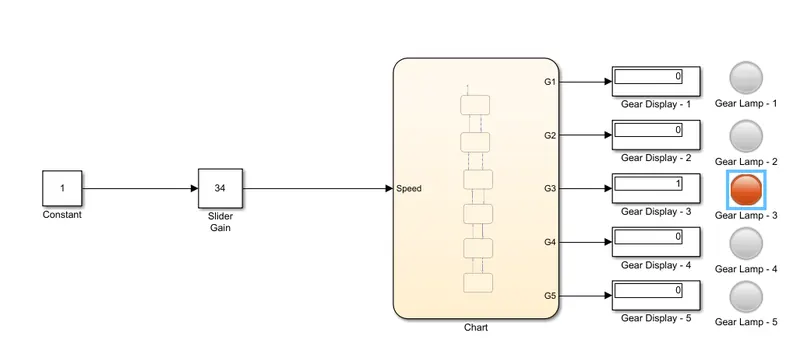

• Gear - 3 : Speed Range : 26-40kmph, Input Speed : 34kmph, Lamp Color - Orange.

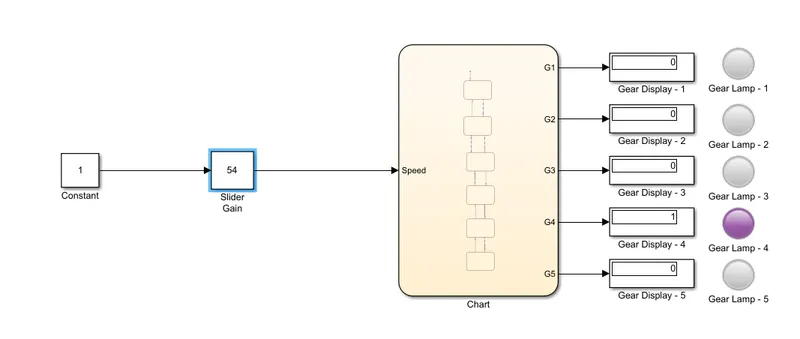

• Gear - 4 : Speed Range : 41-60kmph, Input Speed : 54kmph, Lamp Color - Violet.

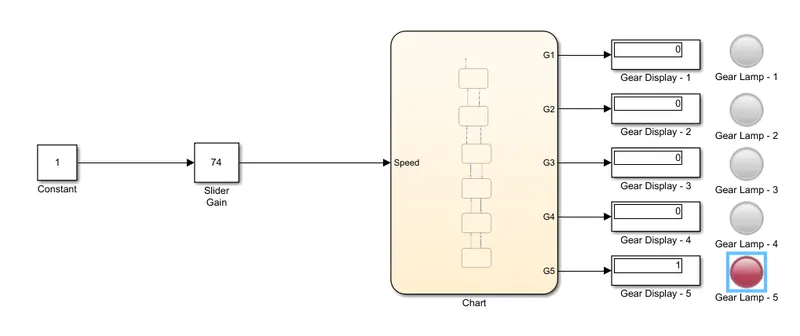

• Gear - 5 : Speed Range : Above 61kmph, Input Speed : 74kmph, Lamp Color - Maroon.
