Week - 4

Aim:

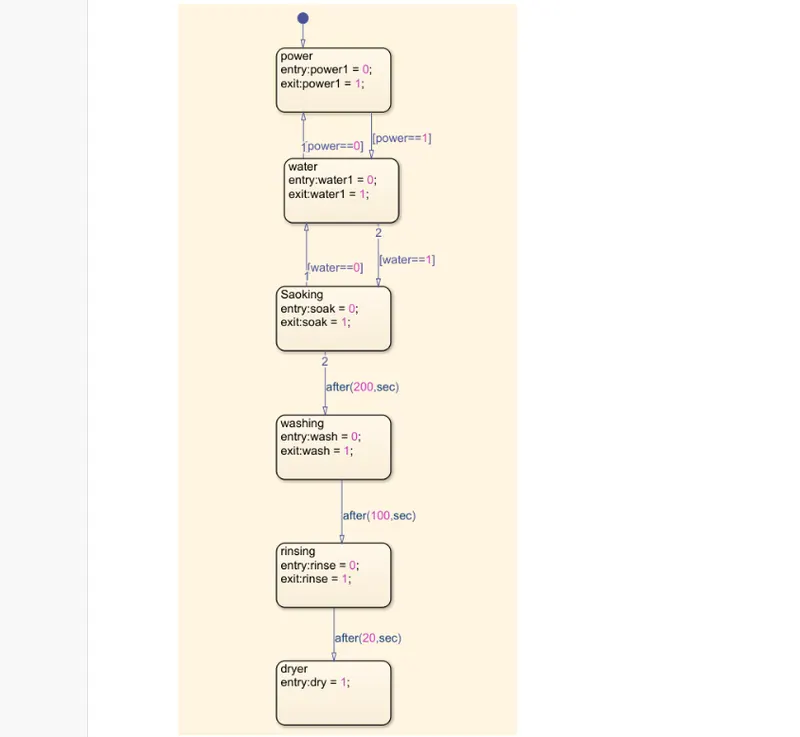

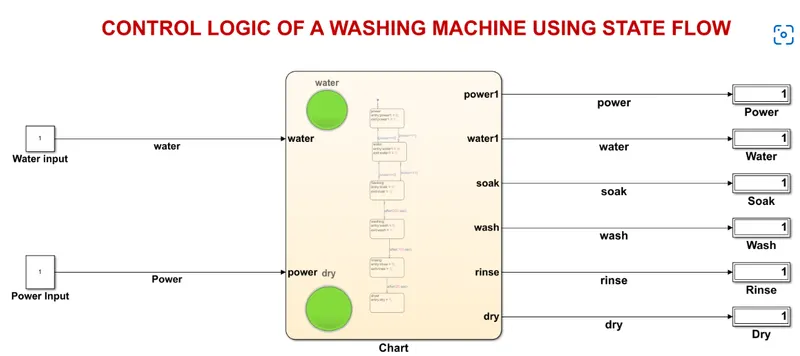

To implement control logic of a “washing machine” using Stateflow as per given sequence

• If the power supply is available, the system gets activated
• If the Water supply is not available, stop the process & indicate through LED
• Soaking time should be 200s followed by Washing time of 100s.
• Then rinsing happens for next 20s & dryer runs for 50s

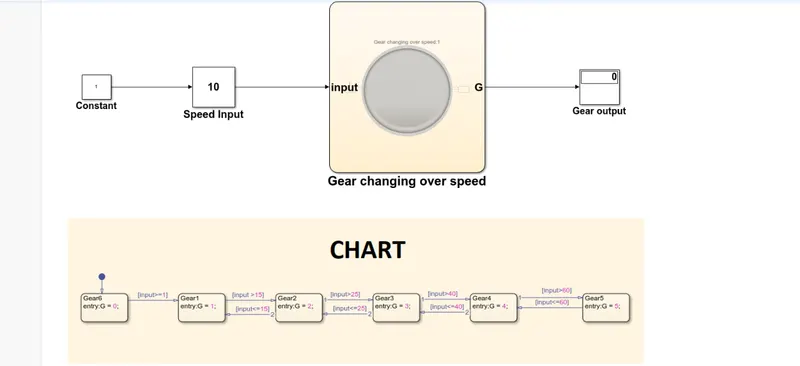

Speed Range

Speed Range(kmph) Gear

0 to 15 1

16 to 25 2

26 to 40 3

41 to 60 4

Above 61 5

Its Running Procedure

Washing Machine Drain Pump Keeps Running – Troubleshoot and Diagnosis

1. Faulty Control Board. The control board in your washing machine is responsible for regulating the different functions...
2. Faulty Drain Pump. A washing machine is an essential appliance that helps keep your clothes clean, but not everyone...
3. Broken Water Level Switch. Your washing machine works by utilizing the water level switch, a tiny component that sits...
4. Broken Water Inlet Valve. Despite the many impressive features that your washing...

Flow chart

Running Proccess

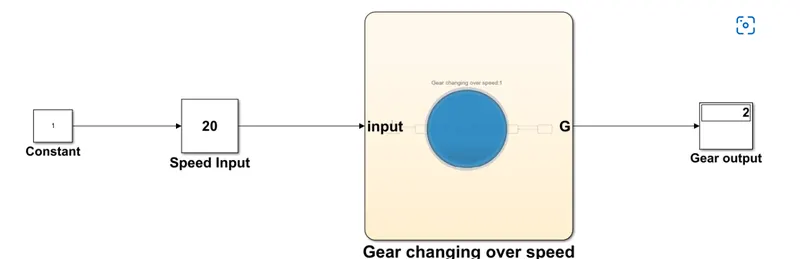

Gear 1 - speed 20

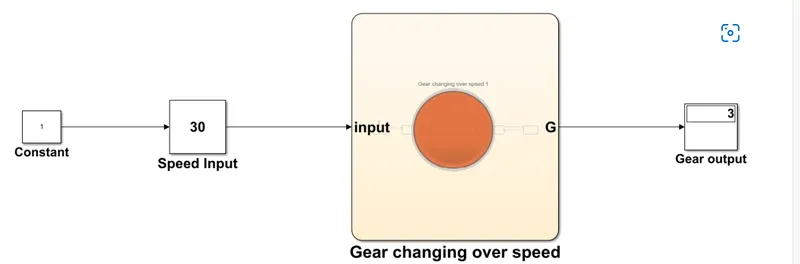

Gear 2 - Speed 30

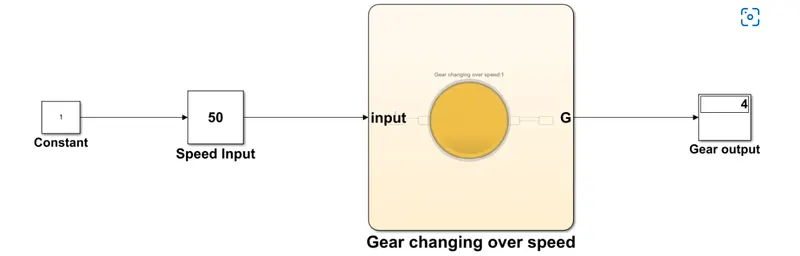

Gear 3 - Speed 50

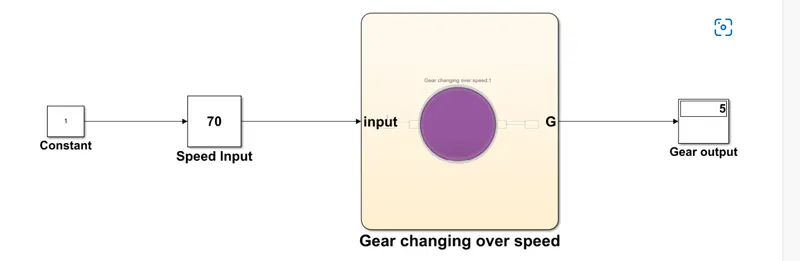

Gear 4 - Speed 70
