Week - 4

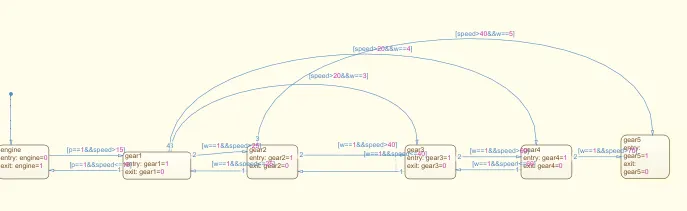

2. Along with the question I have added a part of whether the enginr is ON or OFF. If its ON then only we can change the gear etc else not.

And also during gear change if one directly wants to go from gear-1 to gear-4 then also its possible.

Lamps are connected accordingly. We selected speed of 27 and gear-2 is ON.

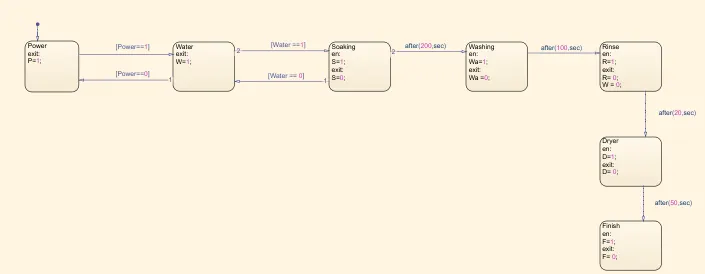

1. The washing machine control is done.

In case power is ON, it will check for water. If water is there then only it will proceed.

If time is given for 150s, then the upto soaking lamp will glow. If time is 400 then its finished drying and only the power lamp will glow and finish lamp.
