Week - 4
The aim is to implement control logic of a “washing machine” using Stateflow as per given sequence:
- If the power supply is available, the system gets activated
- If the Water supply is not available, stop the process & indicate through LED
- Soaking time should be 200s followed by Washing time of 100s.
- Then rinsing happens for next 20s & dryer runs for 50s

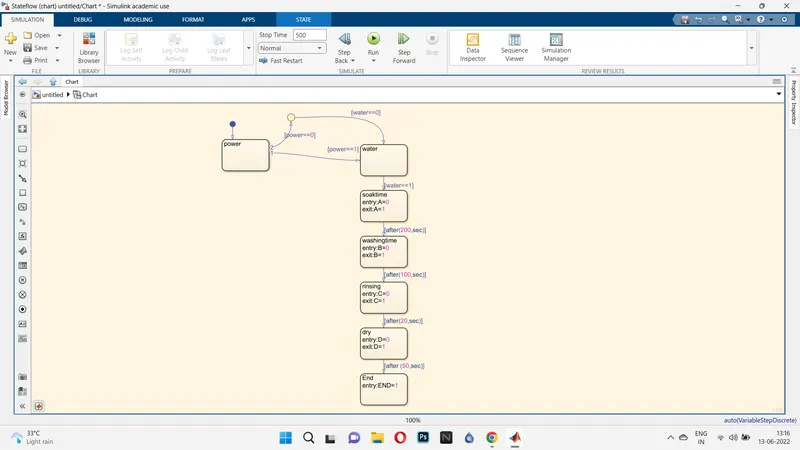

Initially the stateflow has been opened and chart has been made,with conditions,

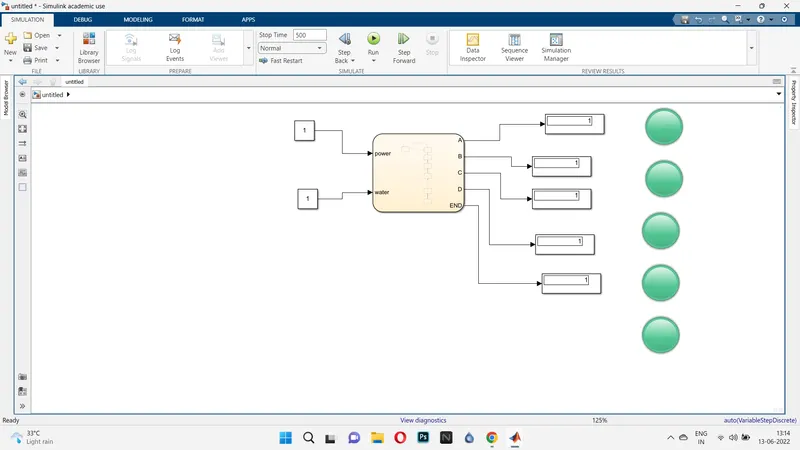

then it is connected with constant of power and water supply and connected with output as display and lamp,

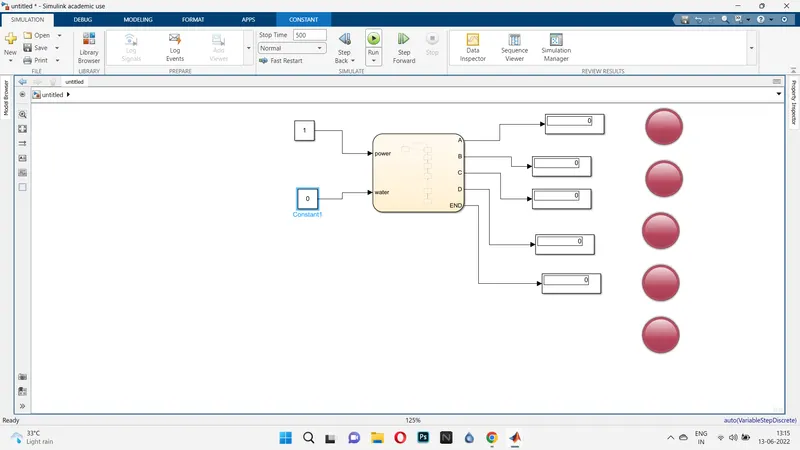

if condition satisfy and complete the process it shows green else red,
Question : 2
The aim is to make a Simulink chart for the “Gear shift” logic as per below conditions:
Speed Range(kmph) Gear
0 to 15 1
16 to 25 2
26 to 40 3
41 to 60 4
Above 61 5
Give speed input while the simulation is running & display the gear number.

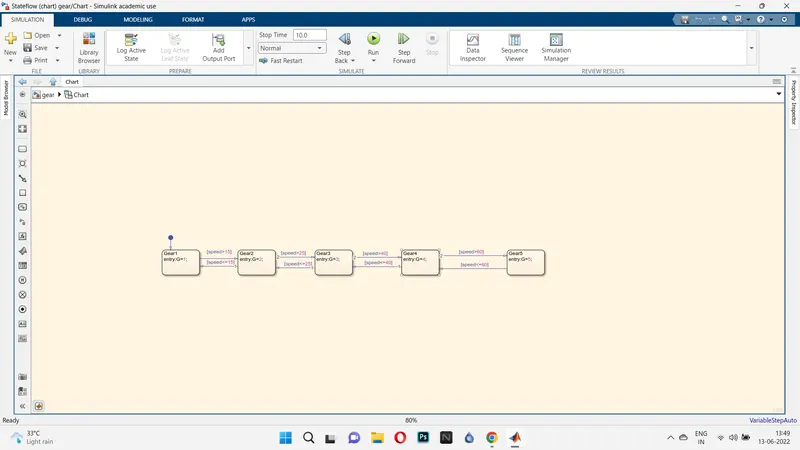

Initially the stateflow has been opnd and feed with condition

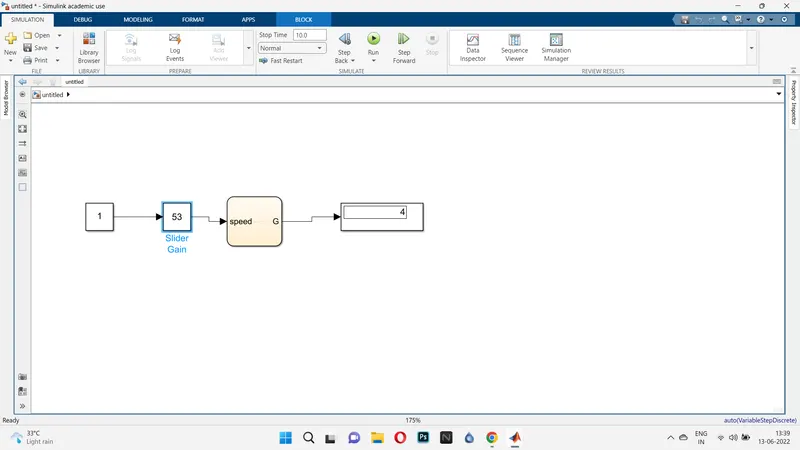

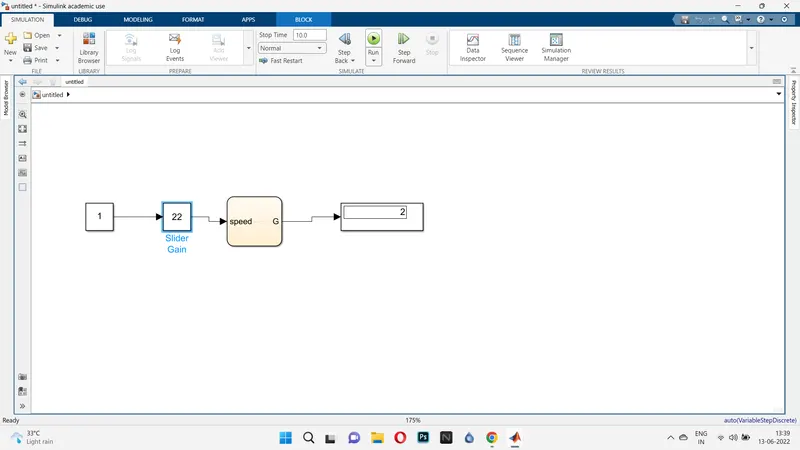

and connected with constant and slider to vary the input and given display to get number,
