Challenge

Project - Traveling salesman problem

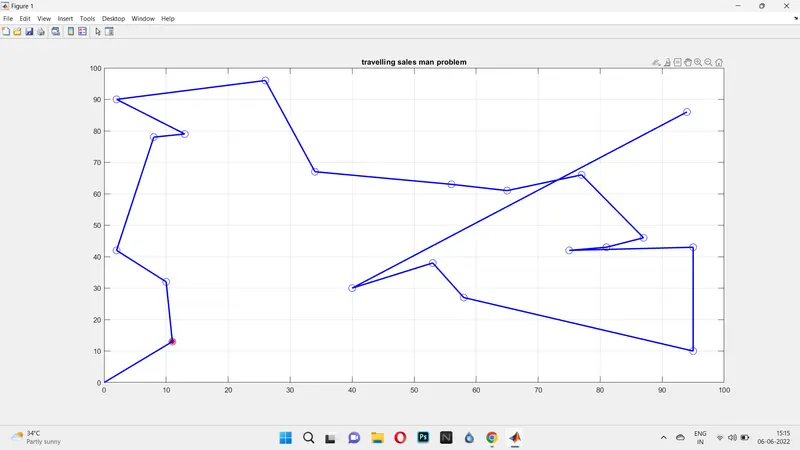

The travelling of salesman from one city to another with in the shortest distance is as follows with the graph mentioned below,

initially total city is taken as 20 as random in numbers and the shortest to longest is calculated randomly, so initial point is takenfrom orgin and the random points are calculated the shortest will map accordingly and the number of city visited will be calculated from that the maximum iteration is 20, which will be calculated in loop untill 20 city randomly choosed, once the 20 city is mapped on the graph it will close the loop.

city = 20;
x=randi(100,city,1);
y=randi(100,city,1);
plot(x,y,'bo','markersize',10);
title('travelling sales man problem');
grid on;
distances=sqrt(x.^2+y.^2);
[mindistance,indexofmin]=min(distances);
nearestx=x(indexofmin);
nearesty=y(indexofmin);
hold on;
plot(nearestx,nearesty,'r*','markersize',8,'linewidth',2);
line([0,nearestx],[0,nearesty],'linewidth',2,'color','b');
cityvisited = false(1,city);
counter = 2;
maxiterations = city;
cityvisited(indexofmin)=true
fprintf('(%d%d)-->',nearestx,nearesty); while sum(cityvisited) <=(city -1)&&(counter<=maxiterations)
previousx = x(indexofmin(counter -1));
previousy = y(indexofmin(counter -1));
x(cityvisited) = inf;
distances = sqrt((x - previousx).^2+(y - previousy).^2);
[mindistance,indexofmin(counter)]=min(distances);
nearestx = x(indexofmin(counter));
nearesty = y(indexofmin(counter));
line([previousx,nearestx],[previousy,nearesty],'linewidth',2,'color','b');
cityvisited(indexofmin(counter)) = true;
counter = counter+1;
fprintf('(%d%d)-->',nearestx,nearesty);
end
