Week - 4

QUESTION N0 1

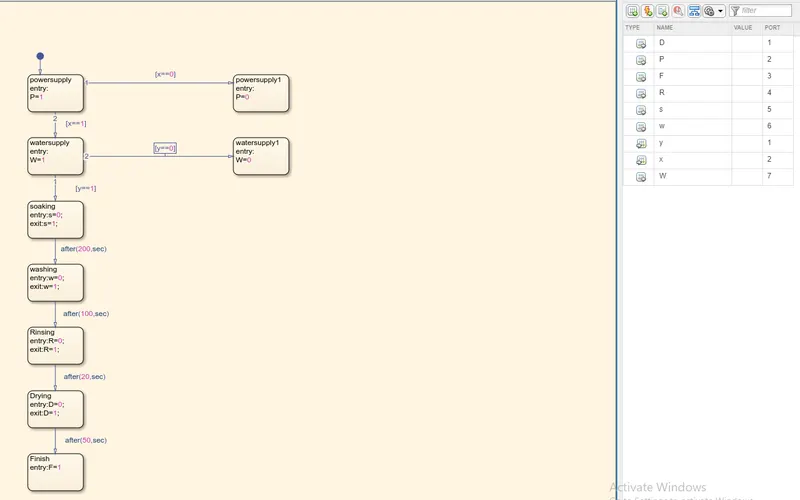

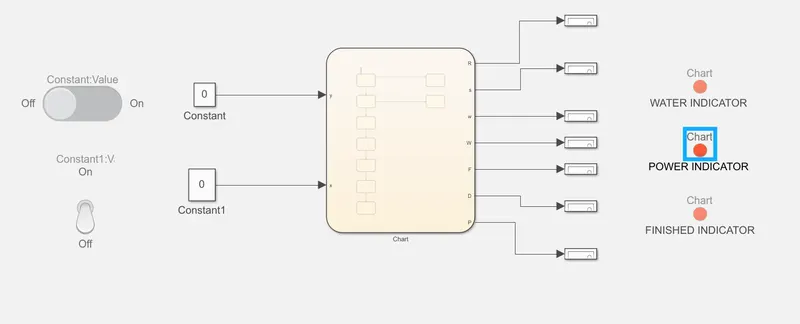

Implement control logic of a “washing machine” using Stateflow as per given sequence

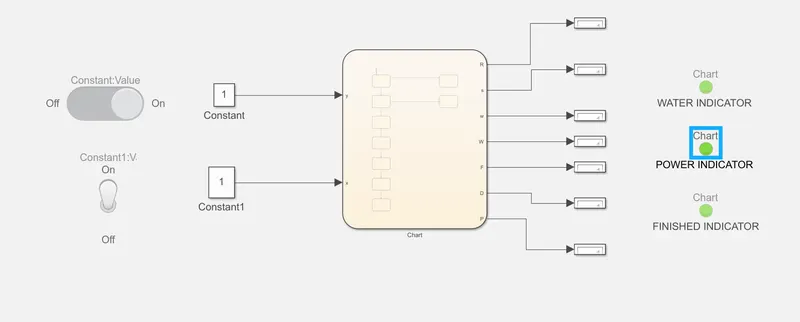

CONDITION 1 .... WHEN WATER AND POWER IS SUPPLIED ALL INDICATORS ARE IN GREEN

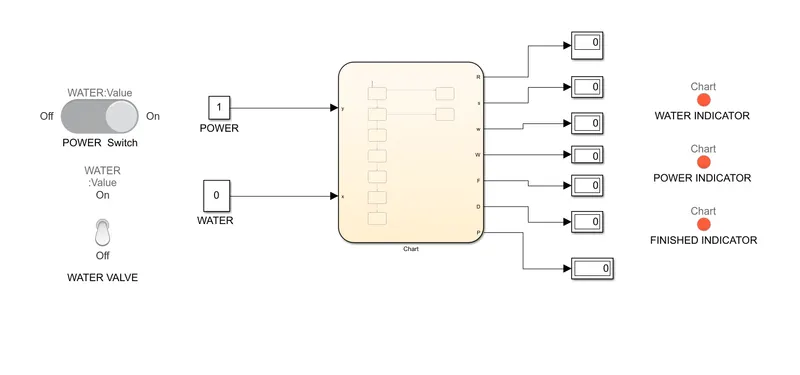

CONDITION 2 .... WHEN WATER AND POWER IS DISCONNECTED ALL INDICATORS ARE IN RED

• If the Water supply is not available, stop the process & indicate through LED

.

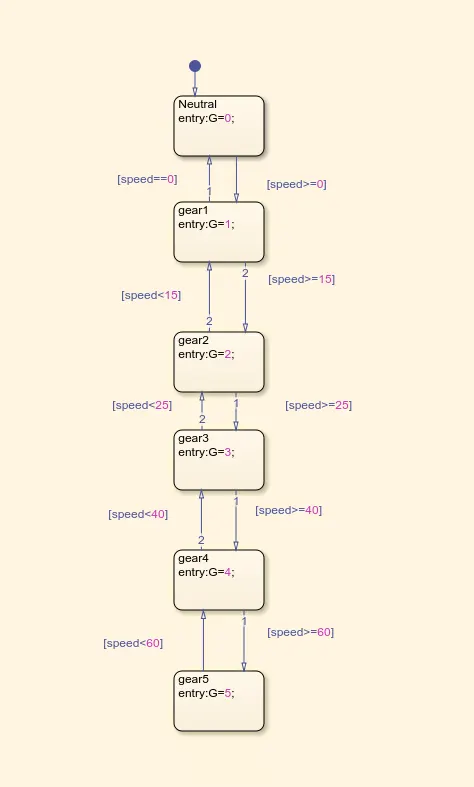

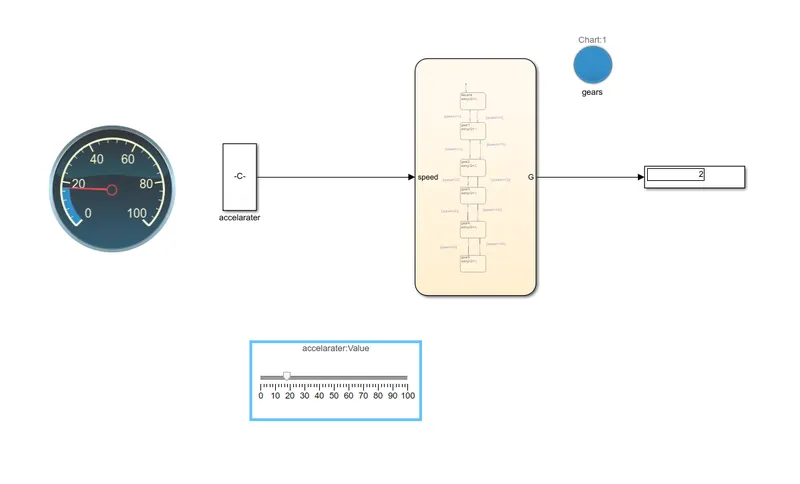

2. Make a Simulink chart for the “Gear shift” logic as per below conditions:

Speed Range(kmph) Gear

0 to 15 1

16 to 25 2

26 to 40 3

41 to 60 4

Above 61 5

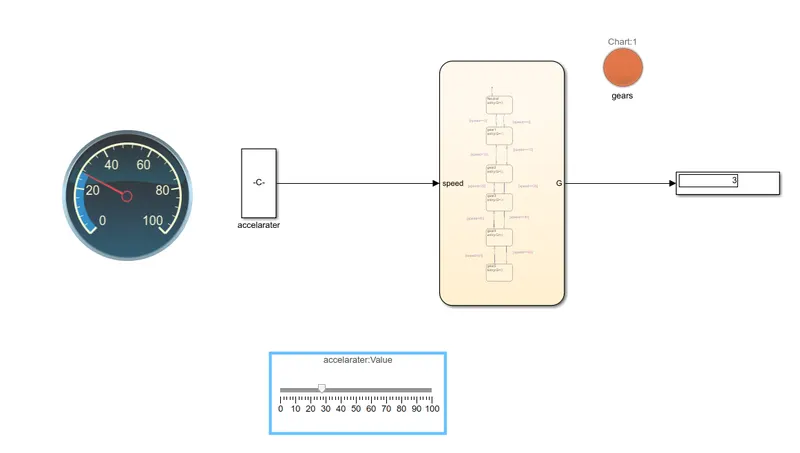

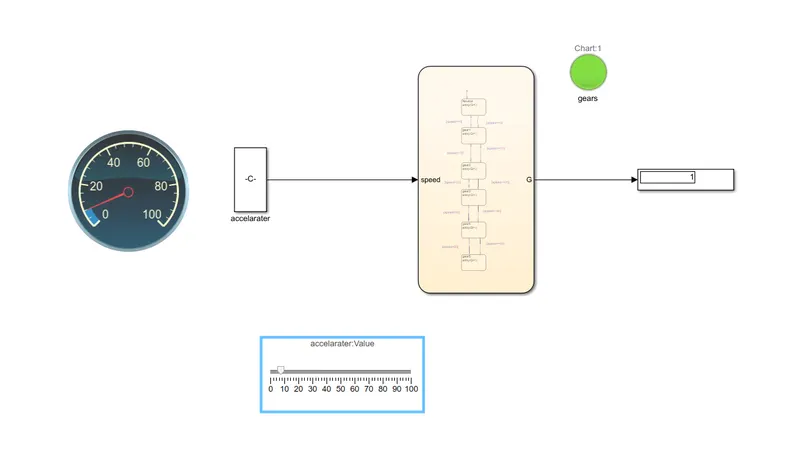

Gear 1 incicator with green

Gear 2 indicator with blue

Gear 3 indicator with ORANGE

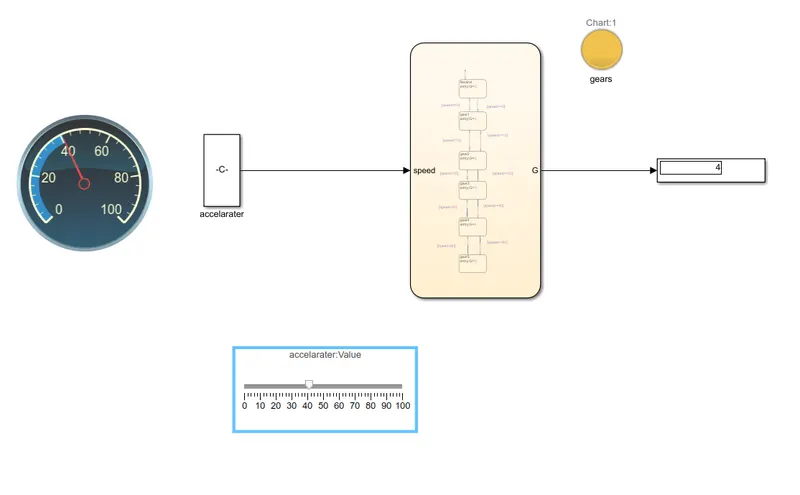

Gear 4 indicator with yellow

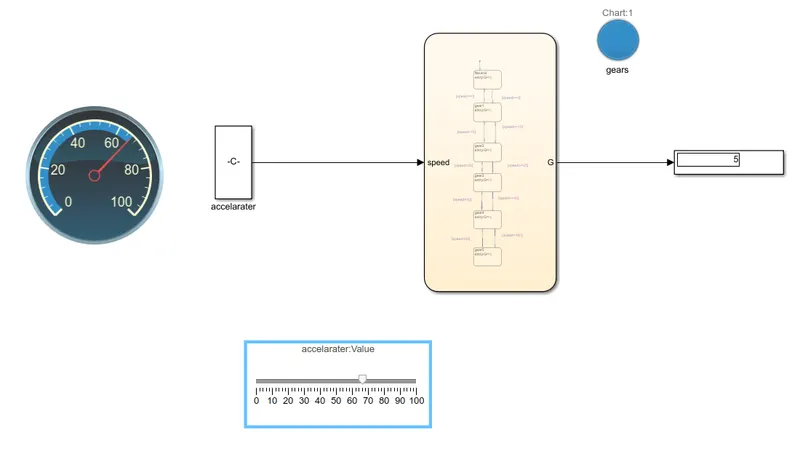

Gear 5 indicator with blue
