Week 8 - Challenge 2 - Base Bracket Design
1).

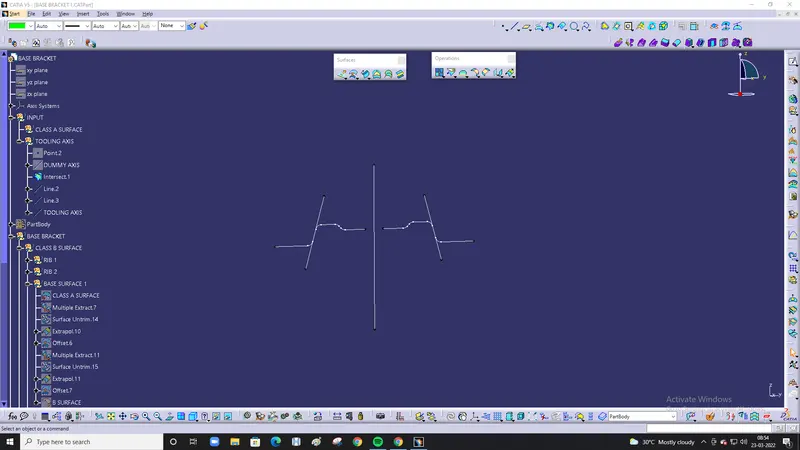

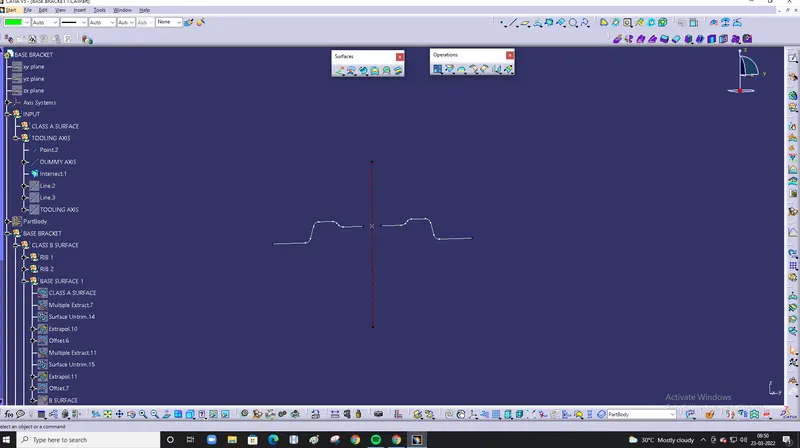

FIRST WE SHOULD CREATE POINT AND THEN ONE DUMMY AXIS AND INTERSECTING LINE OR (BOUNDARY) WITH THE CLASS A SURFACE
THEN FROM INTERSECTING LINE WE CREATED TO TWO LINES WITH POINT TO POINT AXIS AND THEN WE CREATED ONE TOOLING AXIS
AFTER CREATING THE TOOLING AXIS WE INSERTED BASE BRACKET AND IN BRACE BRACKET WE INSERTED CLASS B SURFACE .

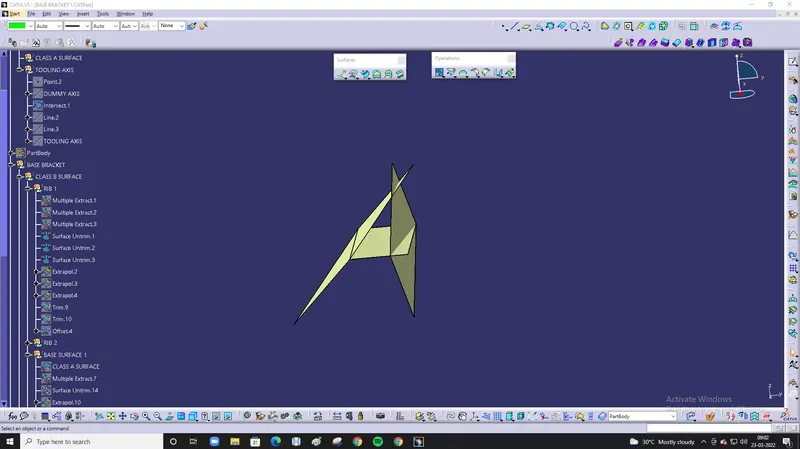

IN CLASS B SURFACE WE INSERTED RIB 1.FROM CLASS A SURFACE WE EXTRACTED ONE SIDE OF RIB .(I.E. RIB 1)
AFTER EXTRACTING THE RIB 1 WE UNTRIMED THE MULTIPLE EXTRACT

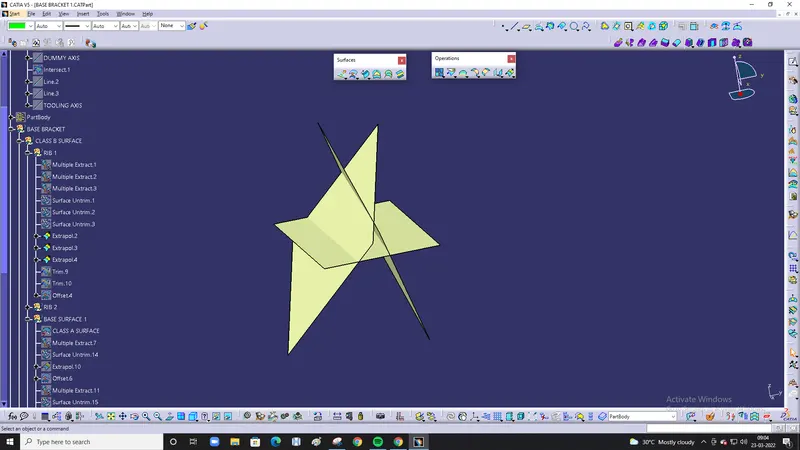

AFTER THE SURFACE UNTRIM WE EXTRAPLOTED THE UNTRIM SURFACES ,SO THAT WE CAN TRIM AND CREATE THE RIB 1

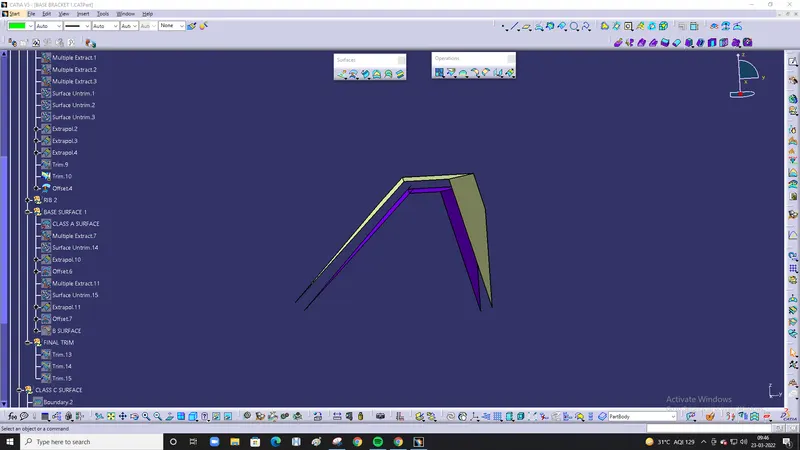

AFTER TRIMMIG THE EXTRAPLOTE SURFACES WE AN AN RIB AND WE OFFSET THE RIB DOWN WITH 2.5 MM AND APPLIED COLOUR TO RIB SO THTA WE CANT GET CONFUSED

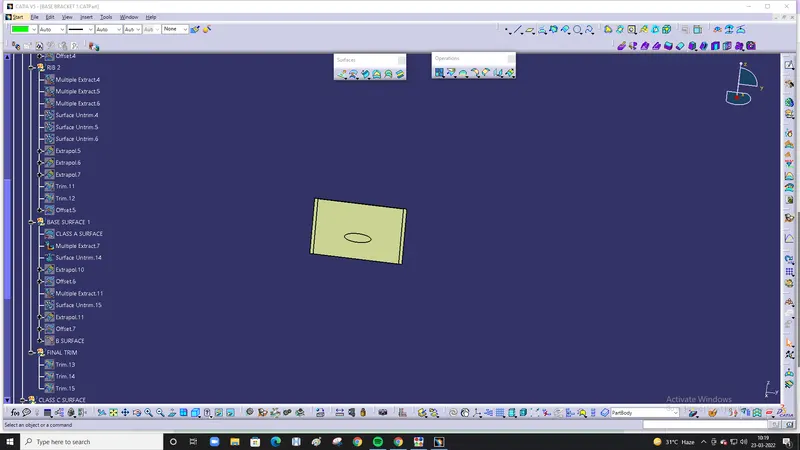

AFTER CREATING 2 RIBS WE INSERTED GEAMETRICAL SET AS BASE SURFACE 1.IN THIS BASE SURFACE WE EXTRACTED THE BASE FROM THE CLASS A SURFACE

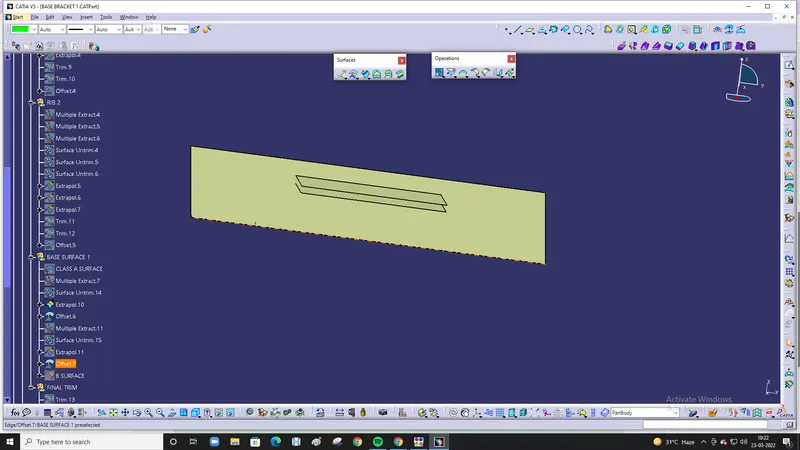

FROM THE CLASS SURFACE WE WE EXTRACT AND EXTRAPLOTED THE BASE SURFACE AMF WE OFFSET WITH 2.5 MM DOWN
WE INSERTED GEOMETRICAL SET AS FINAL TRIM IN CLASS B SURFACE AND WE TRIMMED THE BOTH RIBS WITH BASE AND SURFACE

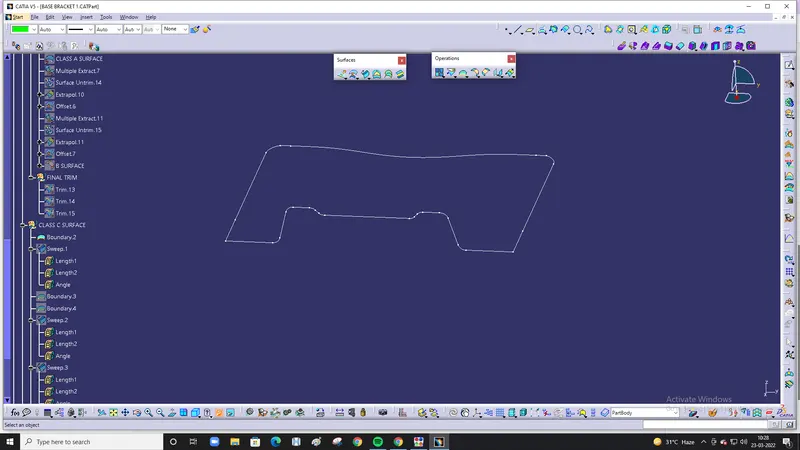

AFTER THE FINAL TRIM WE INSERTED GEOMETRICAL SET AS CLASS C SURFACE WE CREATED THE BOUNDARY OF THE CLASS A SURFACE
AFTER THIS WE SWEEP THE BOUNDARY OF THE CLASS A SURAFCE AS SHOWN IN BELOW IMAGE

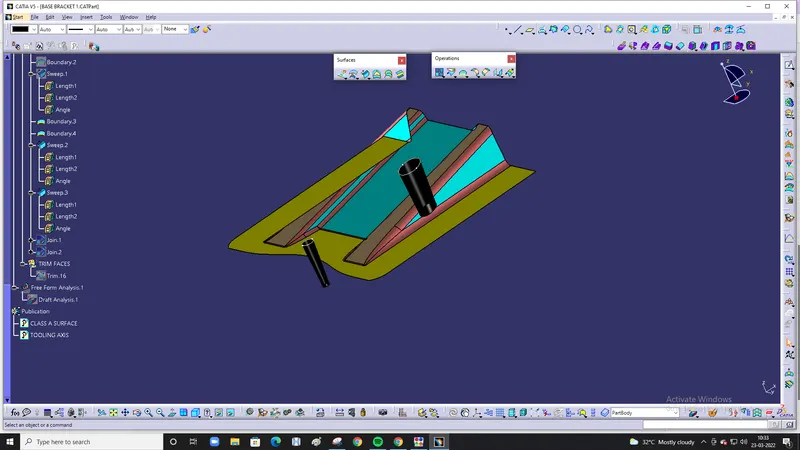

IN BELOW FIGURE WE WE CREATED THE BOUNDARY OF THE HOLES OF SURFACE A AND WE SEEP THE HOLES BOUNDARY

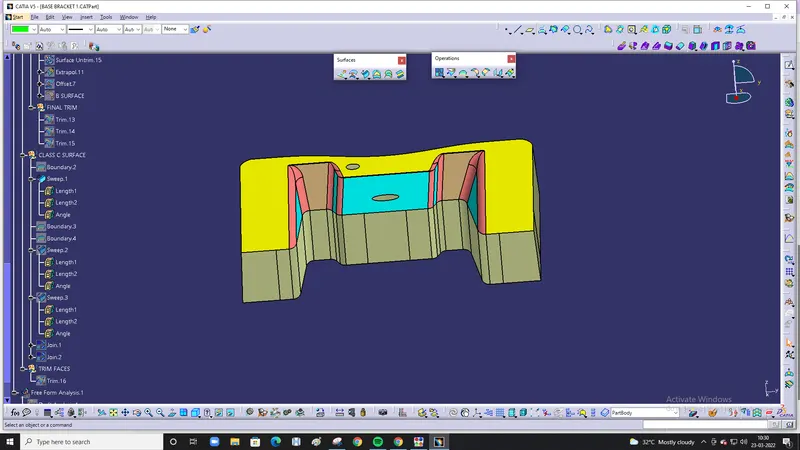

WE JOINED THE SWEEP AND CLASS A SURAFCE

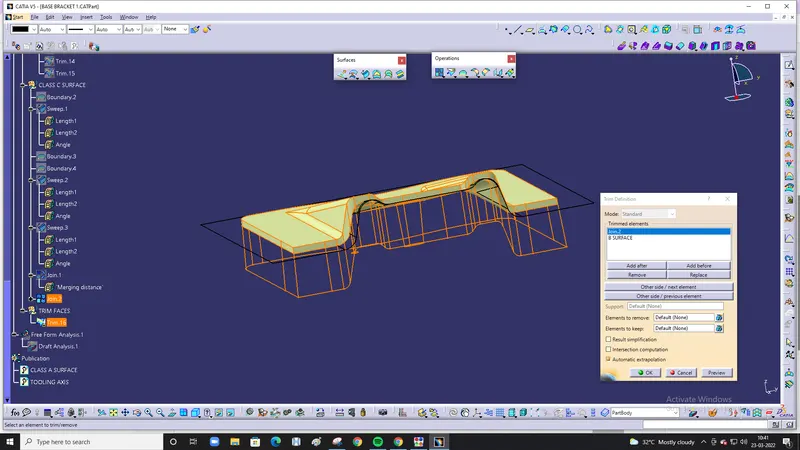

IN THIS WE TRIMMED THE SURAFCE JOIN WITH CLASS B SURAFCE

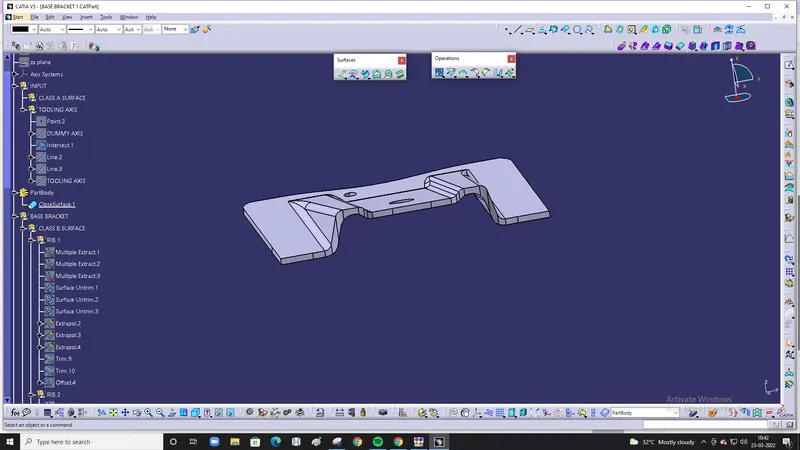

IN PART BODY WE CREATED THE SOLID BODY OF THE FACES TRIM BY CLOSE SURFACE

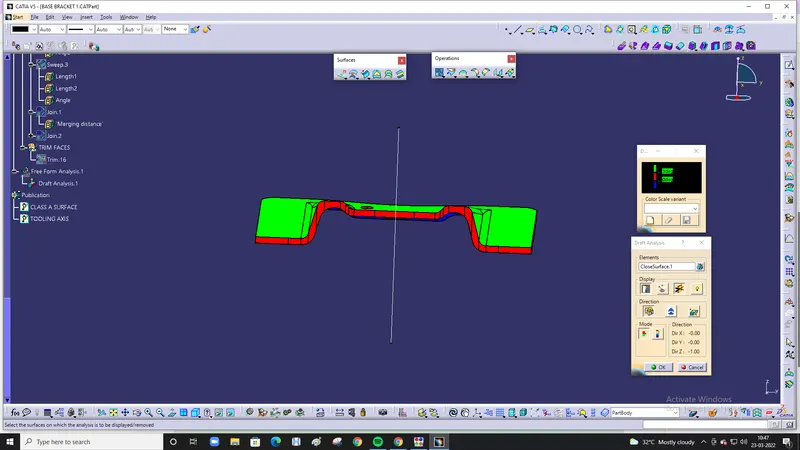

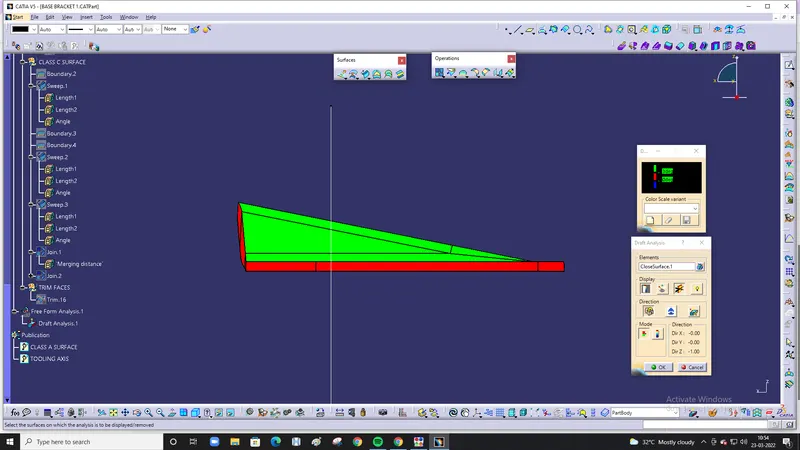

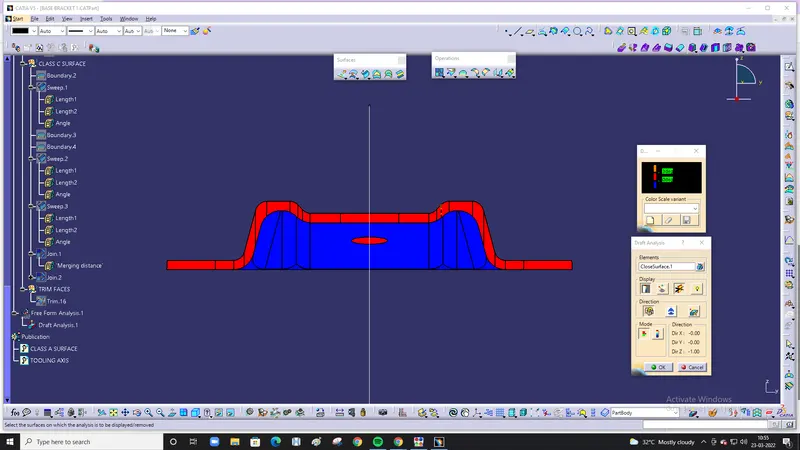

DRAFT ANALYSIS AT 3 DEGREES

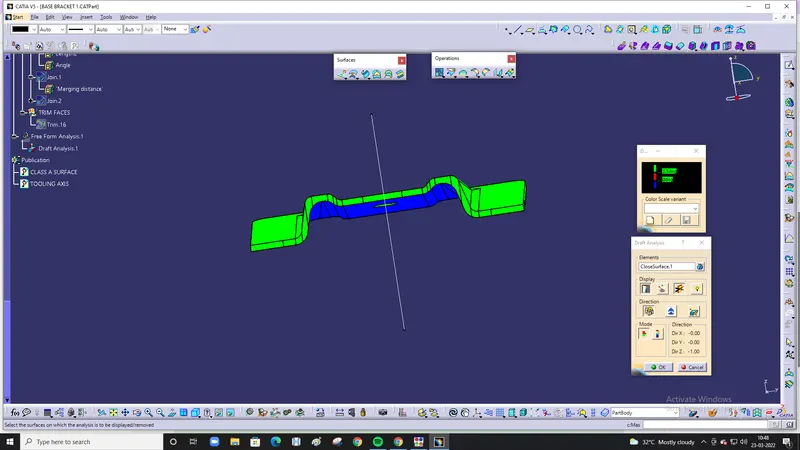

DRAFT ANALYSIS WITH 2.5 DEGREES

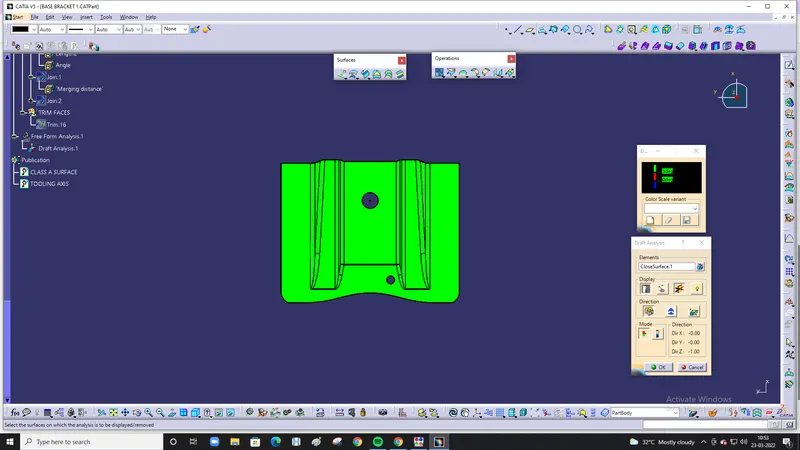

DRAFT ANALYSIS OF THE BRACE BRACKET IN Z DIRECTION
DRAFT ANALYSIS OF THE BRACE BRACKET IN Y DIRECTION
DRAFT ANALYSIS OF THE BRACE BRACKET IN X DIRECTION

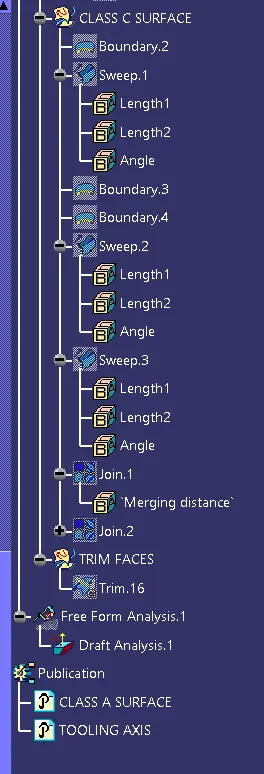

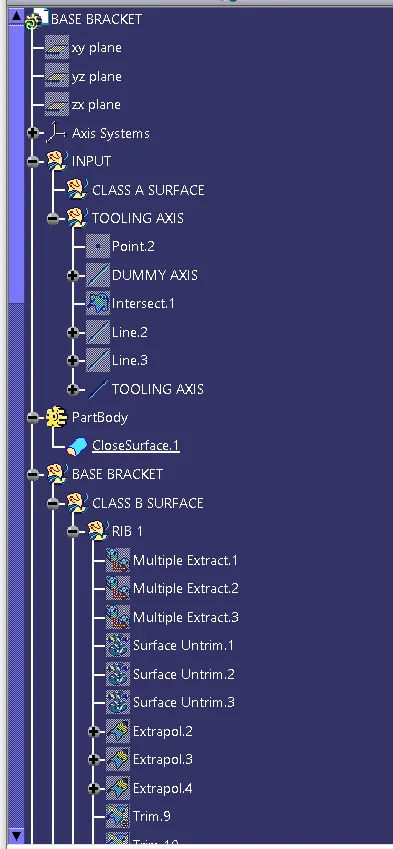

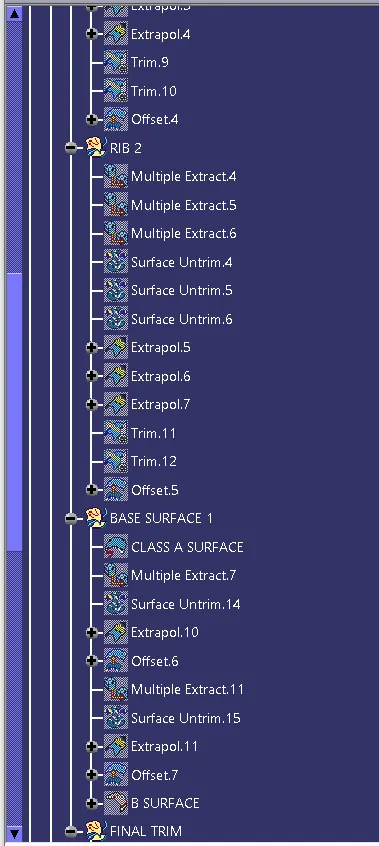

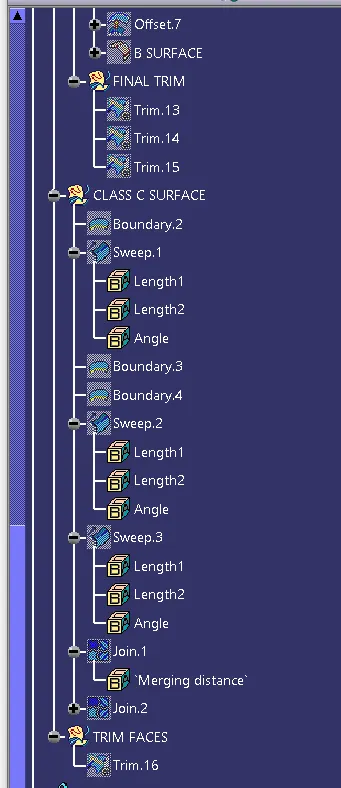

TREE STRUCTURE

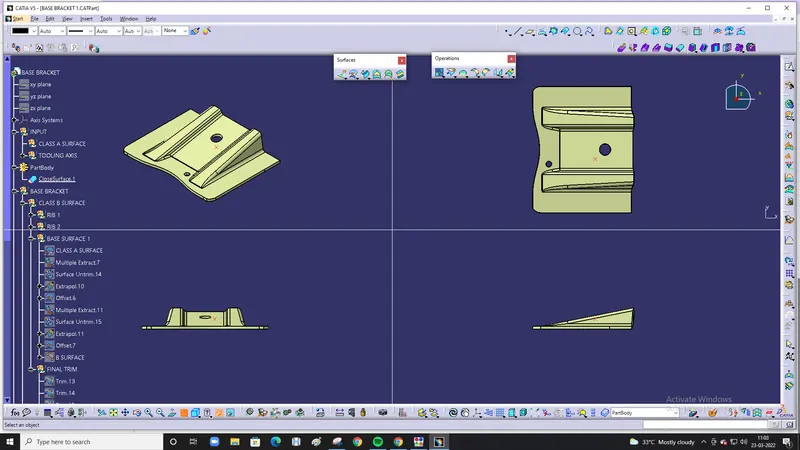

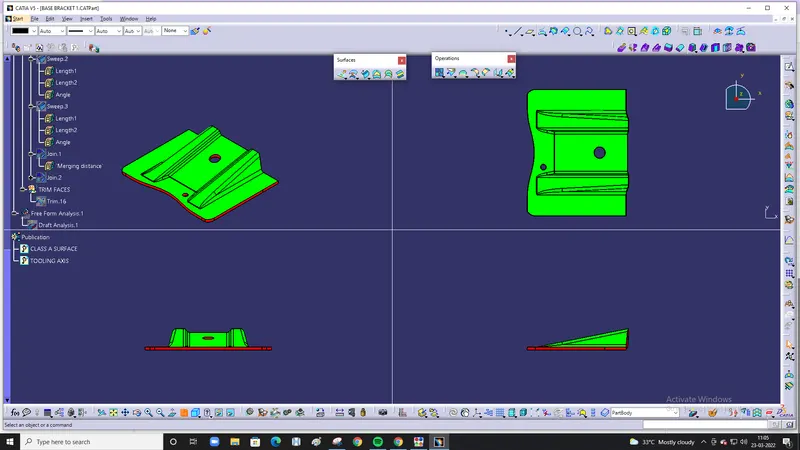

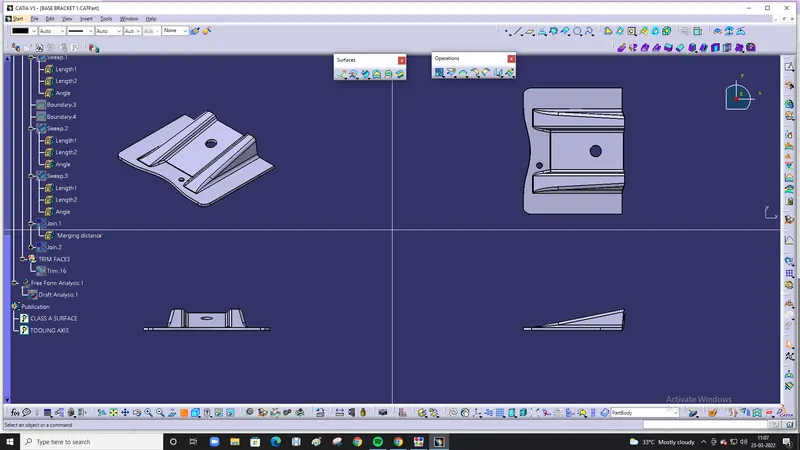

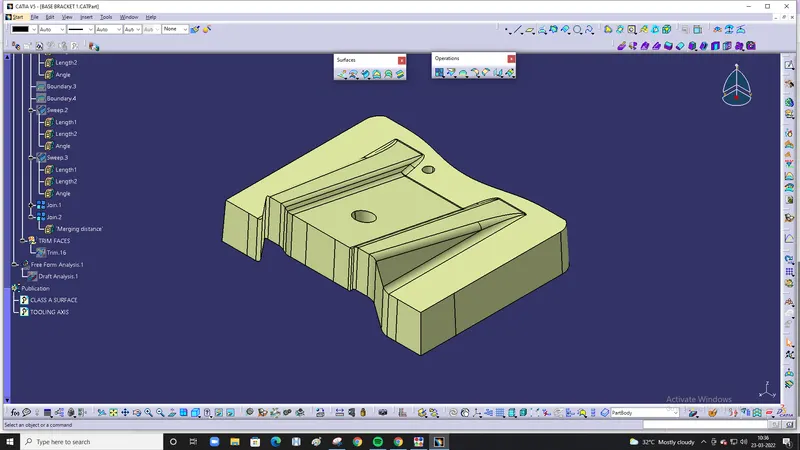

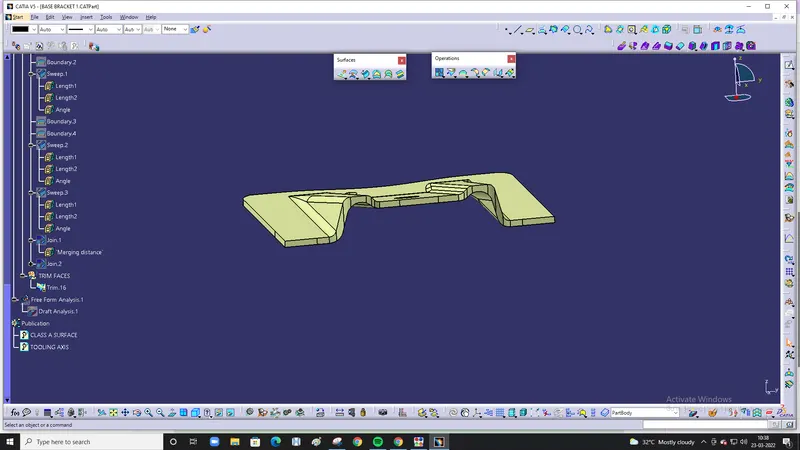

ISOMETRIC,FRONT,SIDE TOP VIEWS
FIRST WE SHOULD CREATE A POINT AND THEN ONE DUMMY AXIS AND INTERSECTING LINE OR (BOUNDARY) WITH THE CLASS A SURFACE.
THEN FROM INTERSECTING LINE WE CREATED TO TWO LINES WITH POINT TO POINT AXIS AND THEN WE CREATED ONE TOOLING AXIS.
AFTER CREATING THE TOOLING AXIS WE INSERTED GEOMETRICAL SET AS BASE BRACKET AND IN BRACE BRACKET WE INSERTED GEOMETRICAL SET AS CLASS B SURFACE .
IN CLASS B SURFACE WE INSERTED RIB 1.FROM CLASS A SURFACE WE EXTRACTED ONE SIDE OF RIB .(I.E. RIB 1).
AFTER TRIMMIG THE EXTRAPLOTE SURFACES WE WILL GET RIB AND WE OFFSET THE RIB DOWN WITH 2.5 MM AND APPLIED COLOUR TO RIB SO THAT WE CANT GET CONFUSED.AFTER CREATING 2 RIBS WE INSERTED GEAMETRICAL SET AS BASE SURFACE 1.IN THIS BASE SURFACE WE EXTRACTED THE BASE FROM THE CLASS A SURFACE.
WE INSERTED GEOMETRICAL SET AS FINAL TRIM IN CLASS B SURFACE AND WE TRIMMED THE BOTH RIBS WITH BASE AND SURFACE .
AFTER THE FINAL TRIM WE INSERTED GEOMETRICAL SET AS CLASS C SURFACE WE CREATED THE BOUNDARY OF THE CLASS A SURFACE.
THEN WE WE CREATED THE BOUNDARY OF THE HOLES OF SURFACE A AND WE SEEP THE HOLES BOUNDARY.
WE JOINED THE SWEEP AND CLASS A SURAFCE.
IN THIS WE TRIMMED THE SURAFCE JOIN WITH CLASS B SURAFCE.IN PART BODY WE CREATED THE SOLID BODY OF THE FACES TRIM BY CLOSE SURFACE
THEN WE DID DRAFT ANALYSIS AT 3 DEGREES AND WITH 2.5 DEGREES
