Week - 4

Dear sir/mam,

I would like to share you a result of week 4 challenges with you.

Challenge#1

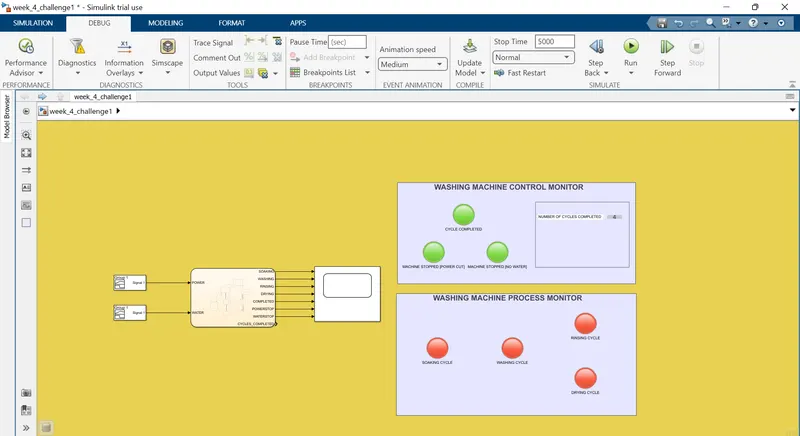

1. I have implemented control logic of a washing machine by using chart as per given sequence, initially i have done flowchart with respect to the given sequence then i have added signals respectively. i have attached model image below for your reference.

Challenge#2

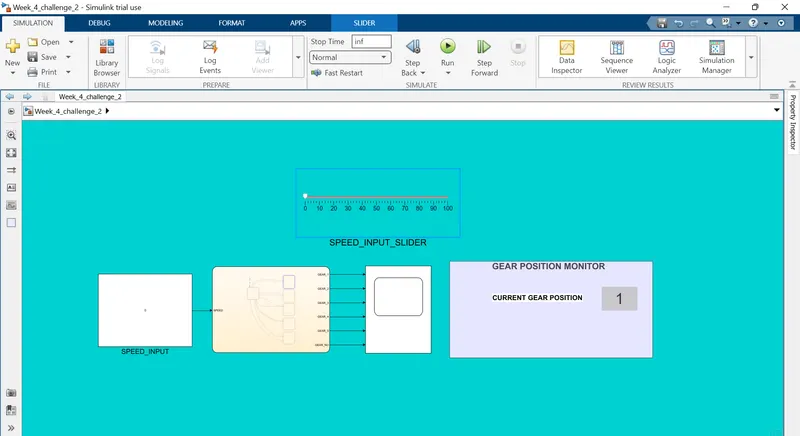

2. I have created gear shifting logic for the given instructions. Initially i have created flowchart for the given logic then used it in a model, i have attached model image below for your reference.

I have attached backup for the model in the attachment, please find the attachment.

Thanks and regards,

Dharan kumar R.
