Simulink Model of Washing Machine

Study 1:

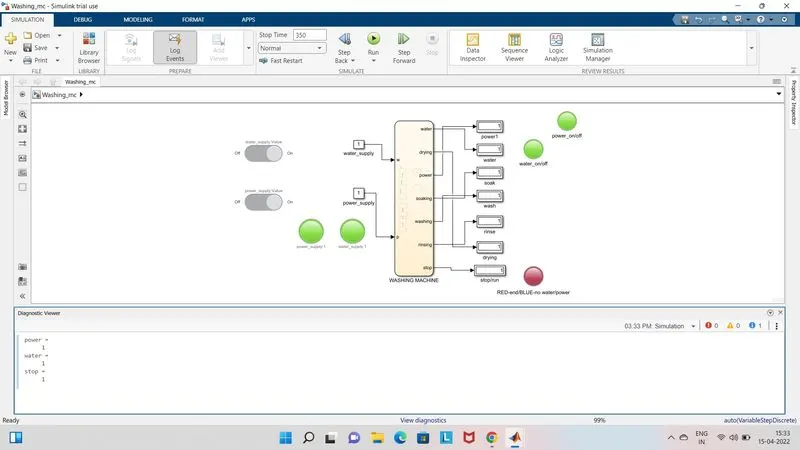

Simulink Model of Washing Machine

In this modeling part the input power & water supply is in ON condition, so after this successfully executed then soaking will happen and after that washing will take place, later rinsing and finally drying will be done.

Study 2:

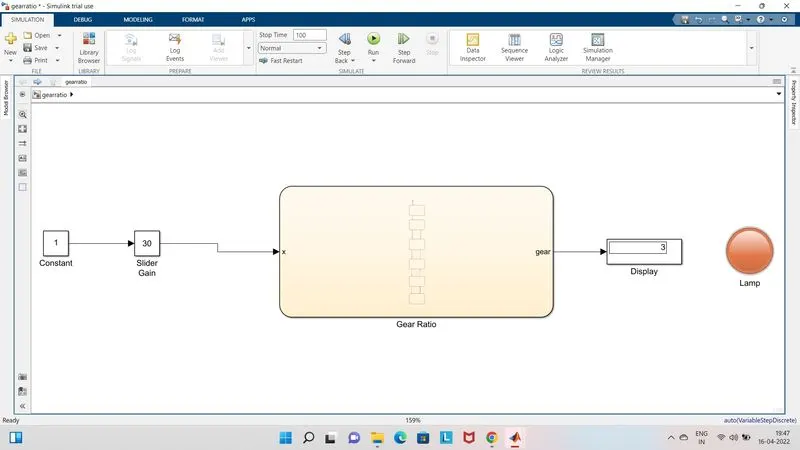

Simulink model for Gear Shifting

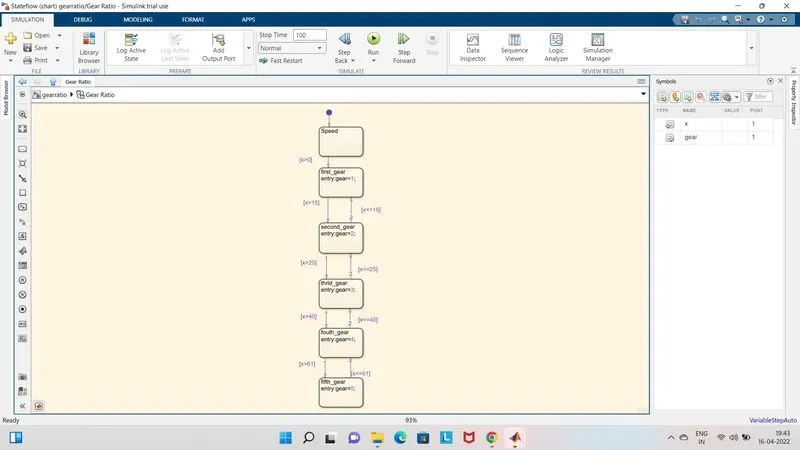

Gear shifting mechanism is kept inside the transmission to provide uniform torque to drive shaft.

During gear shifting it is mandatory to disengage input shaft from the engine which is done by the clutch plate.
