Week - 4

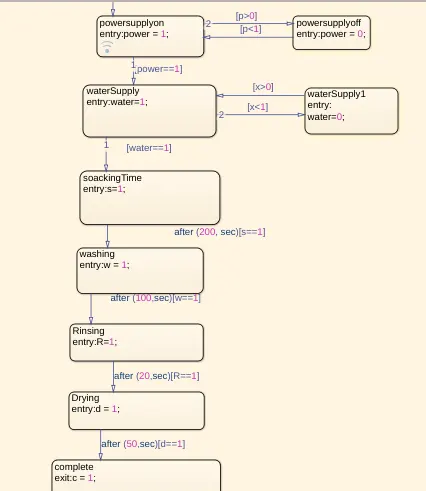

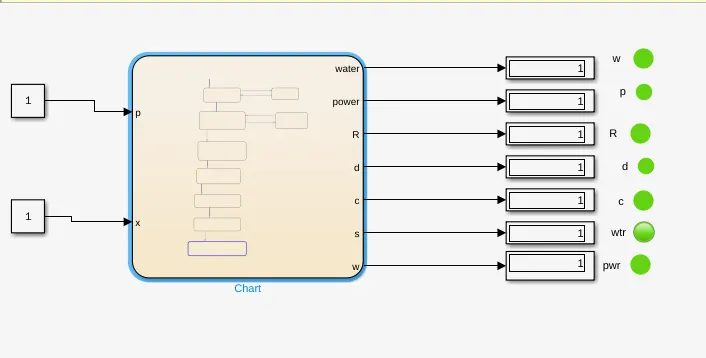

- Implement control logic of a “washing machine” using Stateflow as per given sequence:
- If the power supply is available, the system gets activated
- If the Water supply is not available, stop the process & indicate through LED
- Soaking time should be 200s followed by Washing time of 100s.
- Then rinsing happens for next 20s & dryer runs for 50s

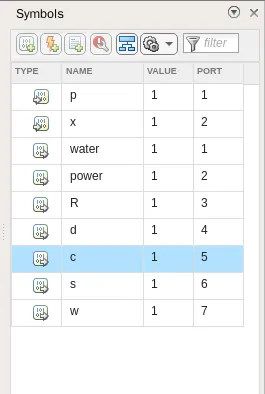

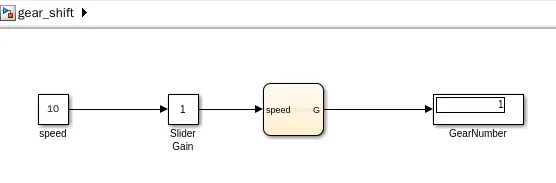

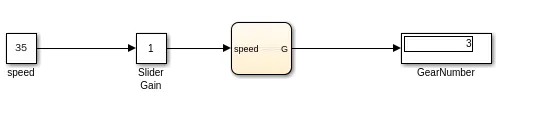

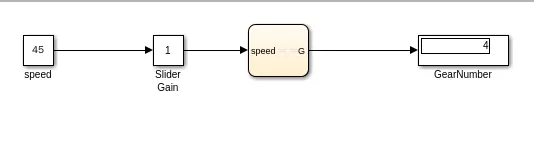

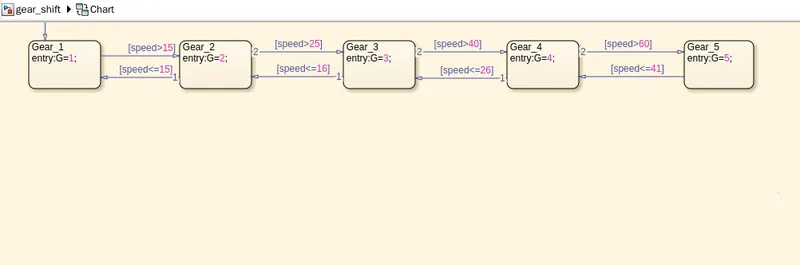

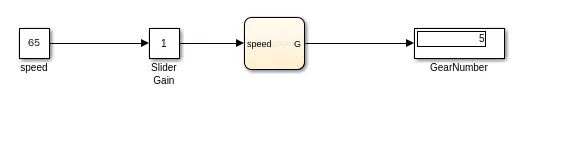

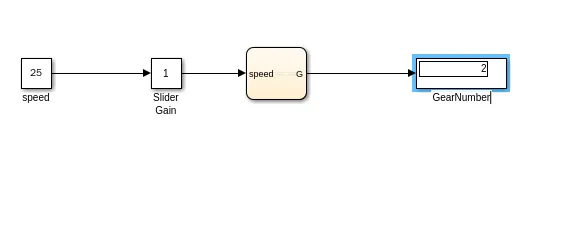

2. Make a Simulink chart for the “Gear shift” logic as per below conditions:
Speed Range(kmph) Gear
GearNumber_1
GearNumber_2
GearNumber_3
GearNumber_4
GearNumber_5
