Week - 4
AIM: To impliment control logic of a washing machine using stateflow in simulink

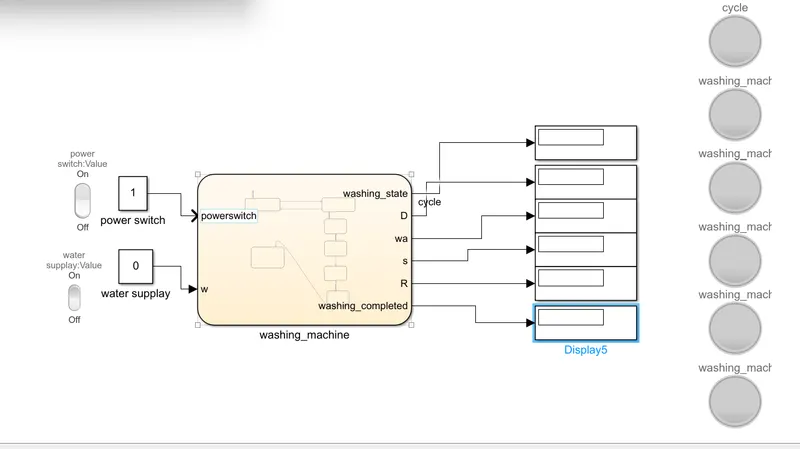

PICTORIAL REPRESENTATION OF BLOCK DIAGRAM

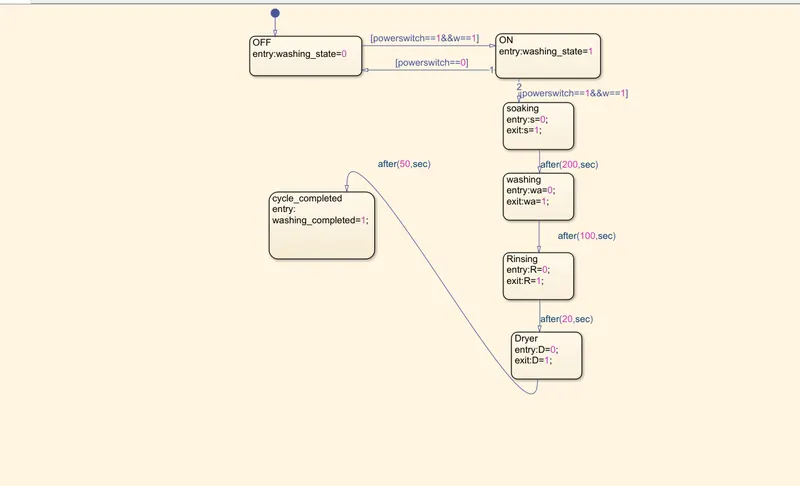

CHART DIAGRAM:

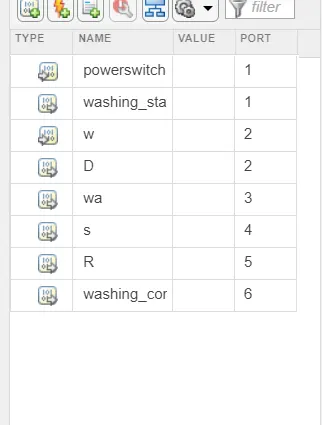

PARAMETERS:
We have given water, soak,washing,rinsing,dryer,cycle as outputs of the chart
we have given our warer_supplay&power_supplay as inputs of the chart
simulation time = 460
we use 460 sec so that it can cover the whole cycle and sufficient time to store and solve the parameter
OUTPUT:
condition-1: when water supply is off
we should not provide water supplay and check for output

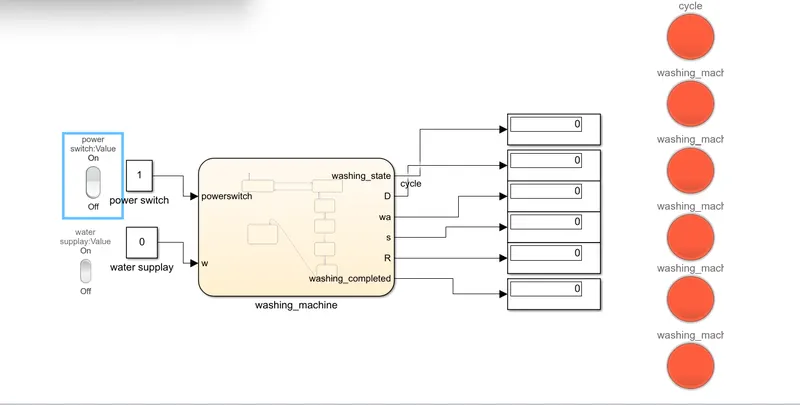

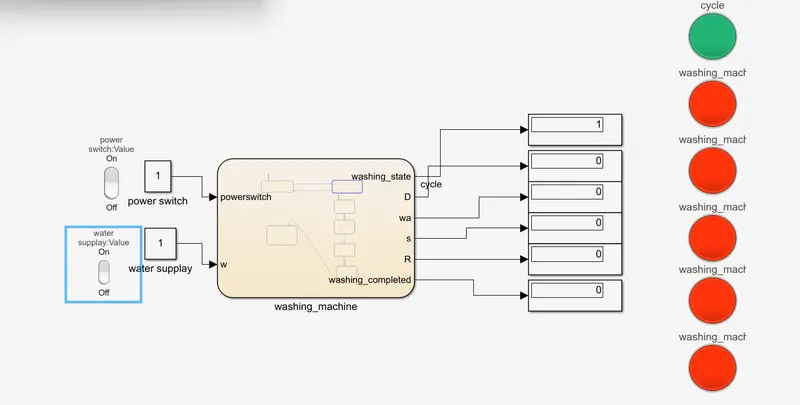

from the above diagram we can see that indicator of water is showing red .when there is no water supply the process is terminated and LED indicator is used to indicate that state
condition-2: when water supply is ON
Now providing the water supply and check the output
As we can observe from the above figure, all the state have been executed and indicating the process completion indicator showing green
CONCLUTION:
The simulation of the washing machine using state flow is done and the result is satisfactory
TASK-2:
AIM: To make a simulink chart for the gear shift logic

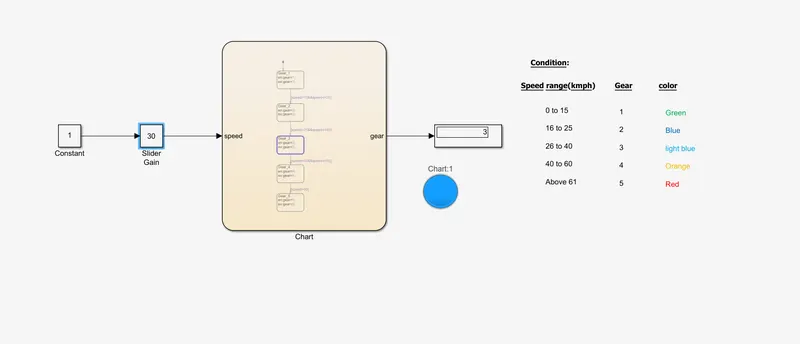

BLOCK DIAGRAM OF MODEL:

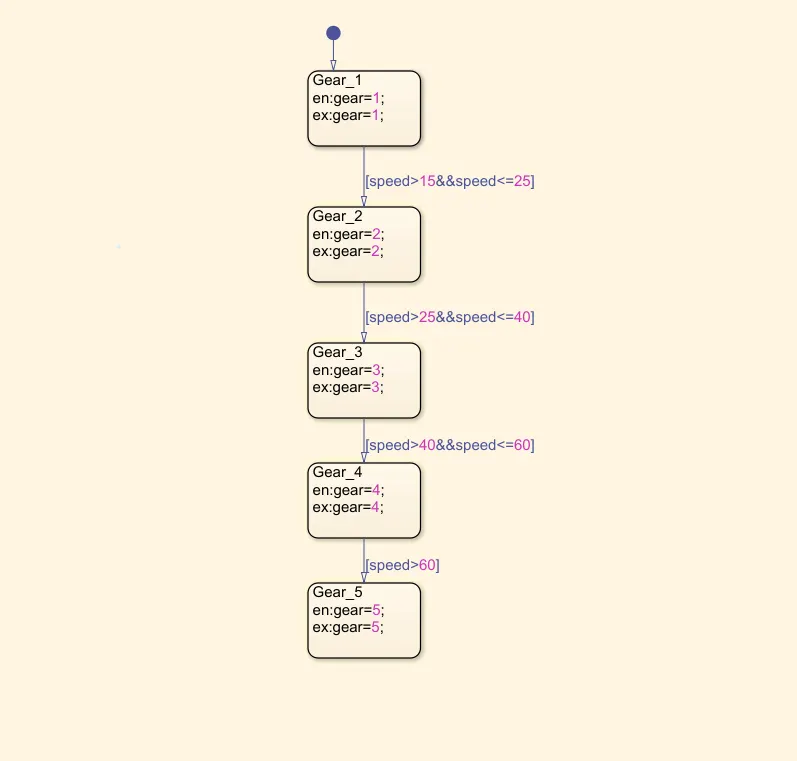

CHART DIAGRAM:

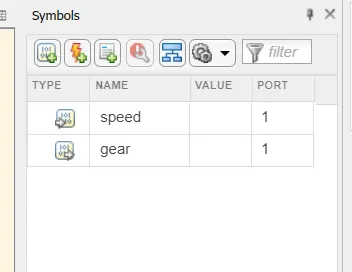

PARAMETER:
Here we give speed as an input for the chart and gear as an output
SIMULATION TIME PARAMETER:

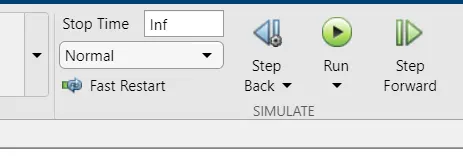

Here we gave time as 'inf' for our simulation should run until we stop it

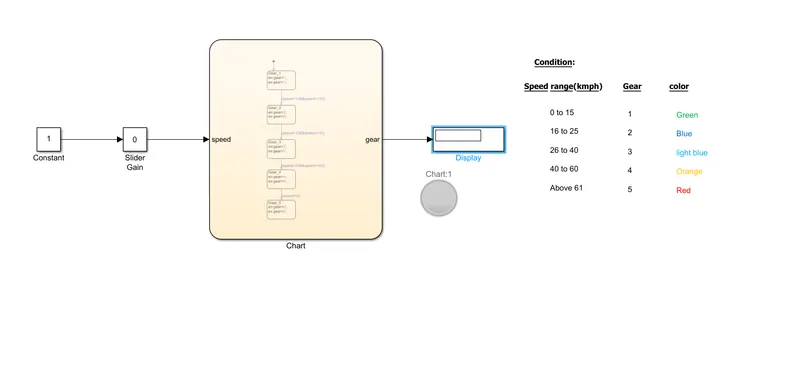

INPUT:

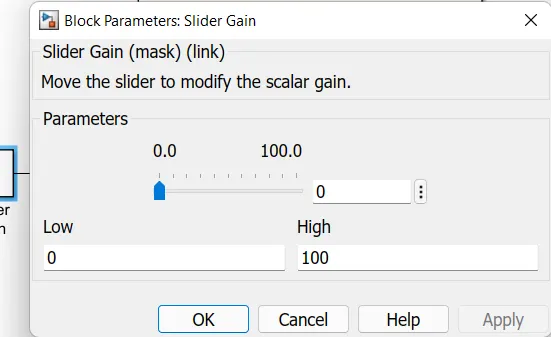

We use slider gain to provide input to the chart
i'm changing my speed values from 0 to 100 using slider gain during the simulation
OUTPUT:
The output produced is recorded whhen it's displaying the each gear

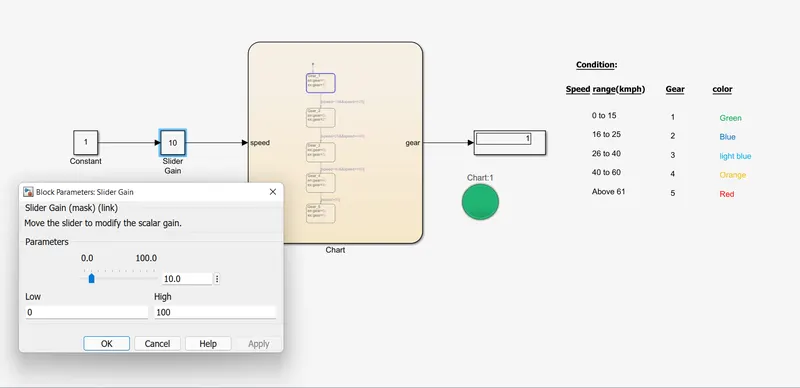

GEAR-1:
Speed range:0 to 15kmph.
input speed:10kmph
color :Green

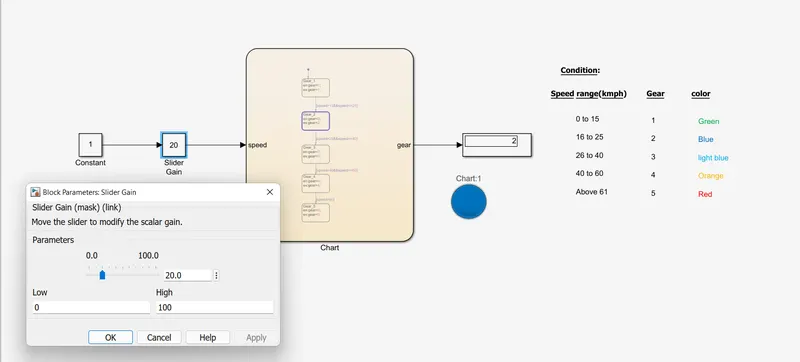

GEAR-2:
speed range:16 to 25kmph.
input speed:20kmph.
color :Blue
GEAR-3:
Speed range:26 to 40kmph.
input speed:30kmph.
color :light blue

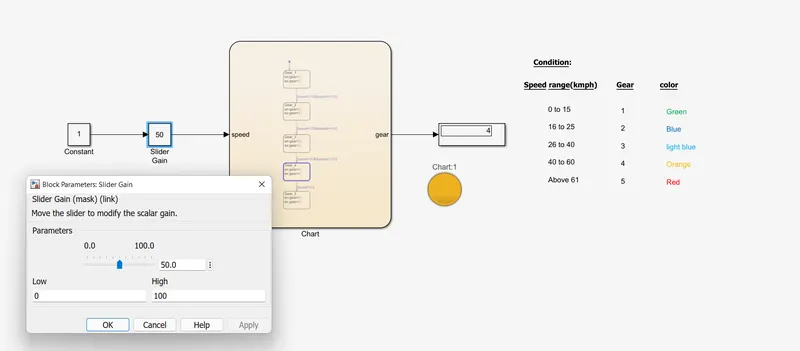

GEAR-4:
speed range:41 to 60kmph.
input speed:50kmph.
color :orange

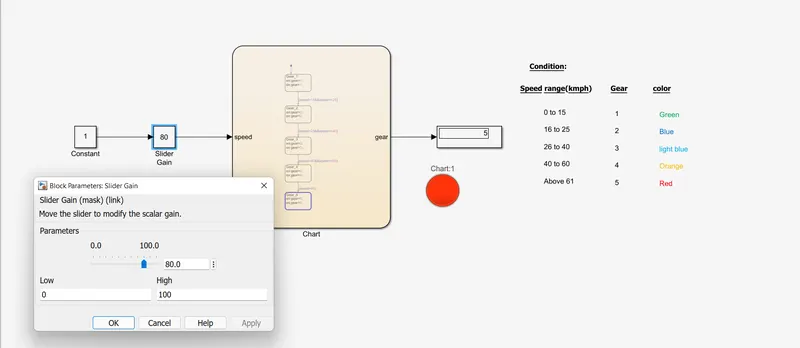

GEAR-5:
speed range:above 60kmph.
input speed:80kmph.
color :Red
CONCLUSION:
Created a state flow for gear shift using simulink and the result are satisfactory
