Week - 4
- Implement control logic of a “washing machine” using Stateflow as per given sequence:
- If the power supply is available, the system gets activated
- If the Water supply is not available, stop the process & indicate through LED
- Soaking time should be 200s followed by Washing time of 100s.
- Then rinsing happens for next 20s & dryer runs for 50s
After all the processes have completed turn on the finished LED
MODEL
in this file which consist of model is attached with is report
1) value 1 means there is input signal
2) value 0 means there is no input signal

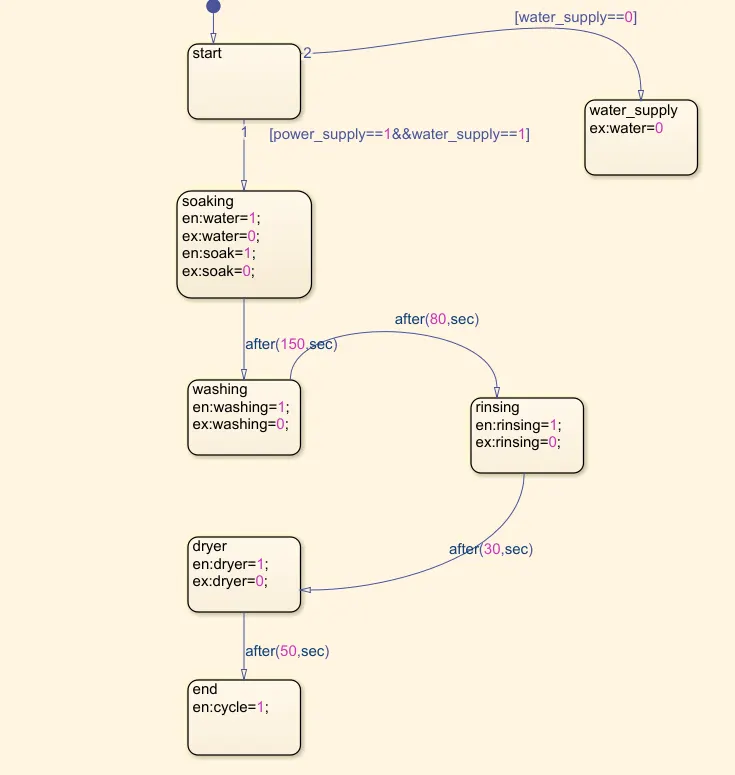

CHART DIAGRAM

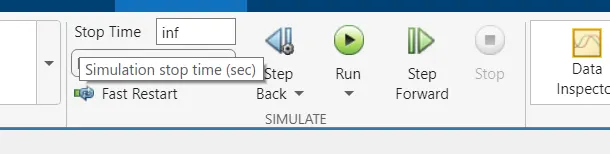

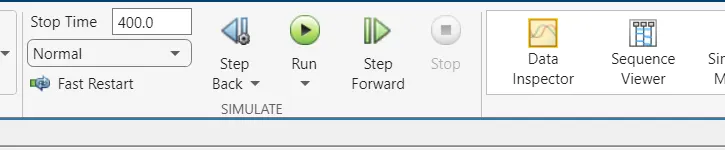

SIMULATION TIME PARAMETERS
In this case i use 400 sec so that it can cover the whole cycle in sufficent time

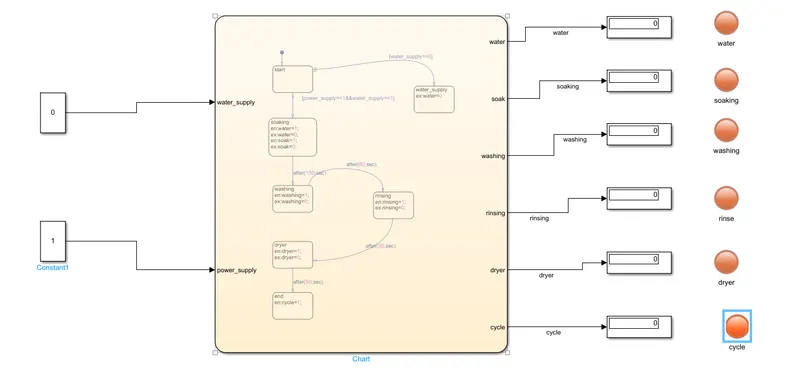

WHEN WATER SUPPLY IS OFF
and checking for out put
we can see the experted output in this fig

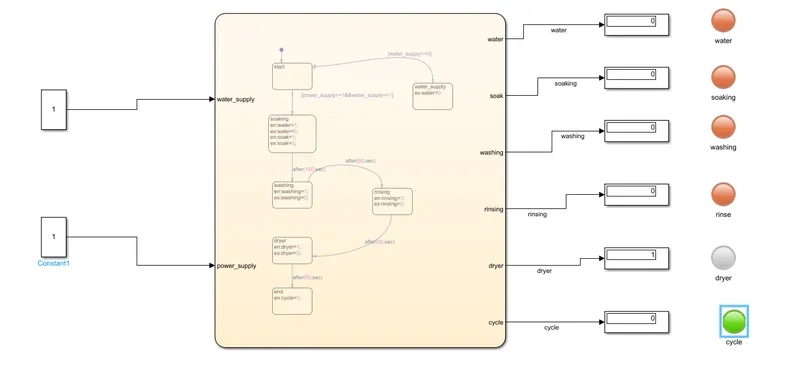

WHEN WATER SUPPLY IS ON

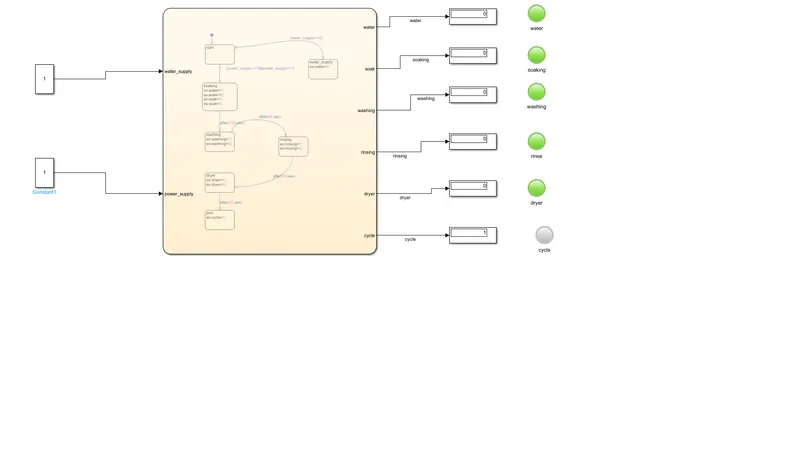

we can see indicator turns green
- this simulation of the washing machine using state flow is done
2. Make a Simulink chart for the “Gear shift” logic as per below conditions:
Speed Range(kmph) Gear
0 to 15 1
16 to 25 2
26 to 40 3
41 to 60 4
Above 61 5
Give speed input while the simulation is running & display the gear number.
AIM
To make a simulink chart for the gear shift
OBJECTIVE
Speed Range(kmph) Gear
0 to 15 1
16 to 25 2
26 to 40 3
41 to 60 4
Above 61 5
Give speed input while the simulation is running & display the gear number.

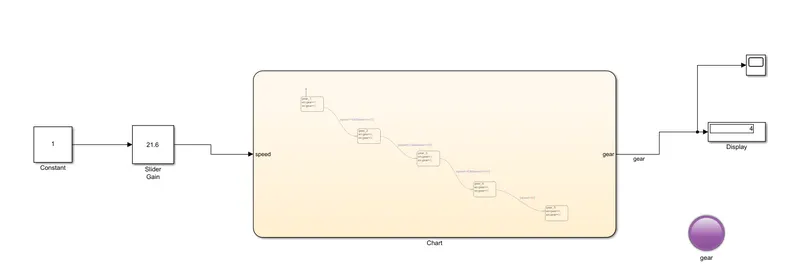

BLOCK DIAGRAM

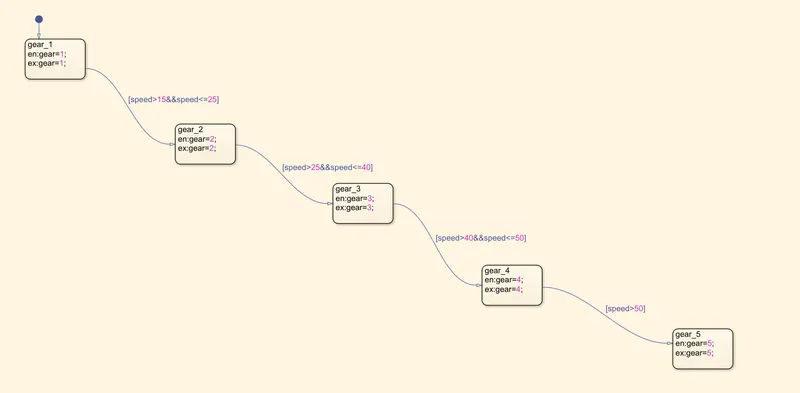

CHART DIAGRAM
SIMULATION TIME
INPUT

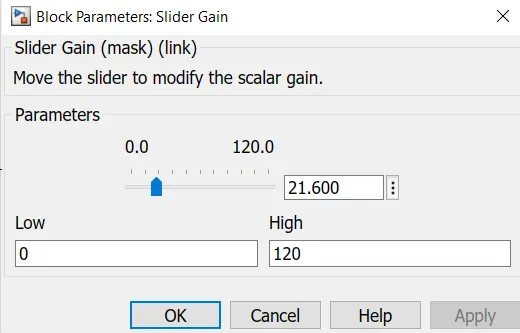

we use slider gain to provide the input value

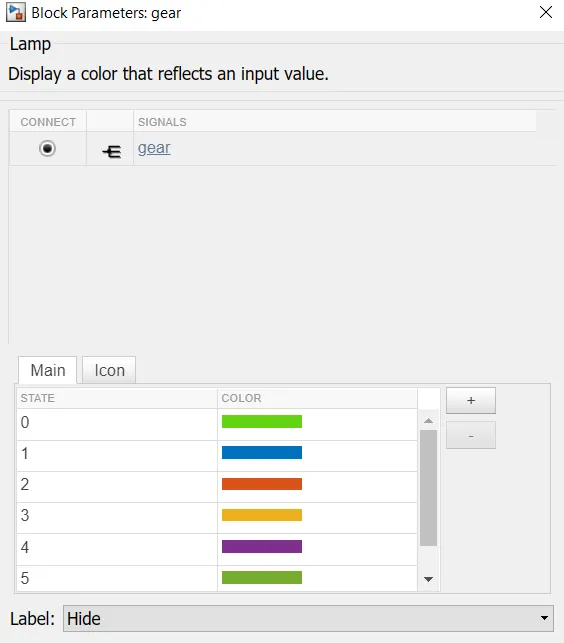

COLOR INDICATOR FOR GEAR CHANGE
- CREATING A STATE FLOW FOR GEAR SHIFT USING SIMULINK HAS BEEN SIMULATED AND RESULT ARE SATISFIED
