Week - 4
Challenge 4 Model 1 Washing Machine
Step1- Create a chart & enter the given input condition, After all process completed turn of the End LED
Step2- After entering the input conditions in the chart, Go to symbols pane & assign the given variable. (e.g. input & output data)
Step3- Give the input values for turning on or off for the power supply & water supply
- If value =1, power & water supply will turn on
- If value=0, power & water supply will turn off
Step4- Use display block & lamp indicator to display the results.
Output

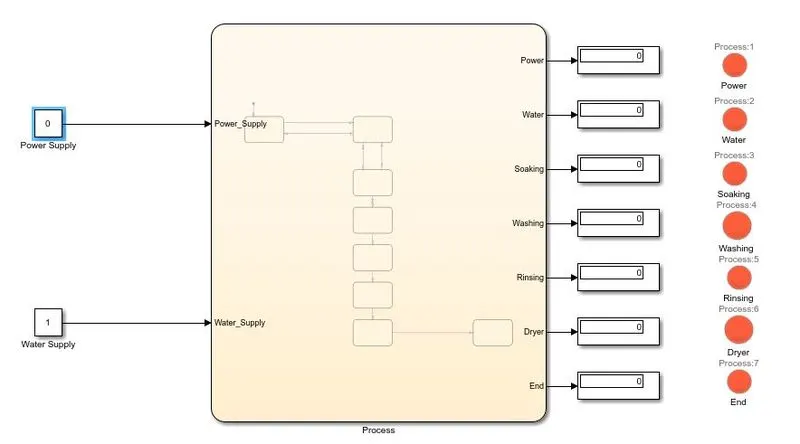

Case1- If the power source = 0 and water source=1, then power supply will not available.
https://drive.google.com/file/d/1hQRtzqgpgc9VHo5gj41mx42AM8FfwERG/view?usp=sharing

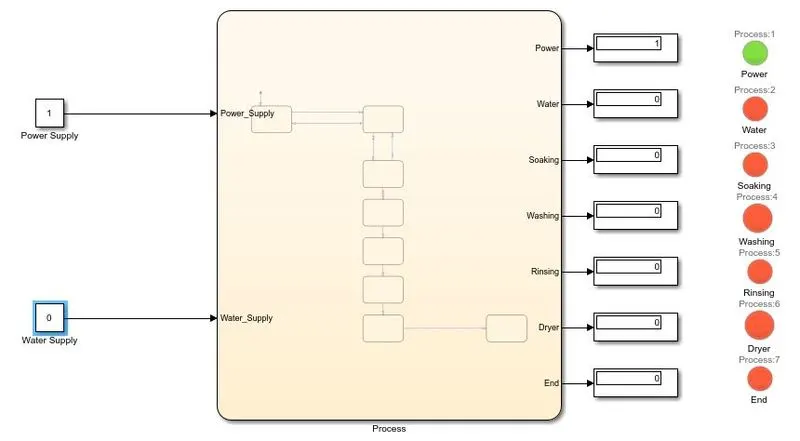

Case2- If the power source = 1 and water source=0, then power supply will turn on & water supply will not be available & so system will not activate
https://drive.google.com/file/d/1-vZOEYBQx4ROjEUn_cRUelrlfoROCrlq/view?usp=sharing

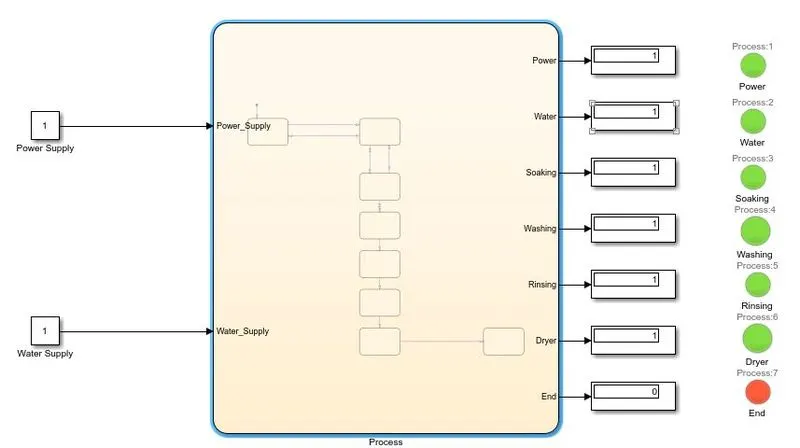

Case3- If the power source = 1 and water source=1, then power supply will turn on & water supply will be available & so system will activate & after all process complete end lamp will turn on.
https://drive.google.com/file/d/17lPMLeDWX4PKQ0sK0yPBdRKOFh9Glvmo/view?usp=sharing
Challenge 4 Model 2 Gear Box
Step1- Create a chart & enter the given conditions for gear shifting
Step2- After entering the input conditions in the chart, Go to symbols pane & assign the given variable. (e.g. input & output data)
Step3- Connect the Slider Gain to vary the speed while simulation is running
Step4- Create constant & giving value 1 & o for turning on & off
Step5- Create Lamp to indicate the power on or off
Step6- Use display block to display the gear position
Output

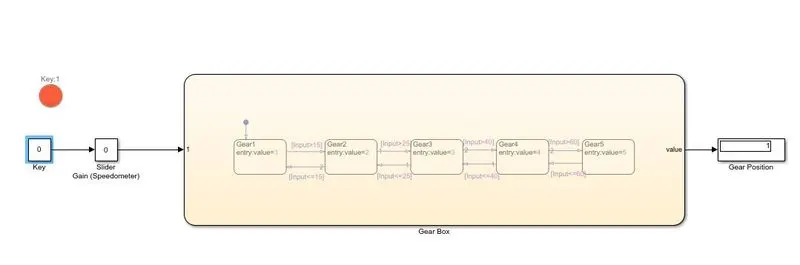

Case1- If the key=0, then the power will turn off, Lamp indicate the Red color & gear shifting mechanism will not activate.
https://drive.google.com/file/d/1uX8_wM_2IU5QHItCl-OEVqUeWxdZhoZ6/view?usp=sharing

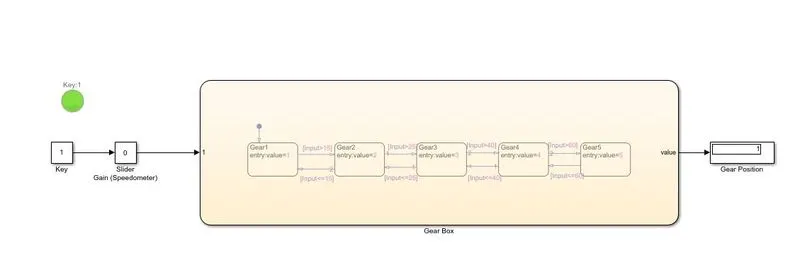

Case2- If the key=1, then the power will turn on, Lamp indicate the Green color & gear shifting mechanism will activate.
https://drive.google.com/file/d/1e1MIlOHY6PRJ5nPxuLDRwgSdi4UrnNJA/view?usp=sharing

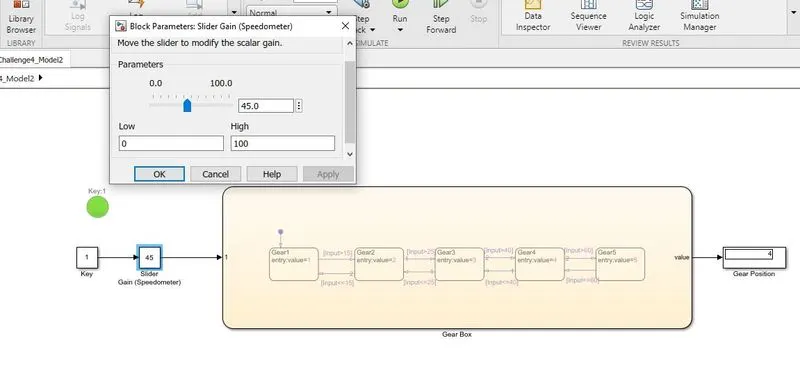

Case3- By varying the speed in the speedometer, Gear position will change according to the given condition
https://drive.google.com/file/d/1_toC63yOZbeSG0f2k8vIYecqGBJqNqTg/view?usp=sharing
