Week - 4

1.
Aim
TO Implement control logic of a “washing machine” using Stateflow as per given sequence:

• If the power supply is available, the system gets activated
• If the Water supply is not available, stop the process & indicate through LED
• Soaking time should be 200s followed by Washing time of 100s.
• Then rinsing happens for next 20s & dryer runs for 50s

  Software Used :Matlab

  Procedure.

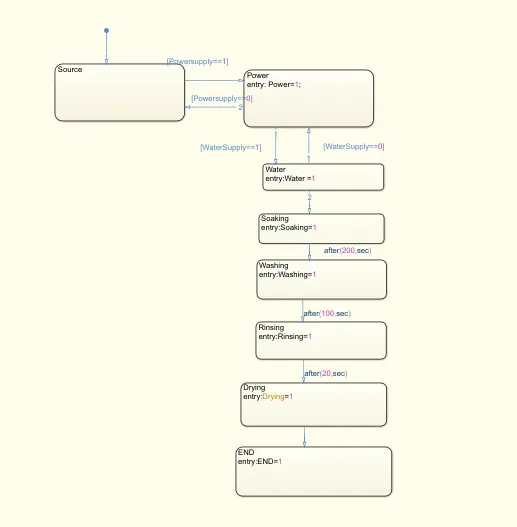

• Draw the state flow as per the requirements.
