Project

Aim,
To Study system-level simulation of an all-terrain vehicle
Software Used :MATLAB 2021a
Procedure .
1.Download the model from the mentioned Linkhttps://www.mathworks.com/matlabcentral/fileexchange/70576-baja-all-terrain-vehicle-atv-model
2.Signal Builder is used as Break and throttle inputs ,CVT Ratio

3.Generic Engine Block is Used.

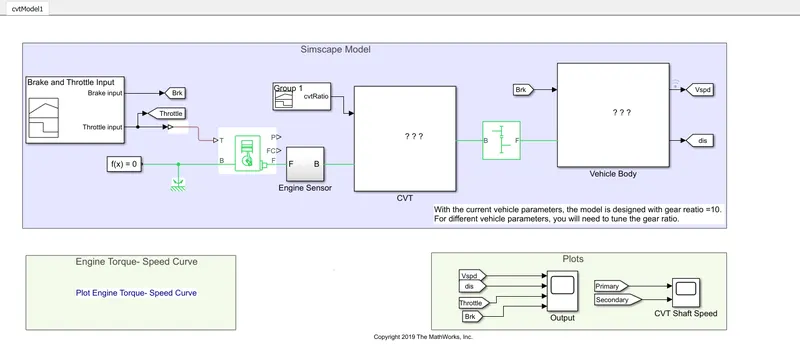

Total Model.

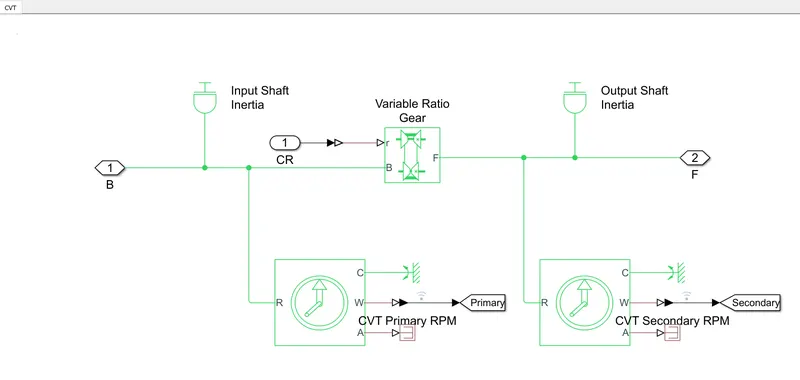

CVT Block Sub system :-

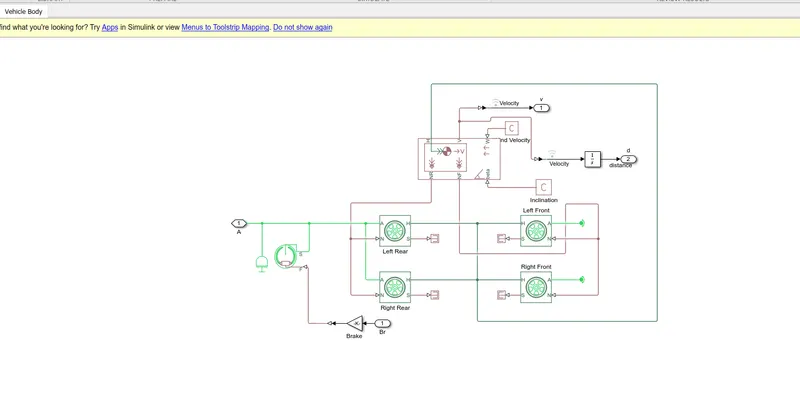

Vehicle Body Sub system:

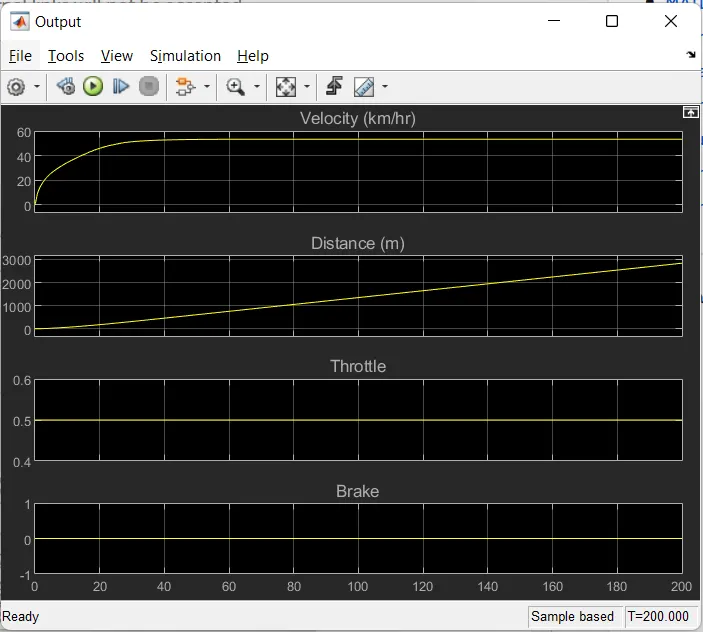

Output

Observation :
1.As throttle is Directly Proportional to Velociy,due to increase in power fromm engine .
2.Brake Power is Inversly proportional to Velocity
