Week 4 - 2D Meshing for Sheet Metal

for meshing the given assembly.

major processes involving are

1.geometry check up: after opening the file in ANSA check for the errors.

2. TOPO : topo the given assembly,inorder to decrease the diconnectivity between the surfaces.

3. GEOMETRY CLEAN UP: remove the hotpoints,triple cons,errors from the assembly

3. MID SURFACE: give the midsurface value for the separated parts. automatically/manually.

4. SET THE PARAMETRES: give the boundary conditions as mentioned in the question.and meshing parametres.

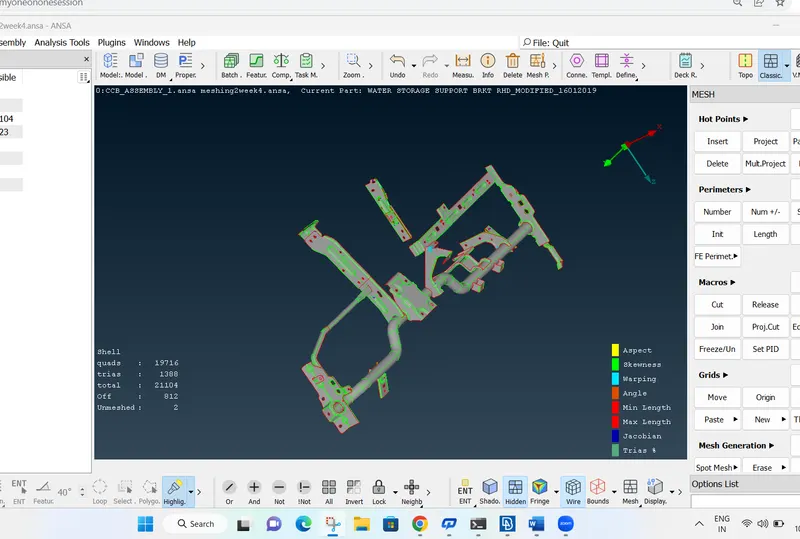

5.MESHING: after these processes do the meshing operation by selecting each face of individual part,

6.ACCURACY : reconstruct, smooth, split are the options inoder to achieve the better meshflow, reducing the errors.

7.PID: after the processes give the thickness of the part and save to the file. and conyinue the process for all the given parts.
