Week - 4 - 2D meshing for Plastic components

Aim: To do a 2d mesh for the given bottle cap model.

Procedure:

• Import the cad model.
• Do cons resolution.
• Check for connectivity.
• Do orientation.
• Do geometric checks.

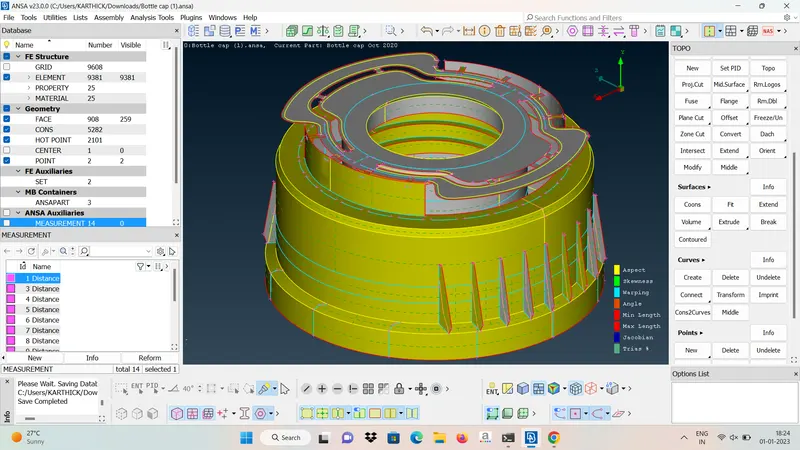

• Extract mid surface of the geometry.
• Give thickness to the mid surfaces.

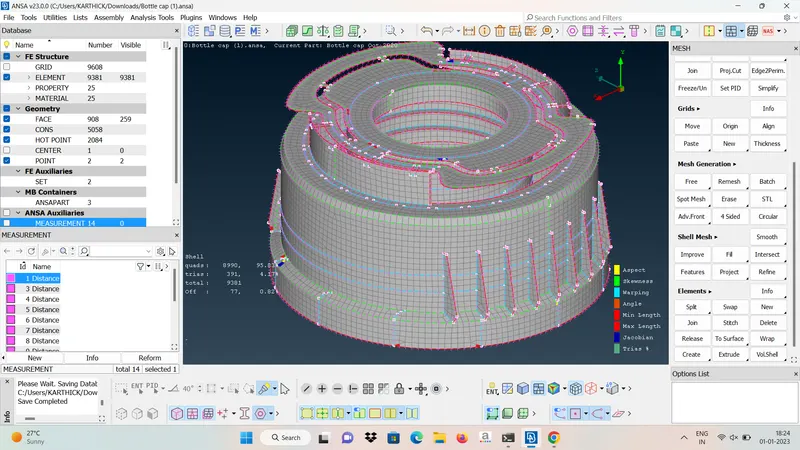

• Use mesh options to mesh the mid surface.
• Check and clear all the quality issues.

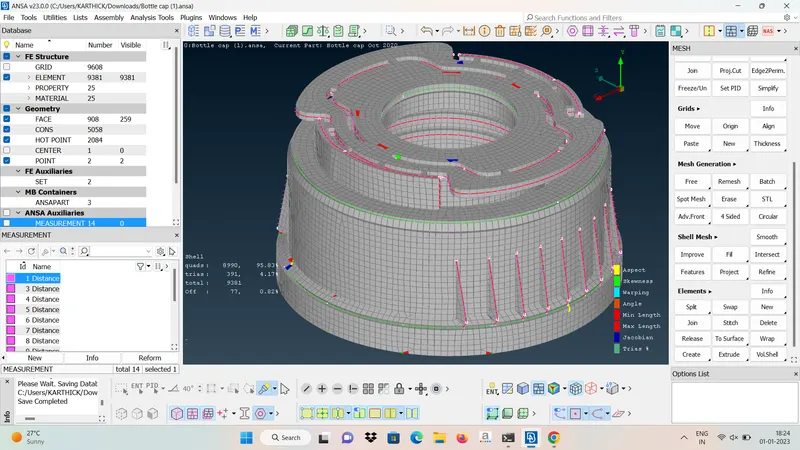

• Do shells as solids
•
•
•
• CONCLUSION: The given model is meshed according to the given quality criteria.
