Week 4-1D Element Creation Challenge

Aim

1.Creat midsurface

2.To Mesh the Given component

3.Create 1D element

Procedure:

Midsurface

Step 1

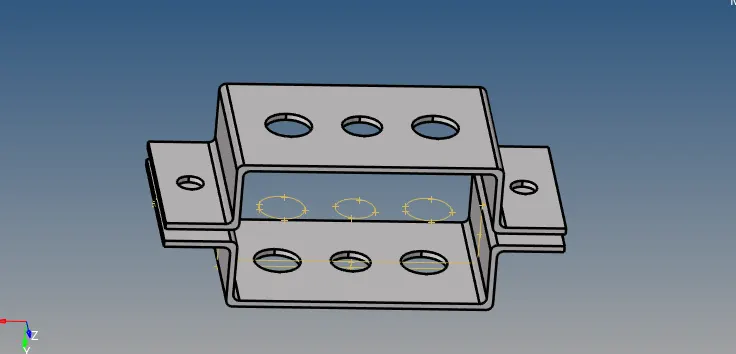

Import geomentry

step 2

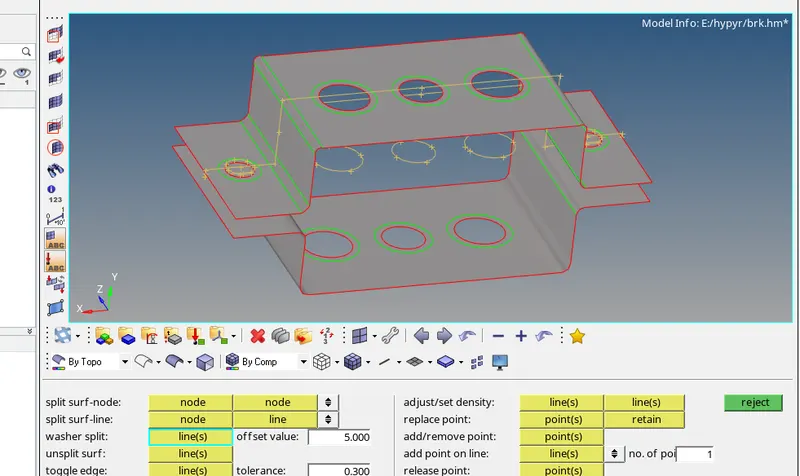

Creating washer line using quick edit

Meshing

step 1

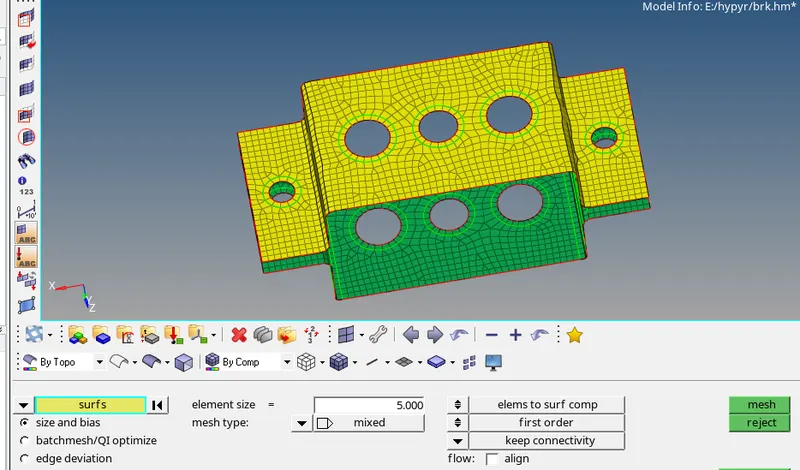

Creating automesh on Componet

step 2

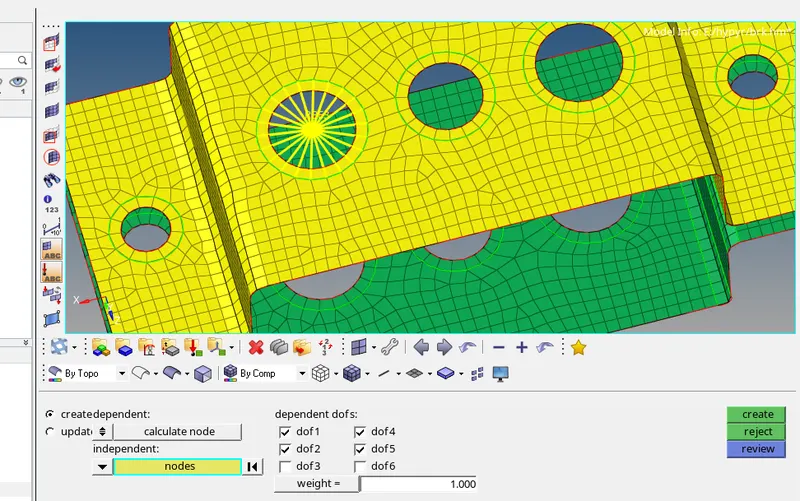

Creating RBE3 connectors simillarly RBE2 created and all other connector also

Step 3

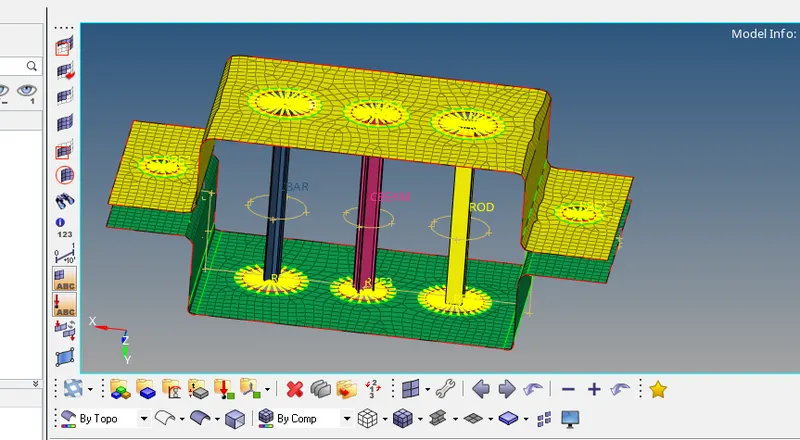

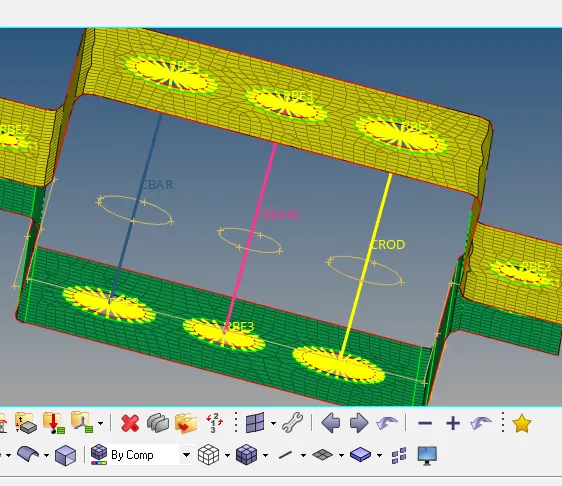

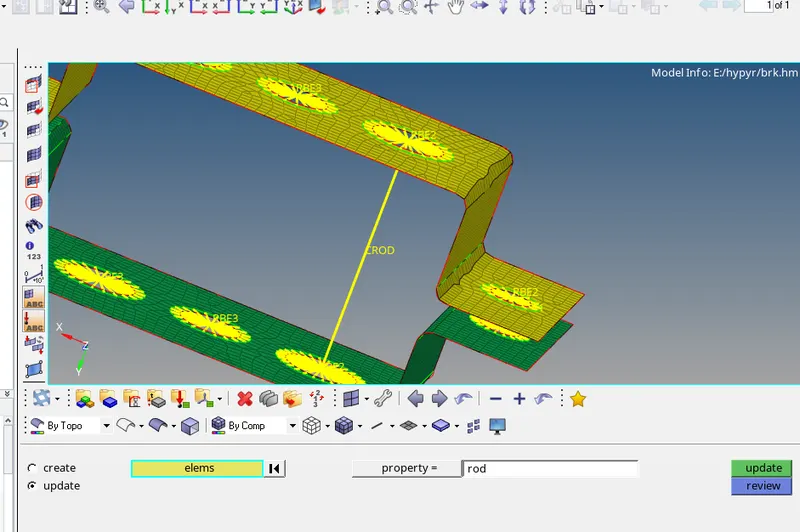

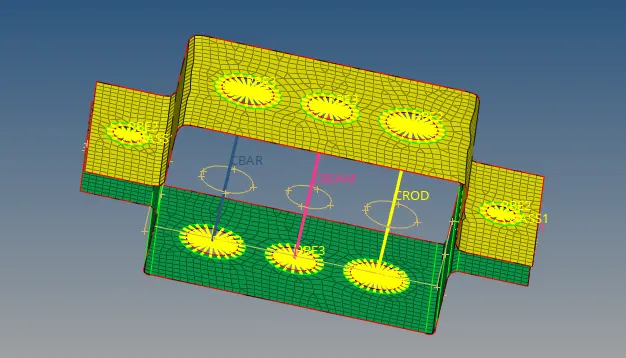

For creating CROD elements two nodes selected simillarly CBAR, Spring and CBEAM are created.

step 4

step 5

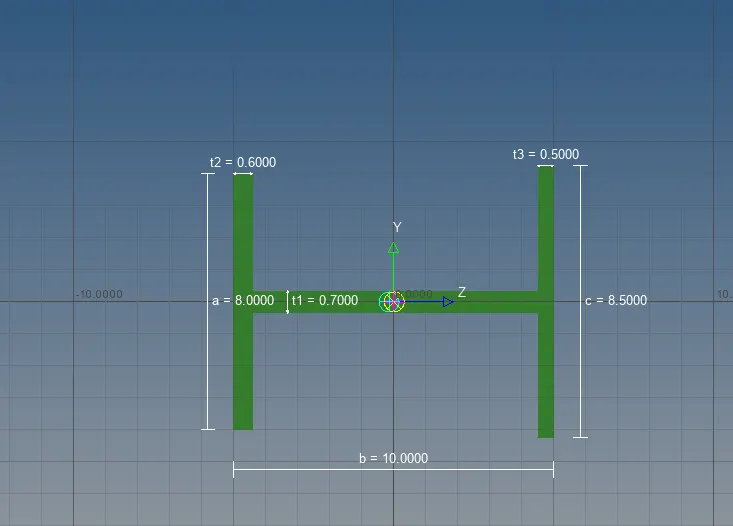

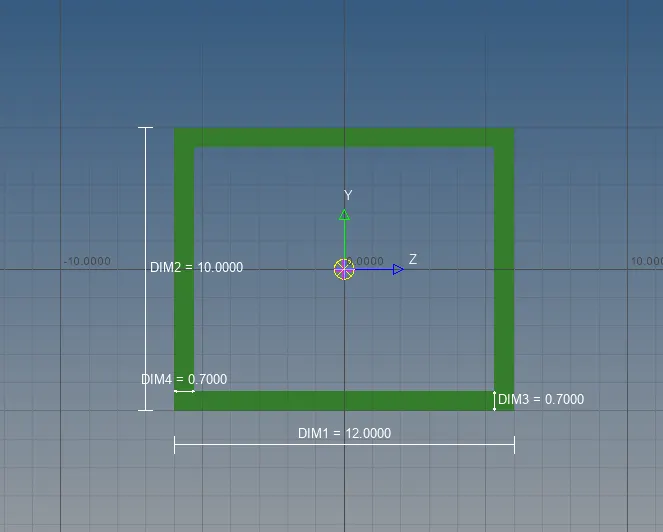

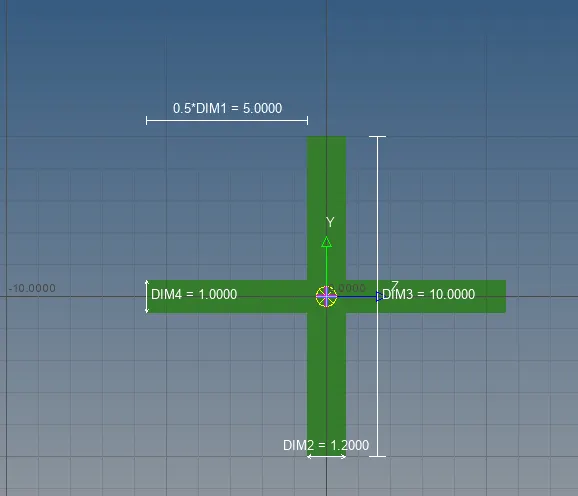

creating section used hyperbeam option chose solid box option and edit dimention

step 6

step 7
