Week 4-1D Element Creation Challenge

AIM:mesh the given component and make a joints using bar rods beams of 1D elemnts.

procedure:

import the model which is in JPEG format.

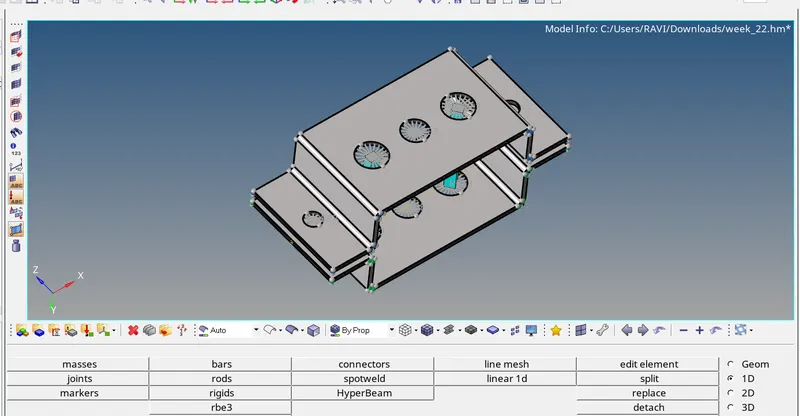

create the midsurface for the component. and give the target length as 5 for the mesh.

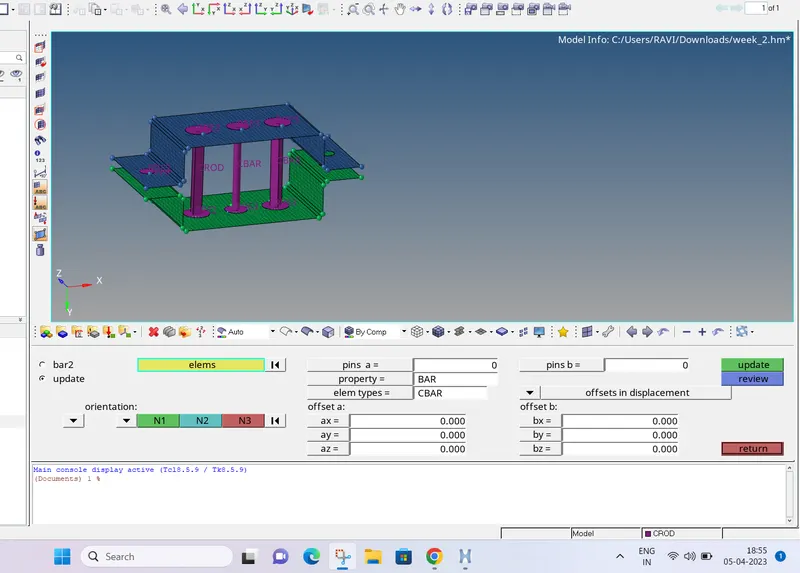

create a 1D elements such as rods, bar elements for the given component.

after creating go to 1d standard section and solid circle for bar, solid rectangle for rod and L-section solid for beam.

assign the given thickness, dimensions for the 1D elements.

crete aseparate section for properties and assign with resoect to their names .

assign properties and material and mass for the components.

now, go to 1D tranaslation for assigning thickness for 1D elements.

result: thus for the given component 1D elements are created, meshing for misurface is done.
