Week 4-1D Element Creation Challenge

OBJECTIVE

To create a mesh with the given model of 5 unit size,and create a RBE2,RBE3 elements respectively.

To create a beam,rod and bar with the following material properties respectively

To create a spring element and add mass load to the element

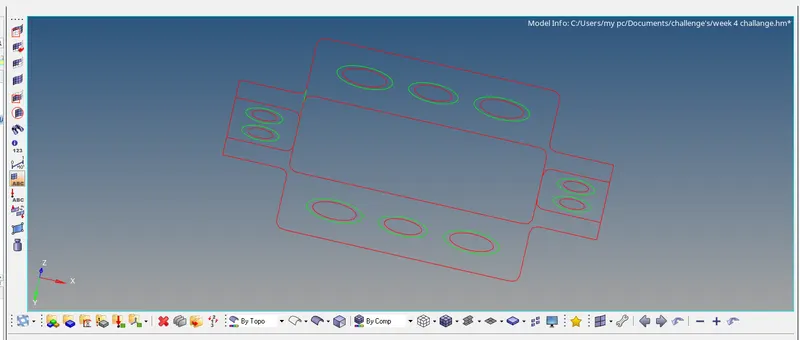

Cad model image :

PROCEDURE:

Mesh has been created by using 2D auto mesh and RBE2,RBE3 elements are been created by using 1D, nodes by part

Material type and property has been created respectively, hypermesh beams has been used to create the model and dimensions of the beams

The shape,dimensions and material property of the beam has been updated to the 1D beam elements

The mass has been loaded on the respective point and then the spring elements was also been created between the respective surfaces

RESULT :
