Week 4

S.No	Quality Criteria	Value
1	Target/Average length	1
2	Minimum Length	0.5
3	Maximum Length	3
4	Aspect	3
5	Warpage	15
6	Skewness	45
7	Jacobian	0.7
8	Minimum Quad Angle	45
9	Maximum Quad Angle	135
10	Minimum  Tria Angle	30
11	Maximum Tria Angle	120
10	Tria Percentage	15

AIM:-to generate the mid surface of the complex part and create the mesh acoording to the given criteria.

OBJECTIVES:-

• generate the mid surface of complex shapes
• mid formation of teeth and thread

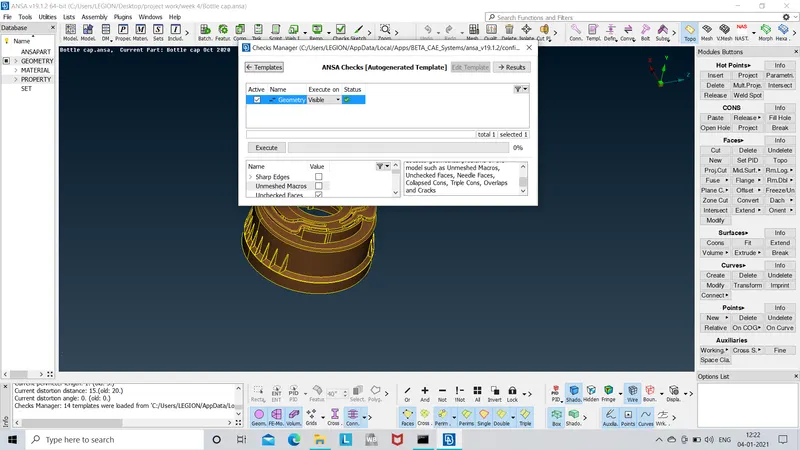

GEOMETRY CHECKUP:-

• we should have to make or geometry clean as their ae many errors would be present so we should identify that like unneccesery triple cons,needle face cz it will cause a severe problem on making the mid surface as well as in meshing.



MID SURFACE FORMATION:-

• as this is a complex part so its a little bit challenging and tricky to get the mid surface of the parts.

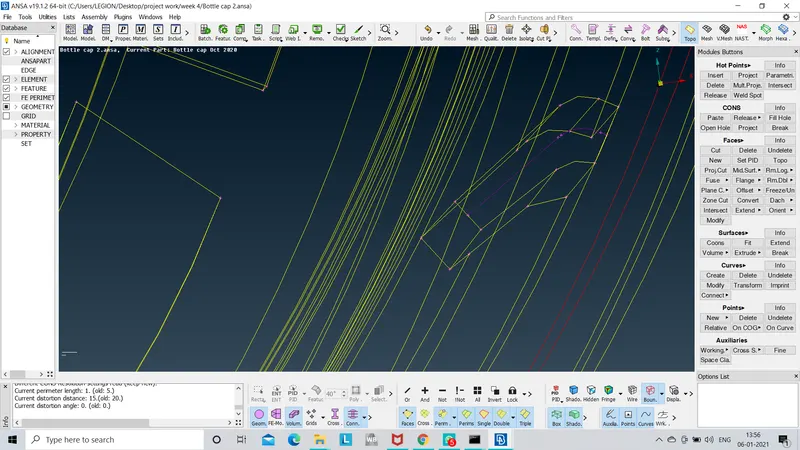

• in the curve parts we have to generate the mid by using curves>middle option.

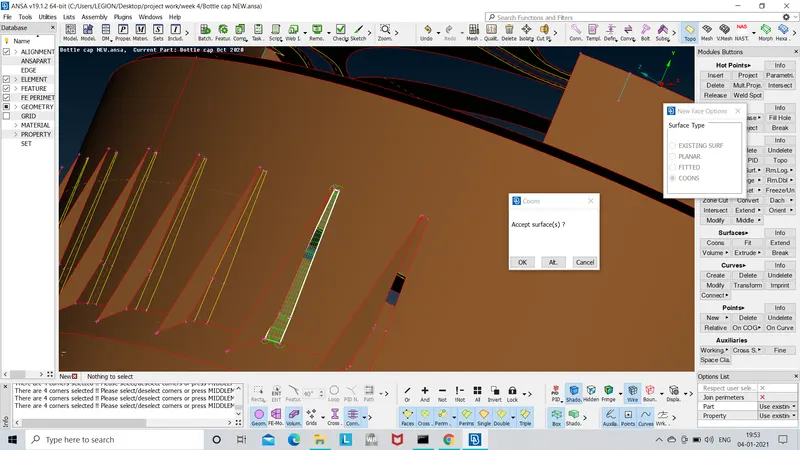

• then with thw help of the curve we have to create the mid by faces >new>coons option.

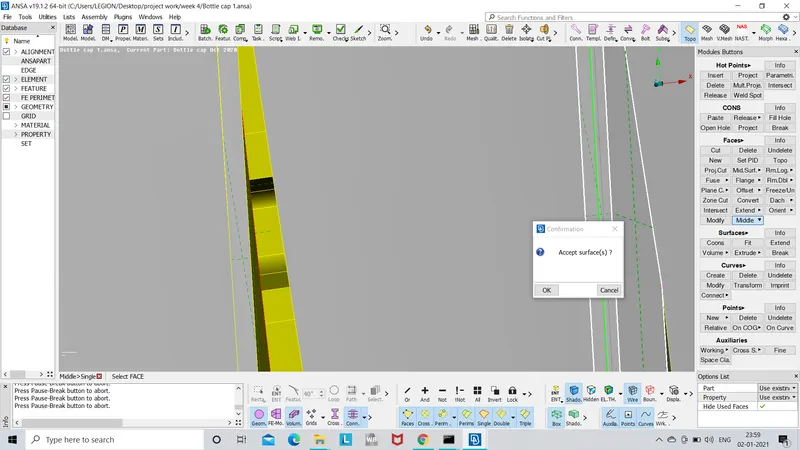

• for some other part we have to go for simply faces>middle options.
• And for normal portion after measuring the face should be offseted toget the mid.
•



• in some part we also fix the mid surface by extending or intersecting the parts to get proper mid surface.

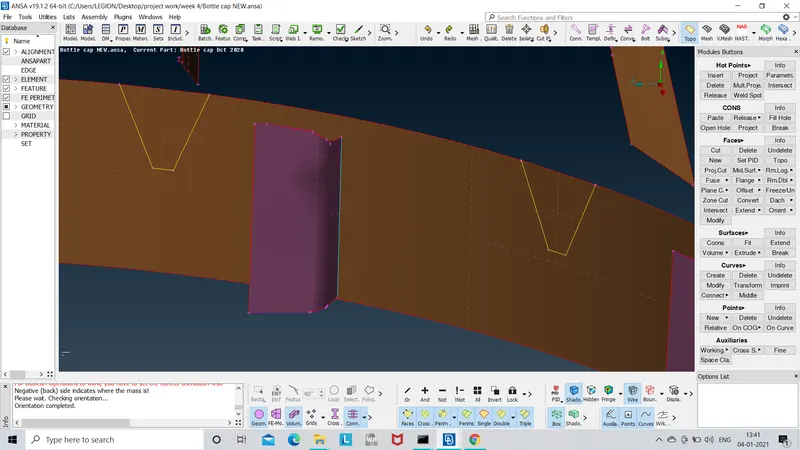

                                                                             extending and intersecting the part



                                                                                       adjusting the faces by fillinf the void part

• thats howwe have to completed the mid surface generation.

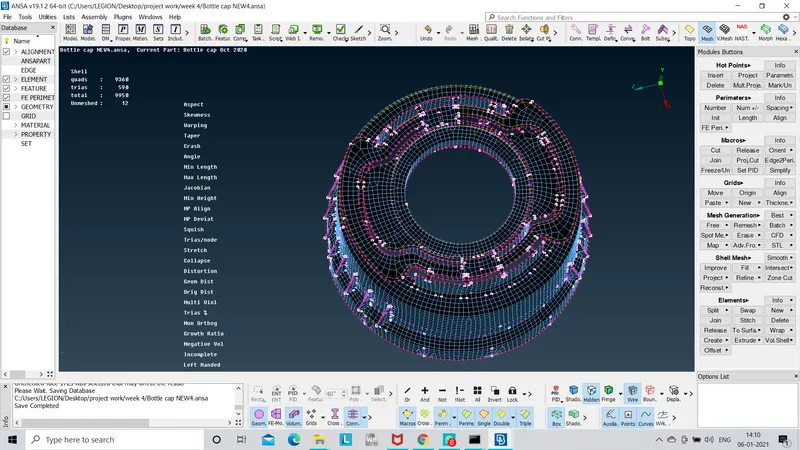

MESHING:-

• as this is a complex part it will be time consuming...in order to get the proper mesh we had to made several cuts for smooth flow,reconstructed the mesh to avoid the off elements.
• also we have to keep in mind that there should be no opposite tria and off elements present.

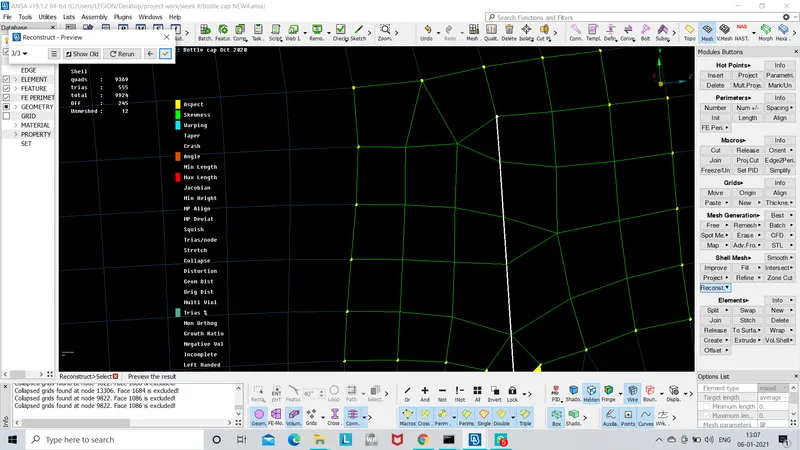

                                                                                           before reconstruct

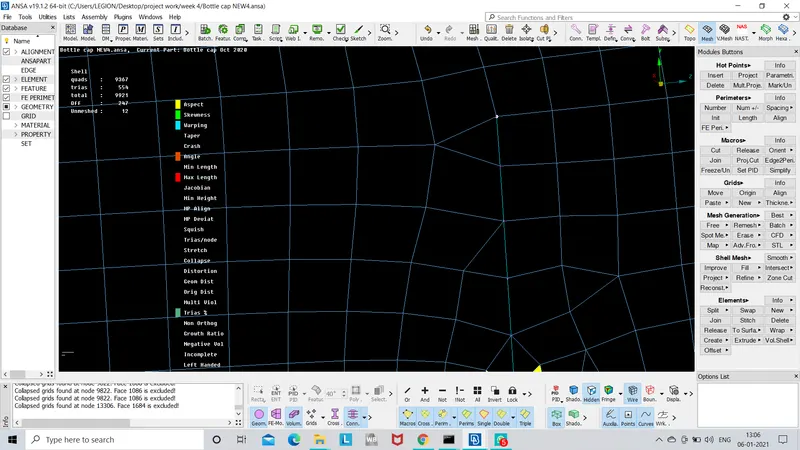

                                                                                                    after reconstruct



CONCLUSION:-

• obtaining the perfect mesh is not possible so have to keep tri elements in some of the place to avoid further distortion.
• to achive a good mesh its necessery to compromise the mesh structure as we have to allow some tra elements near after.
