Week 3 - Solving second order ODEs

Aim :- To Write a program in python that will simulate the pendulum motion

Objectives :-

> program to solve second order ODE

> making animation of pendulum motion

Theory :-

ODE-ordinary differential equations

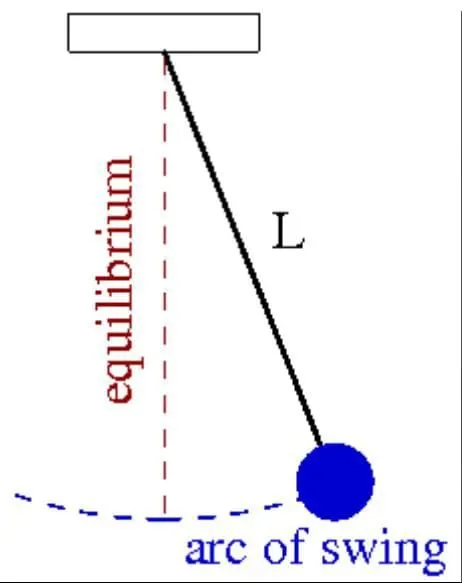

second order ODE of pendulum motion

b=damping coefficient

m=mass of ball in kg

g=gravity m/s2

L=length of pendulum in m

conversion :-

θ=θ1

(dθ/dt)=(dθ1/dt)=θ2

`frac{d^2theta}{dt^2}`=`frac{d^2theta1}{dt^2}`=`frac{d theta2}{dt}`

`frac{d^2theta}{dt^2}+(frac{b}{m})(frac{d theta}{dt})+(frac{g}{l})sintheta=0`

`frac{d^2theta1}{dt^2}+(frac{b}{m})(frac{d theta1}{dt})+(frac{g}{l})sintheta1=0`

`frac{d theta2}{dt}+frac{b}{m}theta2+frac{g}{l}sintheta1=0`

`frac{d theta2}{dt}=-frac{b}{m}theta2-frac{g}{l}sintheta1`

Input prameters:-

length(L)=1 m

mass(m)=1kg

Damping coiefficient (b)=0.05

Acceleration due to gravity(g)=9.81m/s2

sample code:-

#code for simple pendulum
import math
import numpy as n1
import matplotlib.pyplot as plt
from scipy.integrate import odeint

def model(initial,t,b,l,g,m):
	t1=initial[0]
	t2=initial[1]
	dt1=t2
	dt2=(-b*t2/m)-(g*math.sin(t1)/1)
	dt=[dt1,dt2]
	return dt
#inputs
b=0.05
l=1
g=9.81
m=1

initial=[0,3]
t=n1.linspace(0,20,200)
disvelo=odeint(model,initial,t,args=(b,l,g,m))

#ploting time v/s displacement&velocity
plt.plot(t,disvelo[:,0],'-',label='displacement')
plt.plot(t,disvelo[:,1],'--',label='velocity')
plt.legend()
plt.xlabel('time')
plt.ylabel('displacement&velocity')
plt.show()
#creating plots  pendulum positions

y=disvelo[:,0]
ct=1
for ang in y:
	x1=0;y1=0
	x2=l*math.sin(ang)
	y2=-l*math.cos(ang)
	file='test%05d.png'%ct
	plt.figure()
	plt.plot([-1.5,1.5],[0,0],linewidth=8)
	plt.plot([x1,x2],[y1,y2],linewidth=3)
	plt.plot(x2,y2,'o',markersize=15)
	plt.xlim([-1.5,1.5])
	plt.ylim([-1.5,1.5])
	plt.savefig(file)
	ct=ct+1

code explanation:-

I have used odeint command to solve the two first order ODE equation in the fuction. The command have common syntax.it solve

the two first order ODE equation and givens the resuluts.The result are plotted. for animation of simple pendulum, we have separate the

displacement value from the solution .For different displacement value the string position are saved as aimage file.All images are stored in

separate files .All images changed into animation using image magik software

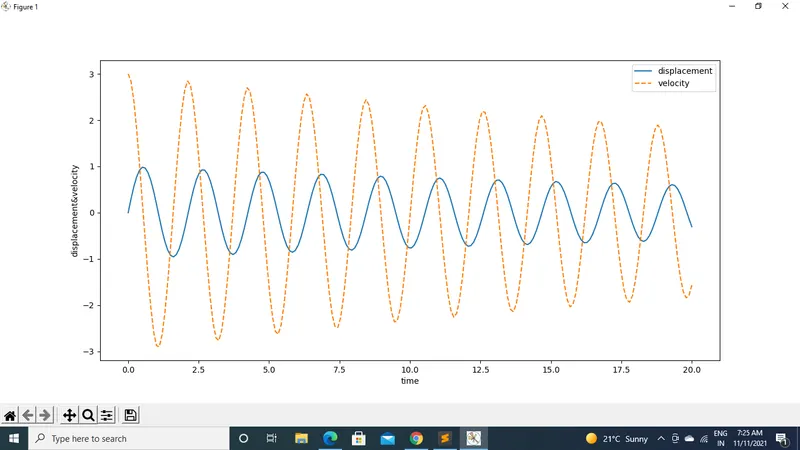

Output graph:-

output vedio link:-https://www.youtube.com/watch?v=0TSYraIZmKc

conclusion:-

time v/s displacement&velocity graph is obtained .

animation of pendulum is created.
