Week 3 Sheet metal Bending challenge

Aim :

The aim is to analyze the given file and compare the results.

Objective:

Case 1:Aluminium Alloy 1199( mentioned in the course video), Copper Alloy NL, and Magnesium Alloy NL. Find out the Equivalent stress, Equivalent elastic strain, and Total Deformation in the Y direction and compare the results for the three materials.

Case 2:With the material as Aluminium Alloy, change the friction coefficient to 0.19 and run the analysis as mentioned in Case 1. Compare the results with that in case 1.

Case 3: Refine the mesh on the plate such that it doesn't cross the academic limit. With Aluminium alloy as material, run the analysis as in Case 1 and compare the results.

Procedure:

Initially open the workbench, and create static structure analysis,

then in engg data specific the material of non linear alloys, aluminium,copper,magnesium

and open the gemoetry and open the required file

then check the material and the geometry,

then assign the faces and check the contacts,

and change the requirements, then add the solution needed,

Finally run the simulation and save the animation and the solution file and archive it.

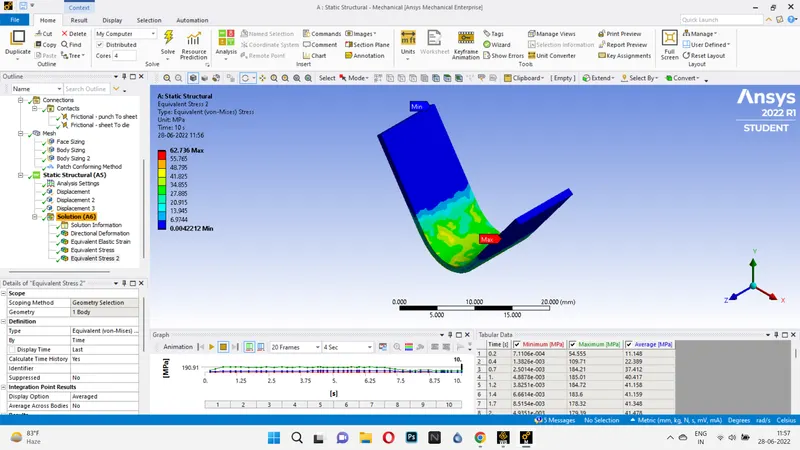

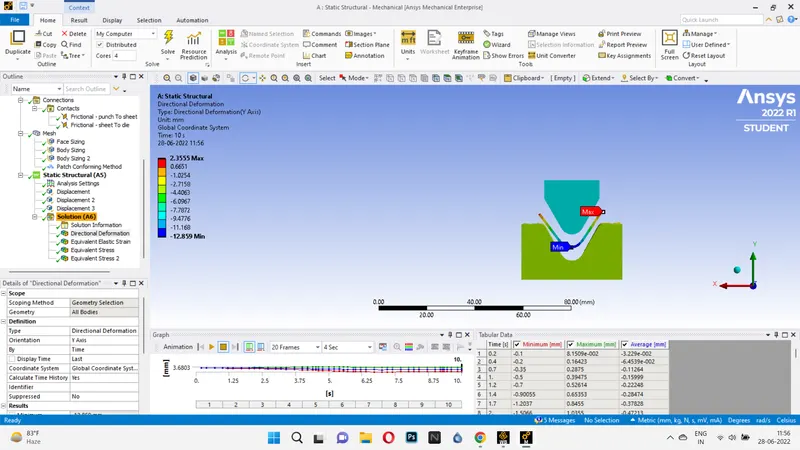

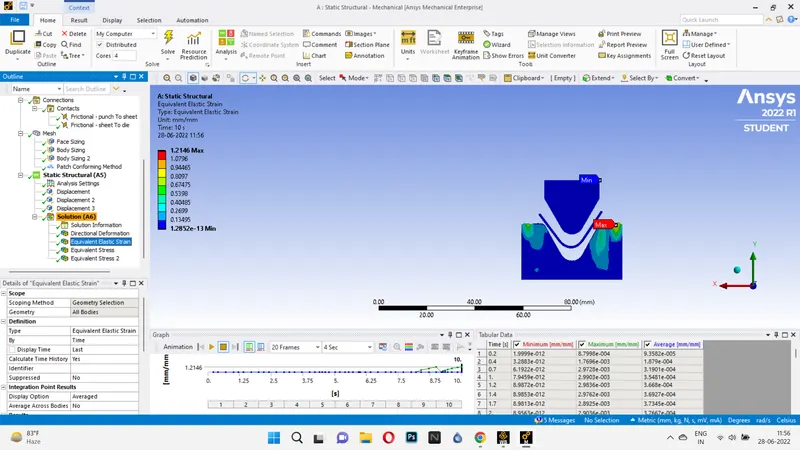

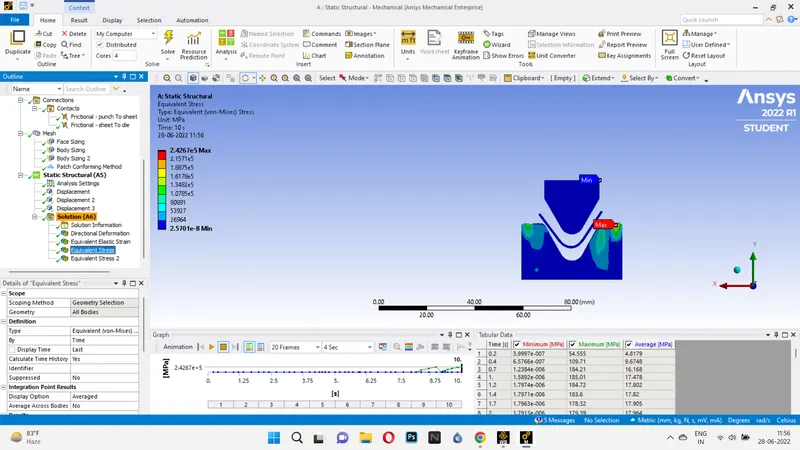

Case 1 : Aluminium 1199:

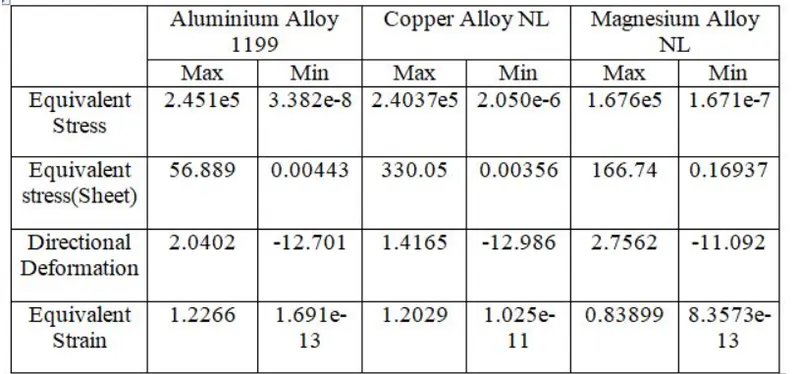

Result case 1 :

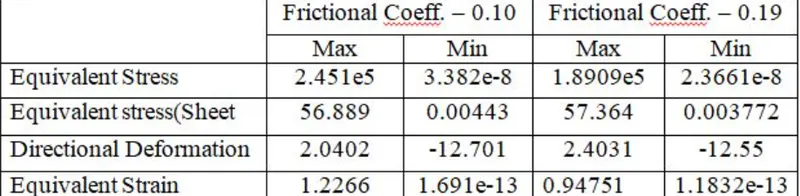

Case 2:

Result :

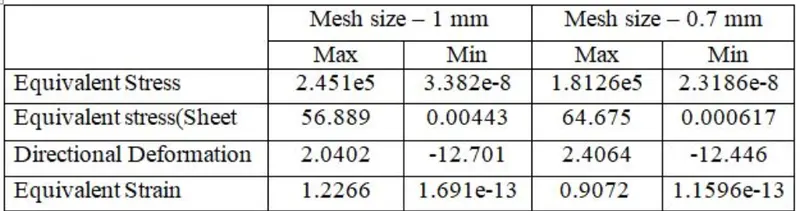

Case :3

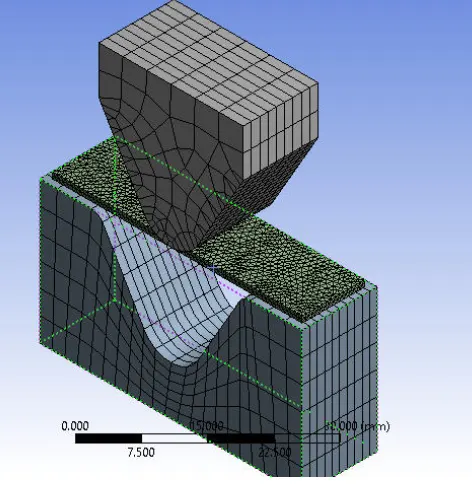

alumunium meshing;

As the mesh getting finer the results getting better.

the animation and archive file is attached to the assets.
