Week 3- Geometry cleanup and Mid-surfacing

AIM :

• To extract midsurface and provide connections of the tube and to perform modal analysis of the blocks.

OBJECTIVE :

• To extract mid-surface for the tube model and provide a connection with sharing option at the tube joint locations.
• To Perform a modal analysis of top block with bottom block to verify connections and analyze the results.

DATABASE:

CASE 1:

CASE 2:

• Dimension of Top Block A: 20 x 20 x 5 mm
• Dimension of Bottom Block B: 40 x 40 x 10 mm
• Boundary Conditions : Provide Fixed support for the bottom face of Block B

SOFTWARE USED :

• ANSYS WORKBENCH -2023RR2

PROCEDURAL STEPS :

CASE 1 : To extract mid-surface for the tube model and provide a connection with sharing option at the tube joint locations.

STEP 1 : Import the tube model.

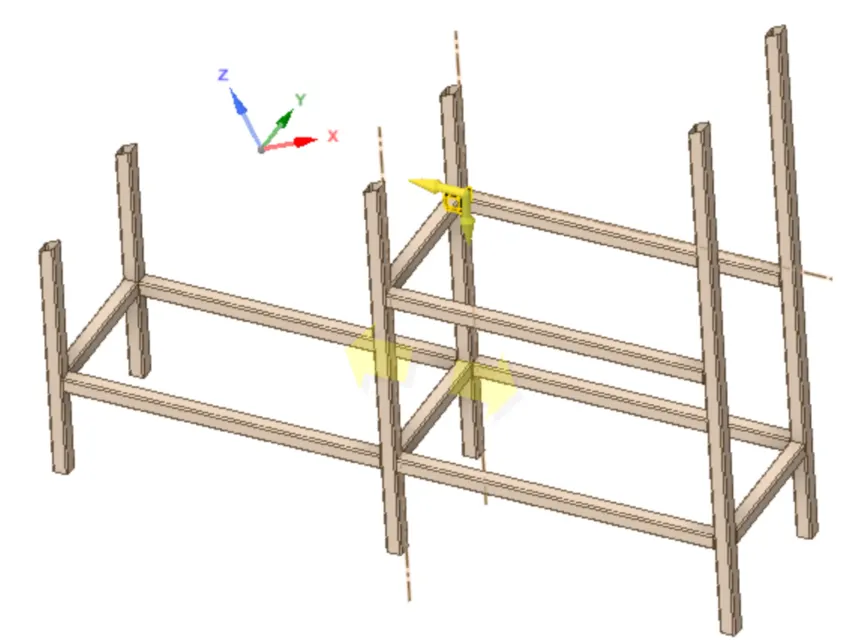

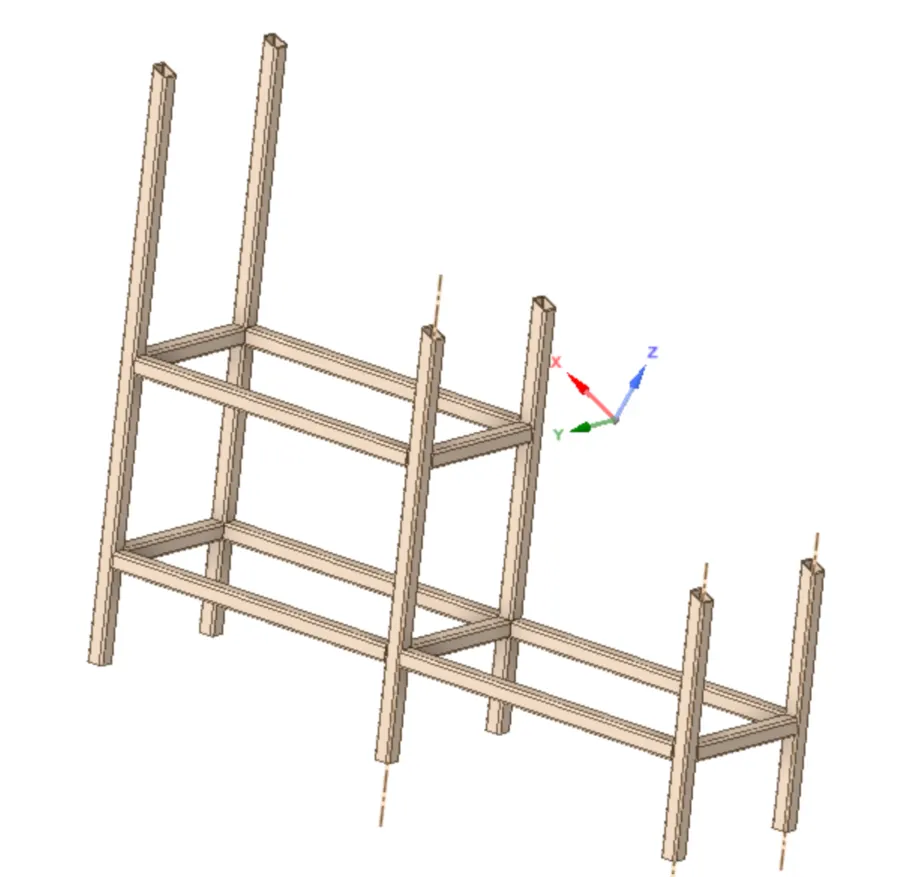

Imported the .scdoc file of the tube model in Ansys space claim Gui.

STEP 2 : To extract the midsurface of the tube model.

• To extract the midsurface by the following method.
• Thickess of the tube is 6.0 mm , so we have to take midsurface 3.0 mm from the outter surface of the tube.

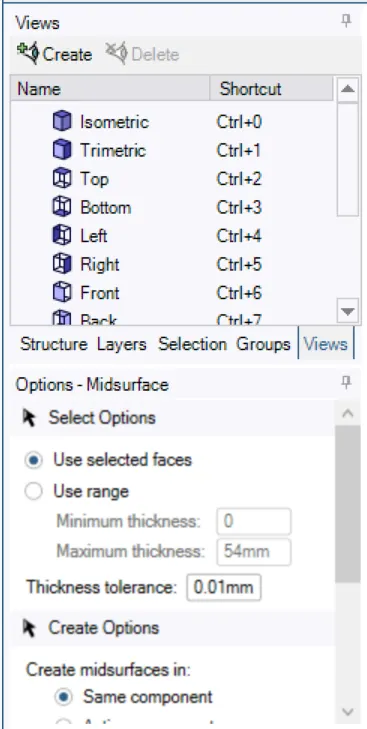

• Title bar > prepare > Midsurface > checked use selected faces option > selected the faces containing thickness of the tube > done > midsurfaces extracted it from parent geometry.

STEP 3 : Extend the faces over one and another of the tubes.

• Inorder to extend the tubes over one and another by the following steps.

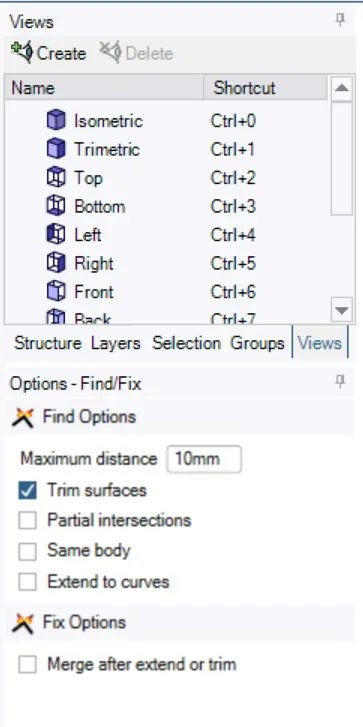

• Title bar > prepare > extend > selected the edges > extended it with trimmed surfaces option > done.

STEP 4 : provide a connection with sharing option at the tube joint locations.

• In order to share the tubes over one and another by the following steps.

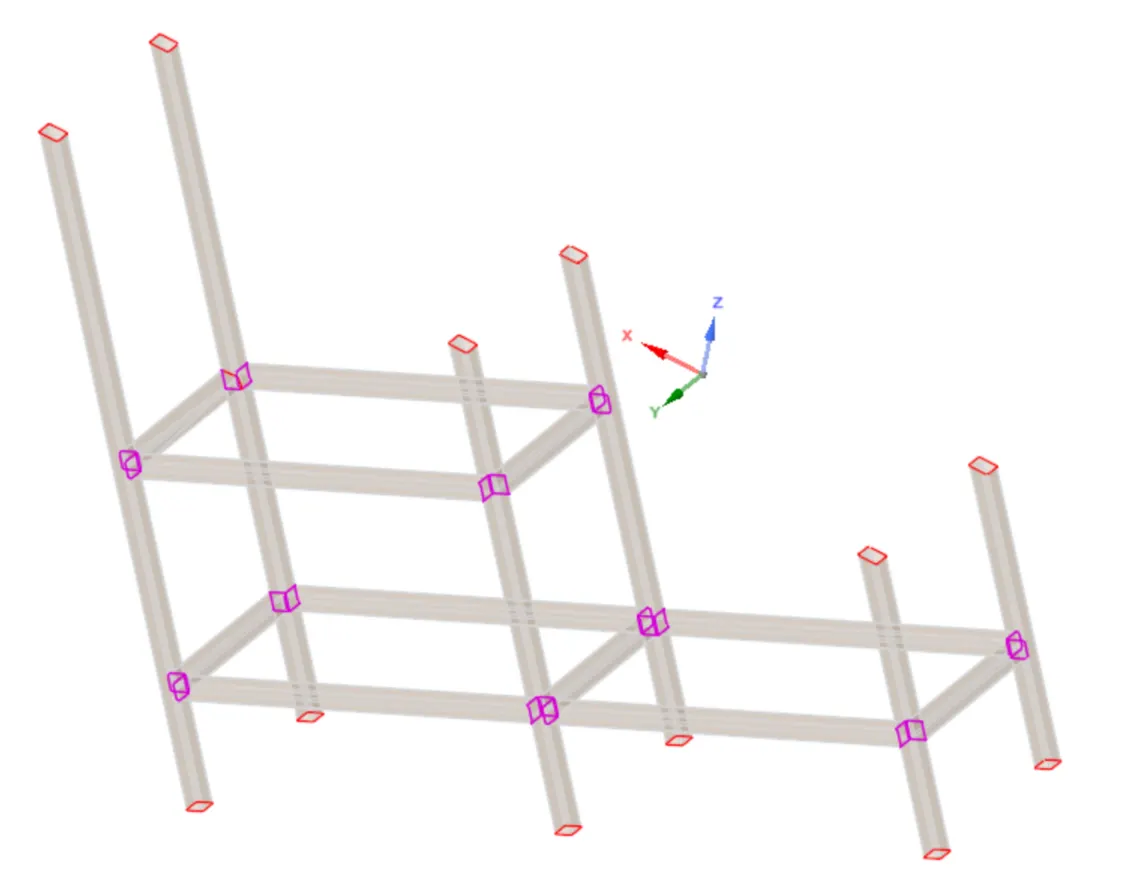

• Title bar > workbench > share > shared edges found > done.

CASE 2 : To Perform a modal analysis of top block with bottom block to verify connections and analyze the results.

STEP1 : Creatiion of modal analysis project

• In order to create modal analysis project window by the following steps.

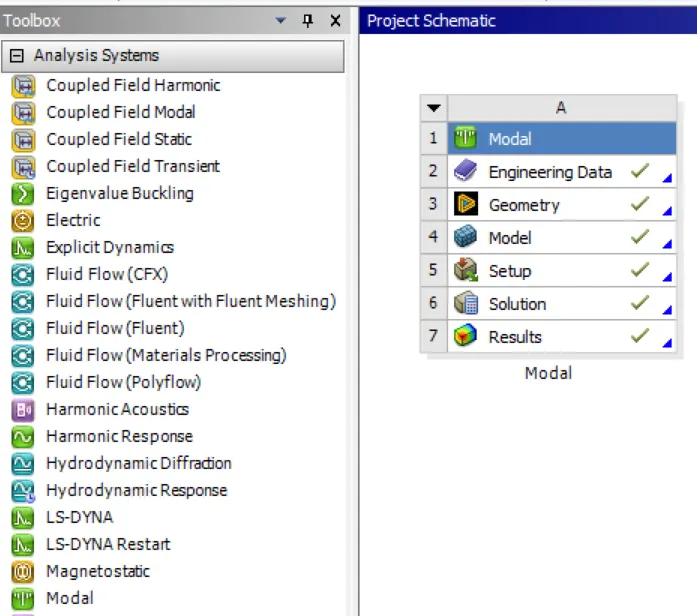

• Tool box > analysis system > click on Modal > created modal analysis project tree in window.

STEP 2 : Selection of material

• Inorder to selection of material by the following steps .

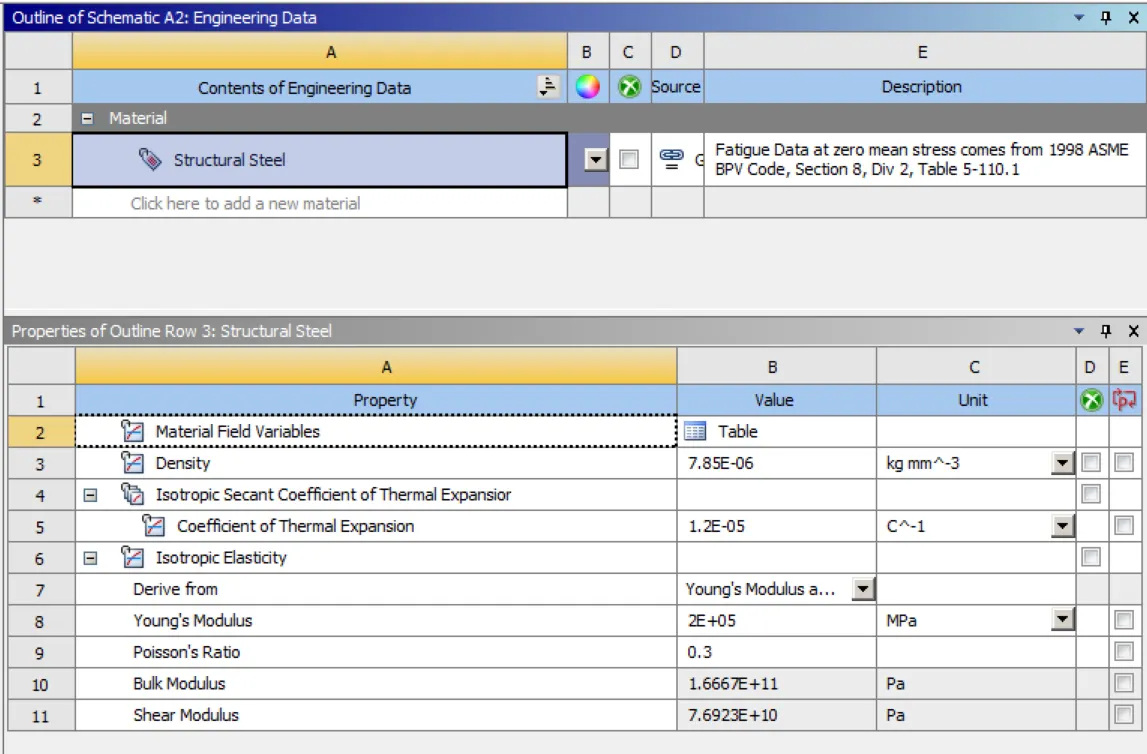

• In modal analysis project tree > engineering data > selected the structural steel material.

STEP 3 : Creation of geometry .

• Inorder to create the geometry by the following steps.
• In modal analysis project tree > RC on geometry > new space claim geometry > opened in space claim GUI.
• To create the bootom block B by the following steps.

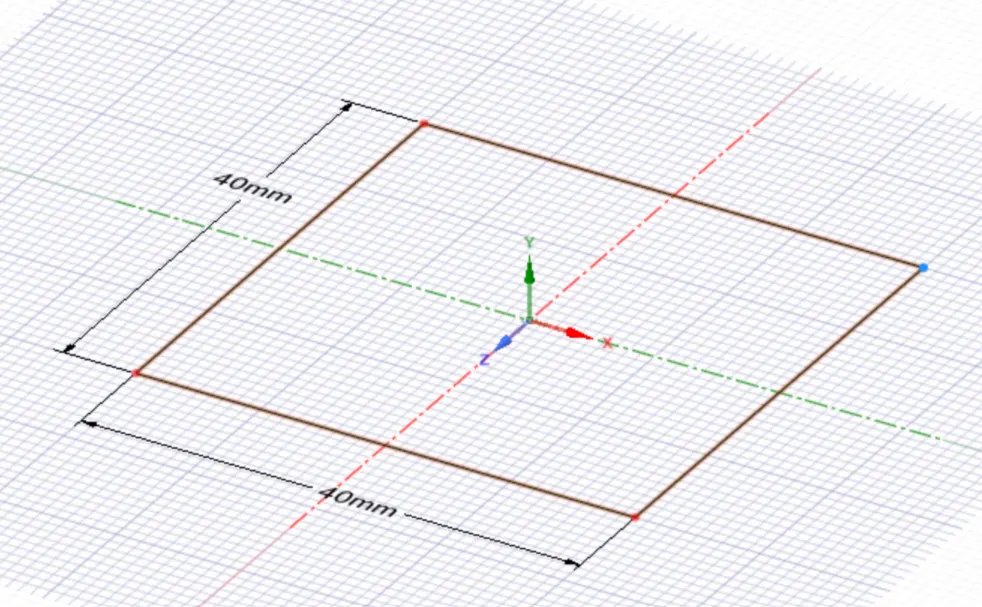

• Title bar > sketch > rectangle > checked define rectangle from center > 40 x 40 mm reactangle created.
• Then to give the thickness of the rectangle by the following steps .

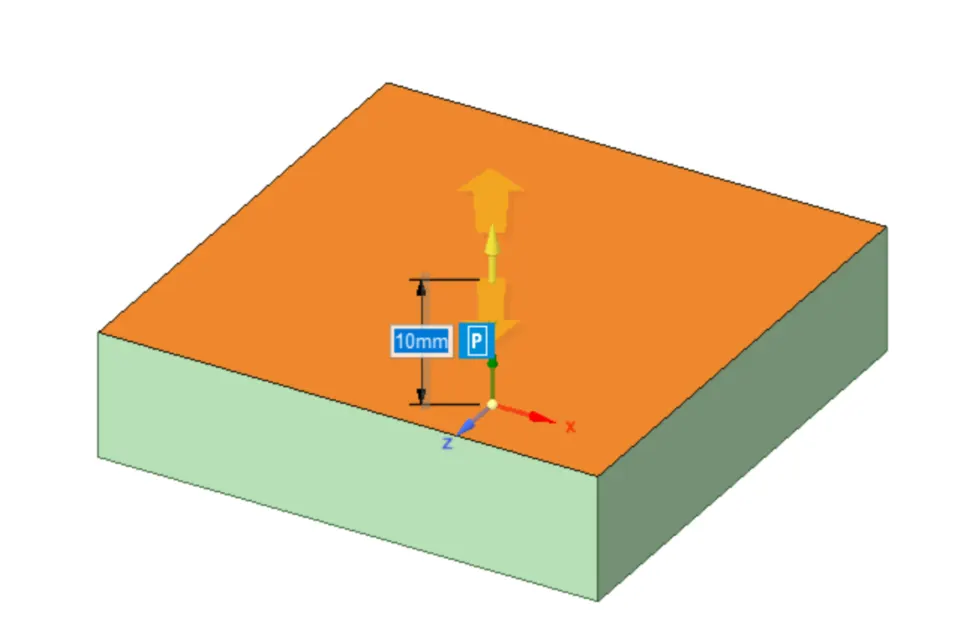

• Tile bar > design > pull > selected the rectangle > pull along its y direction with 10mm length.

Creation of blottom block B ( 40 x 40 x 10 )mm

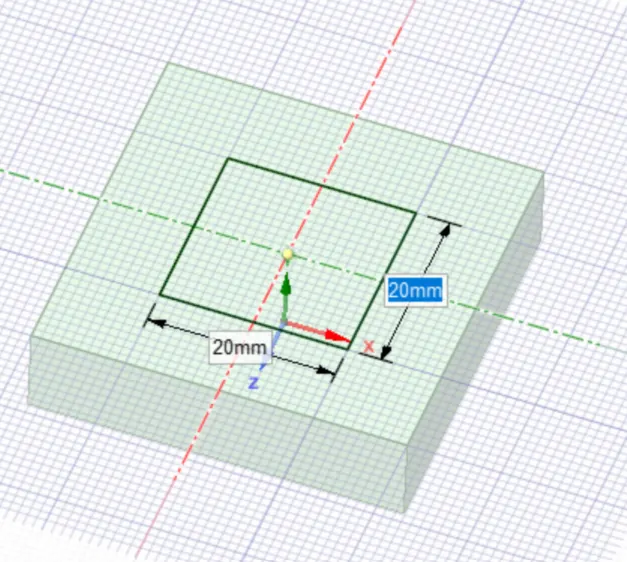

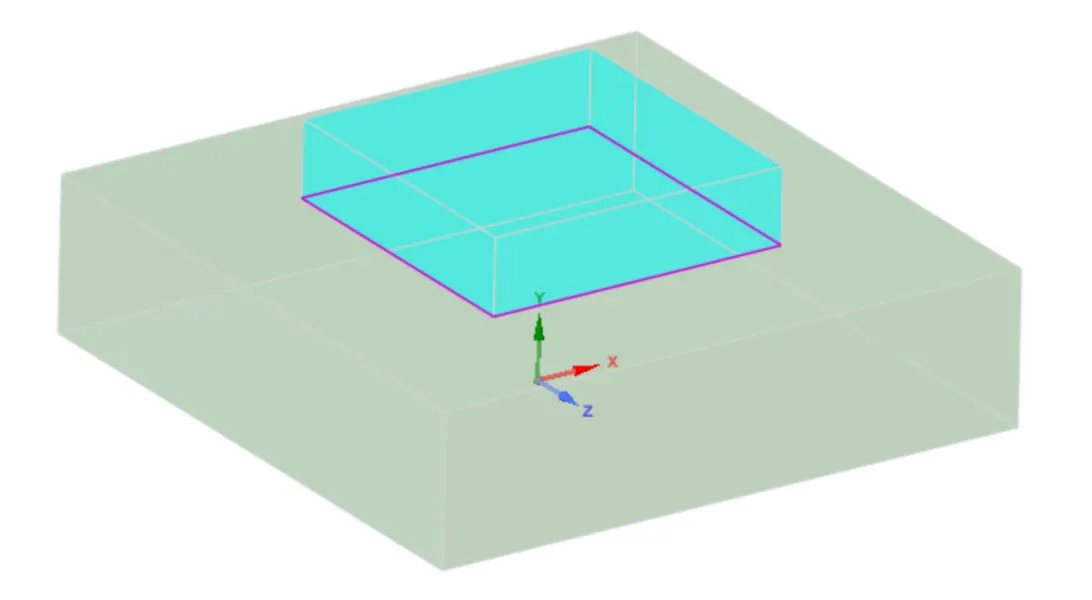

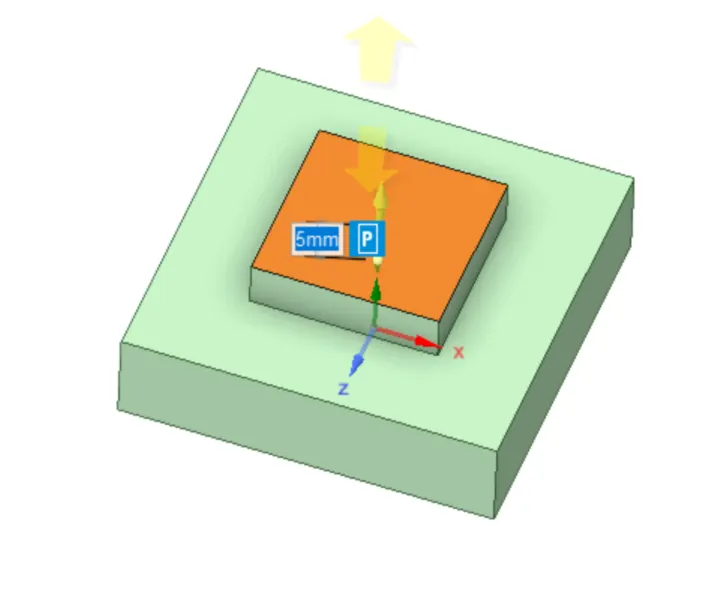

Creation of Top block A ( 20 x 20 x 5 ) mm

STEP 4 : Split the Blocks.

• Inorder to split tyhe blocks by the following steps.
• Tile bar > design > split body > selected the whole body > then selected the plane which is splitted into two bodies.

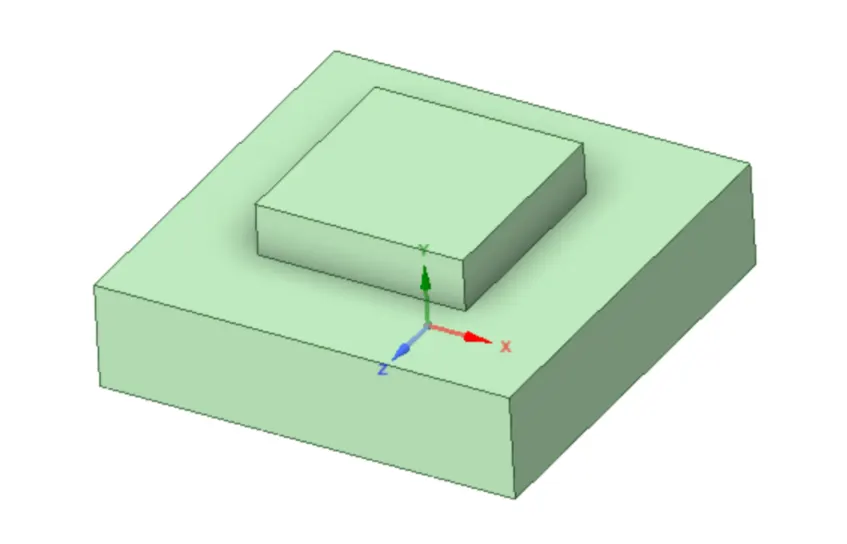

Before split

After split

STEP 5 : Provide the connection between the top block and bottom block.

• Inorder to shared the connection between the blocks by the following steps.

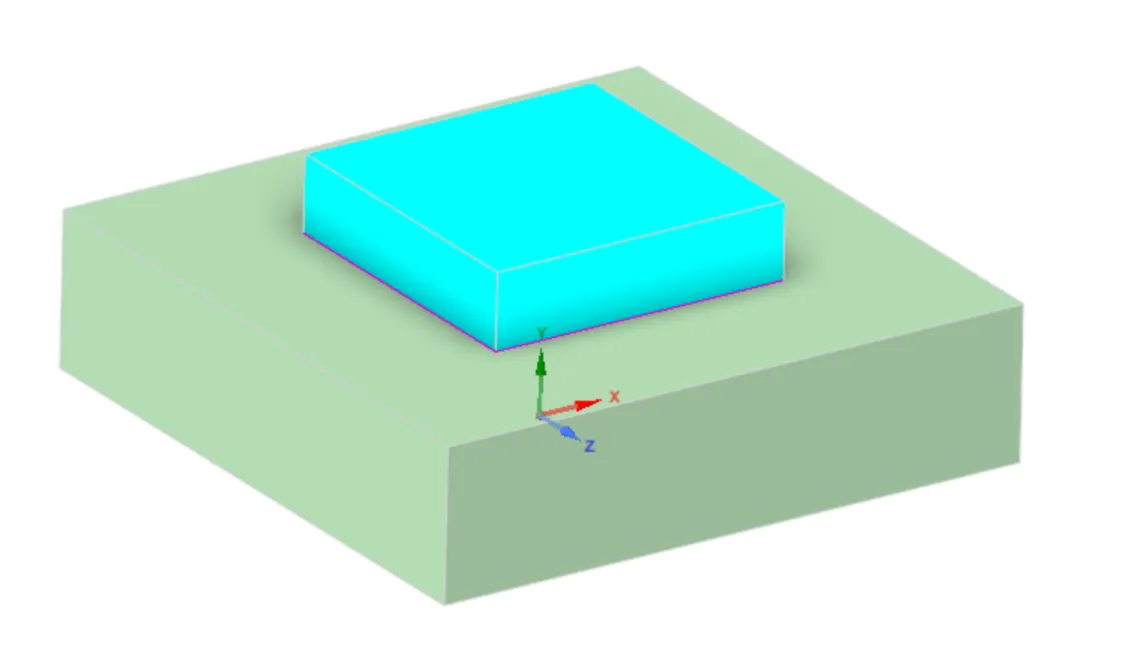

• Titlebar > workbench > share > selected the body > Done > shared the edges between the bodies.

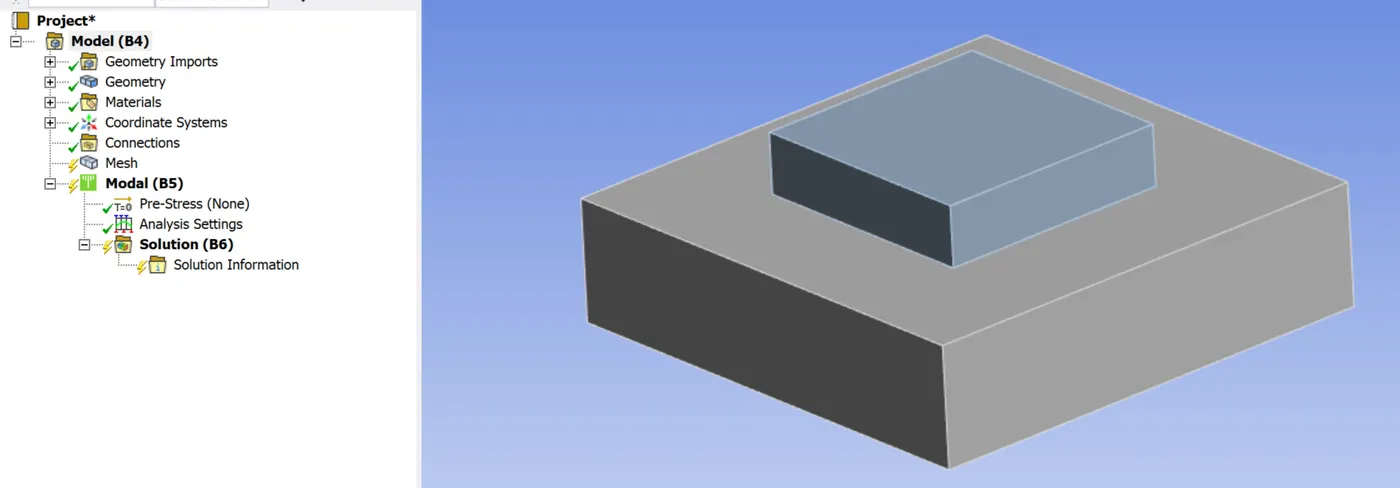

STEP6 : Creation of modal analysis model setup.

• In modal analysis project tree > RC on model > edit > Opened ansys mechanical enetrprise GUI

STEP 7 : Meshing of blocks.

• Inorder to meshing of the blocks by the following steps.
• In ansys mechanical > project tree > mesh > method > automatic method > selected the geometry > Hex dominant method > done.
• Project tree > mesh > Sizing > selected the geometry > element size-2.5 mm > done.

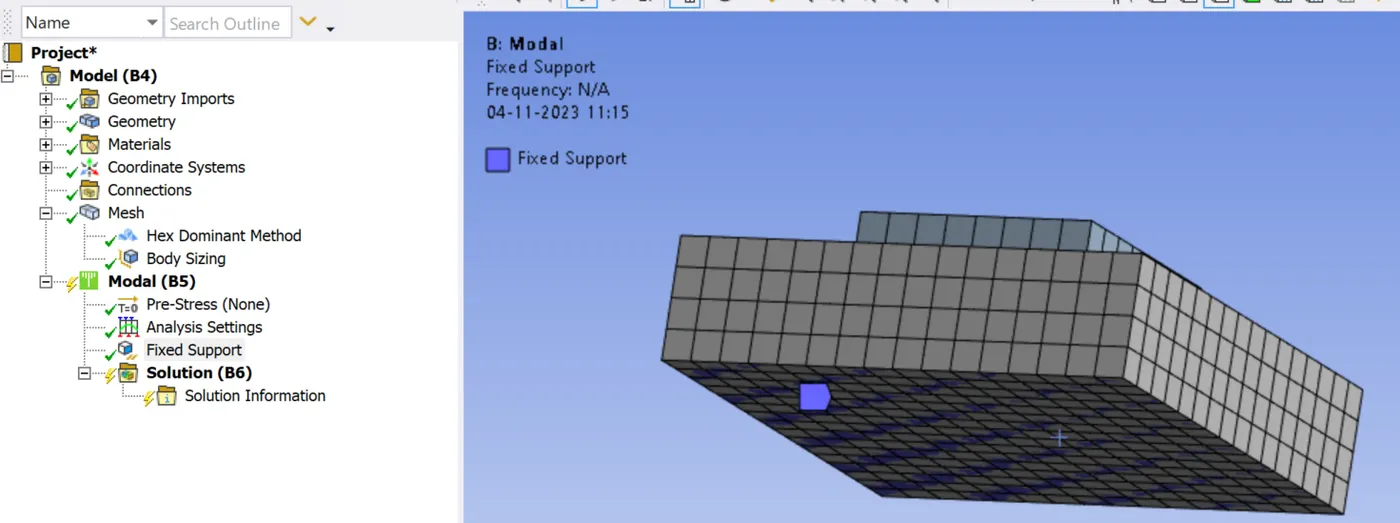

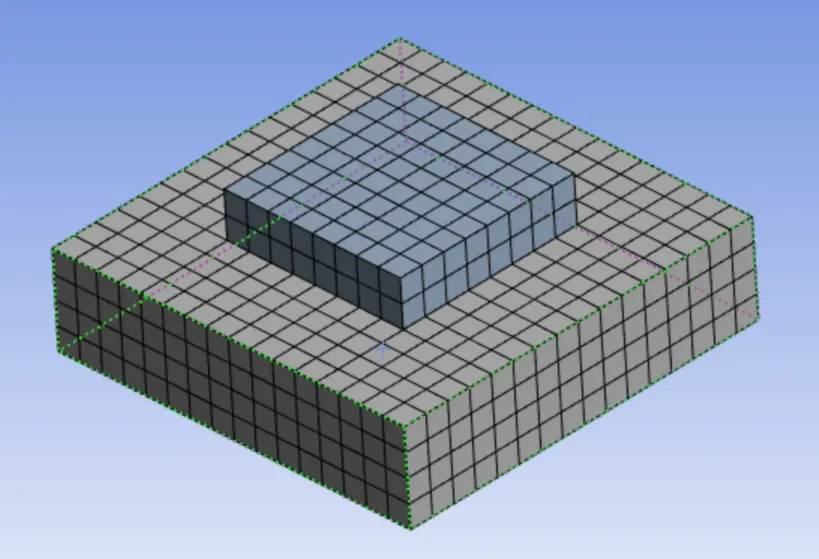

• Project tree > mesh > generate mesh > meshed the blocks as shown in below,

STEP 8 : Set the boundary condition.

• Inorder to Provide the fixed support for the bottom face of Block B by the following steps.
• Project tree >Modal > fixed support > selected rthe botton face of Block B > fixed it.

STEP 9 : Set the Modal analysis settings.

• Inorder to set the modal analysis settings by the following steps.

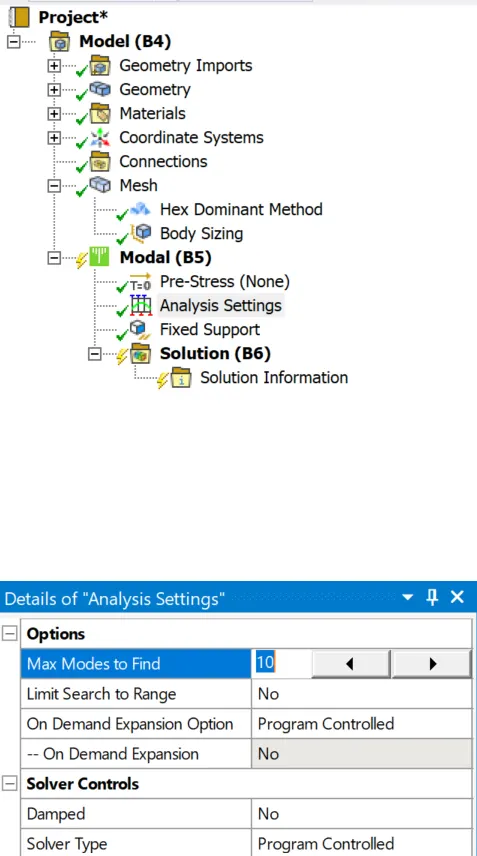

• Project tree > Modal > analysis settings > max modes to find is 10 >done.

STEP 10 : Solve the problem

• Inorder to solve the problem by the following steps.

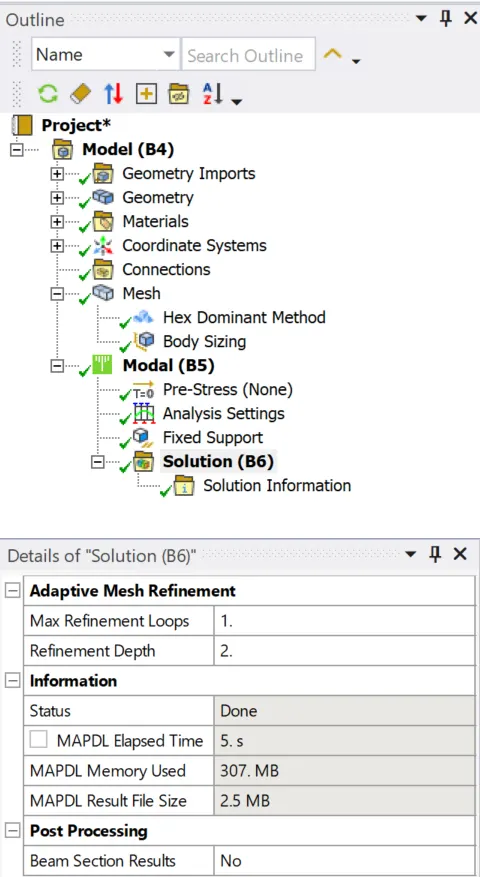

• Project tree > Modal > solution > solve > solved it.

STEP 11 : Post processing.

• In order to get the modeshape results by the following steps.

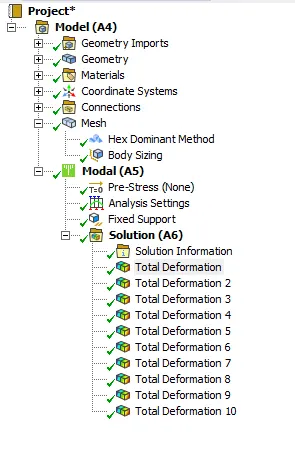

• Selected the datas in frequency table > RC > Create mode shape results from of total deformation >done.
• Then Project tree > solution > RC > evaluate all results.
•

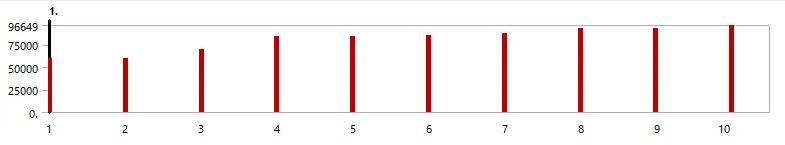

• Modes Vs Frequency range
•
•

• Mode shape results :

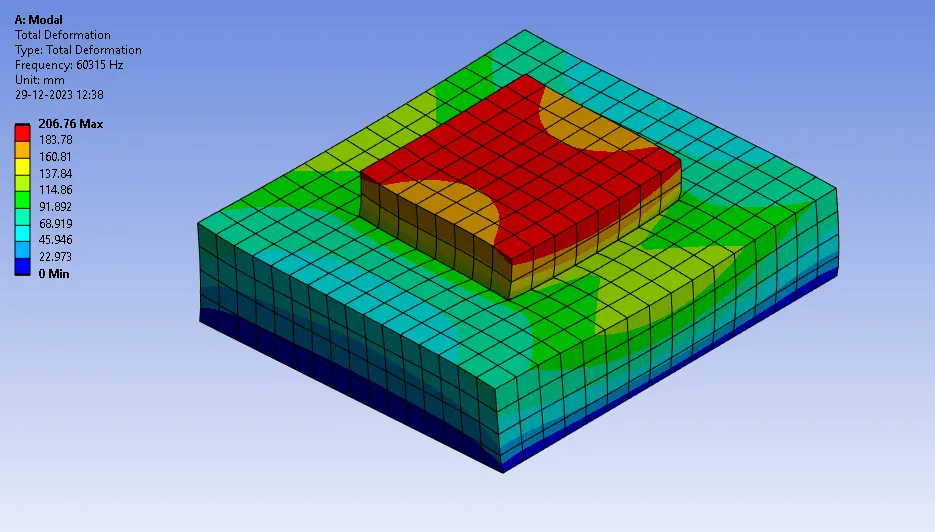

  1.) First mode shape .

• Frequency - 60315 Hz
• Max Total deformation - 206.76mm
•

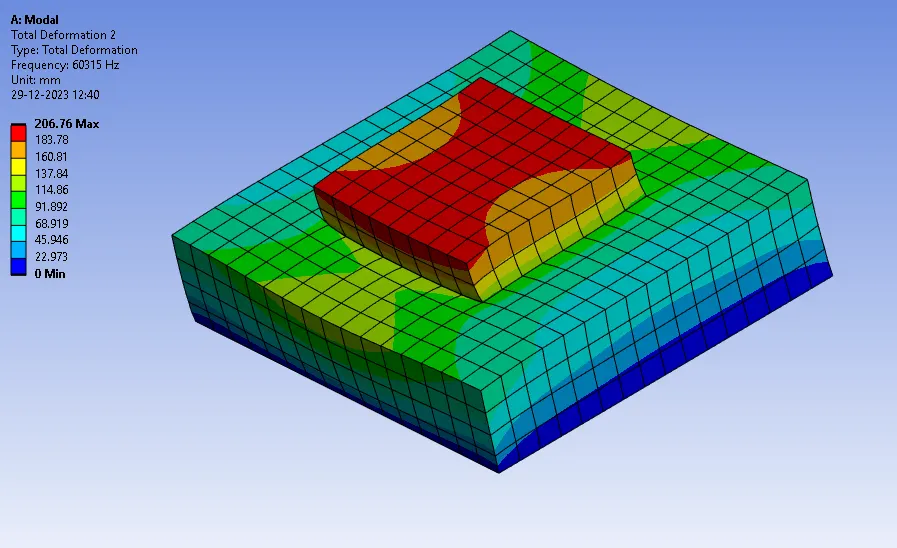

• 2.) Second mode shape .

  Frequency - 60135 Hz

  Max Total deformation - 206.76 mm

•

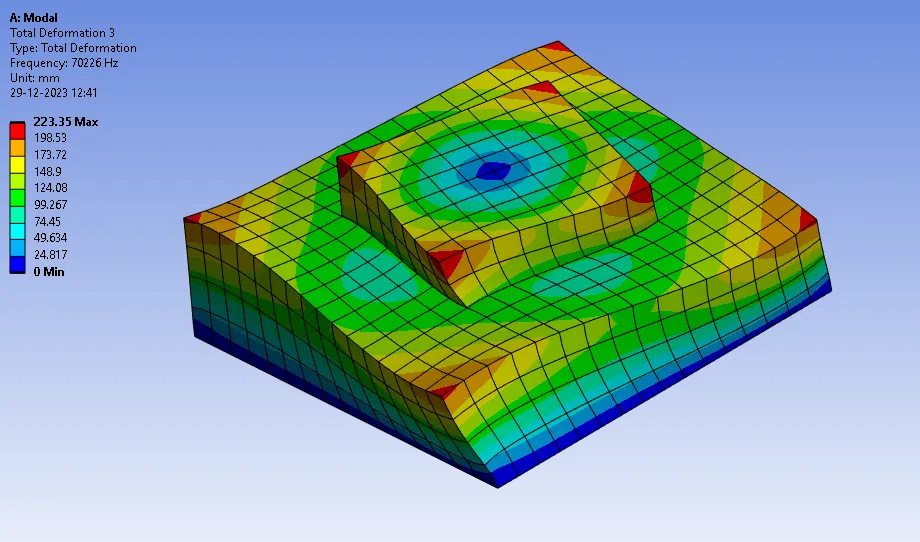

• 3.) Third mode shape .

  Frequency - 70226 Hz

  Max Total deformation - 223.35 mm

•

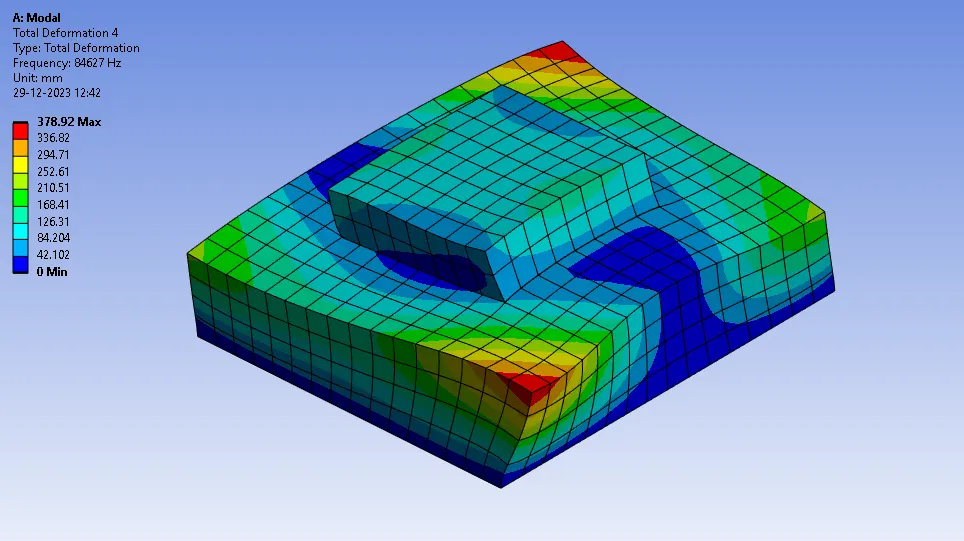

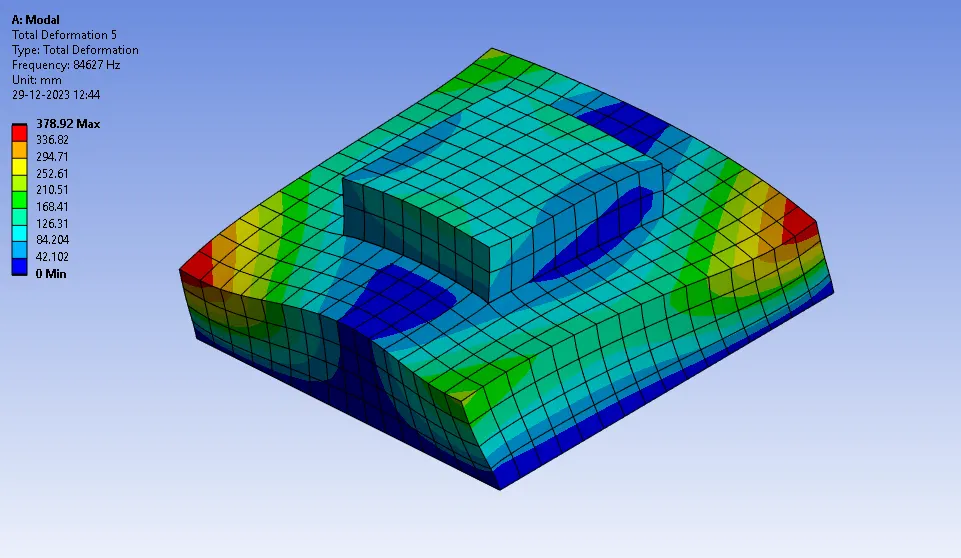

4.) Fourth mode shape .

Frequency - 84627 Hz

Max Total deformation - 378.92 mm

•

5.) Fifth mode shape .

Frequency - 84627 Hz

Max Total deformation - 378.92 mm.

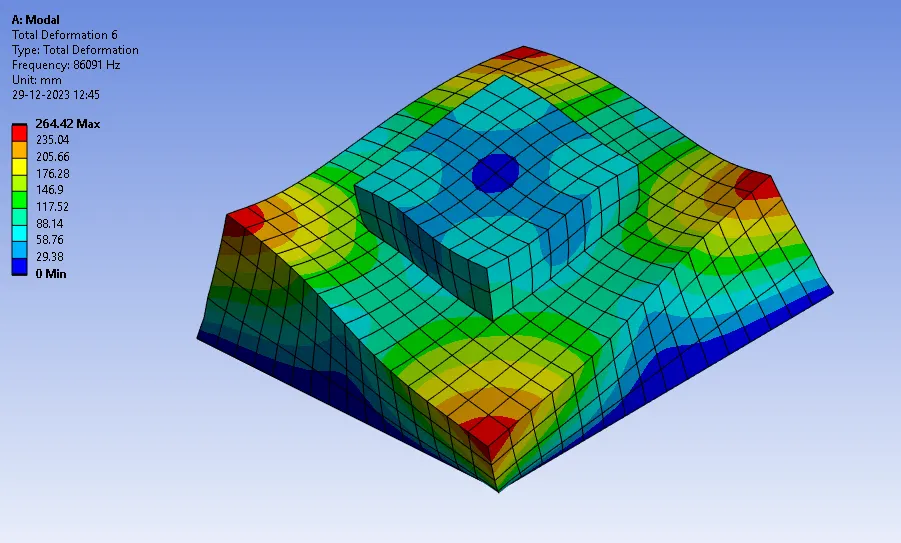

6.) Sixth mode shape .

Frequency - 86091 Hz

Max Total deformation - 264.42 mm.

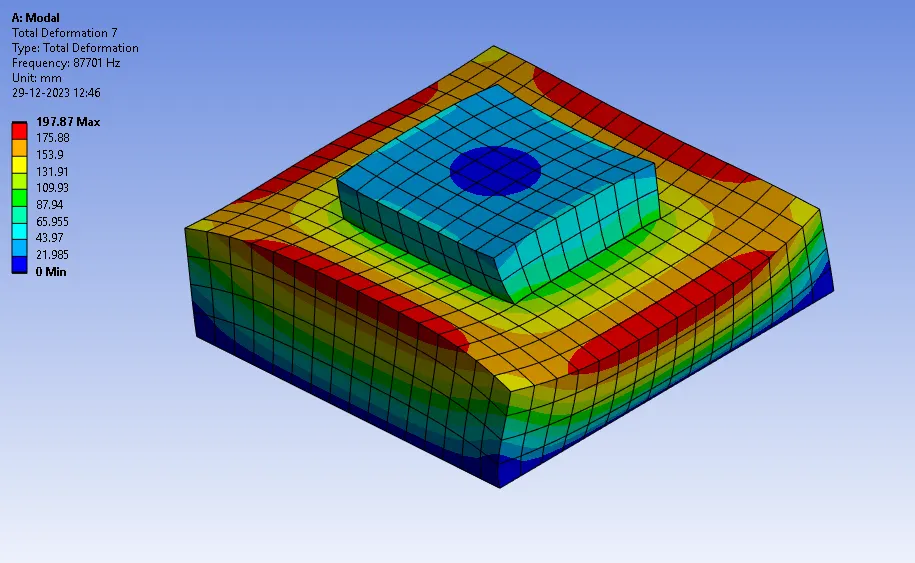

7.) Seventh mode shape .

Frequency - 87701 Hz

Max Total deformation - 197.87 mm.

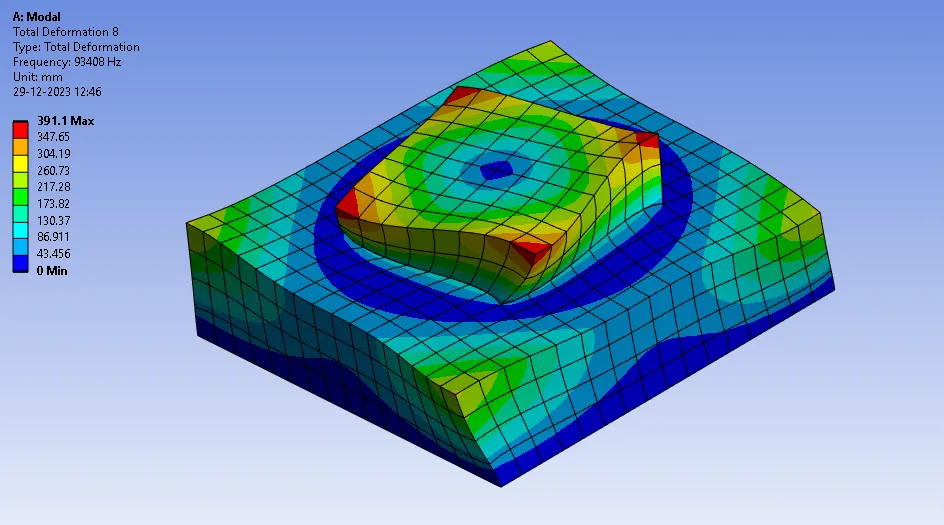

8.) Eigth mode shape .

Frequency - 93408 Hz

Max Total deformation - 391.1 mm.

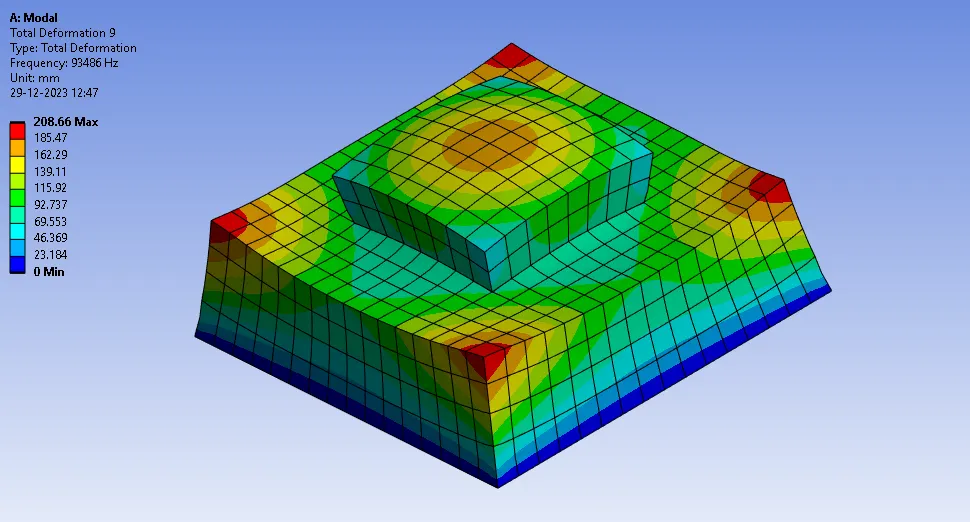

9.) Ninth mode shape .

Frequency -93486 Hz

Max Total deformation - 208.66 mm.

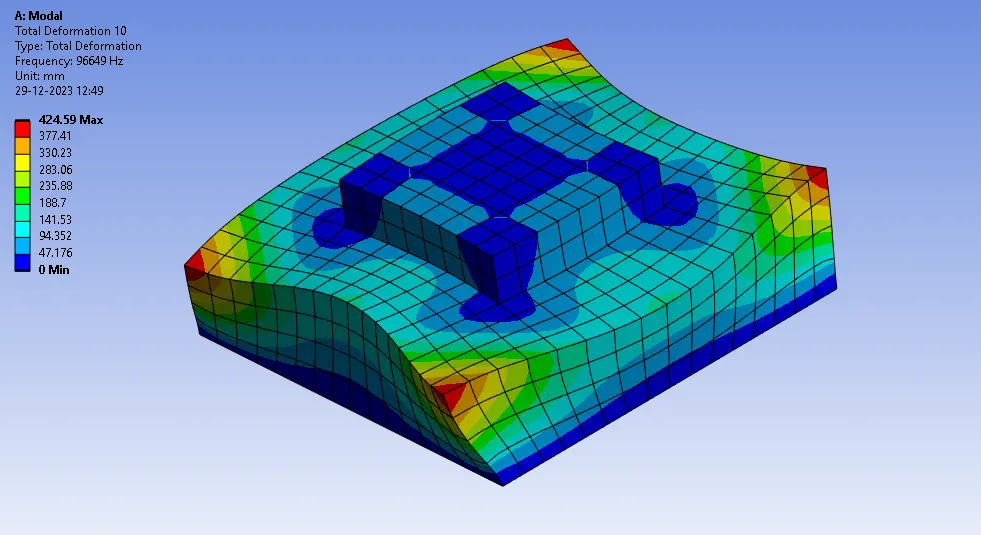

10.) Tenth mode shape.

Frequency - 96649 Hz

Max Total deformation - 424.59 mm.
