Week-3 Challenge: ADVISOR Tool
Use the ADVISOR tool and simulation the following:
Q.1: For EV_defaults_in file, if cargo mass is 500 kg with all other default conditions, can the vehicle travel for 45 km with FTP drive cycle. Conclude your observations.
Answer:1

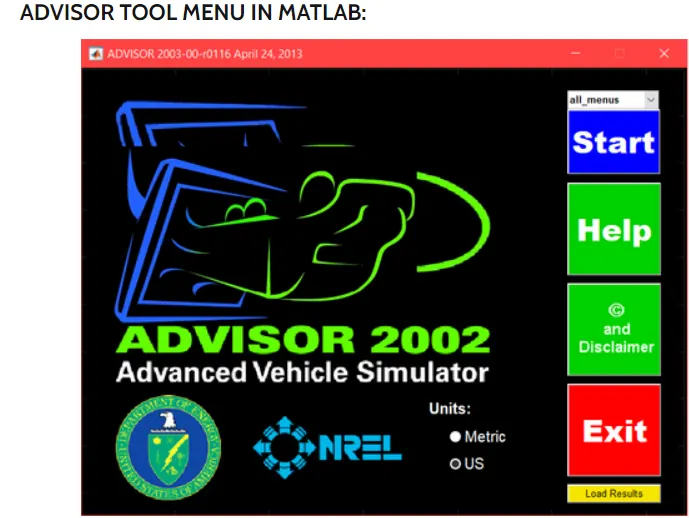

Now open the ADVISOR Tool, set the load file to 'EV_defaults_in'

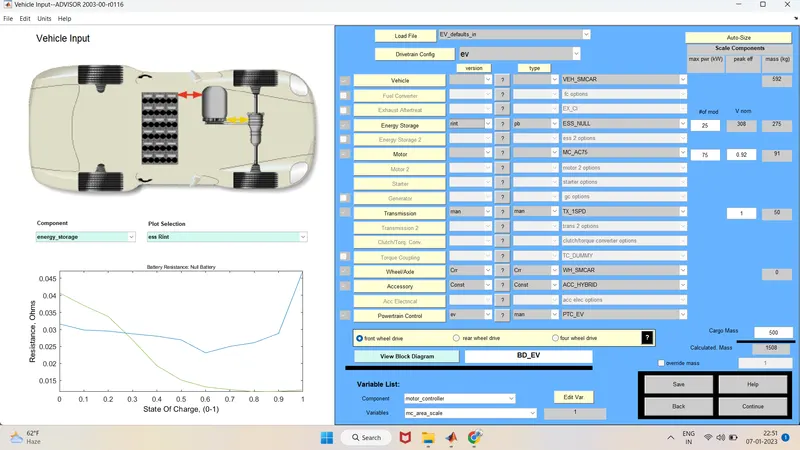

components to motor_controller. The above table before giving the mass of 500kg.

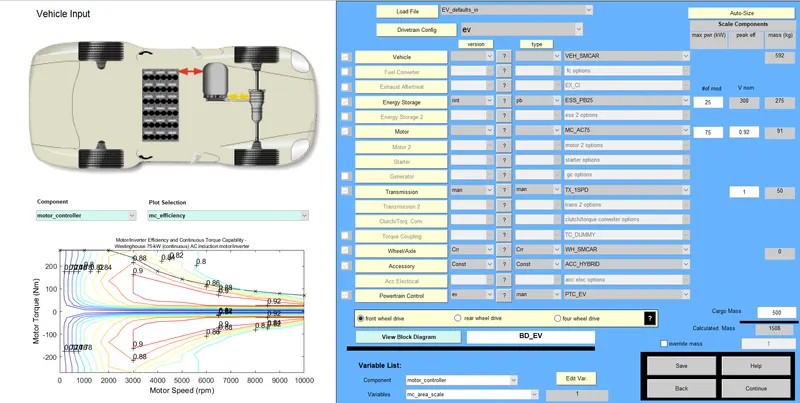

the below ADVISOR TOOL after giving mass 500kg.
- Loading file 'EV_defaults_in in the ADVISOR Tool and the cargo mass input as 500kg.
- On clicking continue the 'Drive cycle window' appears selecting 'CYC_FTP' to the drive cycle.
- the CYC_UDDS IS BEFORE CHANGING TO CYC_FTP.

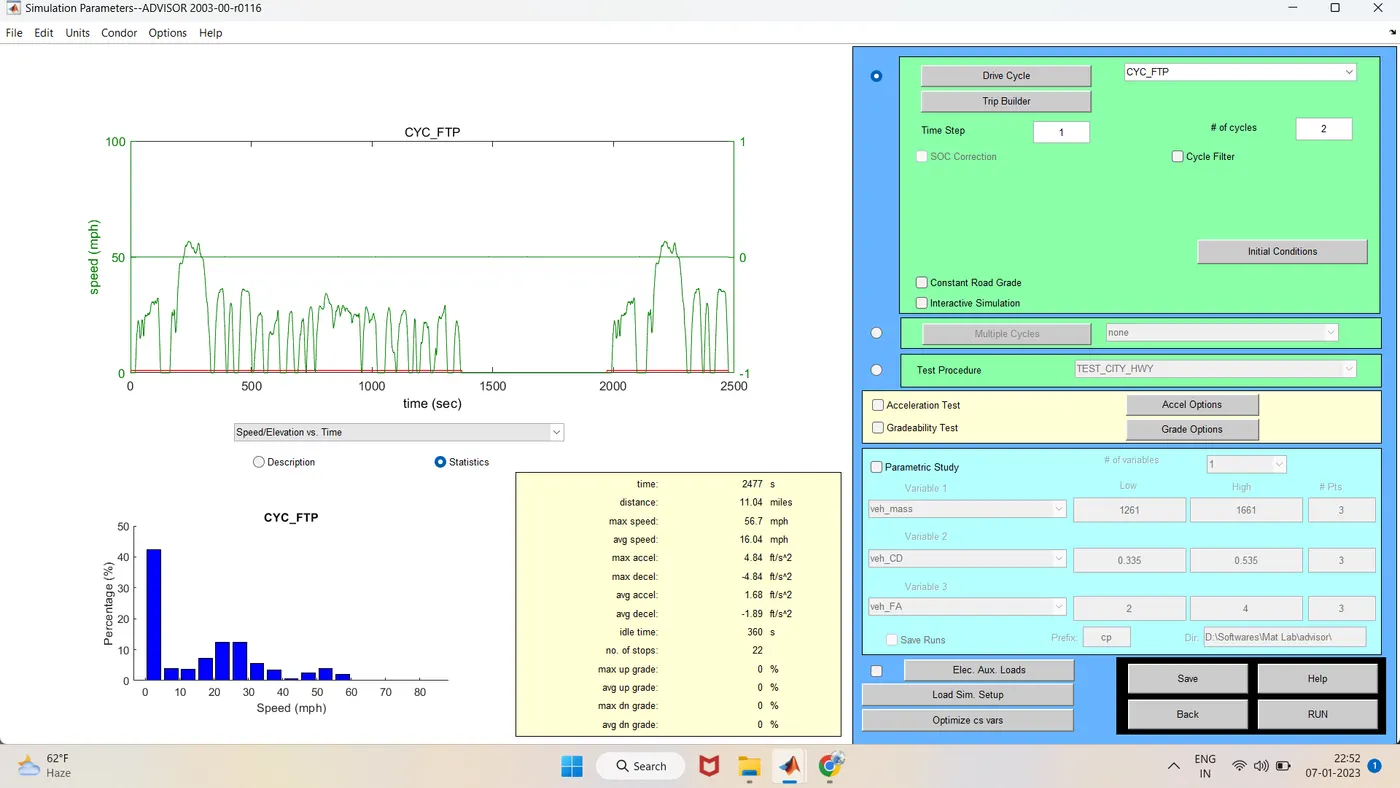

- THE BELOW ADVISOR TOOL AFTER CHANGE TO CYC_FTP AND THE WAVEFORM IS Obtained.
- each FTP drive cycle lasts for a time period of 7.2 sec and a distance of 56.7mph. In order to verify if the vehicle can travel for 11.04km, we have to consider the number of cycles to be 2.

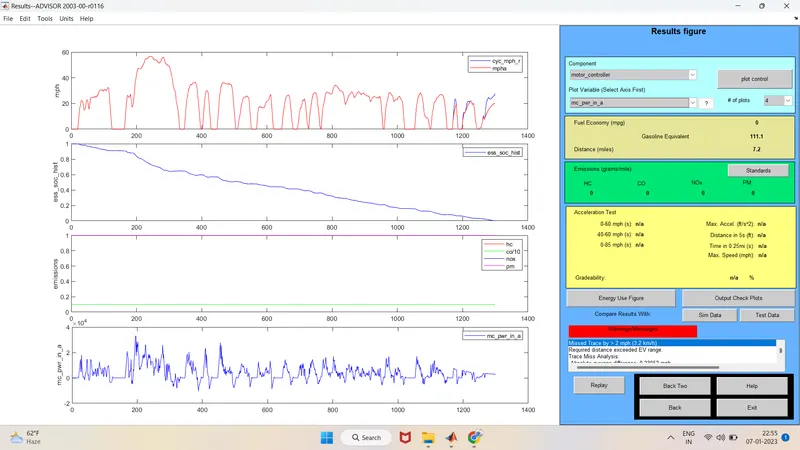

- ON clicking RUN. the results are obtained
