Week-3 Challenge: ADVISOR Tool

1. For EV_defaults_in file, if cargo mass is 500 kg with all other default conditions, can the vehicle travel for 45 km with FTP drive cycle? Conclude your observations?

Ans:

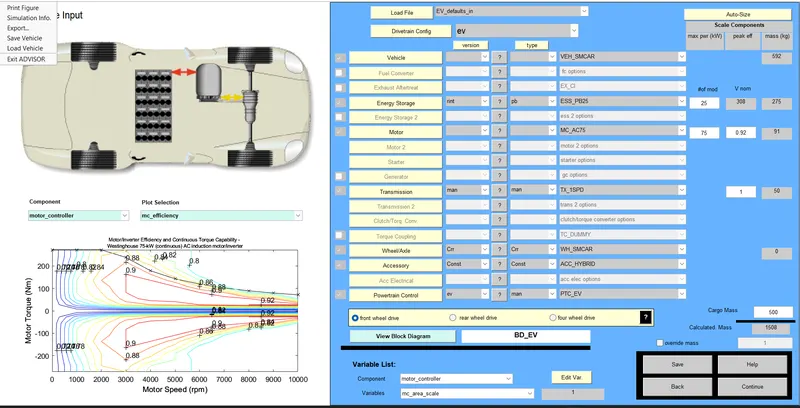

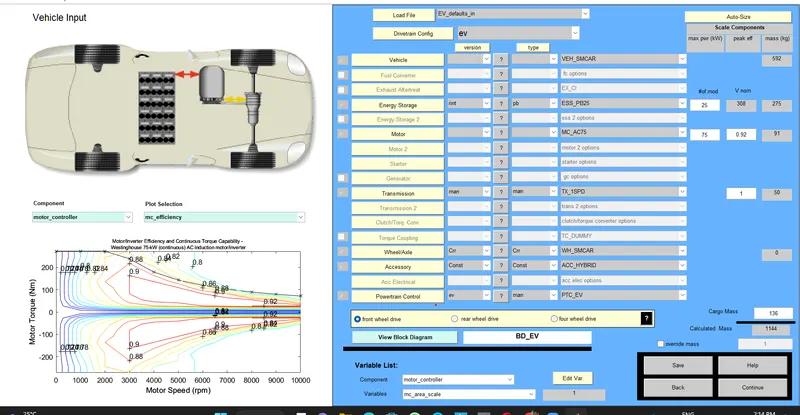

After Open the Advisor tool i have set the file of EV_defaults_in.

In this above mentioned, there is cargo mass is 500kg.

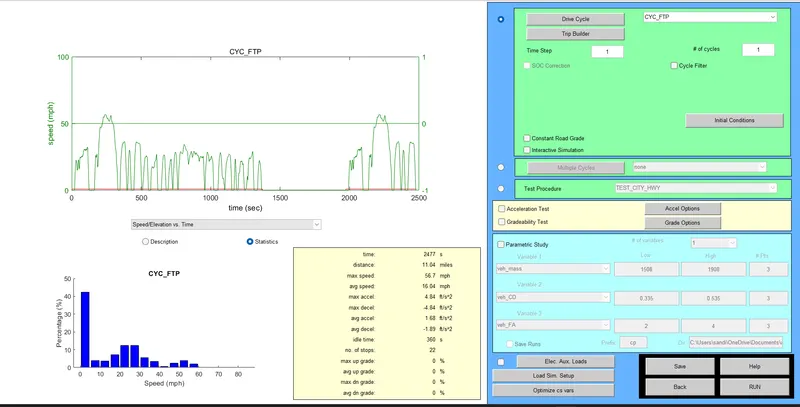

In this above mentioned section, before changing the CYC_UDDC.

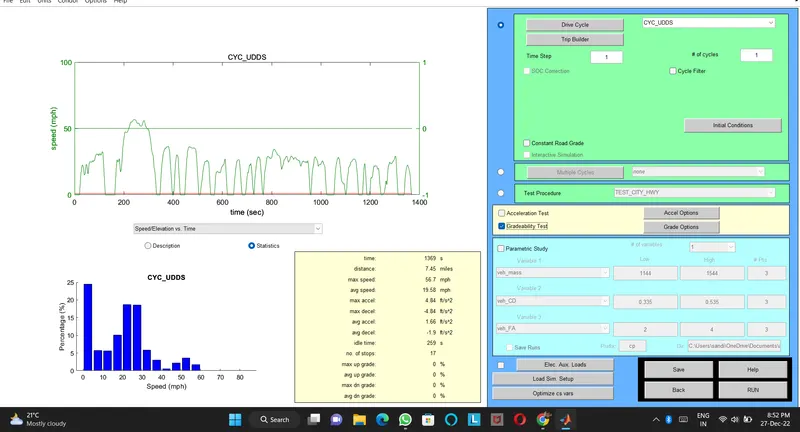

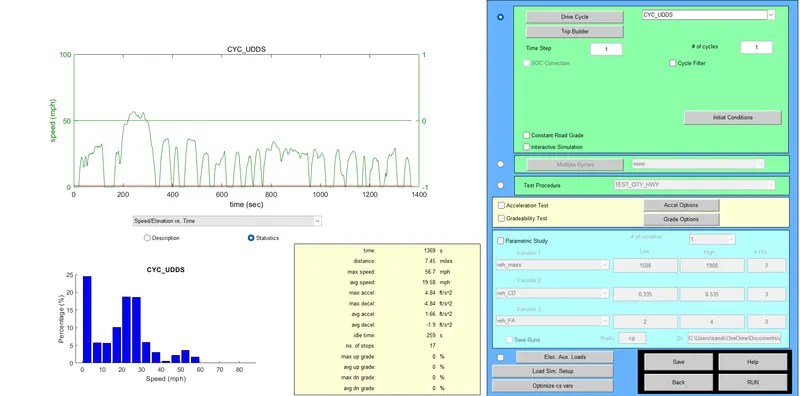

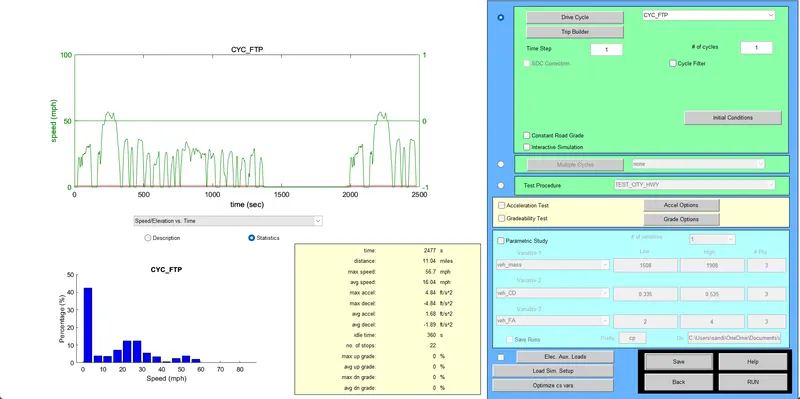

In this above mentioned section, After changing the CYC_UDDC.

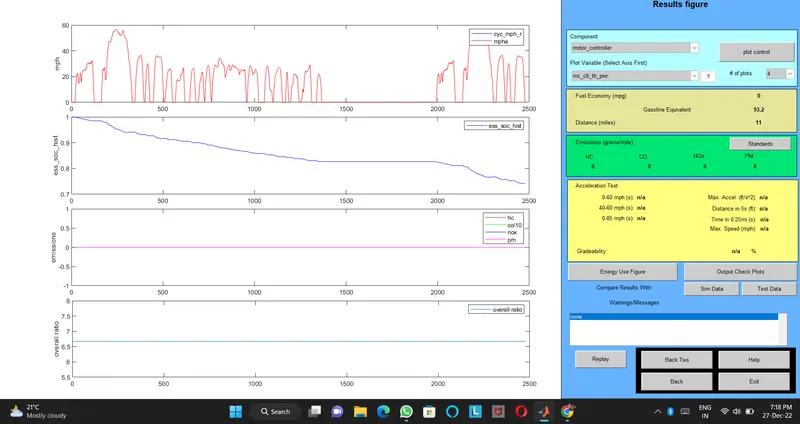

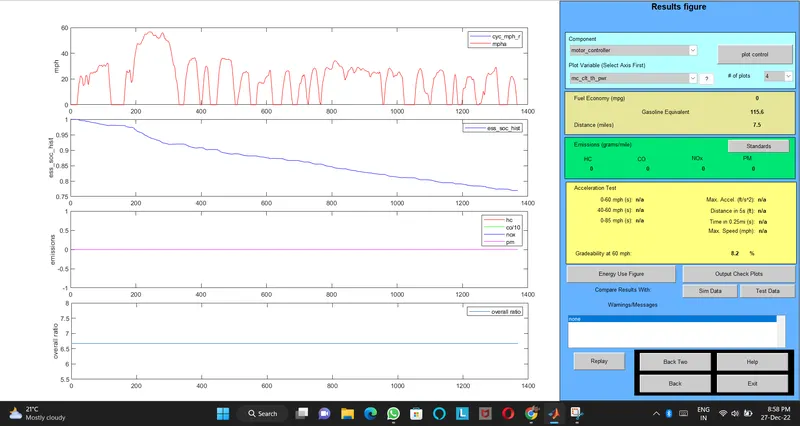

The results figure window appears the graphs for velocity soc emission and overall ratio are displayed.

2. In the above case, try changing the battery capacity and repeat the simulation.

Ans:

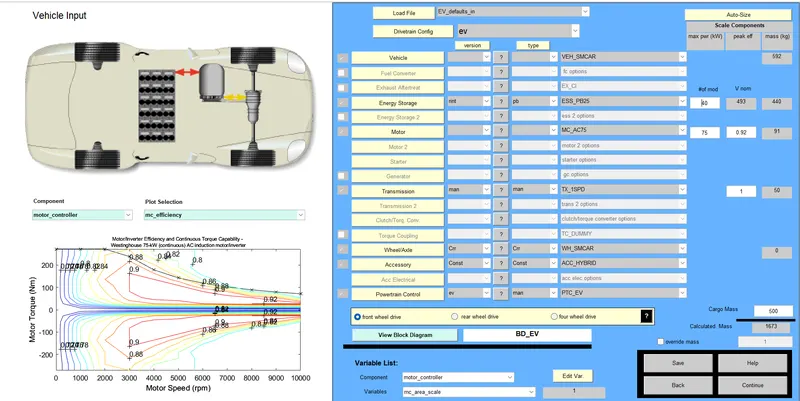

Above Mentioned Section , I have changed the battery capacity,

Next click on Run Icon,

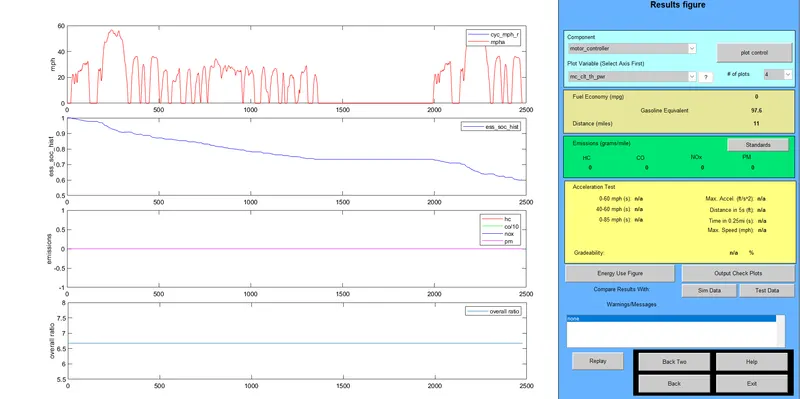

After changing the battery capacity , and repeating simulation results window screenshot is upload in above .

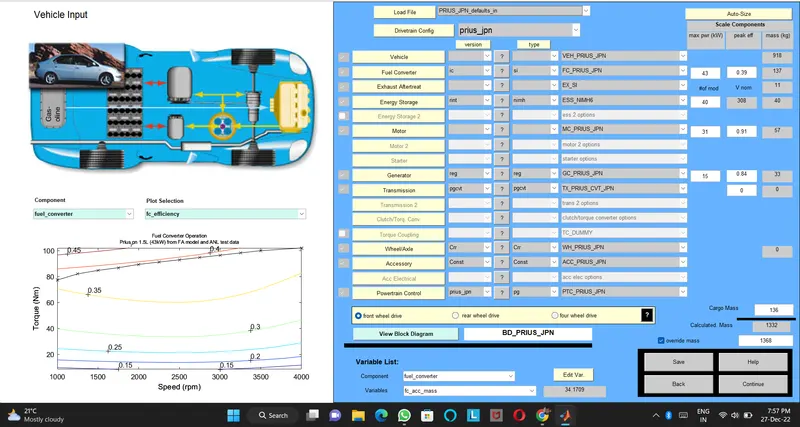

3. Perform gradeability test with PRIUS_Jpn_defaults_in file

Compare your results in table and conclude.

Ans:

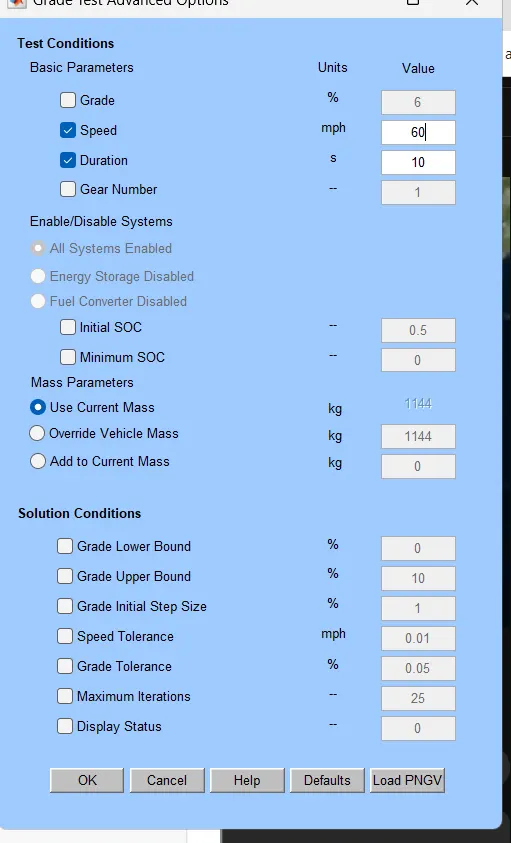

Gradeability Test Case 1:
