Week-3 Challenge: ADVISOR Tool
1. For EV_defaults_in file, if cargo mass is 500 kg with all other default conditions, can the vehicle travel for 45 km with FTP drive cycle? Conclude your observations
Answer:-
as per mentioned cargo mass 500kg mentioned then total waight is 1544kg.shown below image
Observation:-

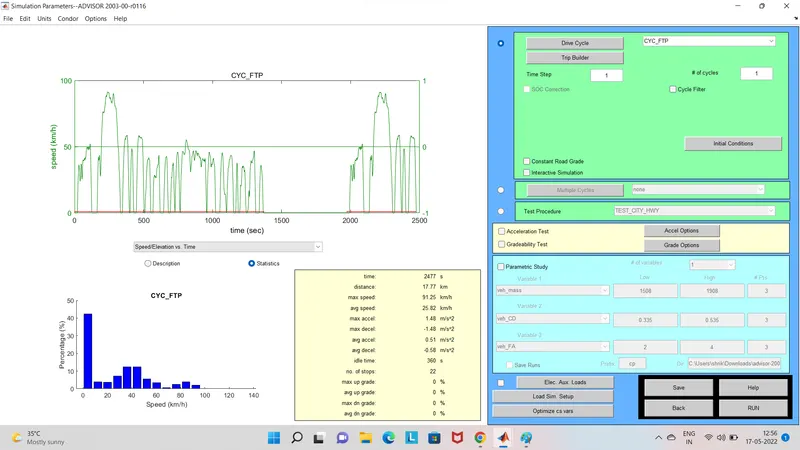

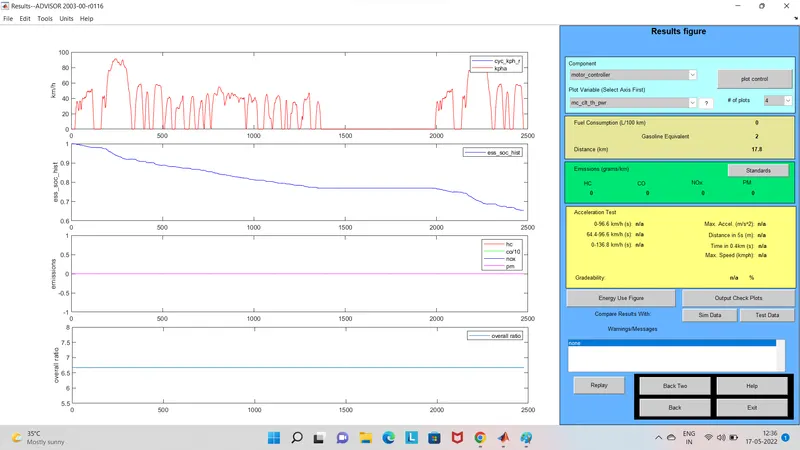

1)shown in image FTP one cycle not possible to run total 45km its only run 17.8km.
2)If 4 FTP cycle input given then near 42km run but more power loss and battery SOD its low at 65%.
3)

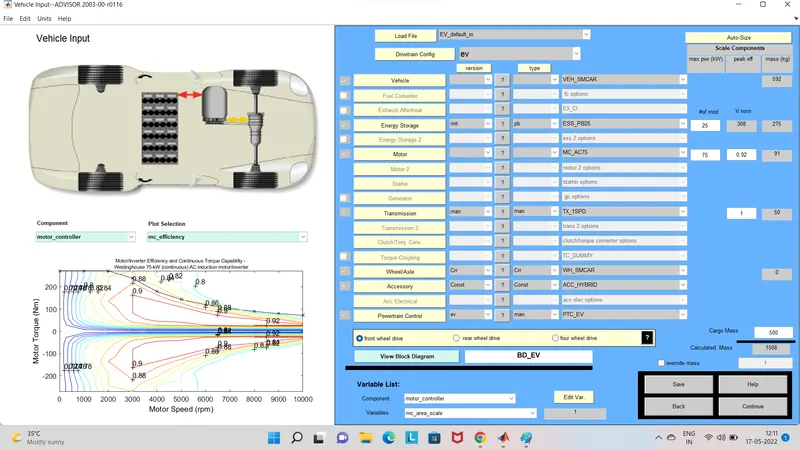

Shown above image Battery module is 25nos and output voltage is 308volt & battery waight 275kg.
overall waight with cargo waight is 1508kg.
Next shown above this image total distance travel its near 12km.
avg. speed is near 32km.But change the battery capacity from 25 module to 30 module then voltage is 370volt and total weight is 1563kg.
After change the battery capacity changing weight, output voltage and show above total distance is near 17.77km its maximize and avg speed was minimize.

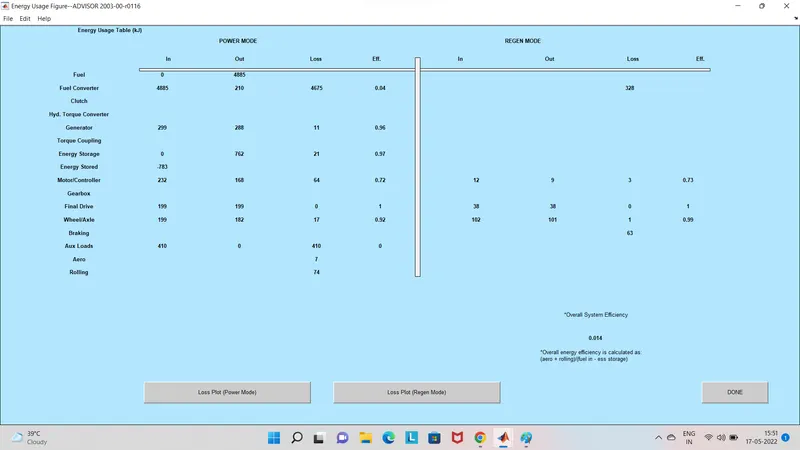

Above image for after battery capacity change energy uses.

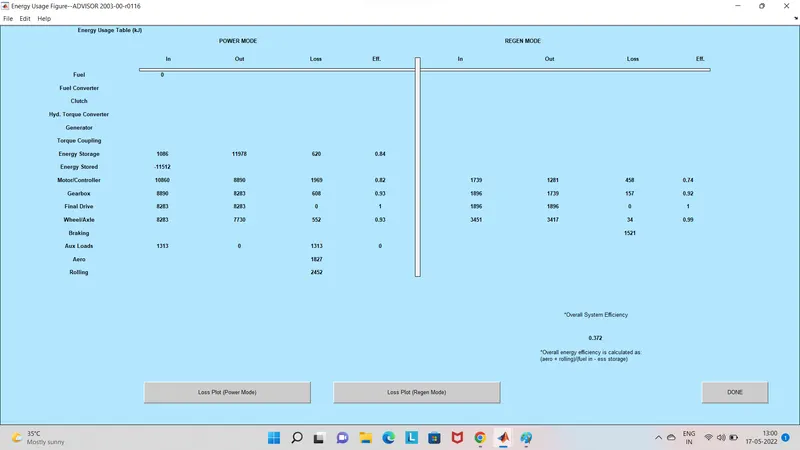

Energy storage is -11512kj.
above image is no battery capacity change and select FTP cycle for 4 times. total distance travelled is near 42km.
Energy storage is -27727kj.

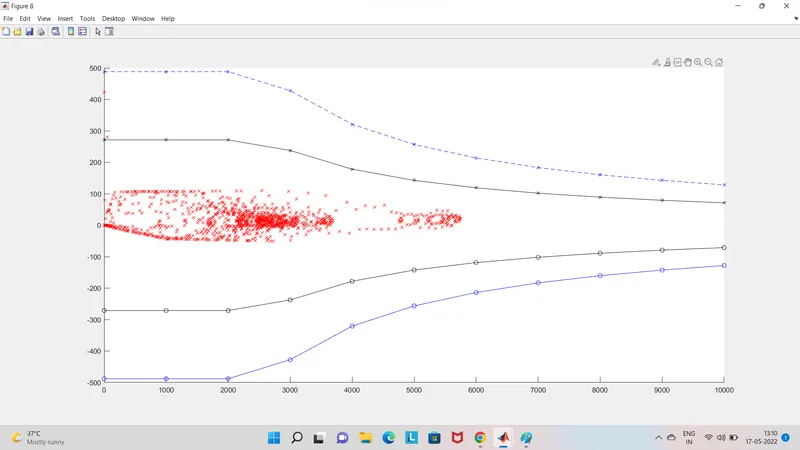

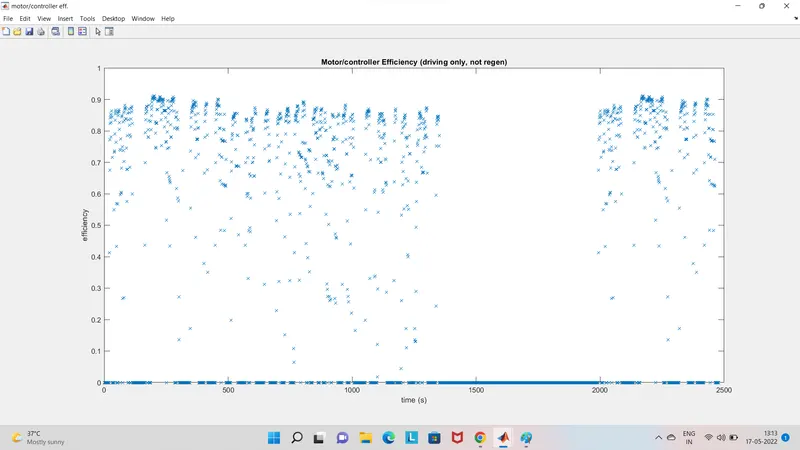

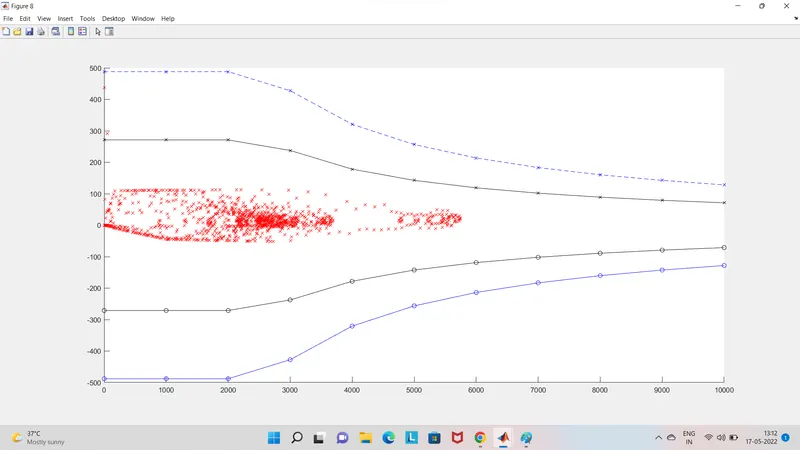

Without battery capacity change check above motor controller efficiency is near 90%.
Output Figure is above without battery cap. change only ftp cycle.
After battery cap. with 30module.above figure come.
after motor controller efficiency.
3. Perform gradeability test with PRIUS_Jpn_defaults_in file
Compare your results in table and conclude.
answer:-

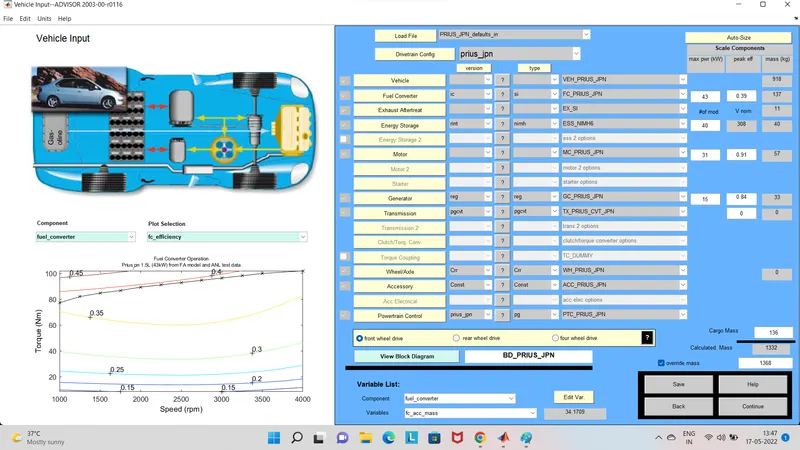

check the greadibility test of prius model also excel sheet attched below.
if gread 1.7% and seen simulation in NYJC cyc. fuel conveter, generator,motor controller eff. also change.
most effect on fuel converter eff.seen below images.

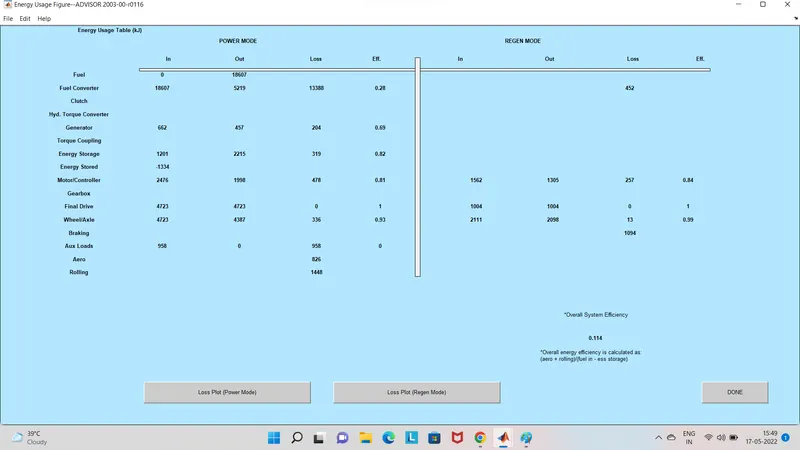

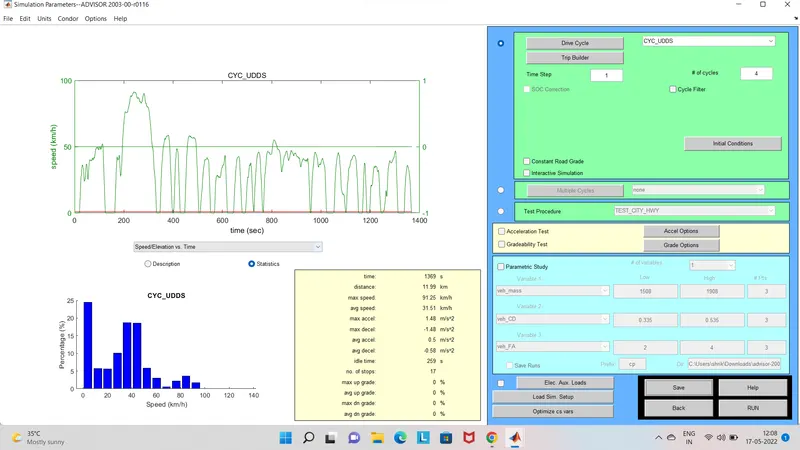

above image of udds cyc.with 1.7% gread.
above image of NYGTC cycle with 1.7% gread.
also below attched output of max speed achive in minimium time with diff drive cyc.

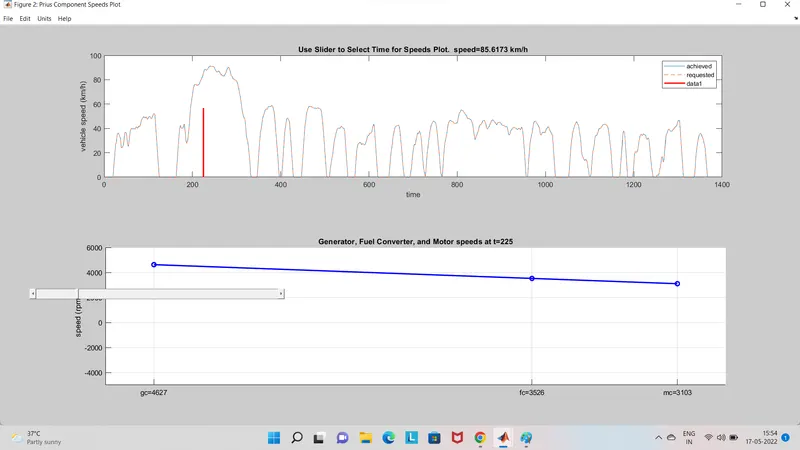

shown above image its obeserve that max speed achive in t=225sec 86kmph.
Conclude that if greadiability changes the fuel convertor,motor controllerv performance etc.
