Week-3 Challenge: ADVISOR Tool

1] AIM: For EV_defaults_in file, keeping the cargo mass as 500 kg with all other default conditions with FTP drive cycle.

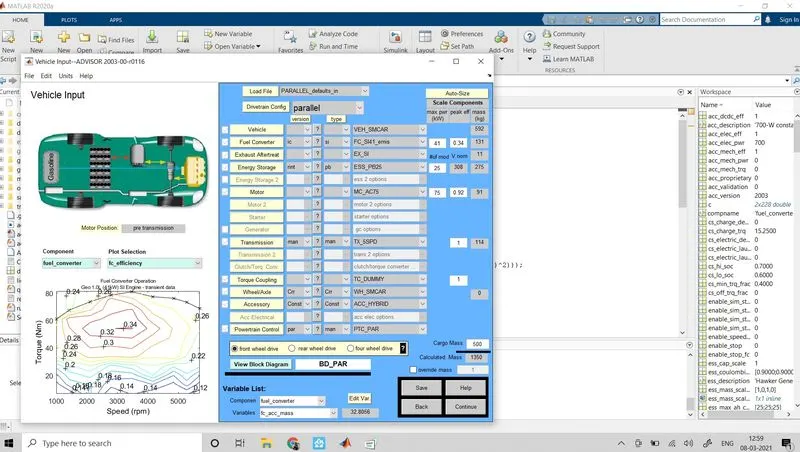

after setting the variables as per problem statement. set the payload to 500 Kilos.

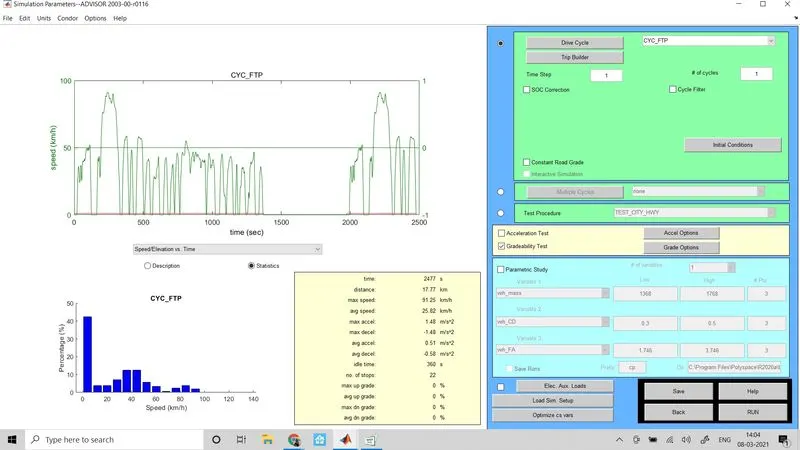

The cycle is set as 1 for CYC_FTP as seen in fig above.

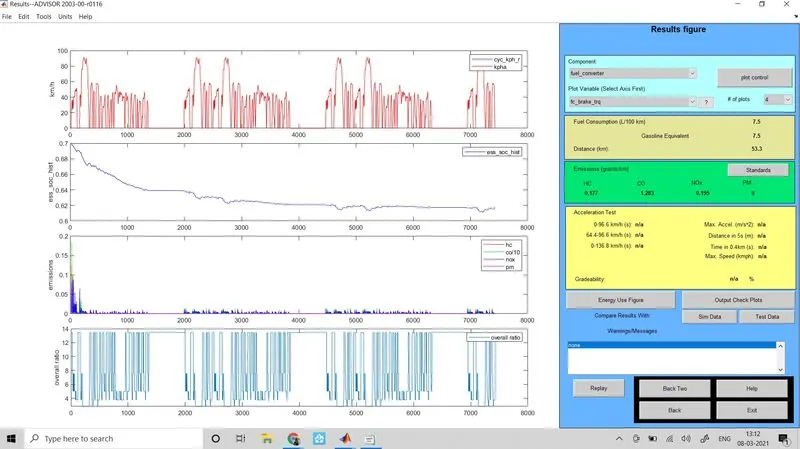

The equivalent of 45 Km is obtained if we increase number of cycles to 3, As seen in the attachment named km45+

2] For EV_defaults_in file, if cargo mass is 500 kg with all other default conditions, can the vehicle travel for 45 km with FTP drive cycle ,the battery equilence for 45 km is as below. Battery module value is 30 to get 45Km.

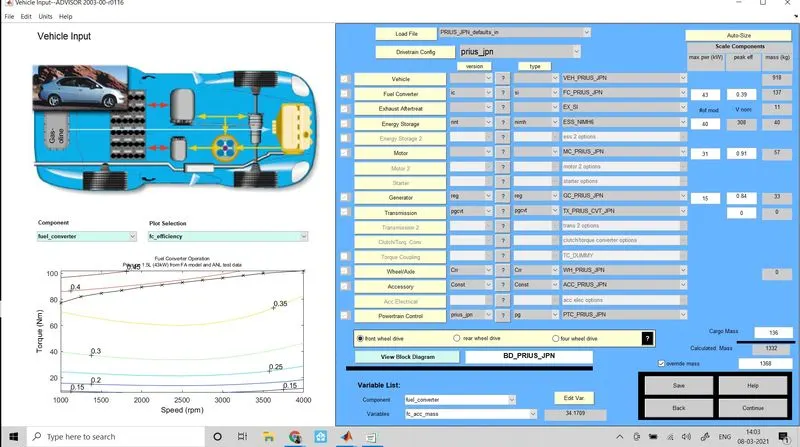

3] AIM: To perform gradebility for PIRUS_Jpn_defaults_in

select continue

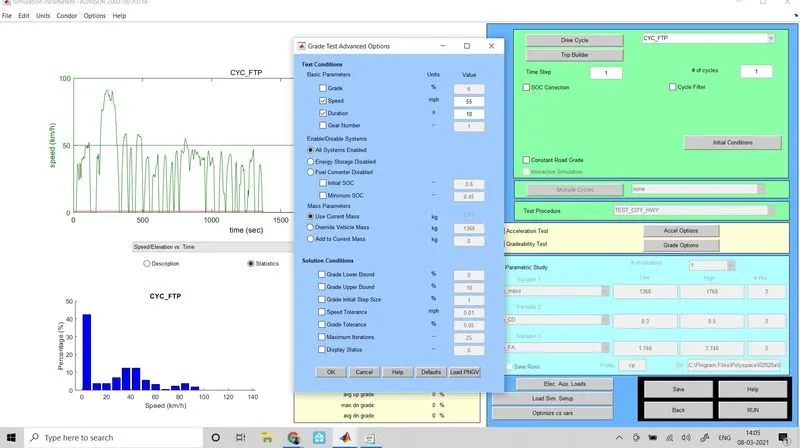

click on Gradebility test and select Grade Options

Select All Systems Enabled and set the speed as seen in excel file

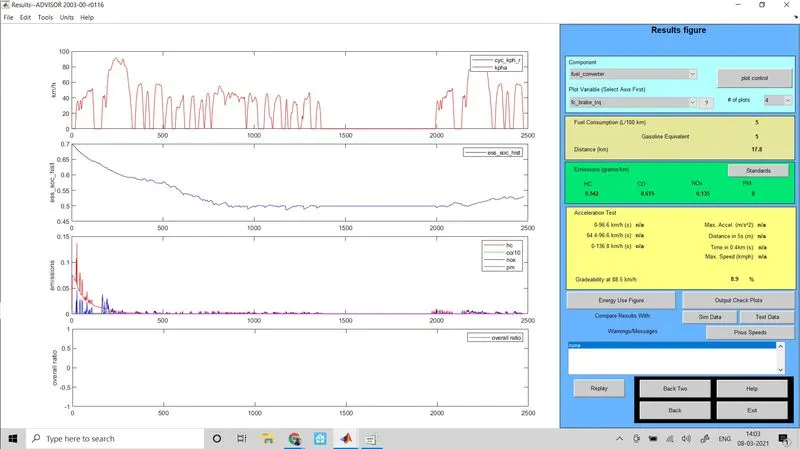

Gradebility is 8.9% for 55 Mph

Following excel sheet contains results of gradebility with regards to different speeds
