Week 3 Challenge

Aim

To create a CATIA parametric structure with publication command and to create a complete product file that we are using to design a lens.

PRODUCT FILE CREATION

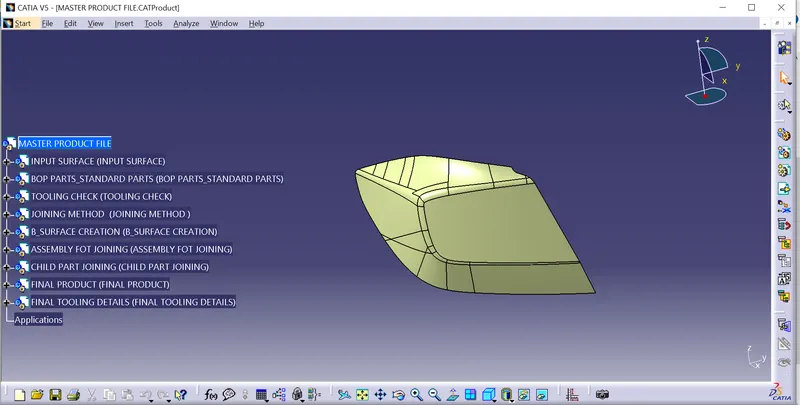

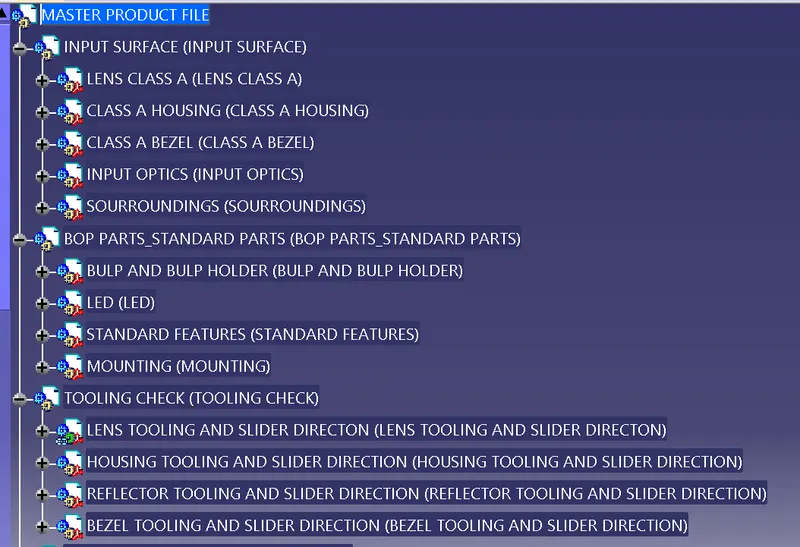

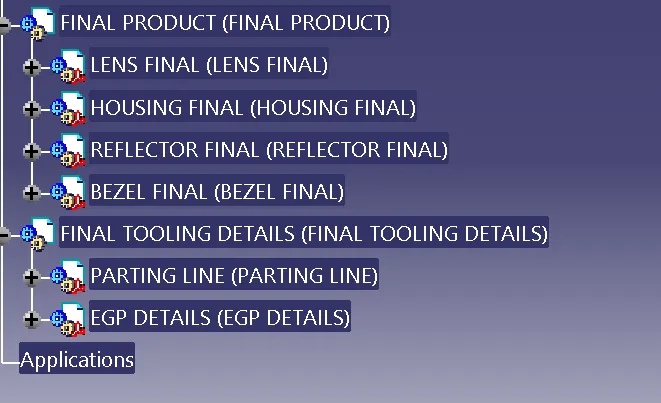

Below images are which created the product and parts file in lens design.

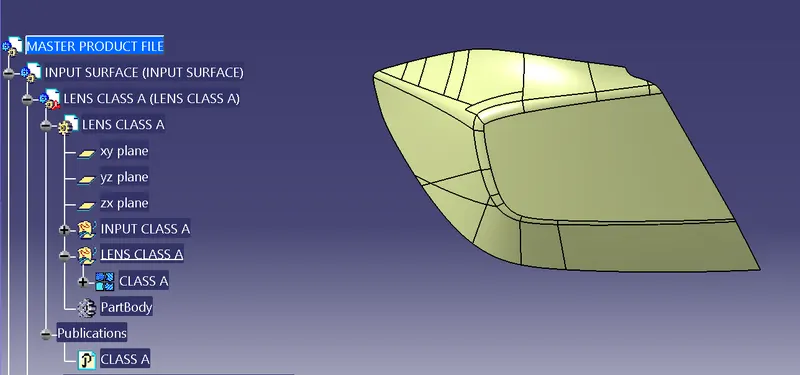

The given Class A surface of lens model.

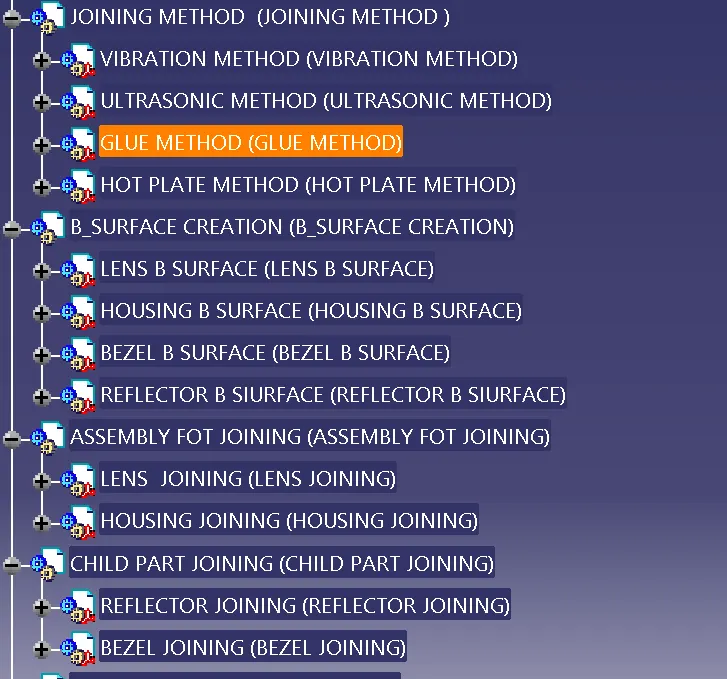

This is the image that created parametric model with the publication command.
