Week 3 - 2D meshing for sheet metal

check the uploaded file.

Project 2 - EDA on Vehicle Insurance Customer Data

project 1 completed 1.English Dictionary App 2.Library Book Management System

AIM: Importing rear car suspension geometry into ANSA. Clean up the geometry until no topological error is found. Generate mid surface for required parts. Generate volume mesh for hollow parts. Improve the mesh flow and solve off elements according to given quality criteria. Give connections for rear suspension for NVH…

AIM: For the given component, checking for the geometrical errors and meshing with the given element Quality criteria. After meshing the component the thickness has been assigned.PROCEDURE:Importing the given CAD into the BETA ANSA Software.Checking for the geometerically errors thrown and trying it to fix,to attain a…

AIM : To pratice morphing techniques on the given sheet metal component in two different models.   MODEL-1 : PROCEDURE: Before working on morphing the component we need to clean-up the geometry by using Topo.   To start the morphing first of all switch to morphing deck,then select the new and select as shown…

AIM Applying different types of 1D connections using the NASTRAN profile on the rear door FE model. OBJECTIVE The rear door model is givenfor the connections using different types of 1D connections which ever sutiable and makes proper connections and attaches the FE model for the simulation process. PROCEDURE The rear…

Tool Test-2

AIM : To do a pre-precessing on agiven Rear View Mirror component model using ANSA. OBJECTIVE : To check the geometrical error on the Rear View Mirror model. To generate 2D mesh on the components based on the quality criteria given. To generate volume mesh on the component using tetra elements. PROCEDURE : Importing CAD…

Tool Test-1

  AIM:- To extract the manual midsurface of the bottle cap and then mesh the component with given quality parameters. OBJECTIVE:- The bottle cap component is given with various thickness in thread ,teeth,and ribs. Taking manual midsurface with different procedures and meshing the component with 1mm target element size…

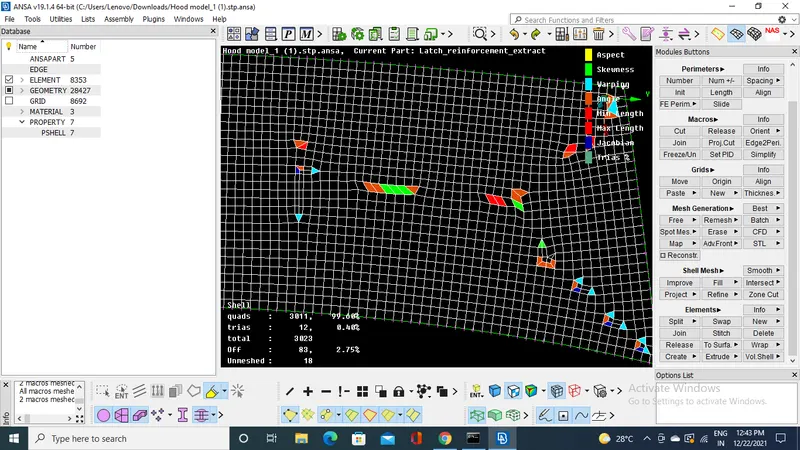

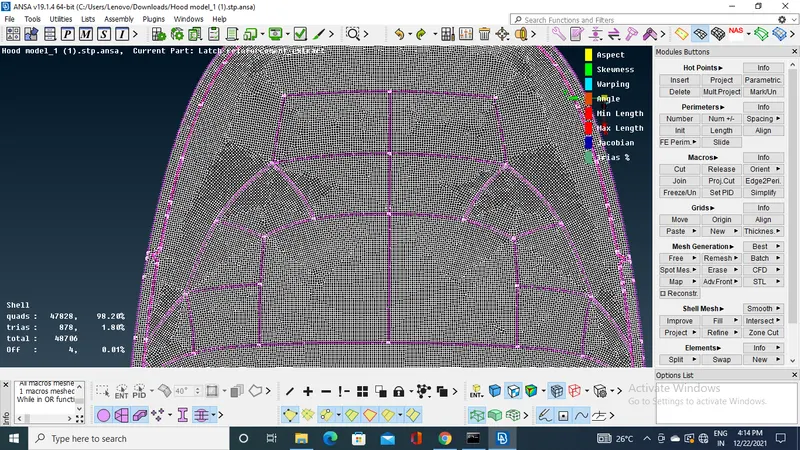

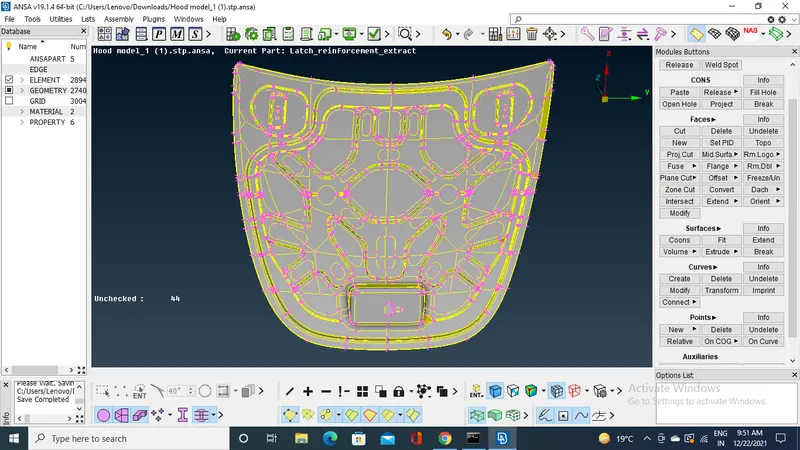

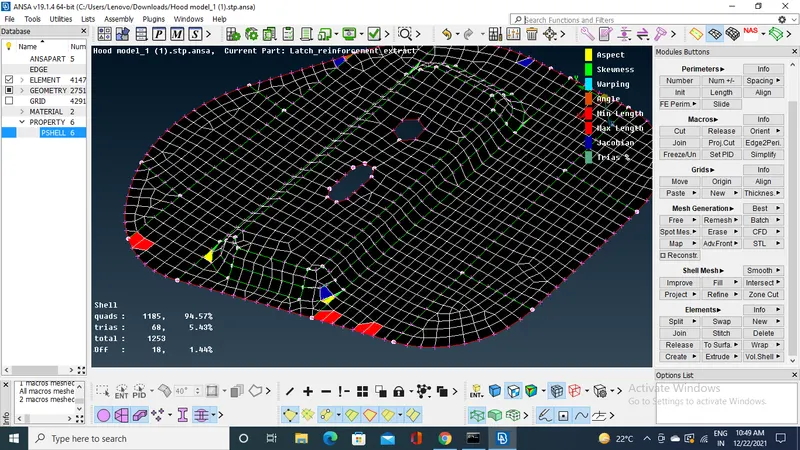

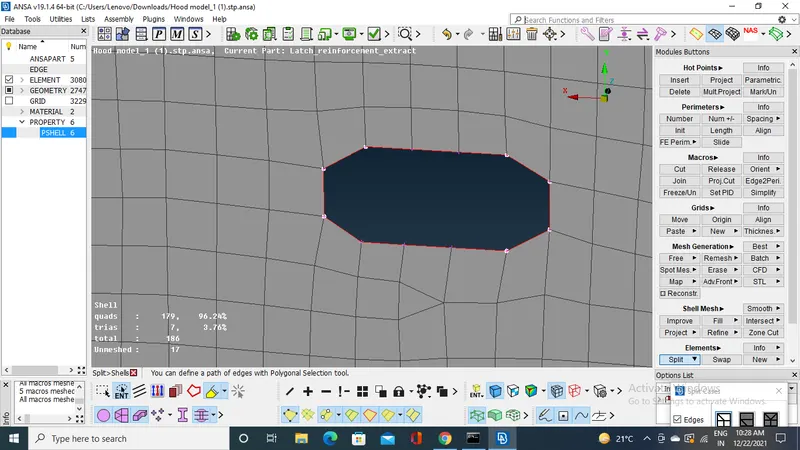

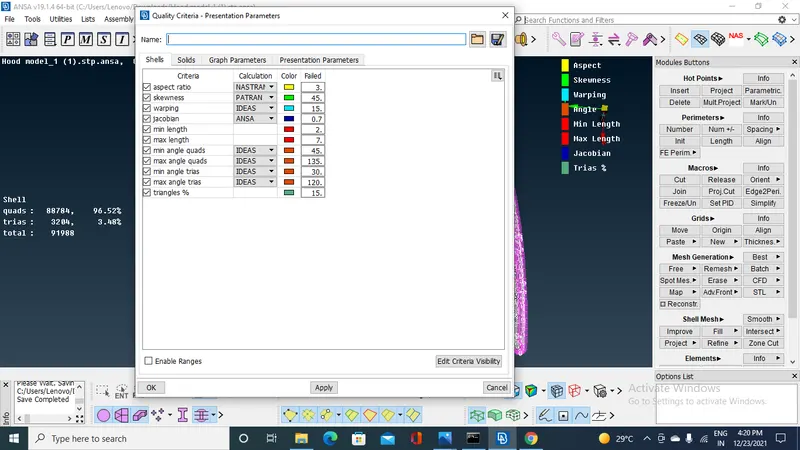

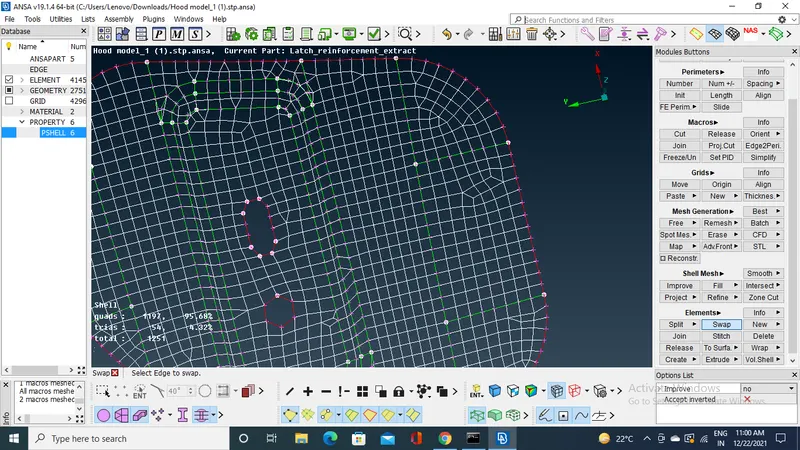

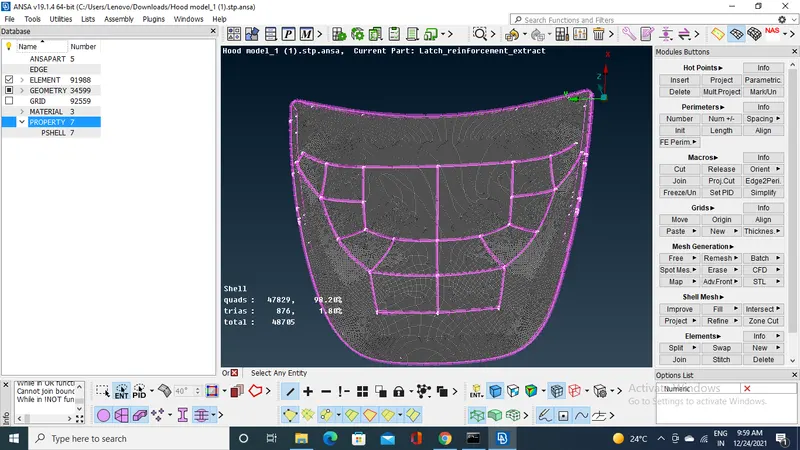

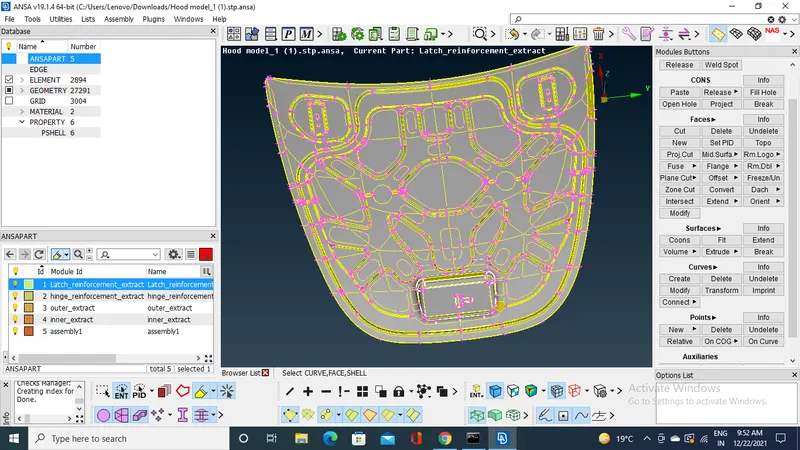

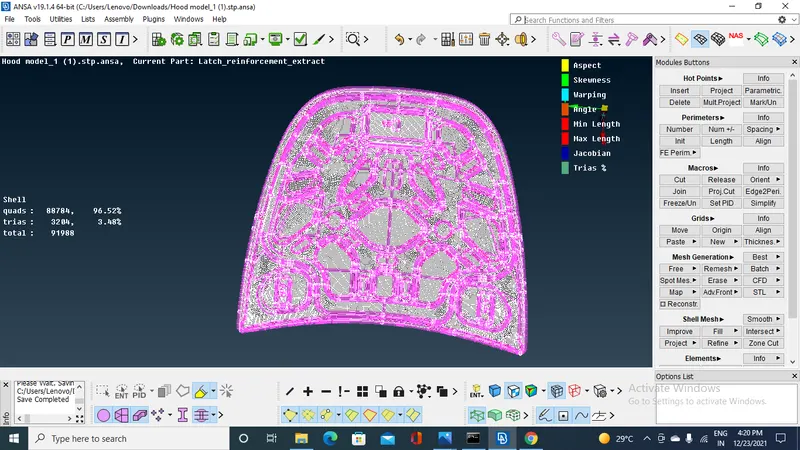

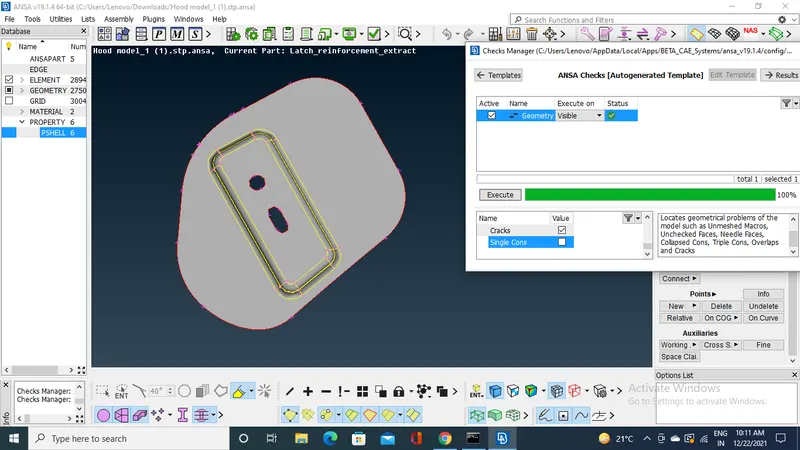

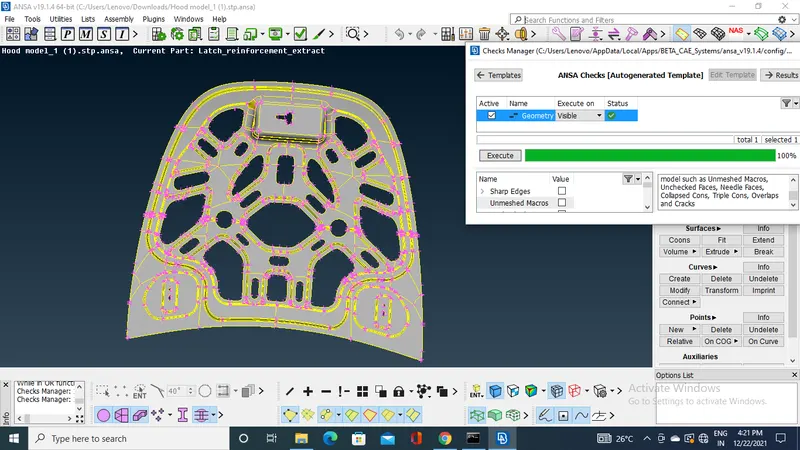

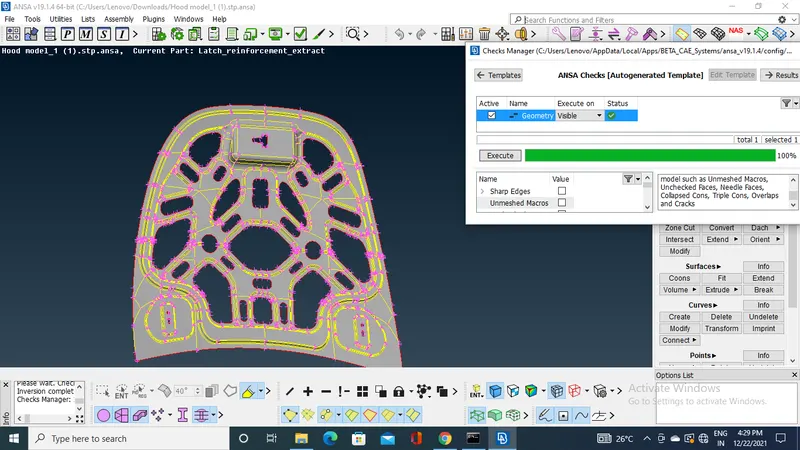

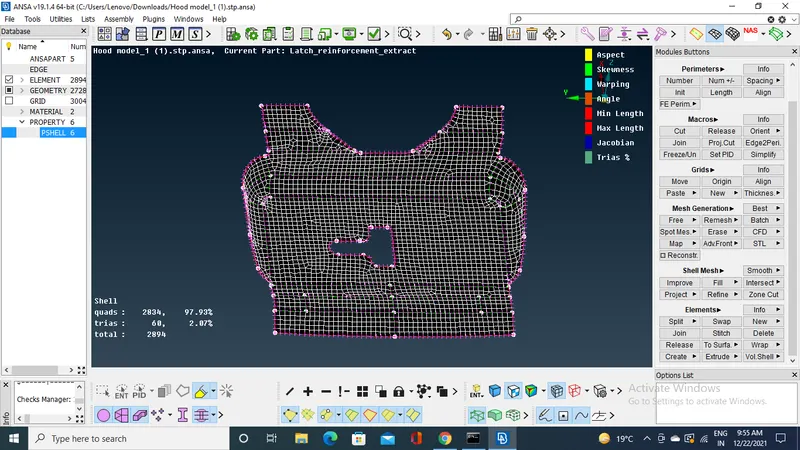

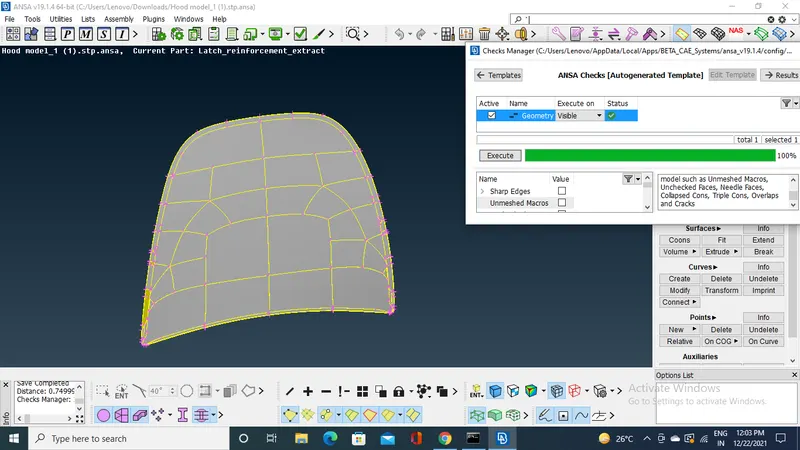

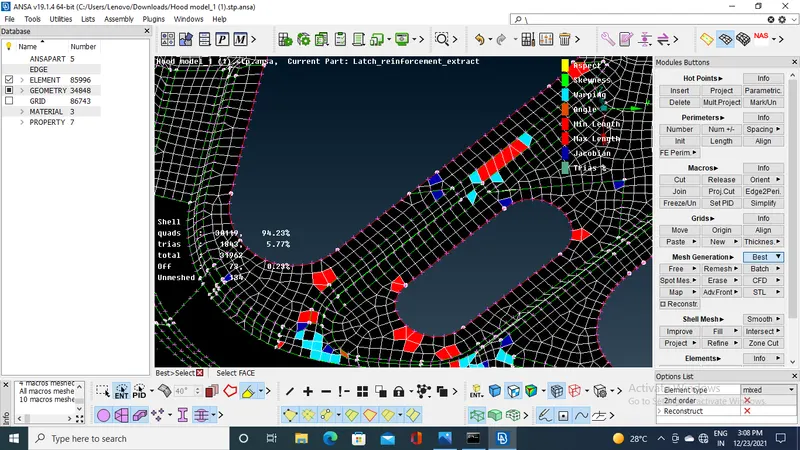

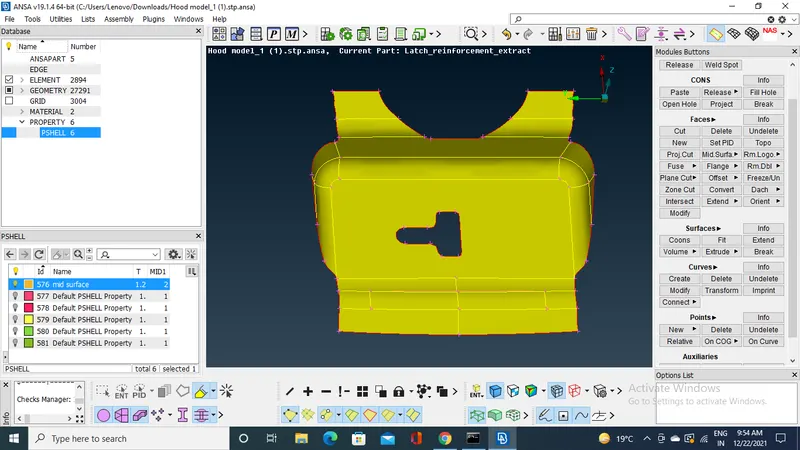

 AIM: To take the mid surface for all the components after checking the geometrical errors and mesh the mid surface with the given element Quality criteria. OBJECTIVE: Hood component is given with different parts. Latch left hinge &right hinge Inner panel Outer panel S.No  Quality Criteria  Value …

AIM:- To write a python program whic reads the engine output parameter data file and perform required objectives. Objectives:- To read the data from a given file. By taking file name as input from user and cheking the file is present or not. ploting the graphs by using parameters. performance calculations. Calculate the…

Curve fitting:- Curve fitting is the process of constructing a curve, or mathematical function, that has the best fit to a series of data points, possibly subject to constraints. Curve fitting can involve either interpolation, where an exact fit to the data is required, or smoothin, in…

AIM : To generate a plot for a Simple Pendulum and create the animation for the same. INTRODUCTION : A simple pendulum is an arrangement in which a weighted mass is suspended with the help of a string, which is fixed at one end and free at another end.This weighted mass free to move in space when provide with an external…

Aim Plot Pressure-Volume(PV) Diagram of Air Standard Cycle and Calculation of thermal efficiency using python. Objective Plot Pressur-Volume (PV) Diagram of Air Standard Cycle Calculate Thermal Efficiency of Air Standard Cycle Theory The otto-Cycle is an air standard cycle of the spark ignition engine.In most SI engine,the…

AIM:  To write a function that extracts the 14 co-efficients and calculates the enthaply,entropy and specific heas for all the species in the data file. To calculate the molecular weight of each species and display in the command window. To plot the Cp,enthalpy and entropy for the local temperatures range specific…

Introduction to Optimization: Optimization is the process of making something better. In any process we, have a set of inputs and a set of outputs as shown in the following figure.                                        …

AIM : To generate a plot for a Simple Pendulum and create the animation for the same. INTRODUCTION : A simple pendulum is an arrangement in which a weighted mass is suspended with the help of a string, which is fixed at one end and free at another end.This weighted mass free to move in space when provide with an external…
