Week 3

OBJECTIVE:

Check for the geometrical errors and mesh with the given element Quality criteria. After meshing the component the thickness has to be assigned.

S.No	Quality Criteria	Value
1	Target/Average length	5
2	Minimum Length	2
3	Maximum Length	7
4	Aspect	3
5	Warpage	15
6	Skewness	45
7	Jacobian	0.7
8	Minimum Quad Angle	45
9	Maximum Quad Angle	135
10	Minimum Tria Angle	30
11	Maximum Tria Angle	120
10	Tria Percentage	15

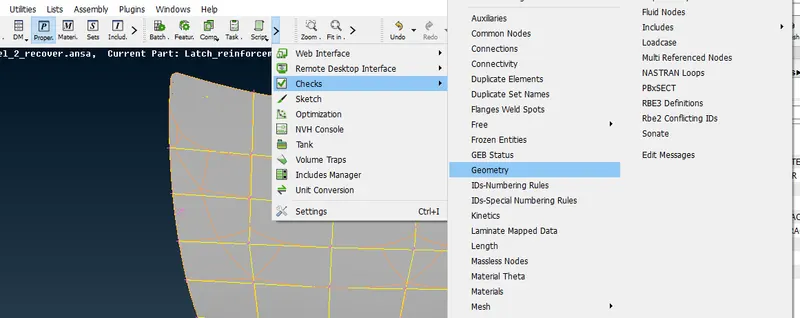

STEP1: IMPORT MODEL AND USE GEOMETRY CHEKS FOR ANY ERROR

THERE ARE TOLAL OF 5 COMPONENTS IN THIS MODEL

COMPONENT1: OUTER HOOD EXTRACT

STEP1: GENERATE MID SURFACE FOR THE FOLOWING

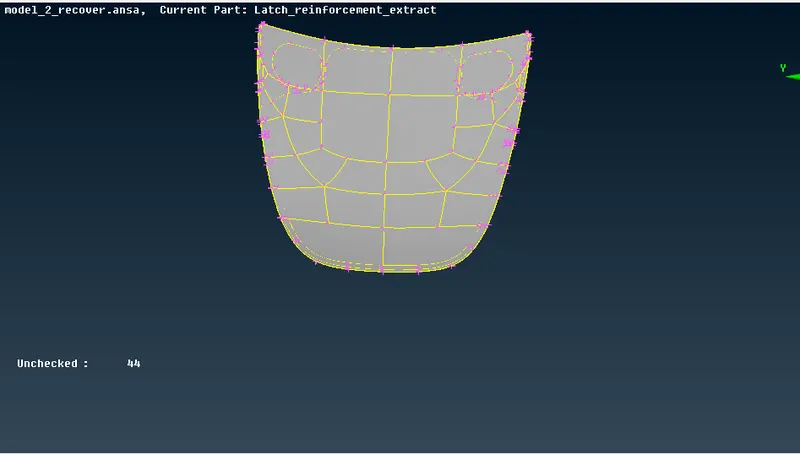

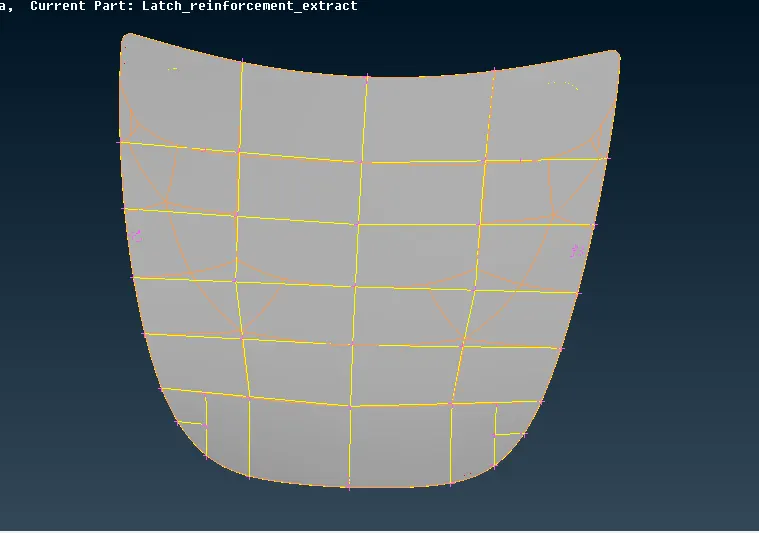

AFTER MIDSURFACE GENERATION BY COMAND SPLIT THE SUTFACE IN RECTANGULAR SURFACES FOR BETTER MESH GENERATION

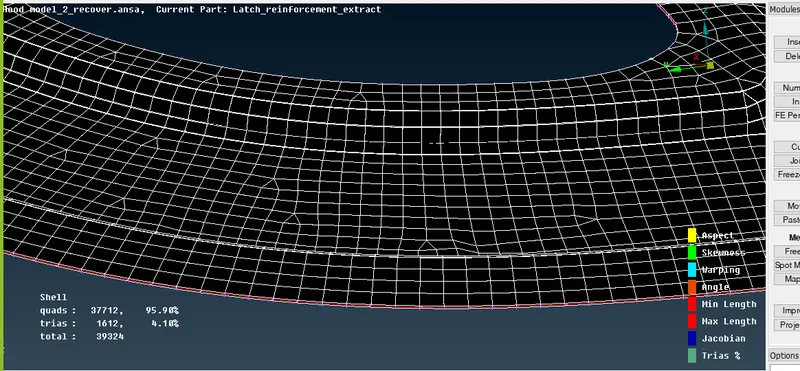

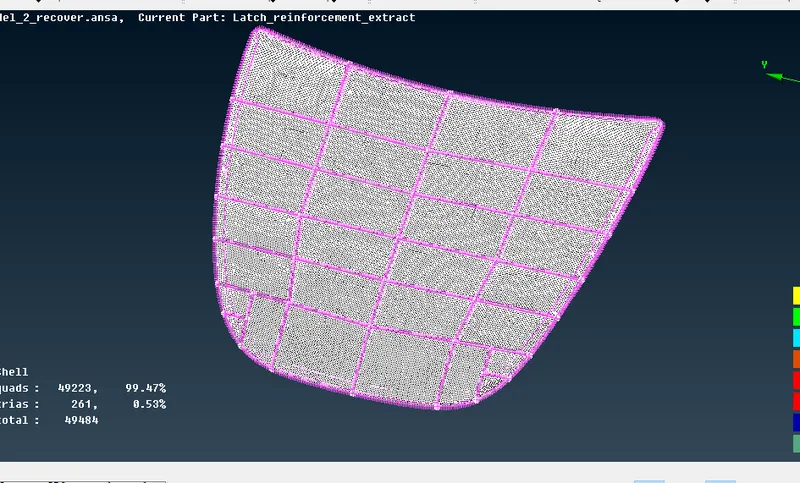

AFTER MESH GENERATION WITH THE SIZE MENTIONED IN THE OBJECTIVE THAT IS 5 CHECK FOR QUALITY IN HIDDEN MODE

SIMILARLY FOR ALL COMPONENT GENERATE MID SURFACE AFTER GEOMETRY CLEANUP AND DO PROPER QUALITY CHECK

COMPONENT2: INNER BODY HOOD EXTRACT

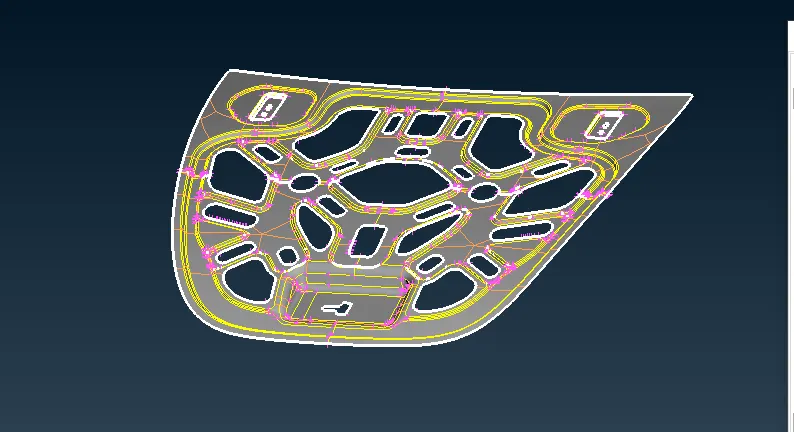

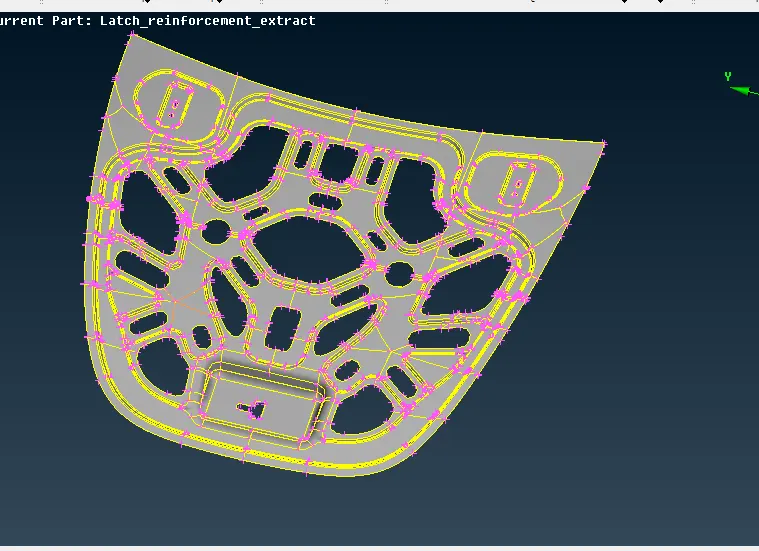

AFTER MID SURFACE GENERATION

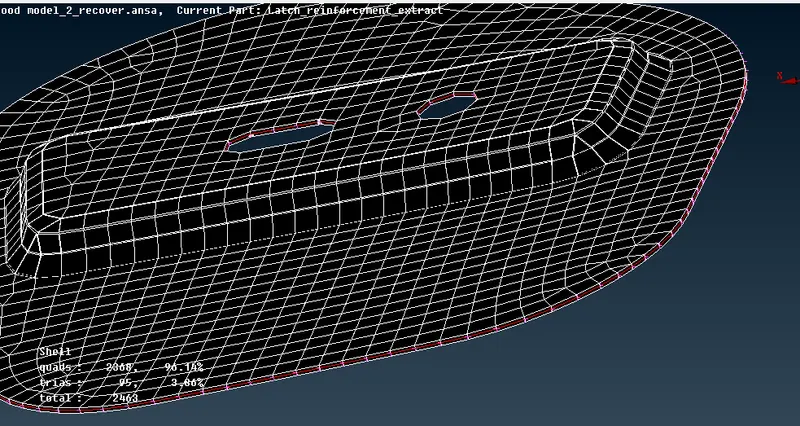

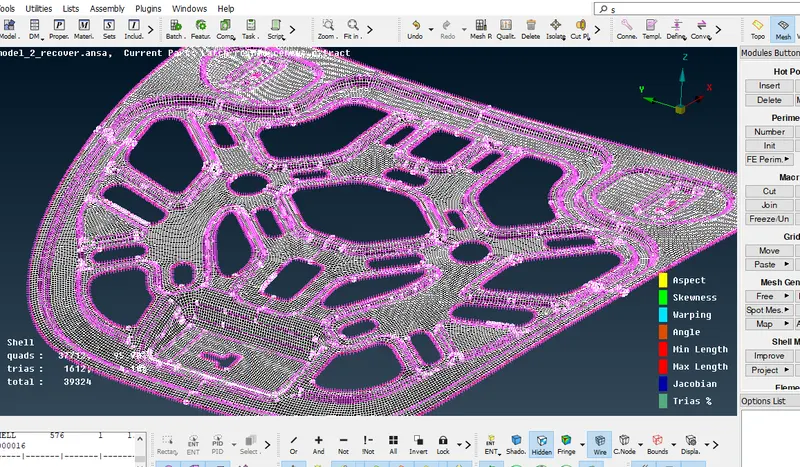

AFTER MESH GENERATION

COMPONENT3,4,5: LEFT AND RIGHT HINGE AND LATCH

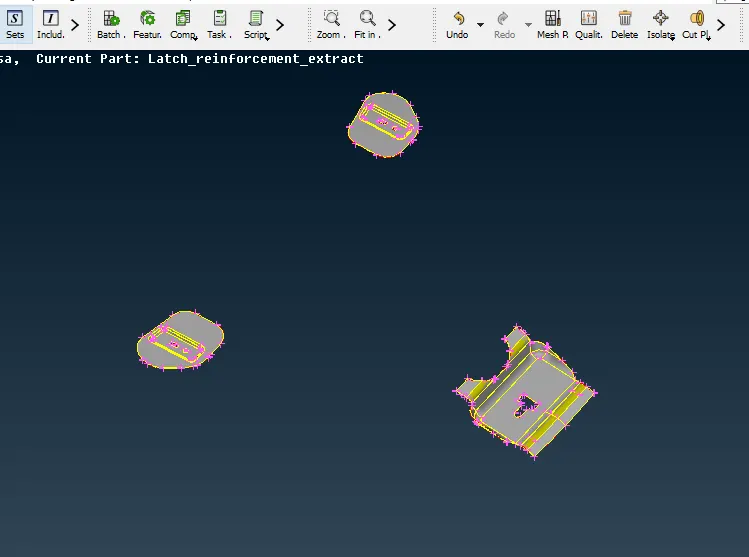

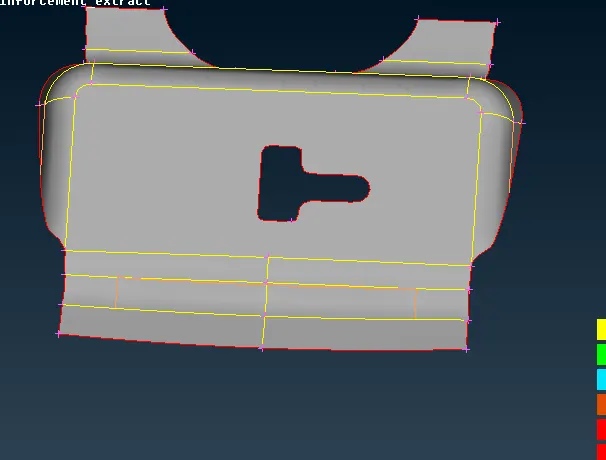

AFTER MIDSURFACE GENERATION

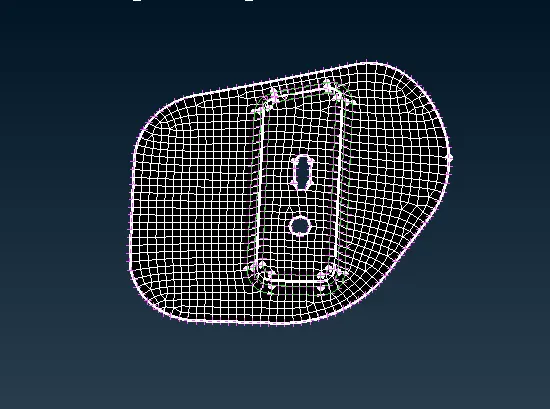

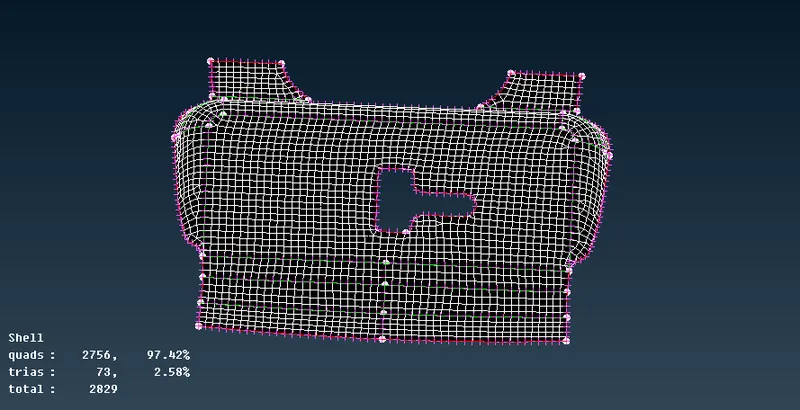

AFTER MESH

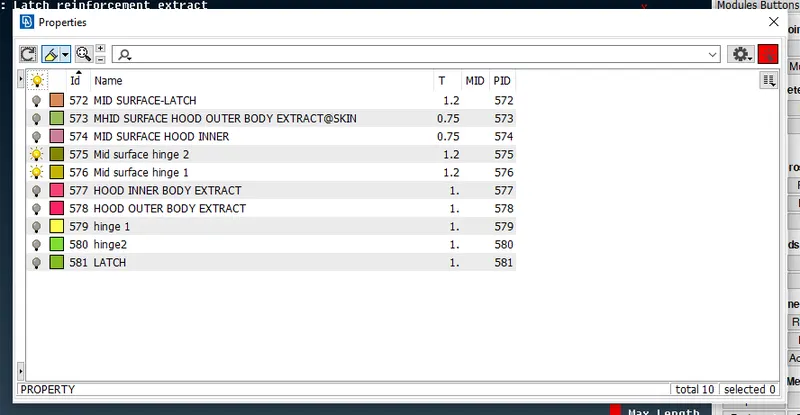

STEP FOR APPLYING THICKNESS

PRESS F11 > GOTO PRESENTATION PARAMETER> CHECK TICK ON APPLY SOLID

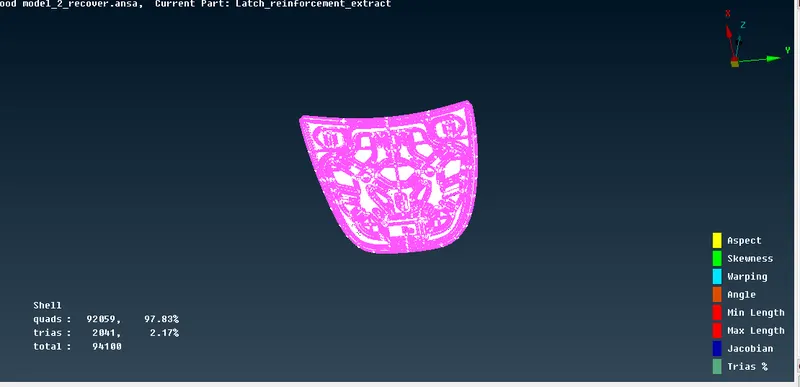

FINAL MODEL CAD
