Week 2 - Flow over a Cylinder.
Aim: Simulate the flow over a cylinder and explain the phenomenon of Karman vortex street.
Objective:
PART-I
- Simulate the flow with the steady and unsteady case and calculate the Strouhal Number for Re= 100.
PART-II
- Calculate the coefficient of drag and lift over a cylinder by setting the Reynolds number to 10,100,1000,10000 & 100000. (Run with steady solver)
- Discuss the effect of Reynolds number on the coefficient of drag. [ Results should be validated with any standard literature and error should be within 5 %]
Procedure:
Phenomenon of Karman vortex street :
In fluid dynamics, a Karman vortex street is a repeating pattern of swirling vortices, caused by a process known as vortex shedding which is responsible for the unsteady separation of flow of a fluid around blunt bodies.
It is named after the engineer and fluid dynamicist Theodore von Karman and is responsible for such phenomena as the "singing" of suspended telephone or power lines and the vibration of a car antenna at certain speeds. Mathematical modeling of von Kármán vortex street can be performed using different techniques including but not limited to solving the full Navier-Stokes equations with k-epsilon, SST, k-omega and Reynolds stress, and large eddy simulation (LES) turbulence models, or by numerically solving some dynamic equations such as the Ginzburg-Landau equation.
Introduction:
Flow over a cylinder is one of the basic simulation in CFD domain and till this date the research is still going on to study the unsteady behaviour caused by the flow.The flow over cylinder study is very complex and periodic flow pattern are seen at lower Reynolds number and after achieving critical Reynolds number value, the flow get change in the wake region and this wake region can be studied using literature of Karman vortex street.one of the important point is Vortex shedding means In fluid dynamics vortex shedding is an oscillating flow that takes place when a fluid such as air or water flows past a bluff (as opposed to streamlined) body at certain velocities, depending on the size and shape of the body. In this flow, vortices are created at the back of the body and detach periodically from either side of the body forming a Von Karman vortex street. The fluid flow past the object creates alternating low-pressure vortices on the downstream side of the object. The object will tend to move toward the low-pressure zone.
- Reynolds Number: The Reynolds number is a dimensionless number,It is defined as the ratio of inertia force to viscous force.
Formula :
- Strouhal number: Strouhal number is a dimensionless number describing oscillating flow mechanisms.The frequency at which vortex shedding takes place for an infinite cylinder is related to the Strouhal number by the following equation:
Formula:
- Coefficient of Drag (Cd)= The coefficient of drag is a dimensionless quantity that is used to determine the drag or resistance of an object in a fluid environment such as air or water.
Formula:
- Coefficient of lift (Cl) = The coefficient of lift is dimensionless quantity that is used to determine the lift of an object in a fluid environment .
Formula :
Creating the geometry :-

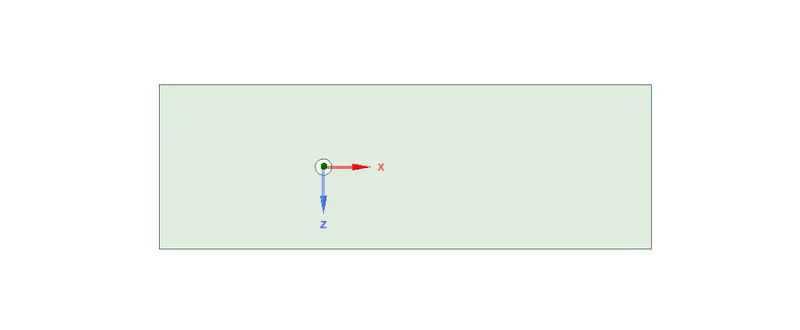

The diameter of circle is 2m ,and the rectangular surface of 20m width and 60m length the geometry is shown below

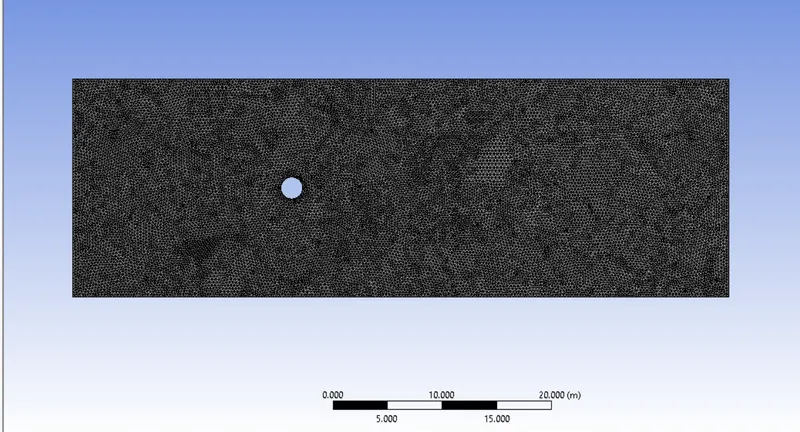

Meshing :

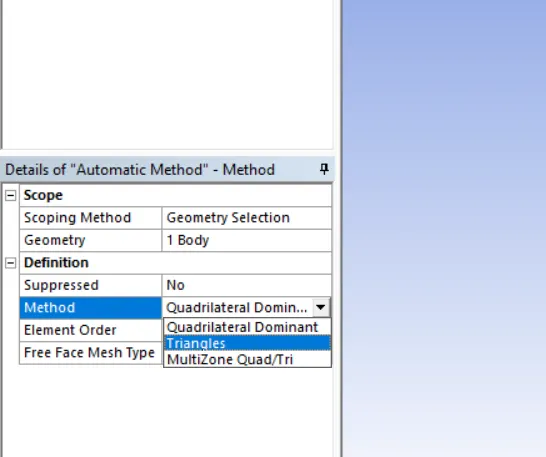

- In meshing we insert method to change the shape of mesh ,In this case we use all triangles method
- The element size is 0.25m
- The sizing is used to precisely control the mesh,In this case we use steps are Mesh>insert>Sizing>Geometry>select edge>type>No of divisions >36

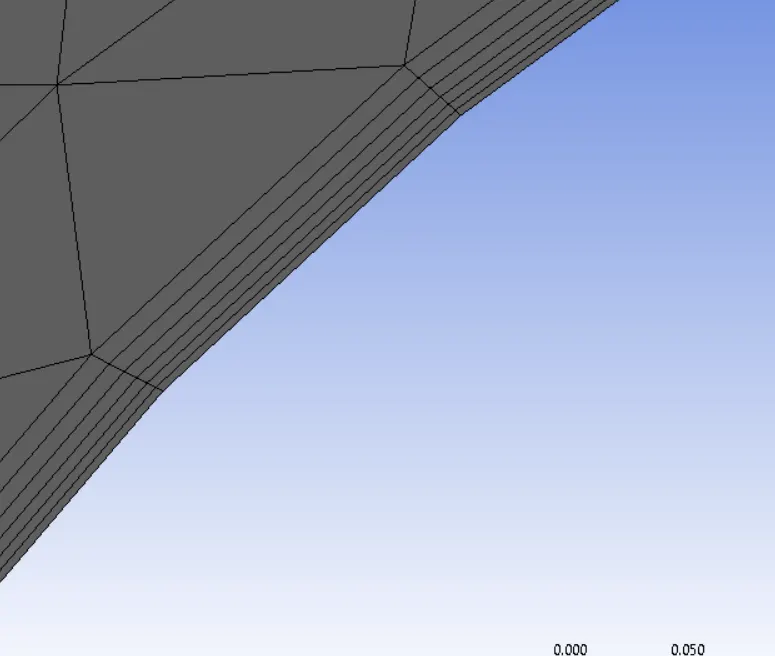

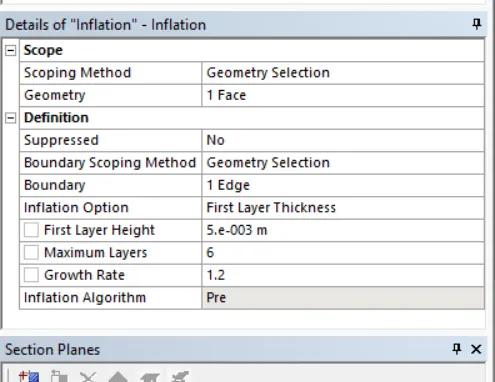

- The inflation layer is used around the cylinder.The steps are follows:
- In both the cases we use same geometry and mesh .
- we are giving the name to boundaries inlet,outlet,symmetry and wall (for cylinder).
PART-I
- Simulate the flow with the steady and unsteady case and calculate the Strouhal Number for Re= 100.
For steady state simulation Re=100:
Set up :
Solver type: Pressure based
Velocity formulation: Absolute
Time : Steady
Viscosity model: laminar
Material : User defined
where viscosity =0.02 Kg/(m-s) ,Density=1 kg/m^3
Cell zone :
fff_surface fluid type: User defined
Boundaries :
Inlet(velocity inlet)
Velocity magnitude = 1 m/sec
Outlet(Pressure outlet)
Gauge pressure = 0 pa
Wall shear condition=No Slip
Symmetry =symmetry

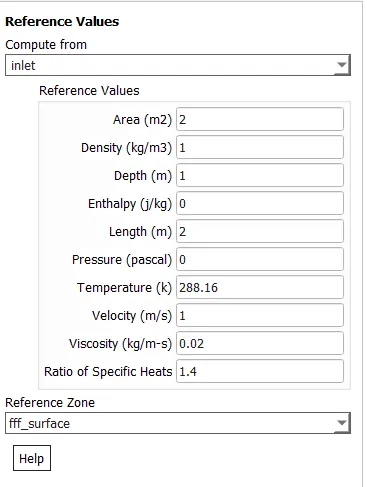

- One of the important setting is to set reference value in fluent this is shown below ;
Solution an Result :
Solution method used is simple method and we create the report for obtaining the coefficient of drag and coefficient of lift and we create monitor point to right side of the cylinder at distance 8 meter from origin of cylinder for obtaining the vertex average velocity at that point .we create contour plot for velocity and pressure .The following result is obtained by 500 iterations.

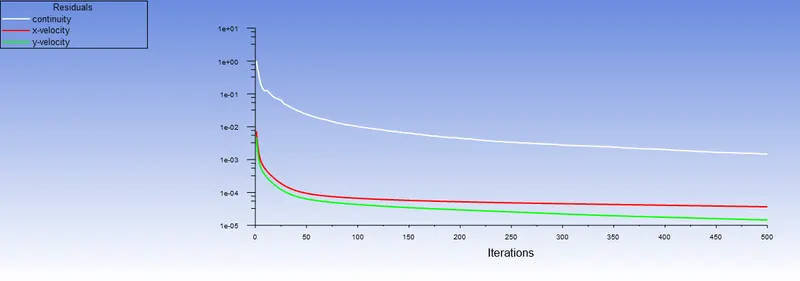

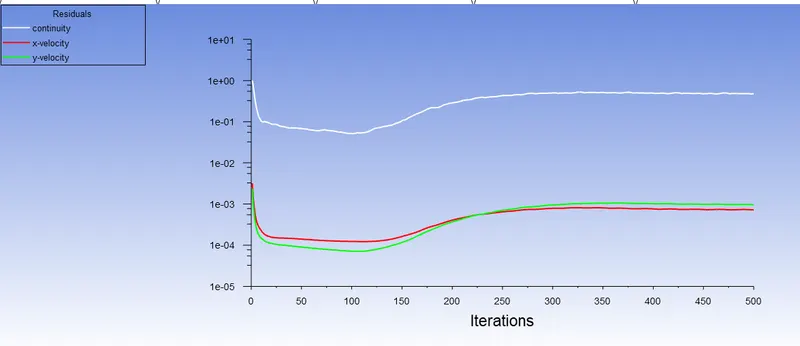

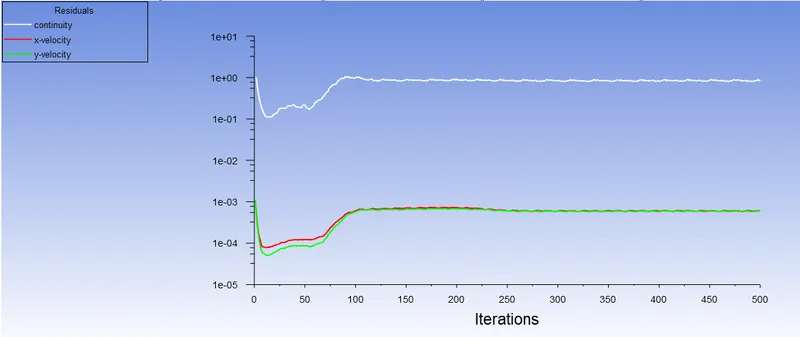

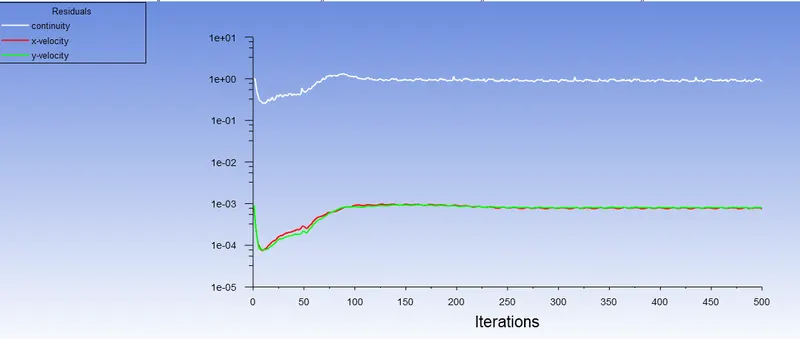

Residual plot:

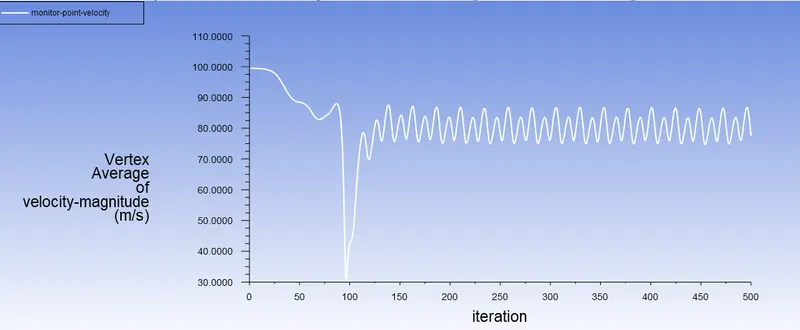

Vertex Average of Velocity Magnitude plot :

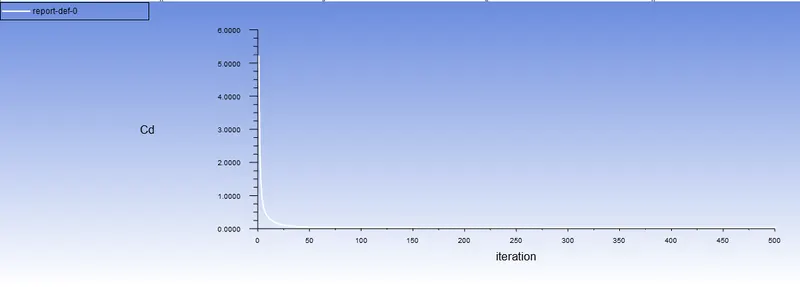

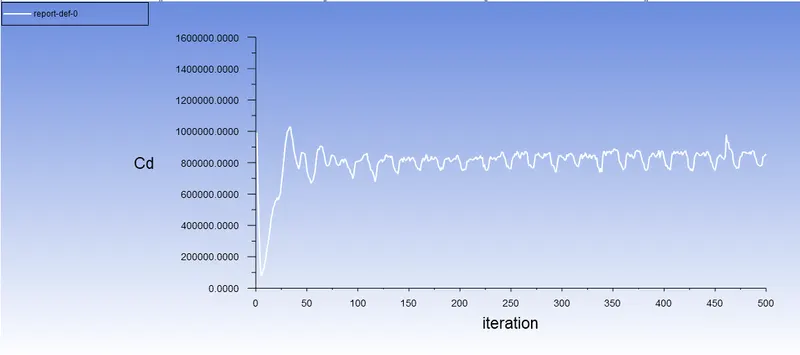

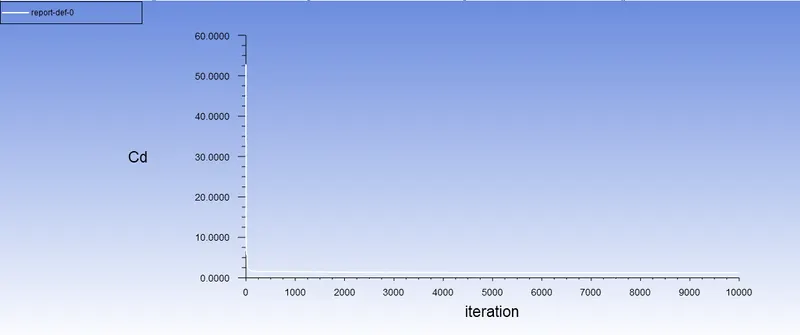

Coefficient of Drag plot :

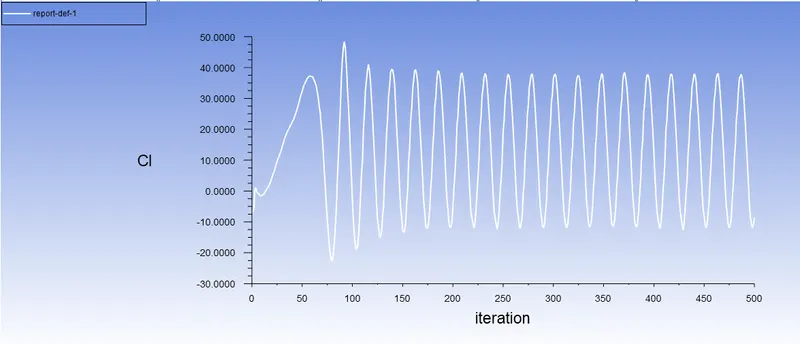

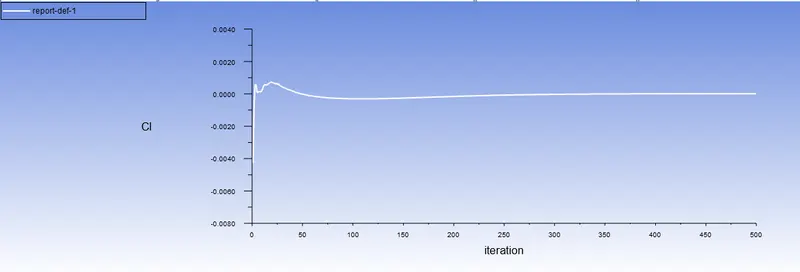

Coefficient of Lift plot :

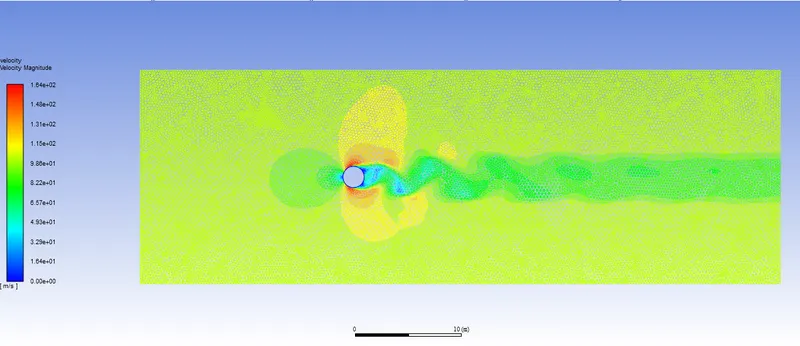

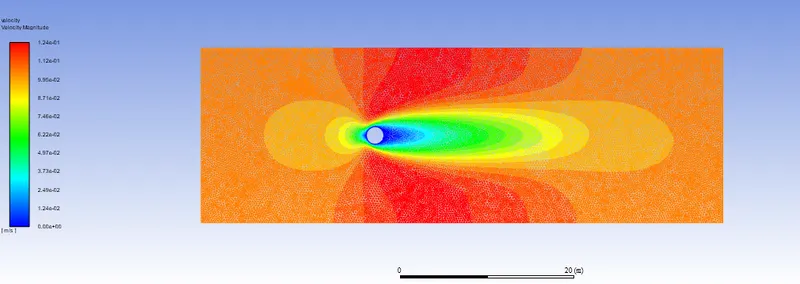

Velocity contour plot :

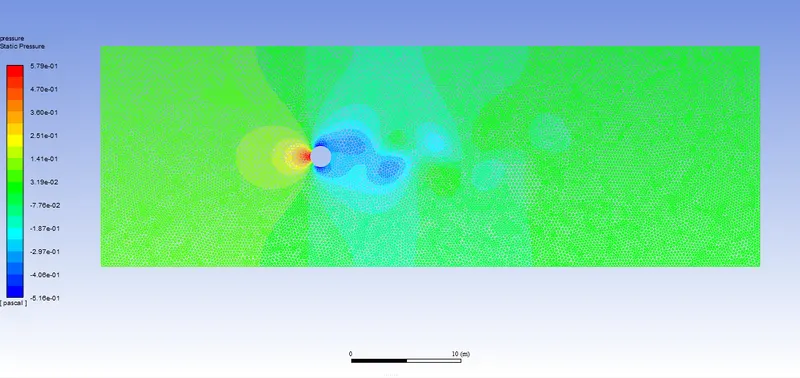

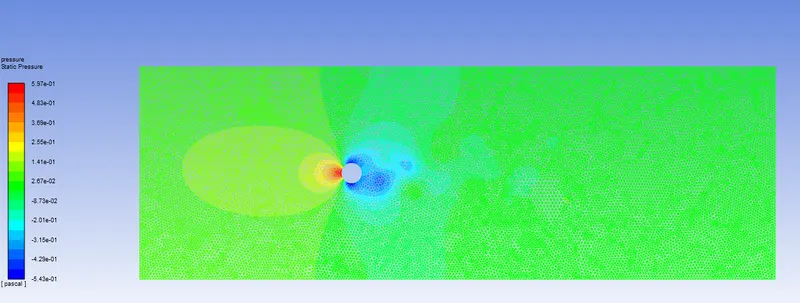

Pressure contour plot :
- For unsteady state simulation Re=100 :
- Set up:
Solver type: Pressure based
Velocity formulation: Absolute
Time : UnSteady
Viscosity model: laminar
Material : User defined
Type : fluid
where viscosity =0.02 Kg/(m-s) ,Density=1 kg/m^3
Cell zone :
fff_surface fluid type: User defined
Boundaries :
Inlet(velocity inlet)
Velocity magnitude = 1 m/sec
Outlet(Pressure outlet)
Gauge pressure = 0 pa
Wall:
shear condition=No Slip
Symmetry =symmetry

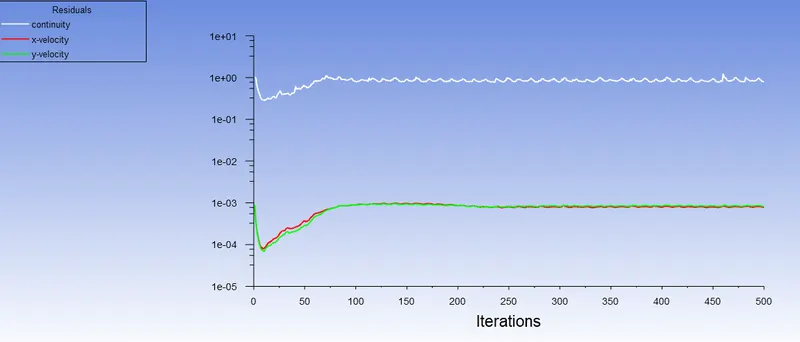

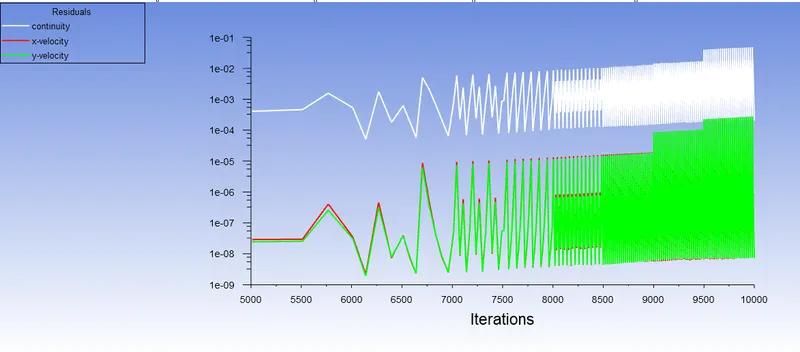

Residual plot:

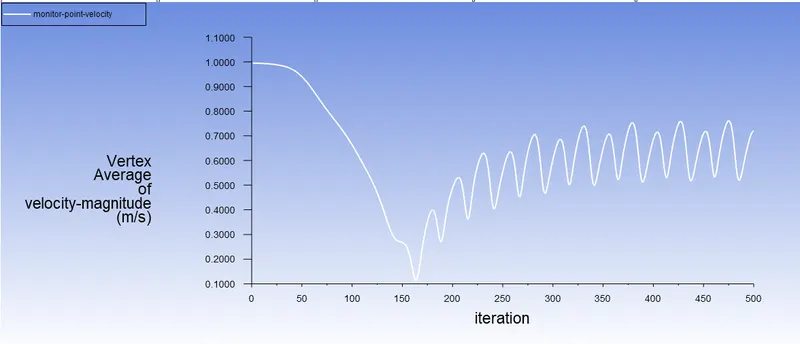

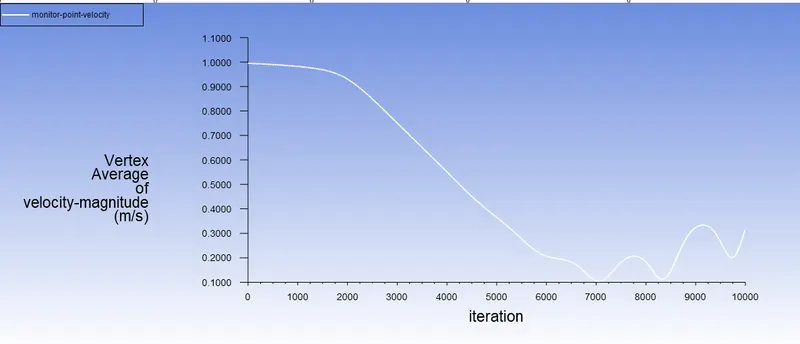

Vertex Average of Velocity Magnitude plot :
Coefficient of Drag plot :

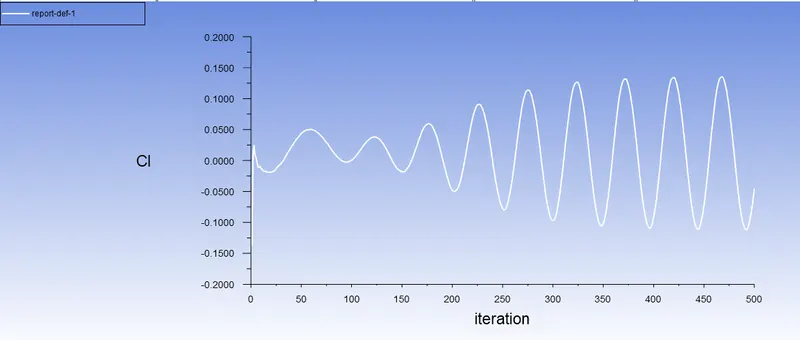

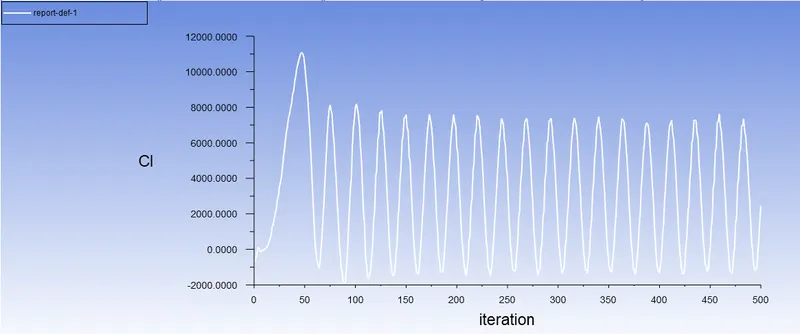

Coefficient of Lift plot :

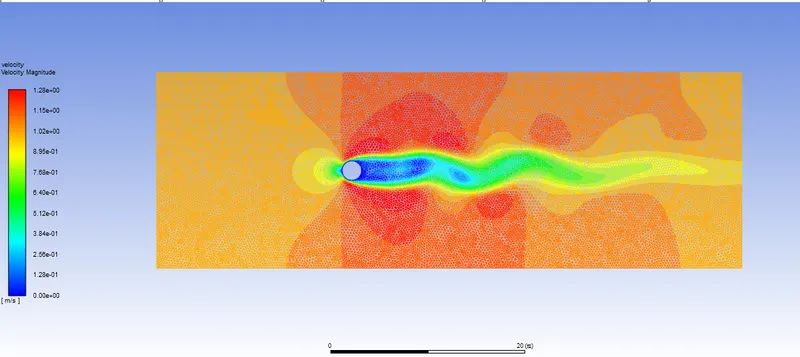

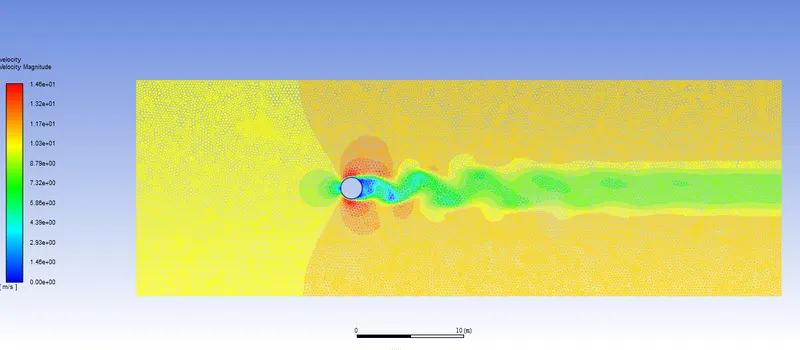

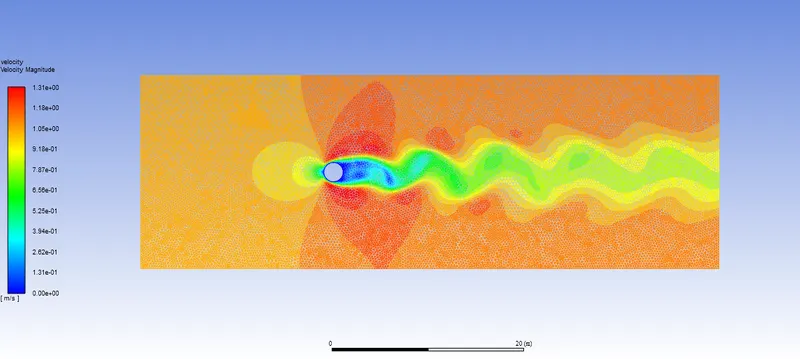

Velocity contour plot :
Pressure contour plot:
PART-II
- Calculate the coefficient of drag and lift over a cylinder by setting the Reynolds number to 10,100,1000,10000 & 100000. (Run with steady solver)
For Re=10
Set up :
Solver type: Pressure based
Velocity formulation: Absolute
Time : Steady
Viscosity model: laminar
Material : User defined
Type : fluid
where viscosity =0.02 Kg/(m-s) ,Density=1 kg/m^3
Cell zone :
fff_surface fluid type: User defined
Boundaries :
Inlet(velocity inlet)
Velocity magnitude = 0.1 m/sec
Outlet(Pressure outlet)
Gauge pressure = 0 pa
Wall: shear condition=No Slip
Symmetry =symmetry
Residual plot:

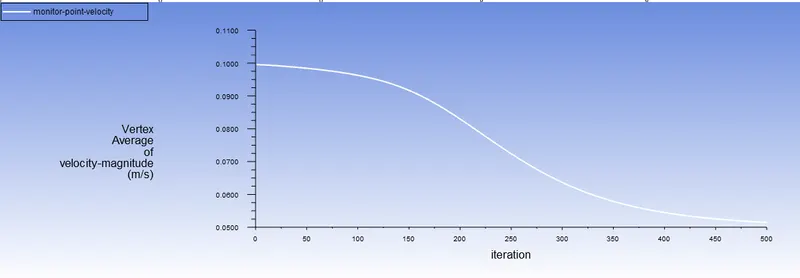

Vertex Average of Velocity Magnitude plot :
Coefficient of Drag plot:

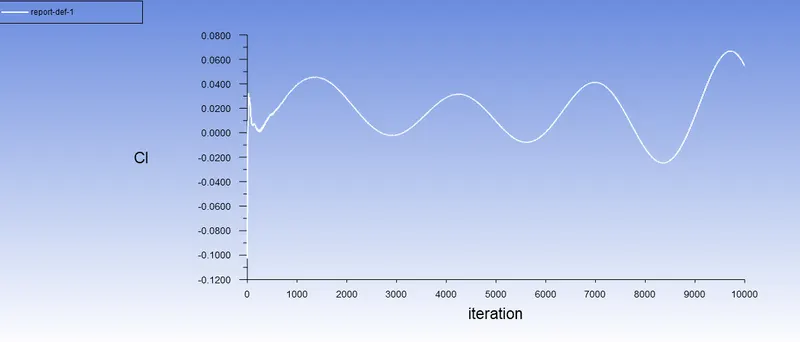

Coefficient of Lift plot:
Velocity Contour plot:
For Re=100 we have all ready calculate the coefficient of drag and lift value in part 1
For Re=1000
Set up :
Solver type: Pressure based
Velocity formulation: Absolute
Time : Steady
Viscosity model: laminar
Material : User defined
where viscosity =0.02 Kg/(m-s) ,Density=1 kg/m^3
Cell zone :
fff_surface fluid type: User defined
Boundaries :
Inlet(velocity inlet)
Velocity magnitude = 10 m/sec
Outlet(Pressure outlet)
Gauge pressure = 0 pa
Wall: shear condition=No Slip
Symmetry =symmetry
Residual plot:
Vertex Average of Velocity Magnitude plot :

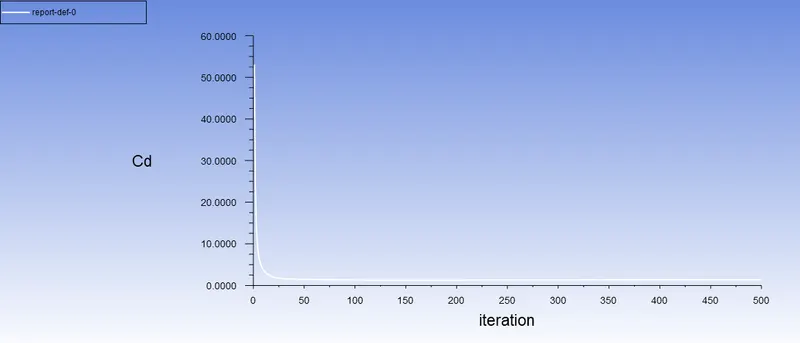

Coefficient of Drag plot:
Coefficient of Lift plot:
Velocity Contour plot:
For Re=10000
Set up :
Solver type: Pressure based
Velocity formulation: Absolute
Time : Steady
Viscosity model: laminar
Material : User defined
Type : fluid
where viscosity =0.02 Kg/(m-s) ,Density=1 kg/m^3
Cell zone :
fff_surface fluid type: User defined
Boundaries :
Inlet(velocity inlet)
Velocity magnitude = 100 m/sec
Outlet(Pressure outlet)
Gauge pressure = 0 pa
Wall: shear condition=No Slip
Symmetry =symmetry
Residual plot:
Vertex Average of Velocity Magnitude plot :

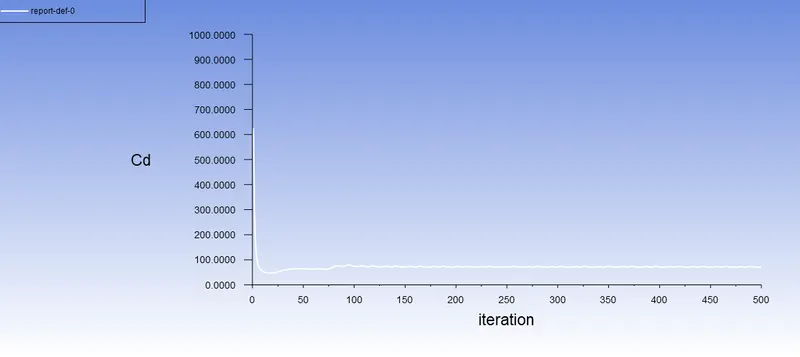

Coefficient of Drag plot:
Coefficient of Lift plot:
Velocity contour plot:
For Re=100000
Set up :
Solver type: Pressure based
Velocity formulation: Absolute
Time : Steady
Viscosity model: laminar
Material : User defined
Type : Fluid
Where viscosity =0.02 Kg/(m-s) ,Density=1 kg/m^3
Cell zone :
fff_surface fluid type: User defined
Boundaries :
Inlet(velocity inlet)
Velocity magnitude = 1000 m/sec
Outlet(Pressure outlet)
Gauge pressure = 0 pa
Wall: shear condition=No Slip
Symmetry =symmetry
Residual plot:

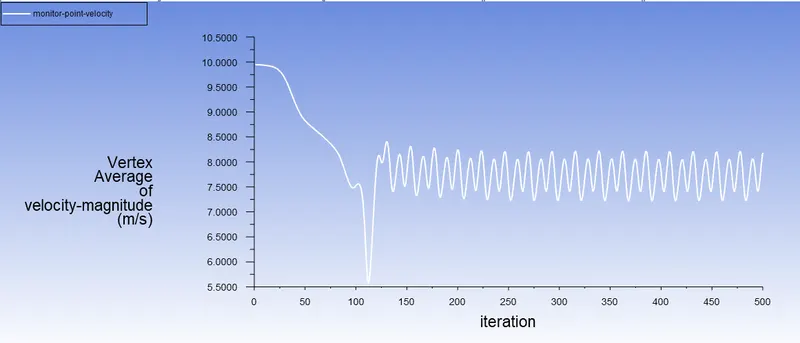

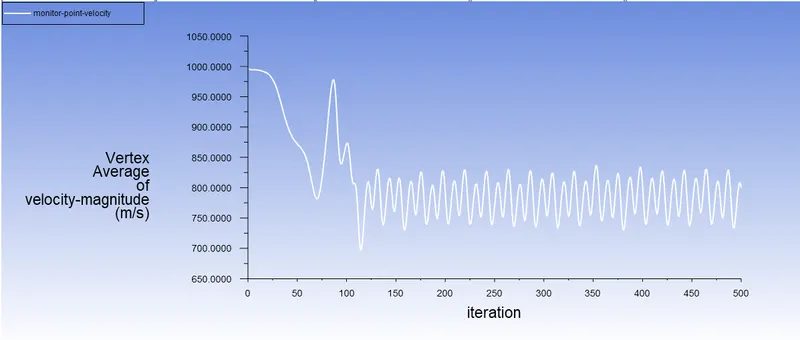

Vertex Average of Velocity Magnitude plot :

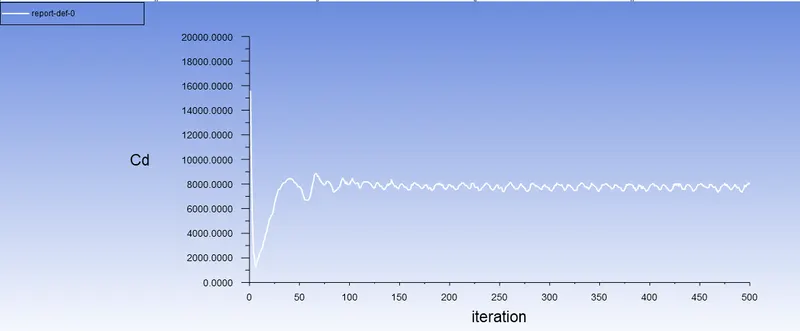

Coefficient of Drag plot:

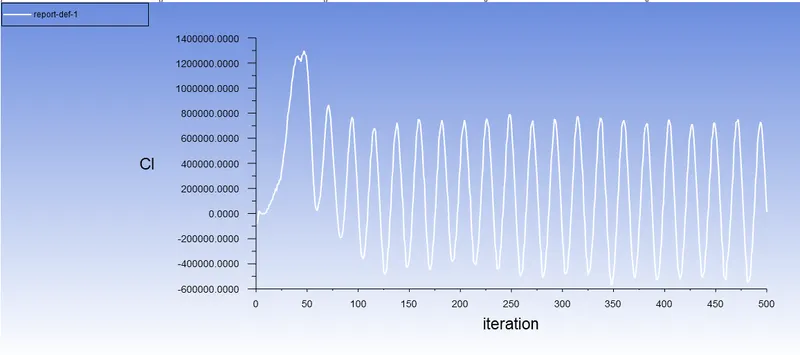

Coefficient of Lift plot:

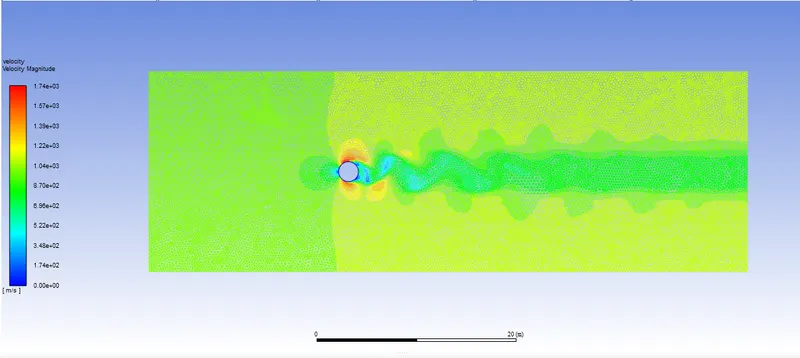

Velocity Contour plot:
For the steady state simulation Value of Reynolds no.,Coefficient of drag,Coefficient of lift are tabulated as follows:
| Sr No | Reynolds No (Re) | Coefficient of Drag (Cd) | Coefficient of lift (Cl) |
| 1 | 10 | 3.332 | -0.0026 |
| 2 | 100 | 1.3147 | 0.1106 |
| 3 | 1000 | 1.1073 | 0.5665 |
| 4 | 10000 | 1.1824 | 0.6629 |
| 5 | 100000 | 0.9585 | 0.6123 |
Conclusion:
- From the above table we can say that the Reynolds number increases then the coefficient of drag is decreases and coefficient of lift is increases,this data is compared with research paper for Re=100 the research paper value are coefficient of drag= 1.3353 ,and obtained value from simulation is 1.3147 and % of error=1.54% ie <5% .and strouhal number for Re=100 Research paper value=0.1569 and obtained value in unsteady state simulation is 0.1596 and % of error =1.72 %
- The Reynolds number increases in value then the wake region behind the cylinder is also increases .
- The vortex shedding is takes place when Reynolds number is 100 and above value.
