Week 2 Challenge : Surface meshing on a Pressure valve

Objective: To check for the geometrical errors and perform topology cleanup. set three different target lengths (1,3 and 5mm) as three different cases and mesh the model.

Procedure

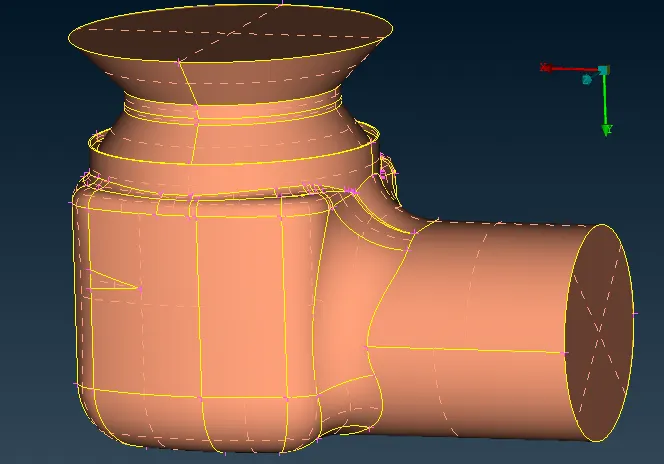

• Import geometry

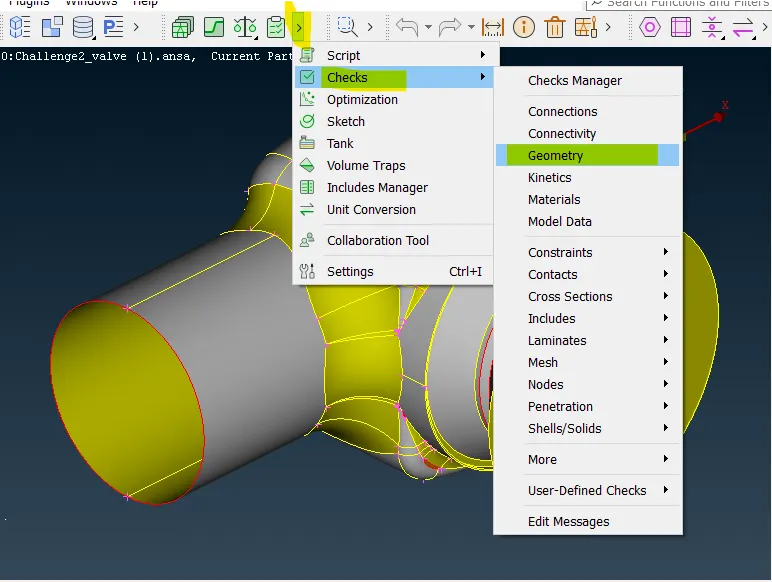

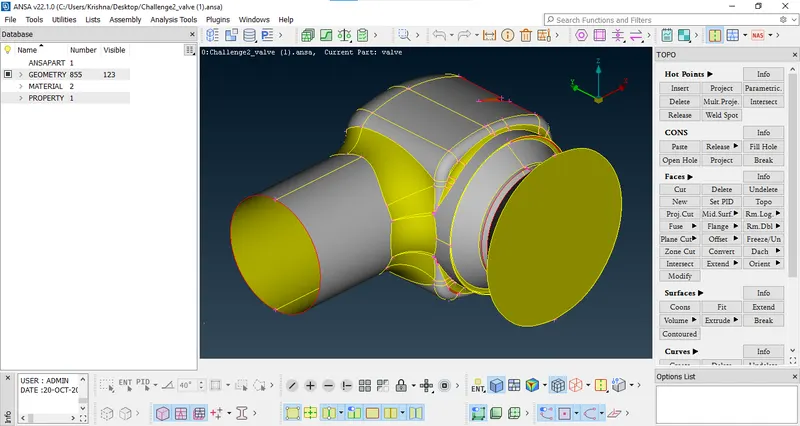

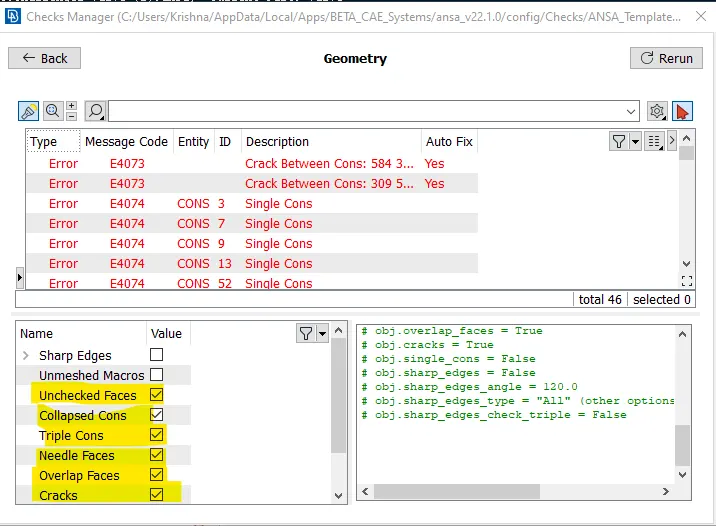

• Perform geometry checkup.


  select single cons to visualize on model.

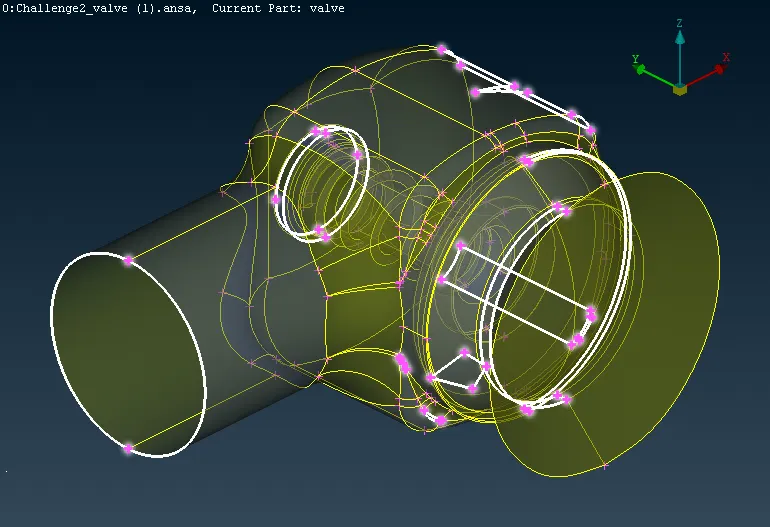

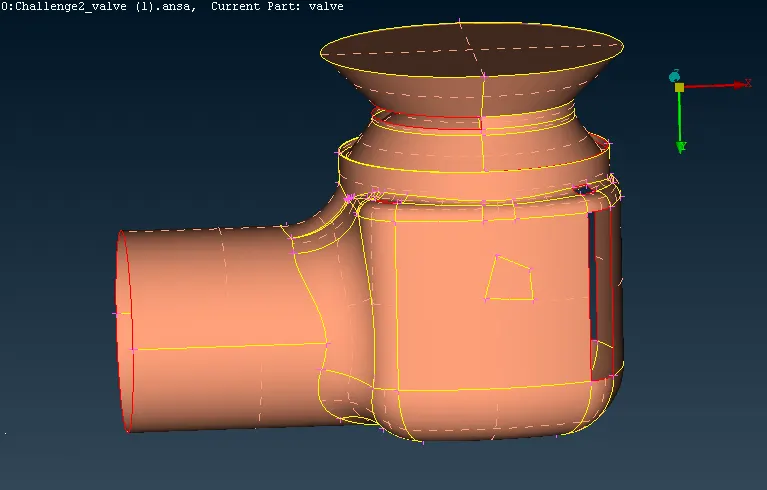

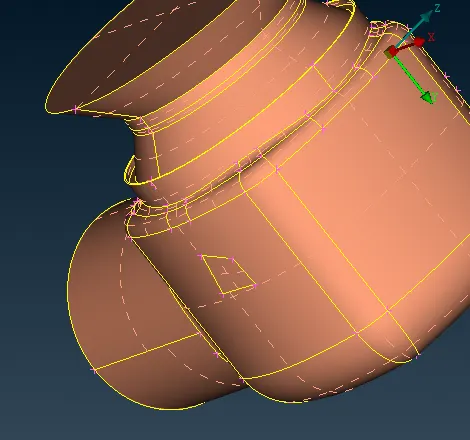

  in the above figure white marked cons are single entities.

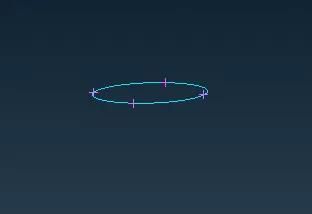

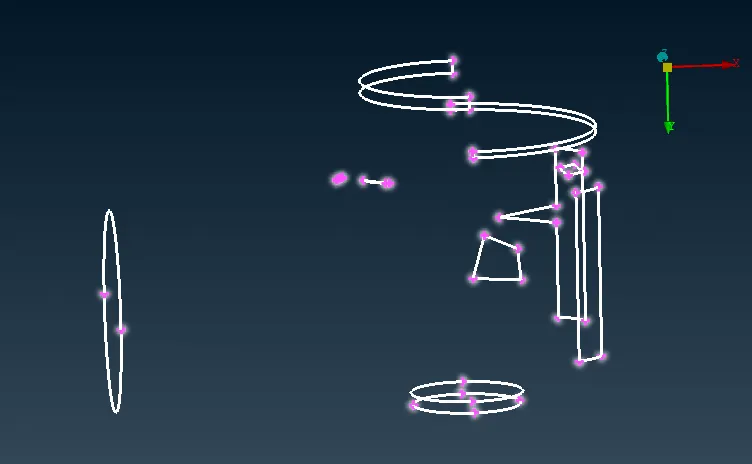

  single cons in wire frame.
• To fix these single cons errors create new faces.

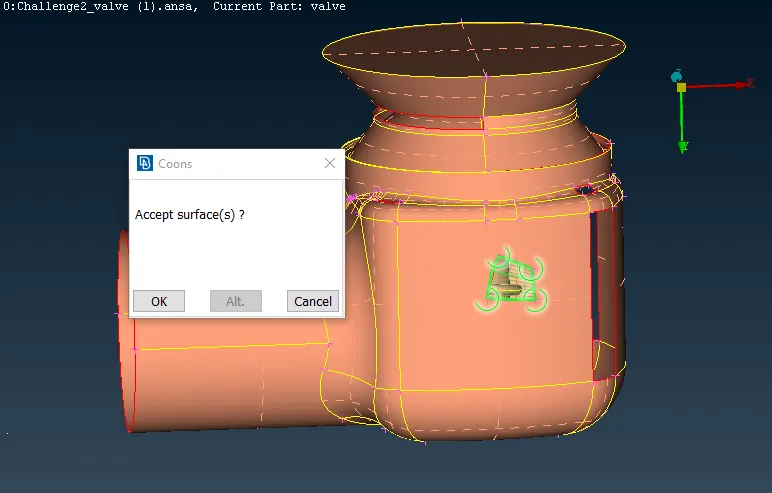

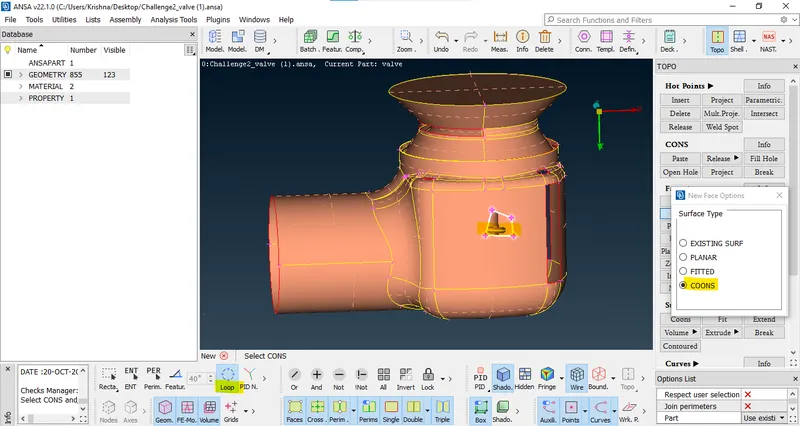

  select New>select COONS>Select Loops mode>Select cons. it will automatically select all cons which are in loops.

  Now middle click to apply face on cons. It will show a preview select the required face.




• Similarly create new faces for the other single cons.





• After clearing all single cons errors perform again geometry checkup.

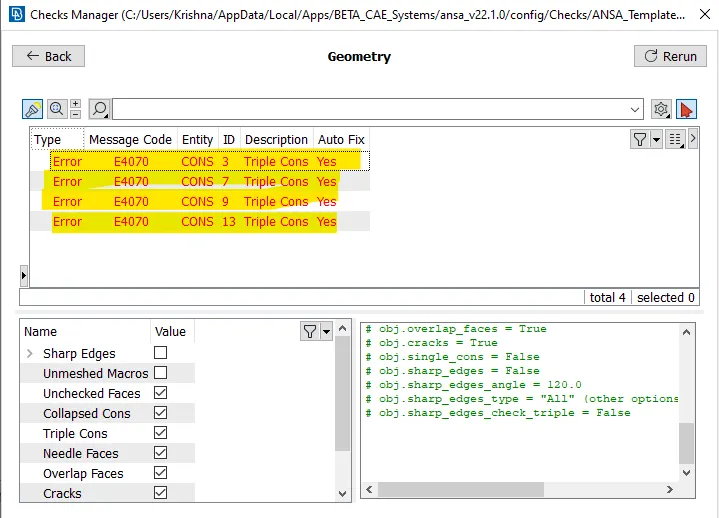

  After the geometry checkup we found only triple cons. We can ignore this error.


• Now assign PID's.

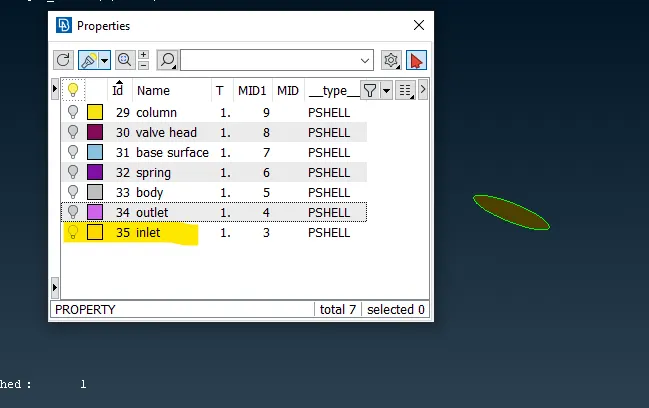

  Inlet

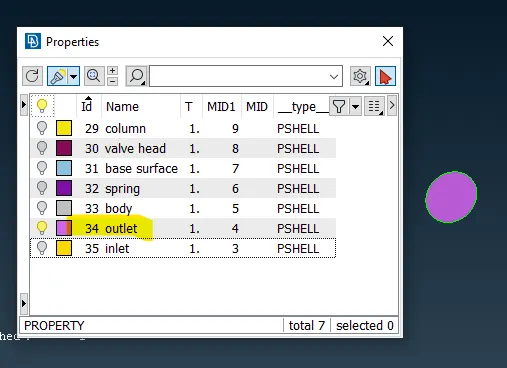

  Outlet

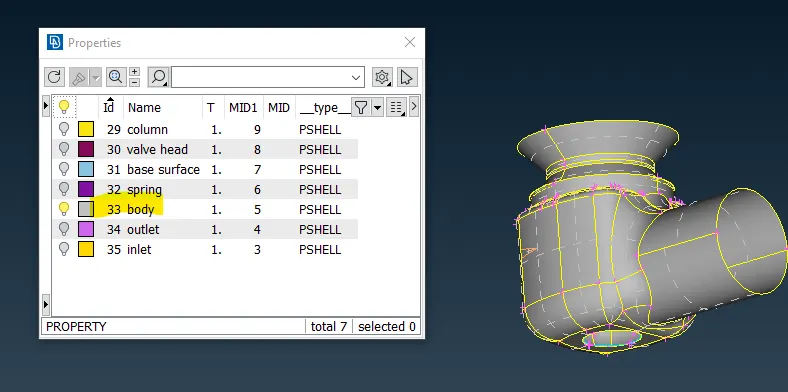

  Body

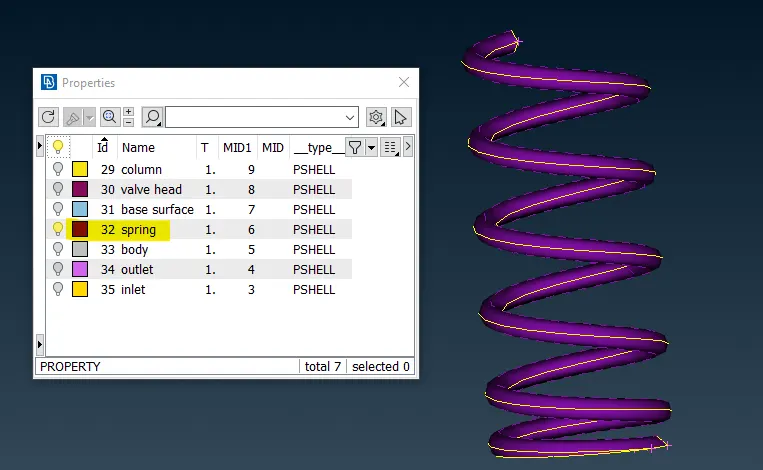

  Spring

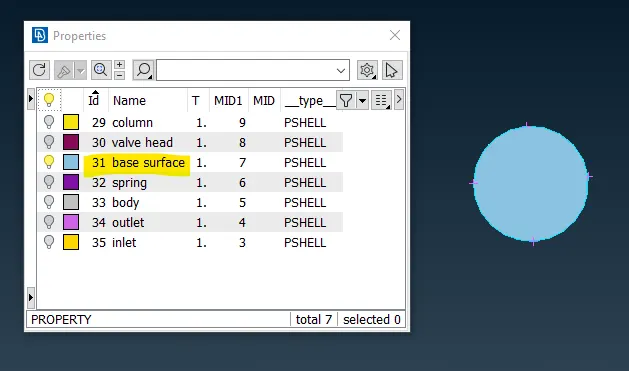

  Base surface

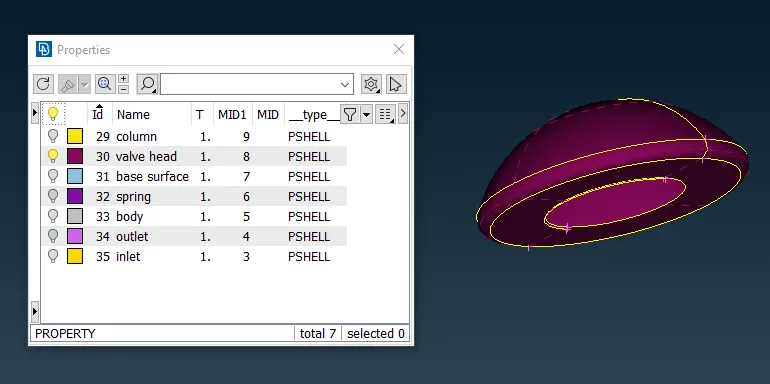

  Valve head

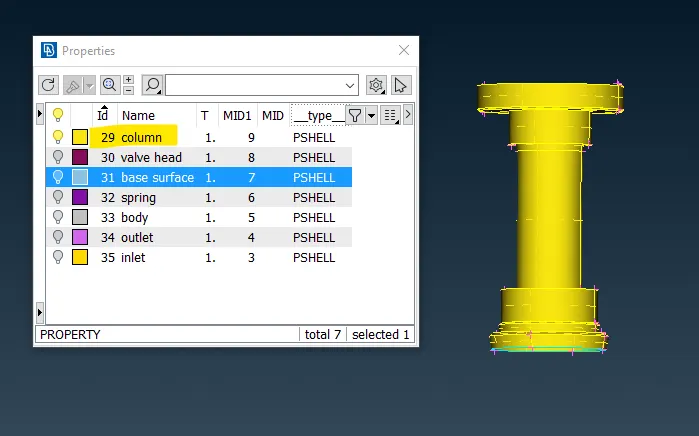

  Column

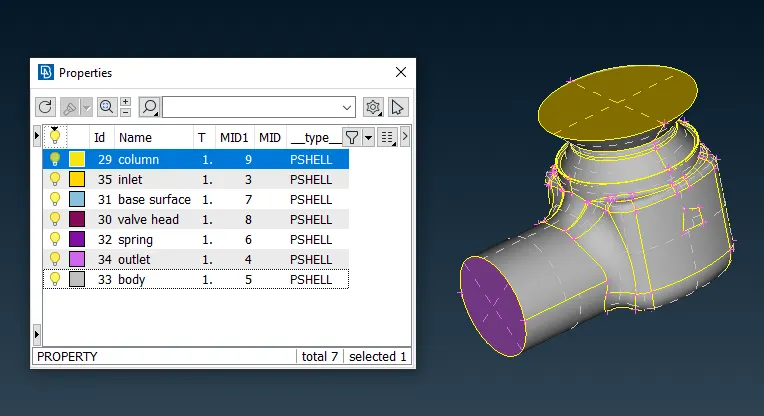

  Overall PID's

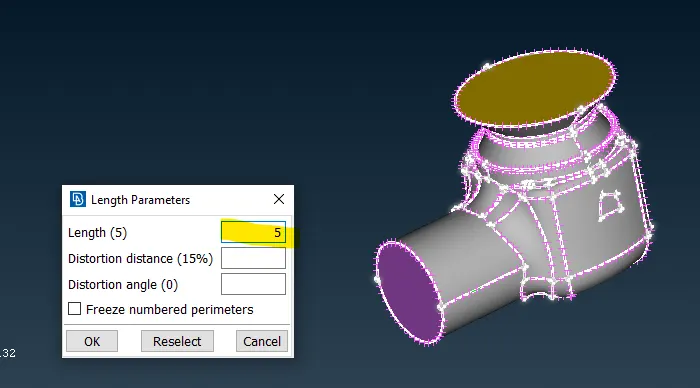

• Now assign mesh length (perimeters and macros) as 5mm.

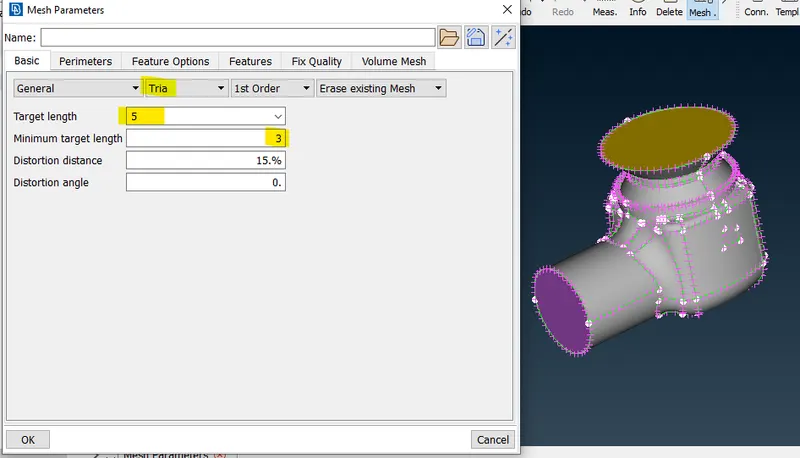

• Now set mesh parameters
  Target length `->` 5mm
  Minimum length `->` 3mm
  Element type `->` Tria

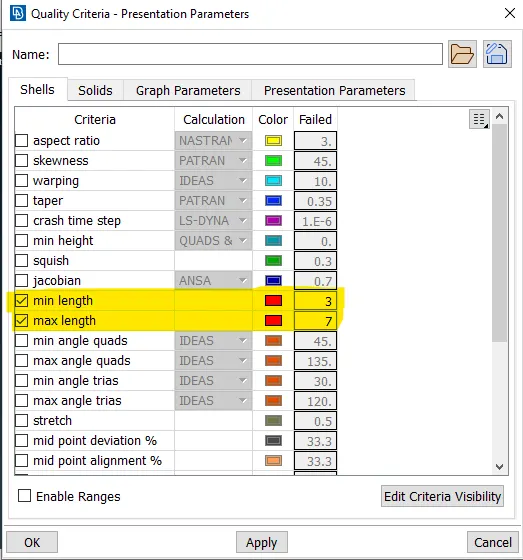

• Set quality criteria
  minimum length `->` 3mm
  maximum length `->` 7mm


  Meshing
• Case 1 target length 5mm
  No. of Trias `->` 8788

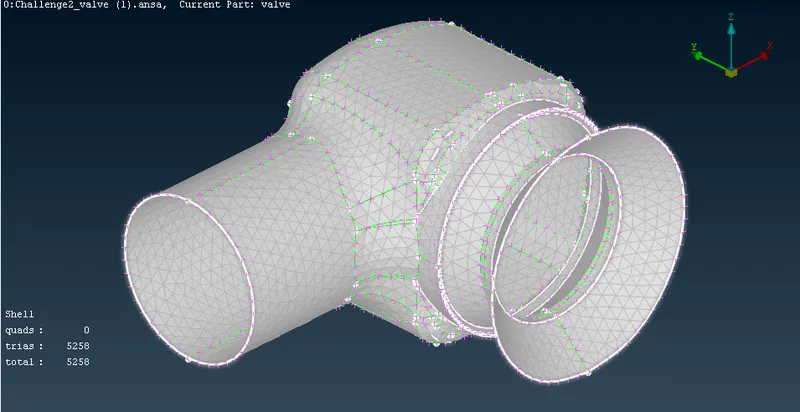

  Body mesh
  5258 trias

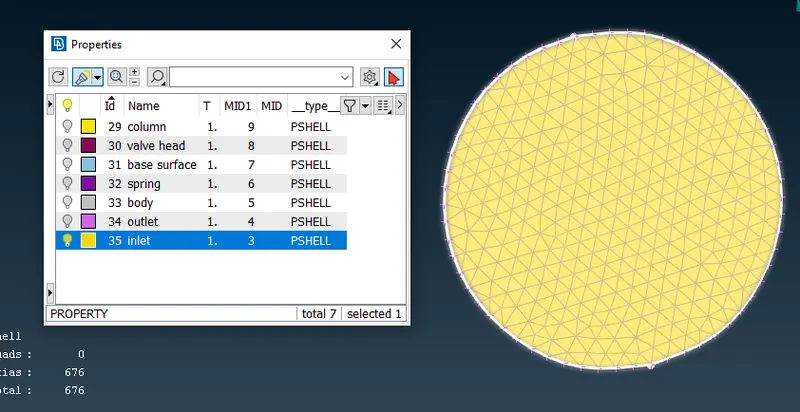

  Inlet mesh
  676 Trias

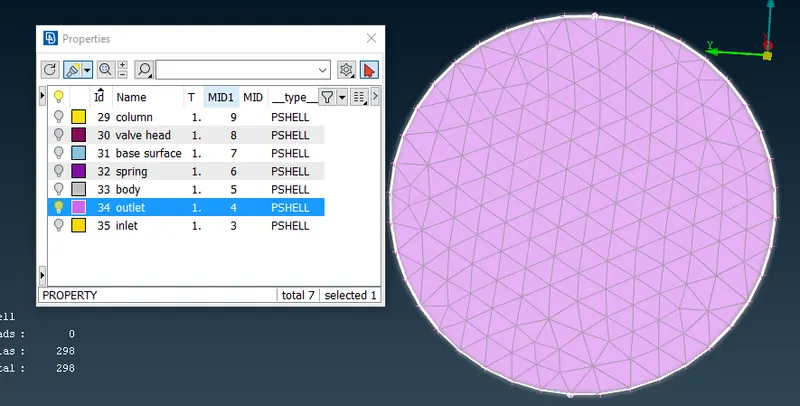

  Outlet mesh
  298 Trias

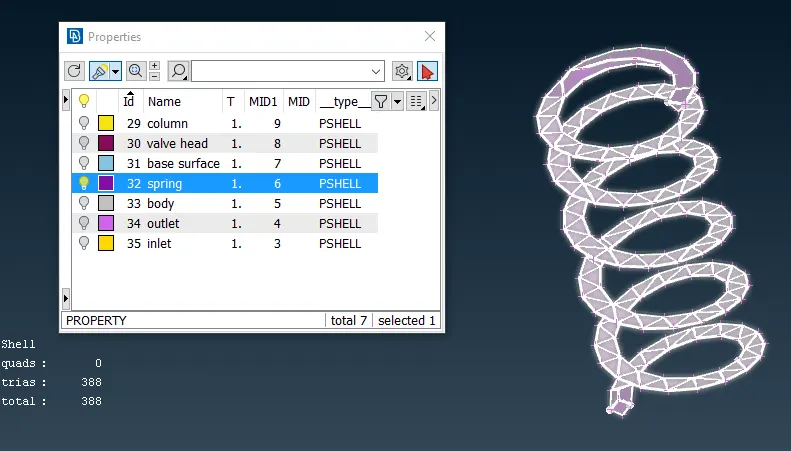

  Spring mesh
  388 Trias

  in the above figure we can observe that spring has not meshed properly, because thickness of spring(3.38mm) is less than our target length(5mm).

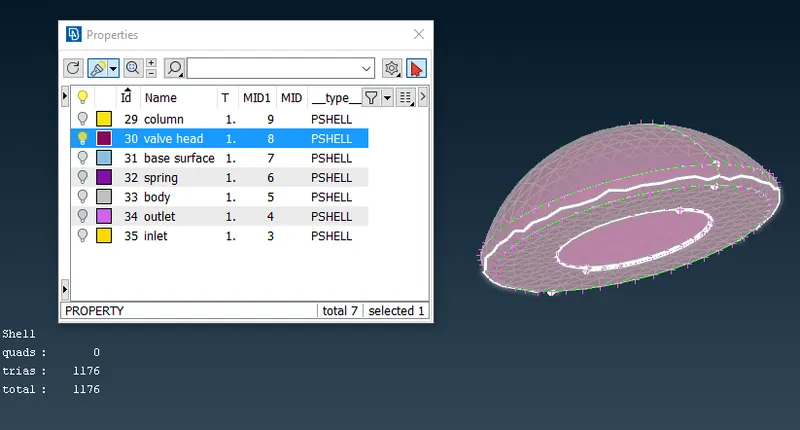

  Valve head mesh
  1176 Trias

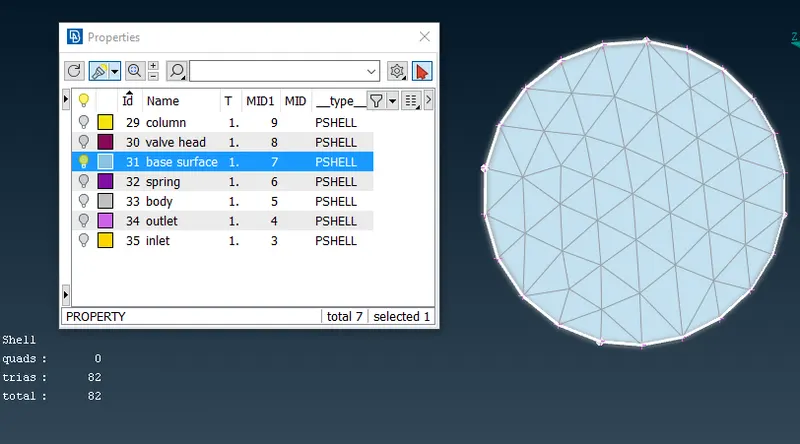

  Base surface mesh
  82 Trias

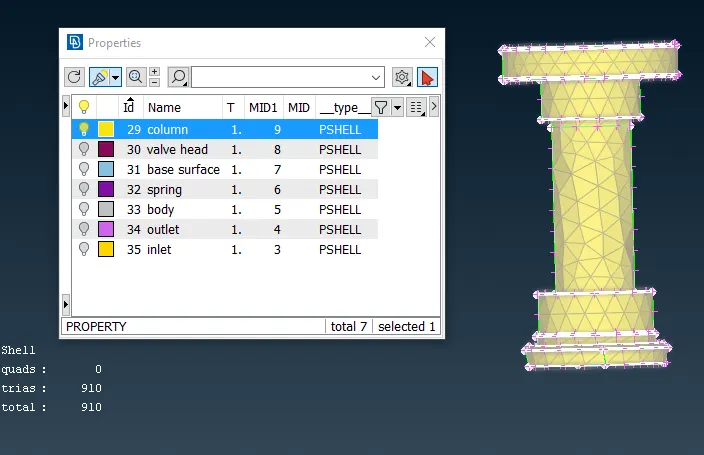

  Column mesh
  910 Trias

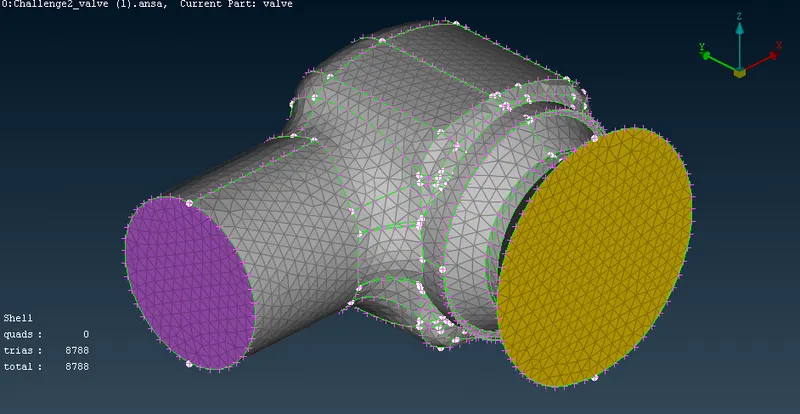

  Overall meshed body
  8788 Trias




• Case 2 Target length 3mm.

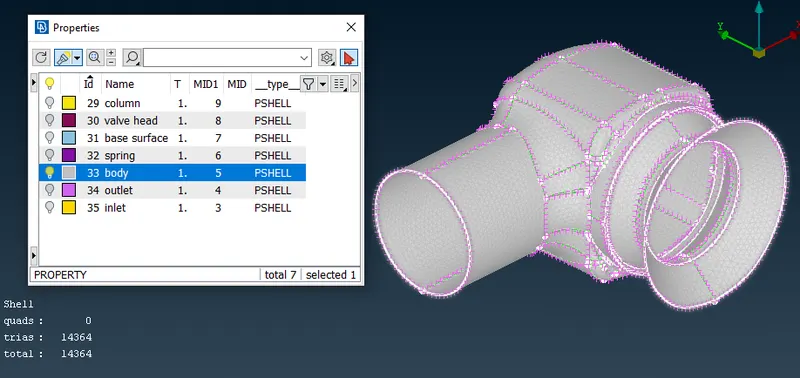

  Body mesh
  14364 Trias

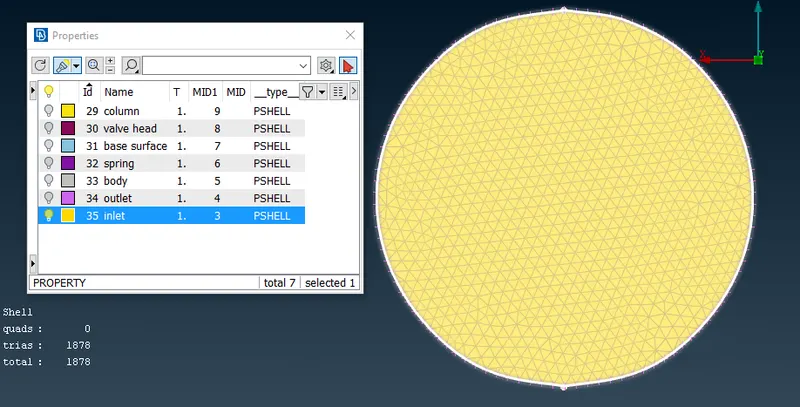

  Inlet mesh
  1878 Trias

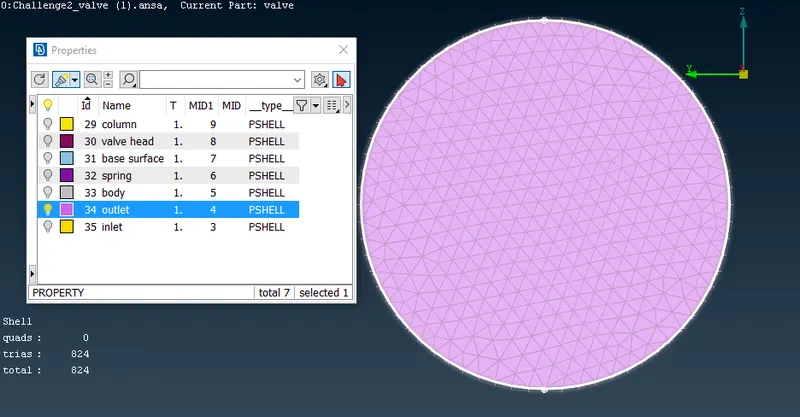

  Outlet mesh
  824 Trias

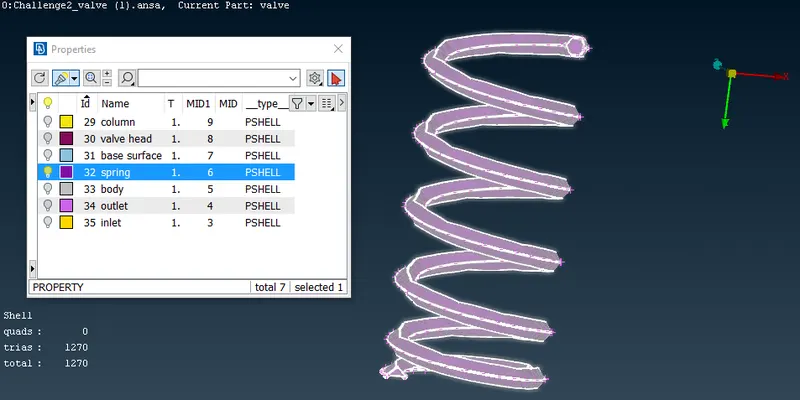

  Spring mesh
  1270 Trias

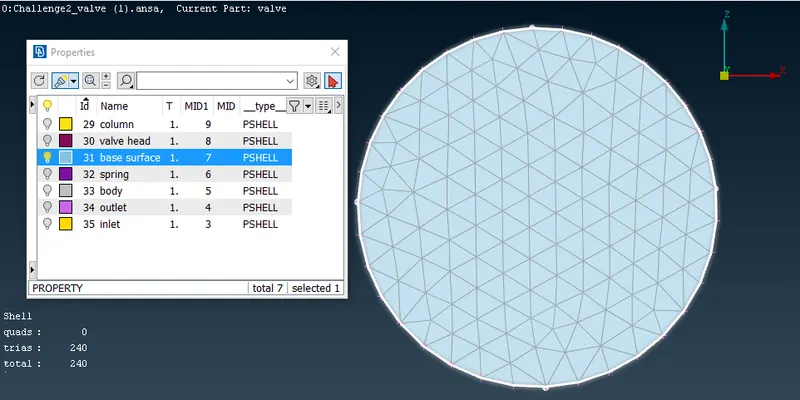

  Base mesh
  240 Trias

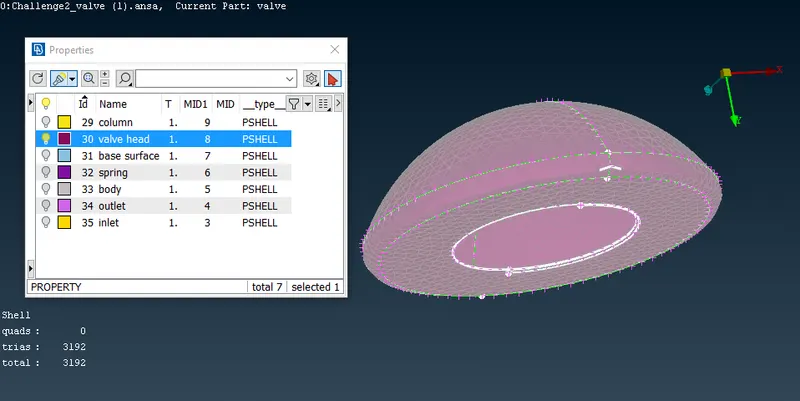

  Valve head mesh
  3192 Trias

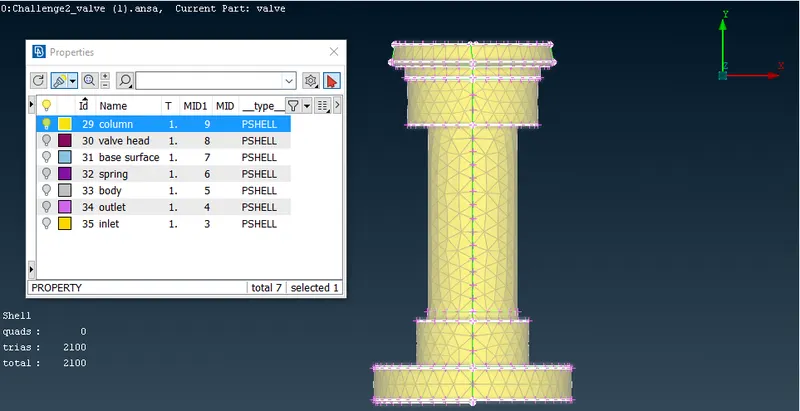

  Column mesh
  2100 Trias

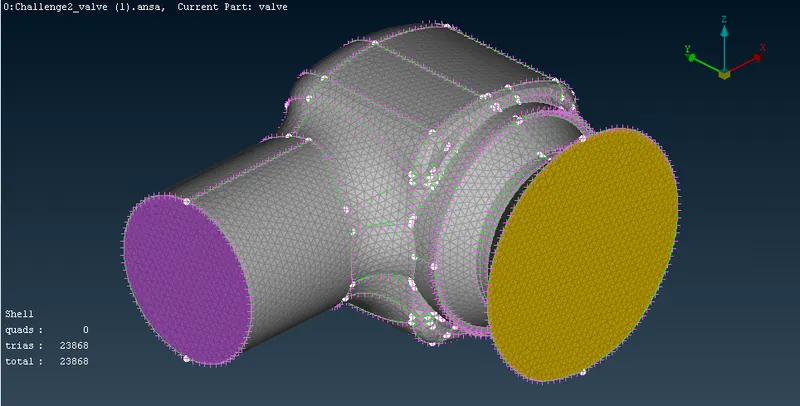

  Overall mesh
  23868 Trias


• Case 3 Target length 1mm.

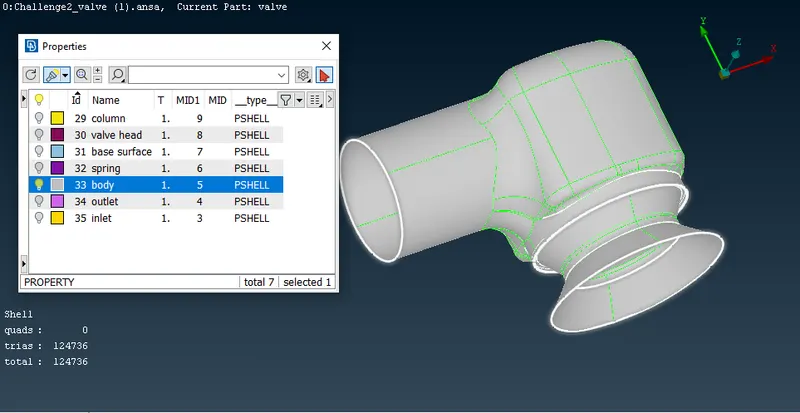

  Body mesh
  124736 Trias

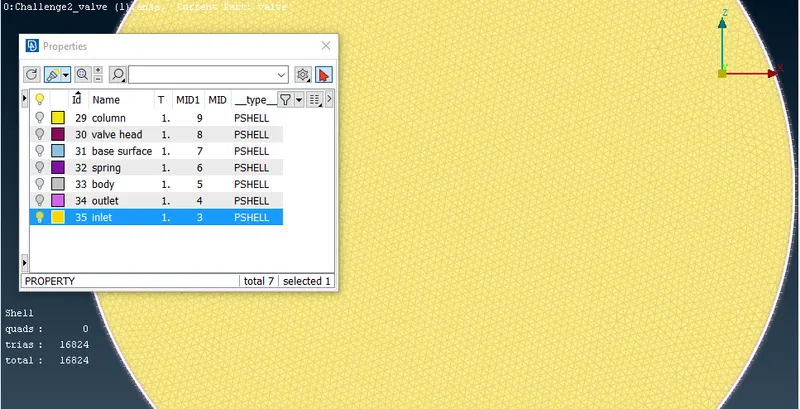

  Inlet mesh
  16824 Trias

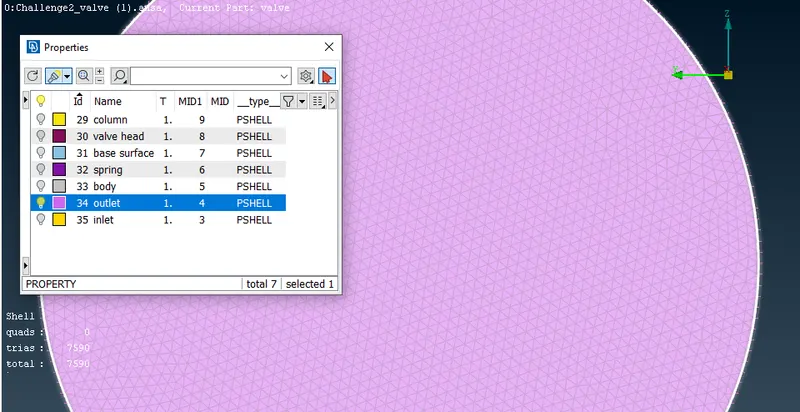

  Outlet mesh
  7590 Trias

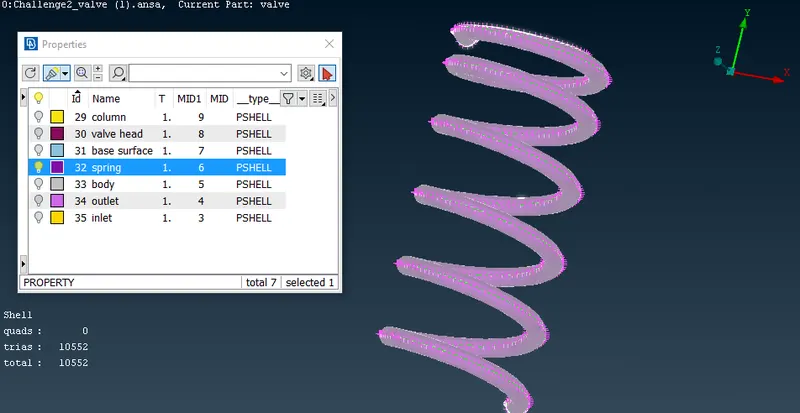

  Spring mesh
  10552 Trias

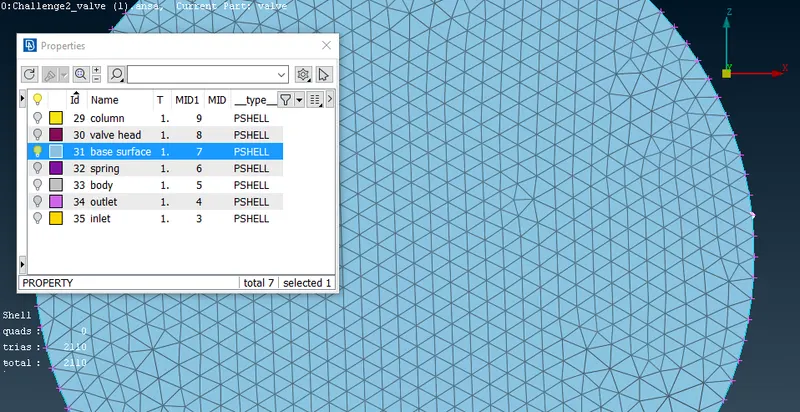

  Base surface mesh
  2110 Trias

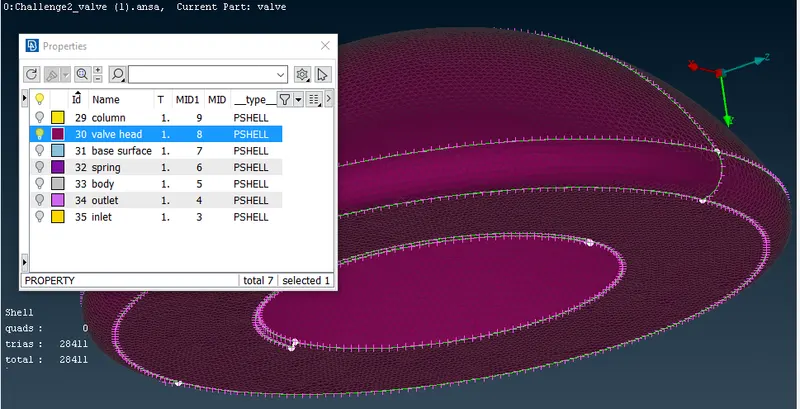

  Valve head mesh
  28411 Trias

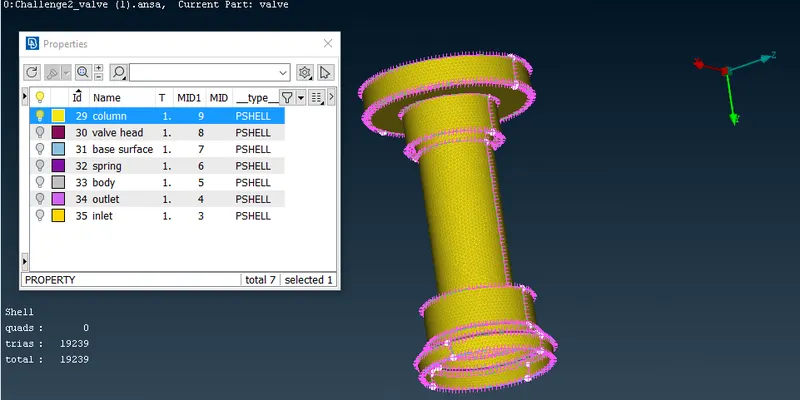

  Column mesh
  19239 Trias

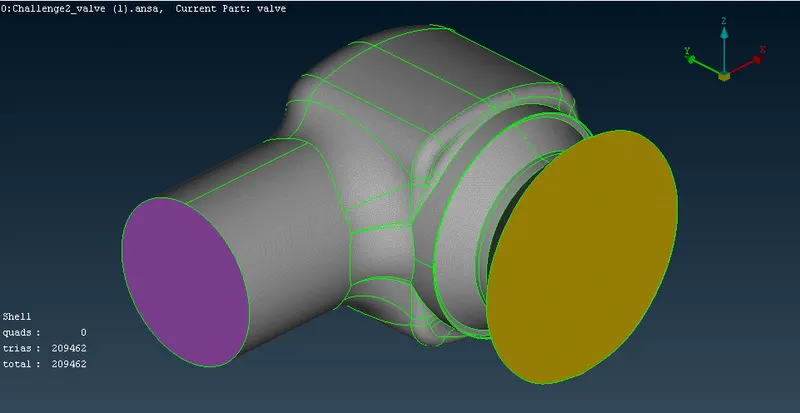

  Overall mesh
  209462 Trias





Conclusion

From the above results we can conclude that as we decrease the target length number of elements increases.
