Week 2 Challenge

Design of Tension Member

1. Net Area for tension member calculation problem

Calculate the net section area for the tension member as shown in Figure below. The plate size is 260 x 20 thick and Bolt size is 20 mm.

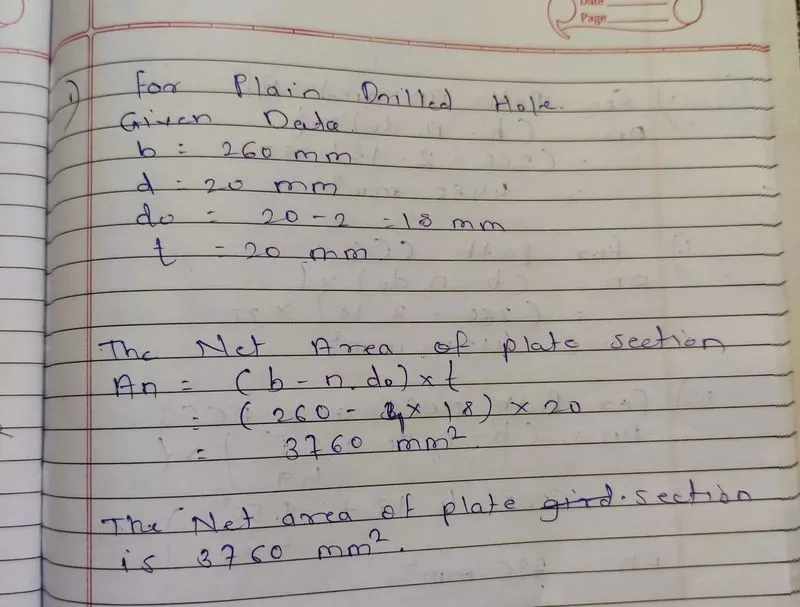

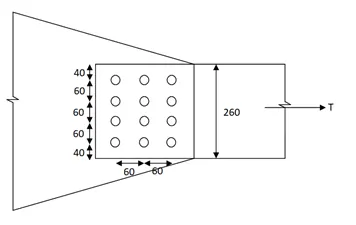

Plate – Drilled Hole

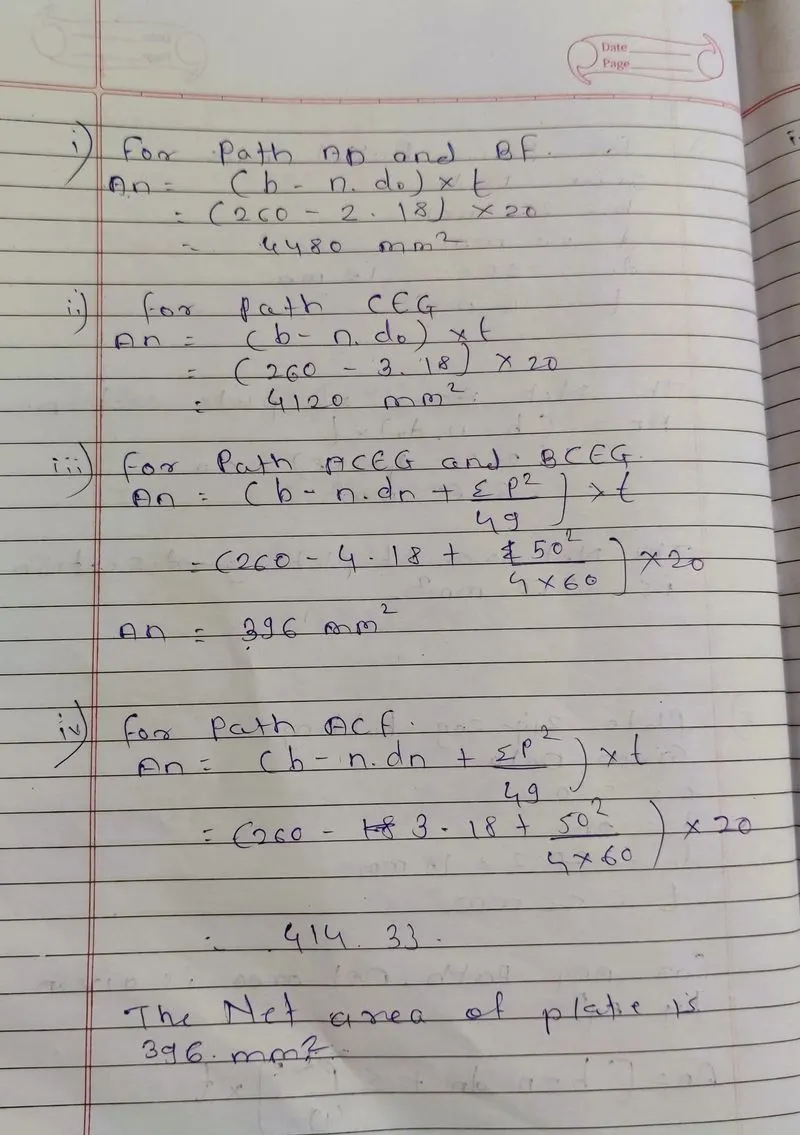

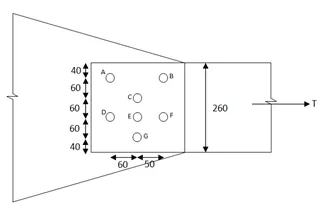

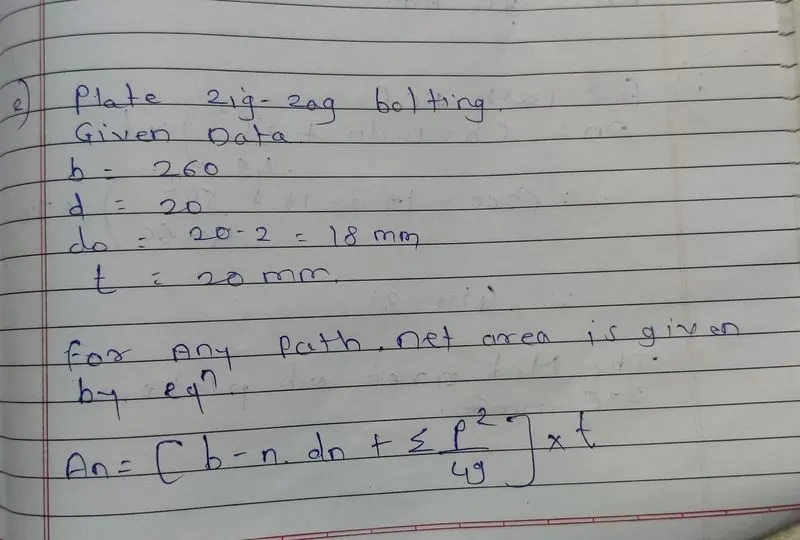

Plate – Zigzag bolting

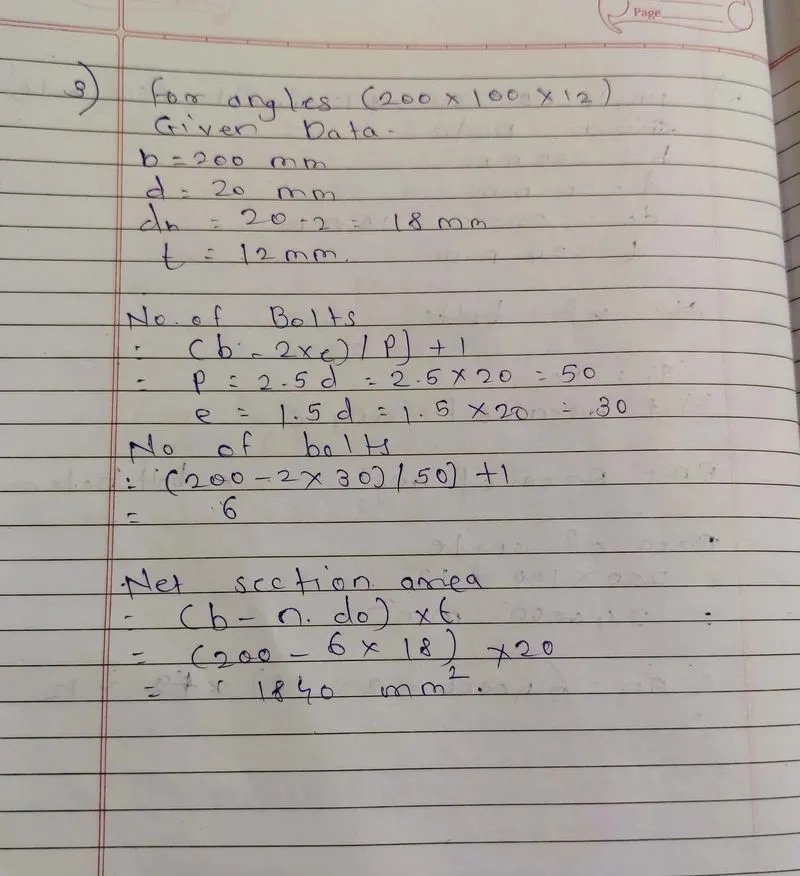

Angle (200 x 100 x 12 with M20 bolt)

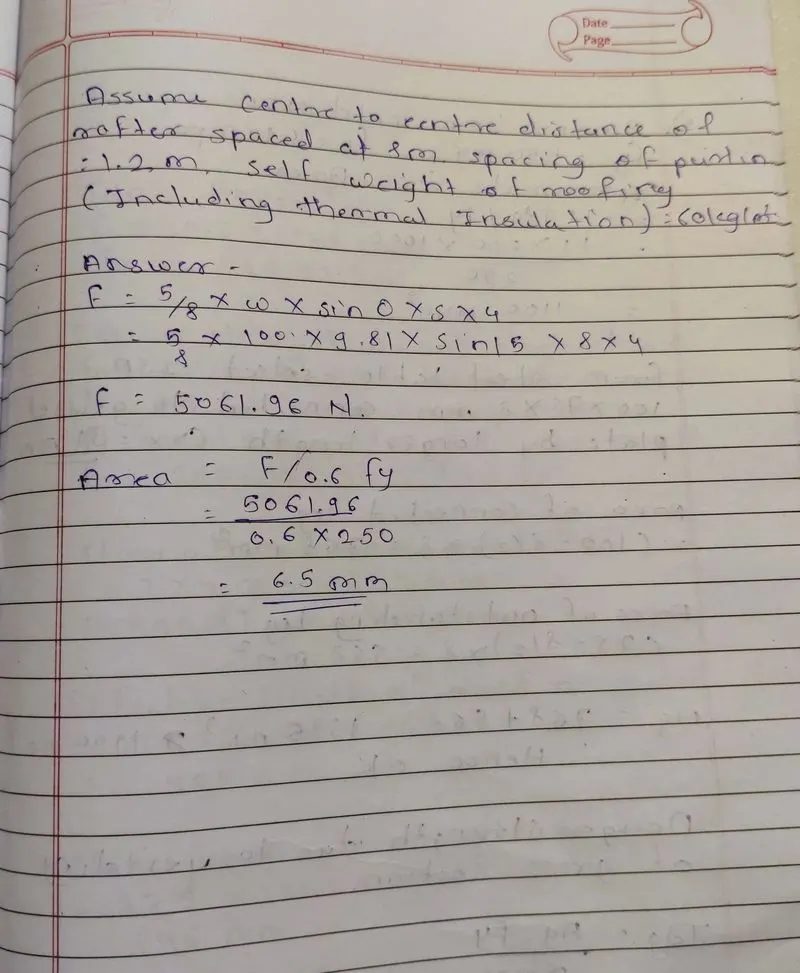

2. Sag rod design problem

Design a sag rod as shown in Figure below. Purlins are supported at 1/3^rd points by sag rods.

Assume centre to centre distance of Rafter spaced at 8 m , spacing of purlin = 1.2 m, Self weight of roofing (including thermal insulation)= 60 kg/m² , Wind pressure intensity = 150 kg/m²,Slope of rafter = 15 degrees, Live Load =75 kg/m². Assume self weight of purlin as 100 kg/m.

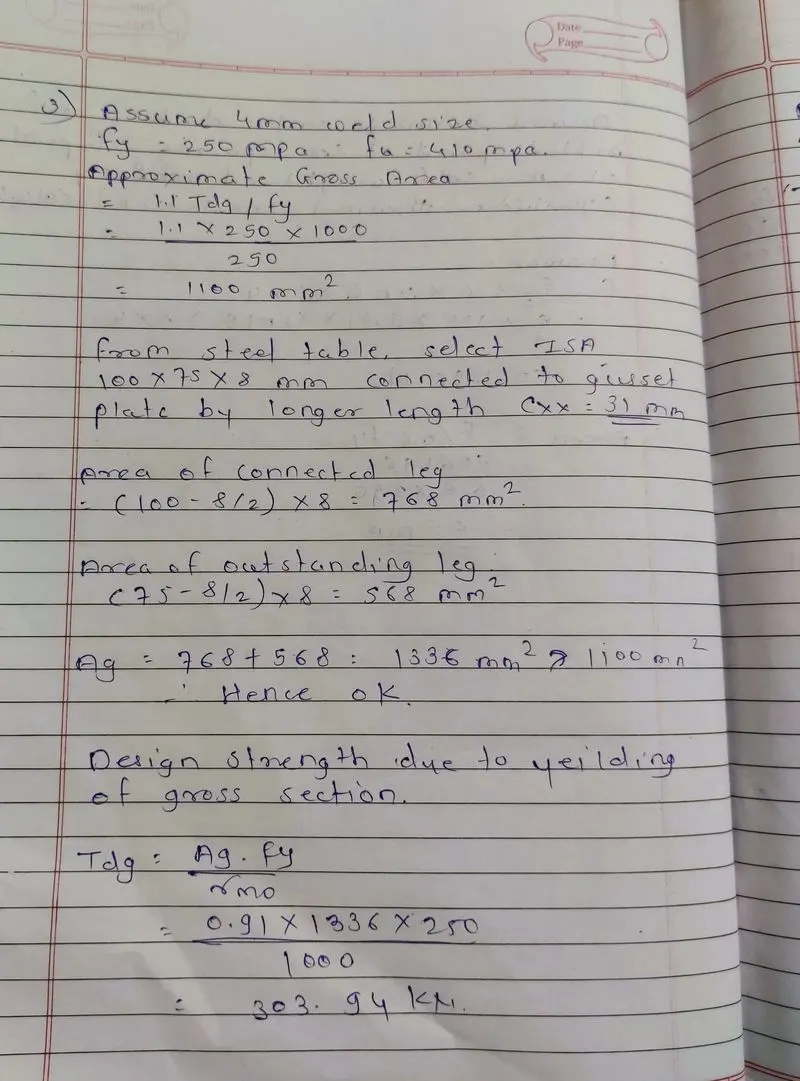

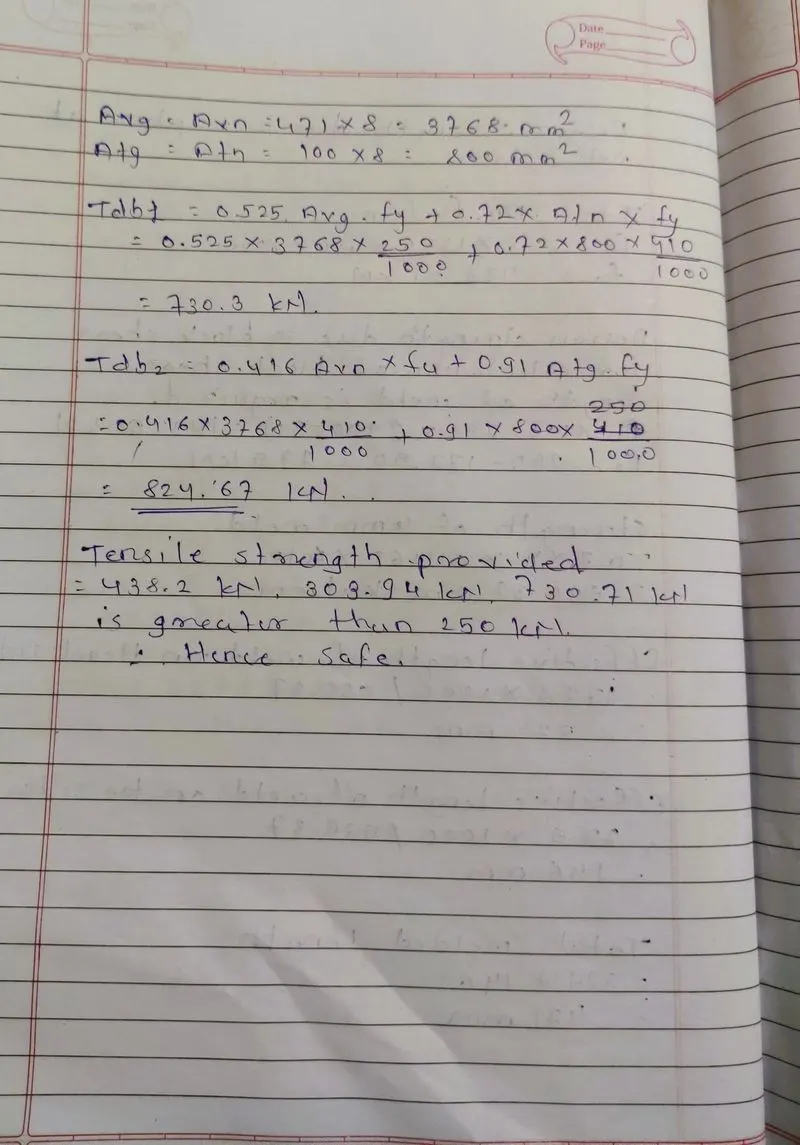

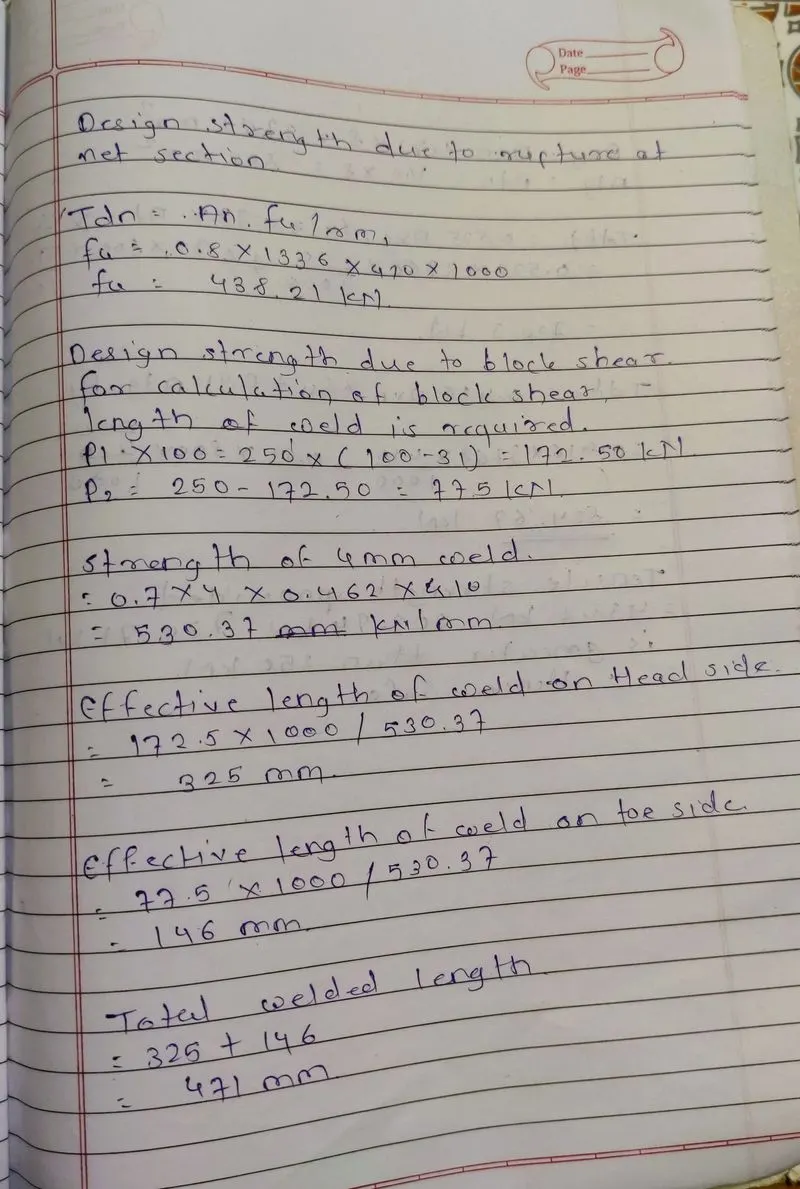

3. Determine section size for given tensile load

Design a single angle member of length 5m to carry axial tensile force of 500 kN. Yield strength fy of the material to be considered is 350 N/mm².
