Week 2 Challenge

1 ans:

• First, we have to open Tekla Software
• Now open a new file

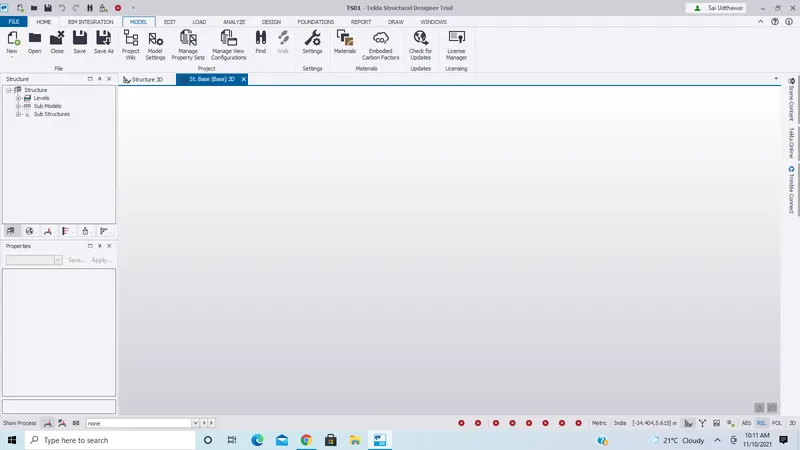

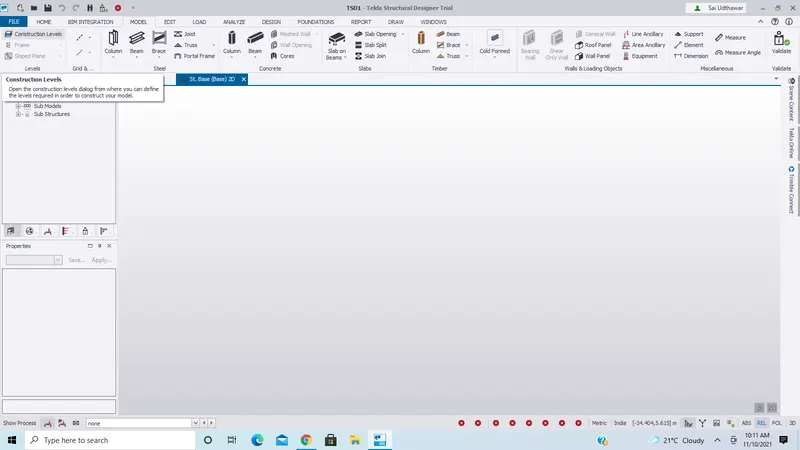

• Now goto Model tab and select the construction levels

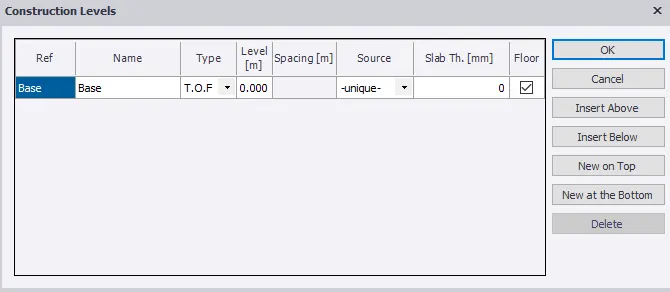

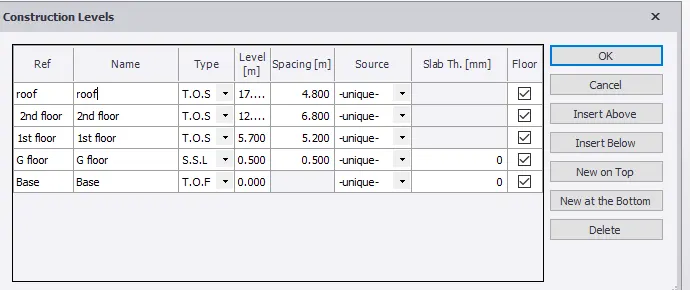

• Now we get a new window as shown below

• Now add levels as required

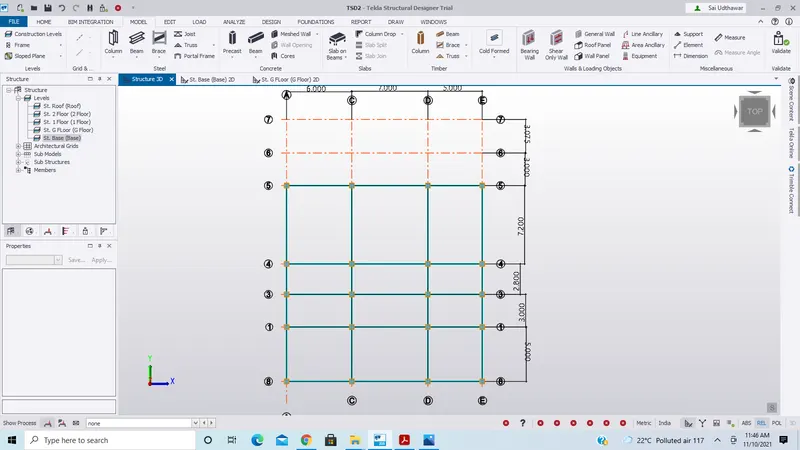

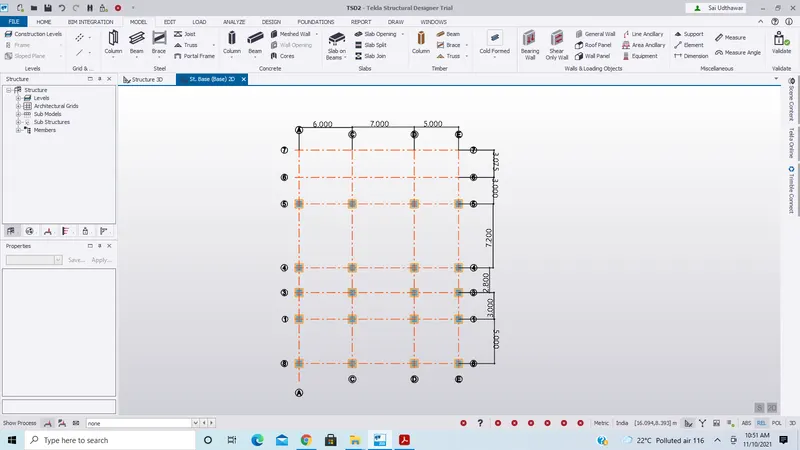

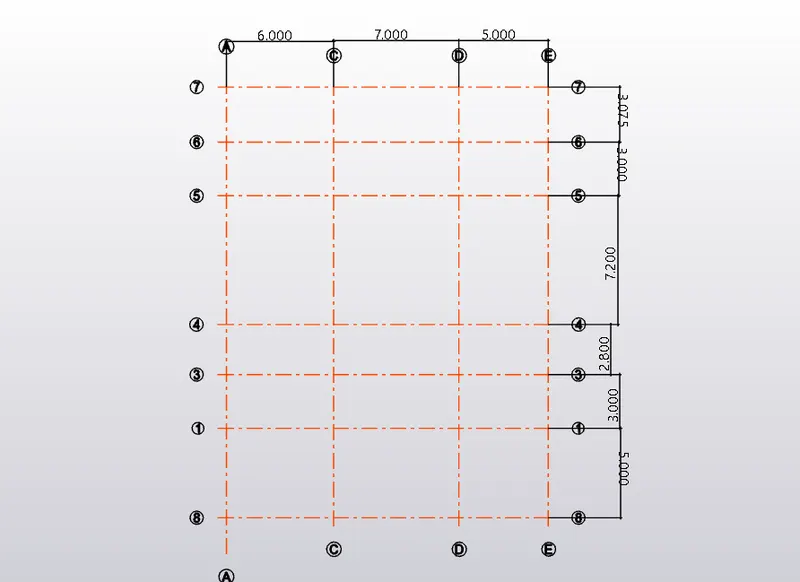

• Now draw grid lines according to the given details

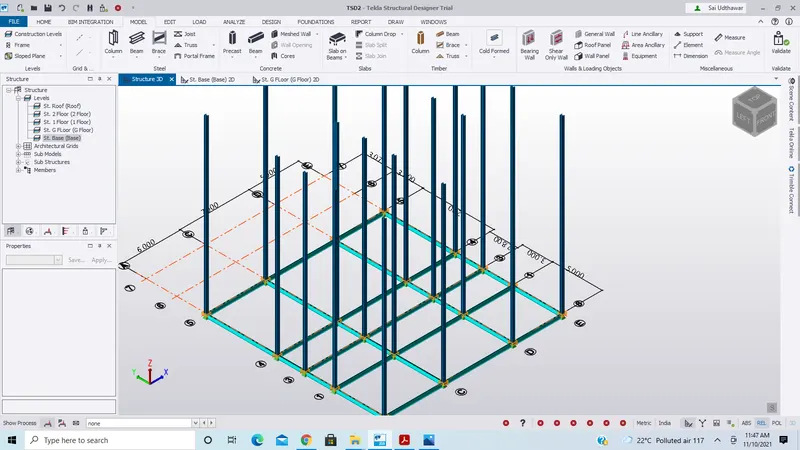

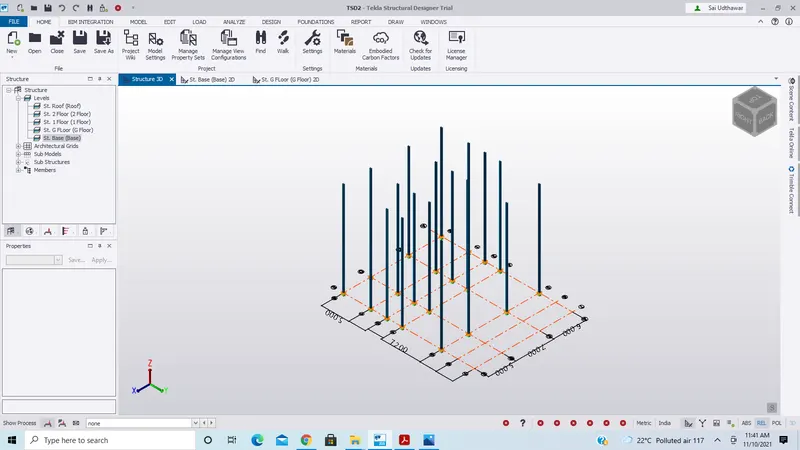

• Now in the model tab select column and add columns to grid lines wherever required

Result:

Hence Column properties for different types of pedestal members and models in the grids are created as per assignment 1.

2 ans:

• Go to the Home tab and select Manage property sets

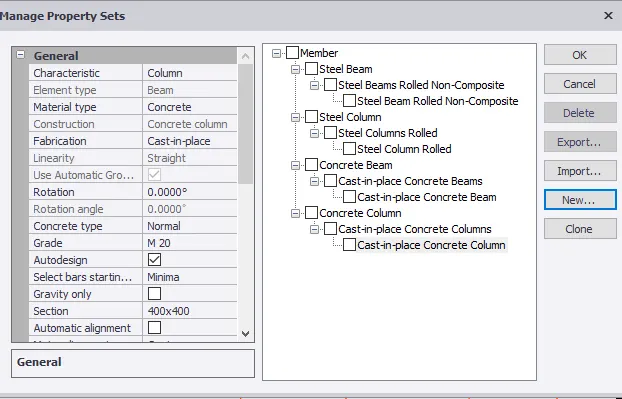

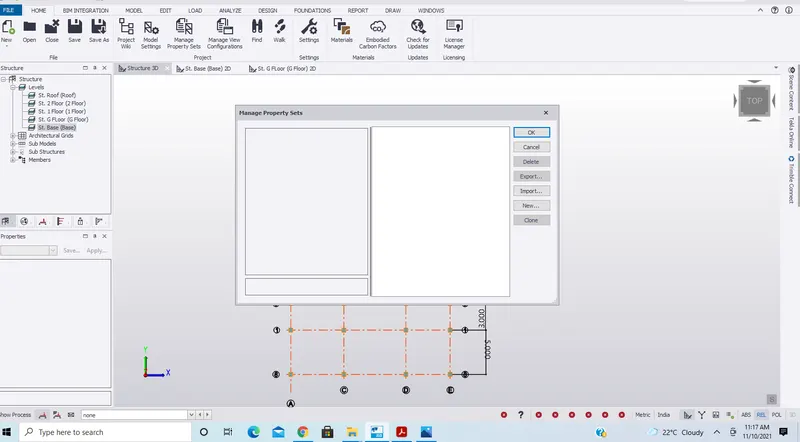

• Now we get a window as shown below

• Now go to new in the manage property sets window

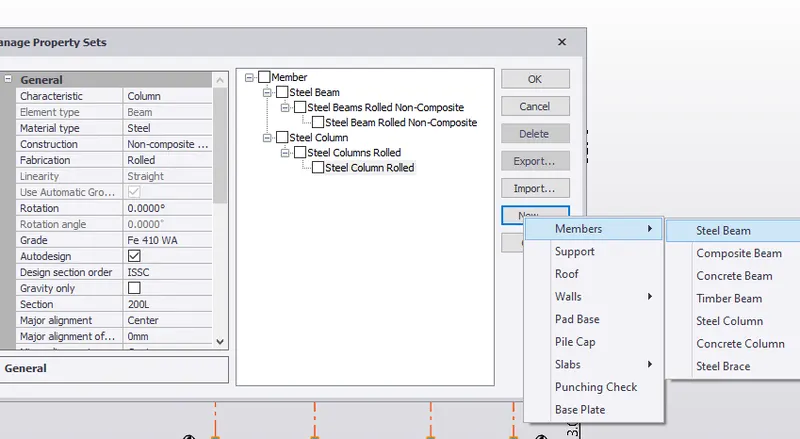

• Now select members and select the required members

• Now click ok

• Now we can see the properties of the column in the left bottom (properties tab)

Result:

Hence column properties for steel columns and model columns in the grid were created as per assignment 1.

3 ans:

• Go to the Model tab and select the beam
• Now draw the beams according to the requirements

• Go to the Home tab and select Manage property sets
• Now we get a window as shown below

• Now go to new in the manage property sets window
• Now select members and select the required members

• Now click ok

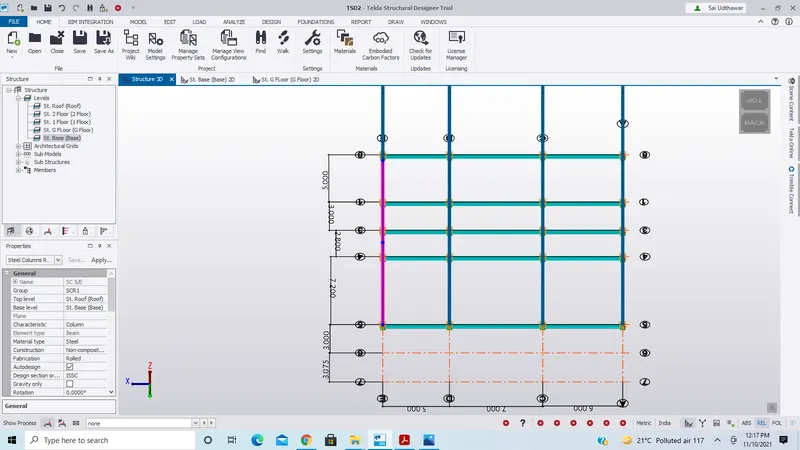

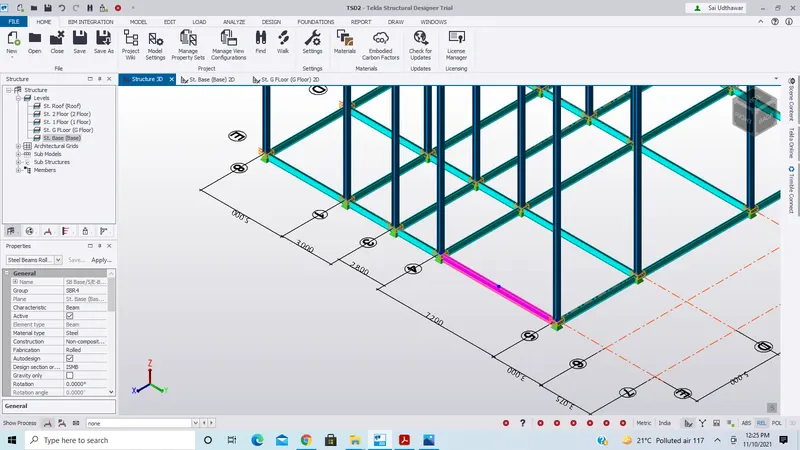

• Now we can see the properties of the beam in the left bottom (properties tab)

• Now keep it in 3d view to see the beams

Result

Hence beam properties and primary and secondary beams on the ground floor were created.
