Week 2 : Basic Calibration of Single cylinder SI-Engine

JORGE LOZANO

IC Engine Calibration using GT-POWER and GT-SUITE

Basic Calibration of Single cylinder SI-Engine

Objective:

1.Run the case at 1800 rpm and list down important parameters

• Air flow rate
• BMEP
• BSFC
• In-cylinder pressure

2. Increase the power output at 3600 rpm by 10%

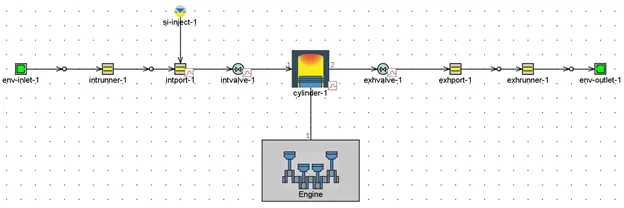

SI-Engine System

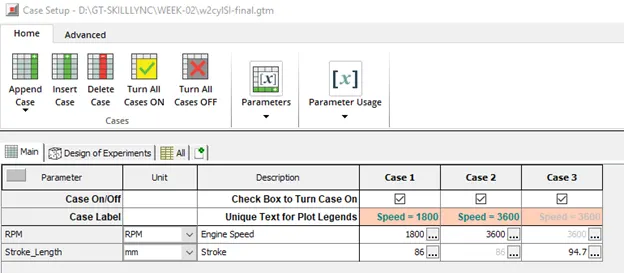

Case Setup

The following three cases show the initial 1800 RPM case, the 3600 RPM case modification and the 94.7 mm Stroke length modification, as calculated from the second case and evaluated according the the volume of the geometry cylinder.

Set up

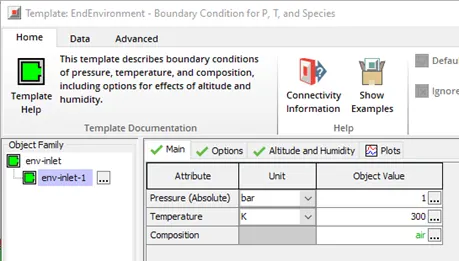

Boundary Condition for P, T and Species

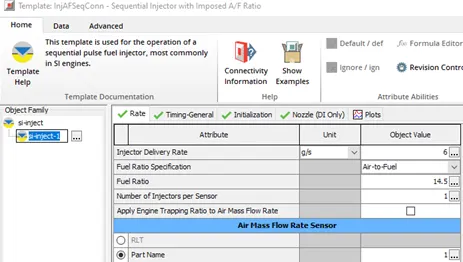

Sequential injector with Imposed A/F Ratio

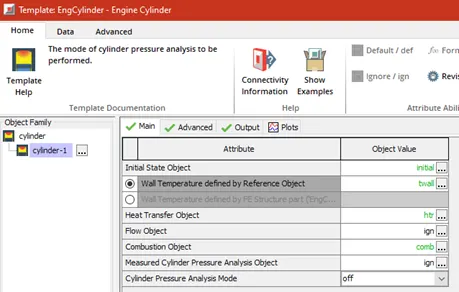

Engine Cylinder

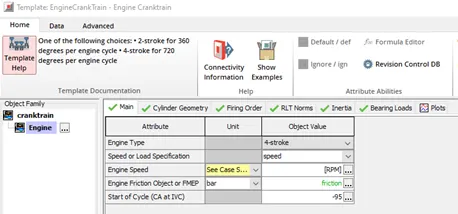

Engine Crank train

Post Processing

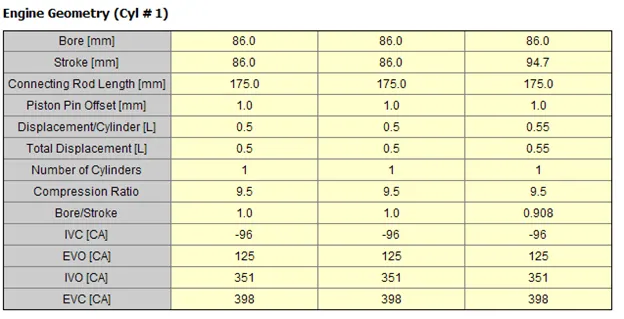

• Engine Geometry

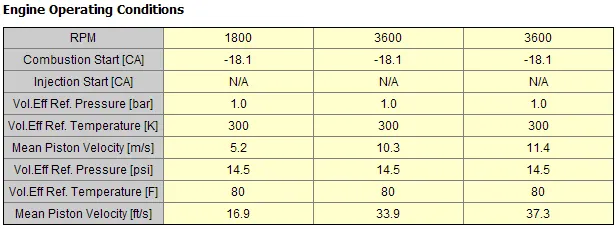

• Engine Operating Conditions

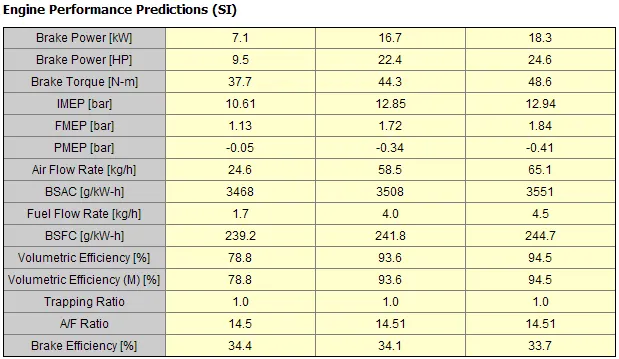

• Engine Performance Predictions (SI)

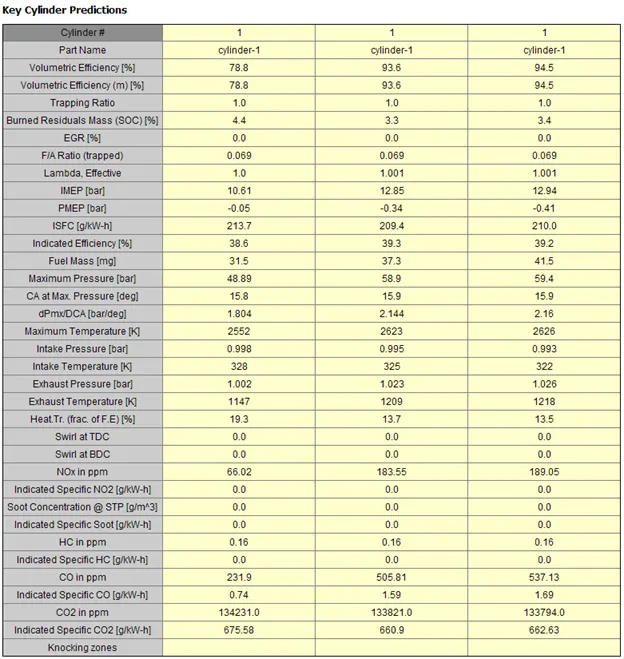

• Key Cylinder Predictions

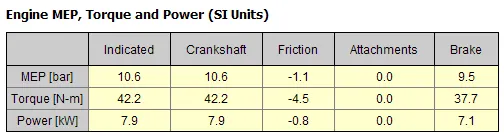

• Engine MEP, Torque and Power (SI Units)

Conclusion:

The higher the Engine speed the higher the power, and the geometry affects directly the system efficiency due to the volume of the cylinder, which due to the increase of the stroke length there was an increase of 10% as required.

Reference:

• https://www.gtisoft.com/gt-suite/gt-suite-overview/
