To create a Simulink model of Doorbell using solenoid block.
Aim:
To create a Simulink model of Doorbell using solenoid block.
Simulink :
Simulink is a MATLAB based graphical program for modeling. Simulink blocks in MATLAB provide the interface for the function callers where we can call a function to get the result and plots for the function.
Objective:
1. Whenever the switch is closed the electromagnet receives electrical power from the battery and pulls the metal arm to hit the bell producing sound.
2. Create a situation where the switch is closed for 2 seconds and then released. Observe the physical movement of the plunger.
Reference Figure:
Block Used:
following blocks are used in Simulink to make this project
- Pulse Generator
- Switch
- Battery
- Electrical Reference
- Solenoid
- Mechanical Translational Reference
- Ideal Translational Motion Sensor
- Mechanical Translational Reference
- Solver Configuration

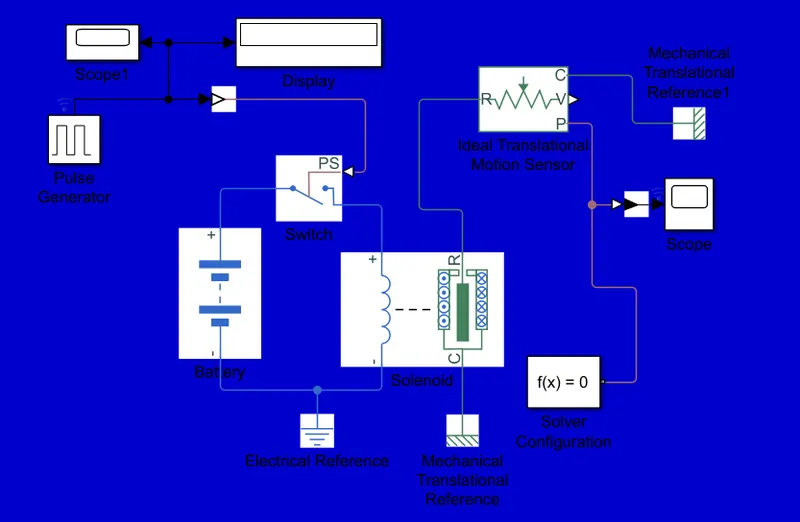

Simulink block diagram:

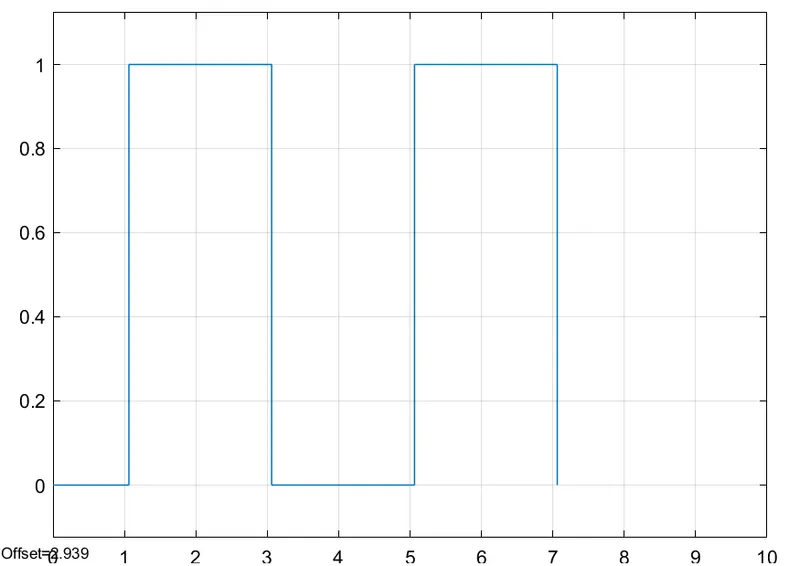

Input pulse rate
Cycle time 4sec bur pulse given as 2 seconds as a condition. The Graph will show the cycle

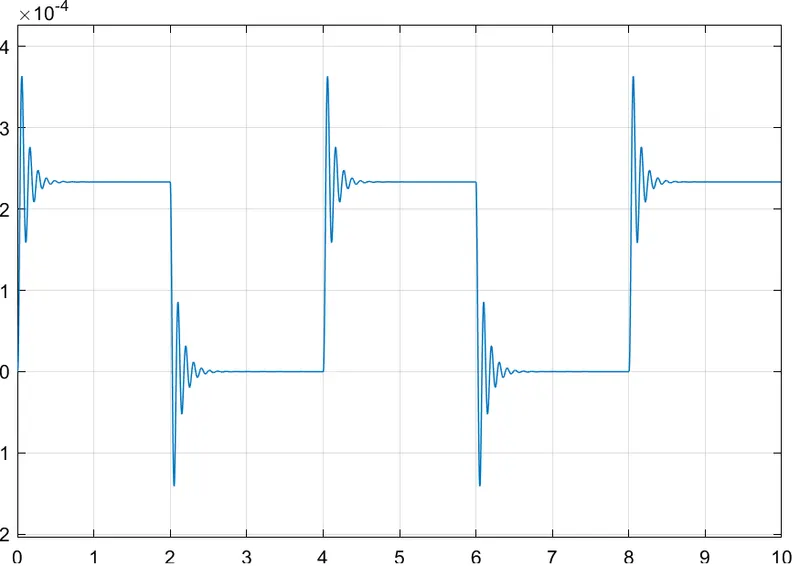

Output
Here can sense the Physical moment of the plunger as result shown below the graph.
