MODEL 1

Result

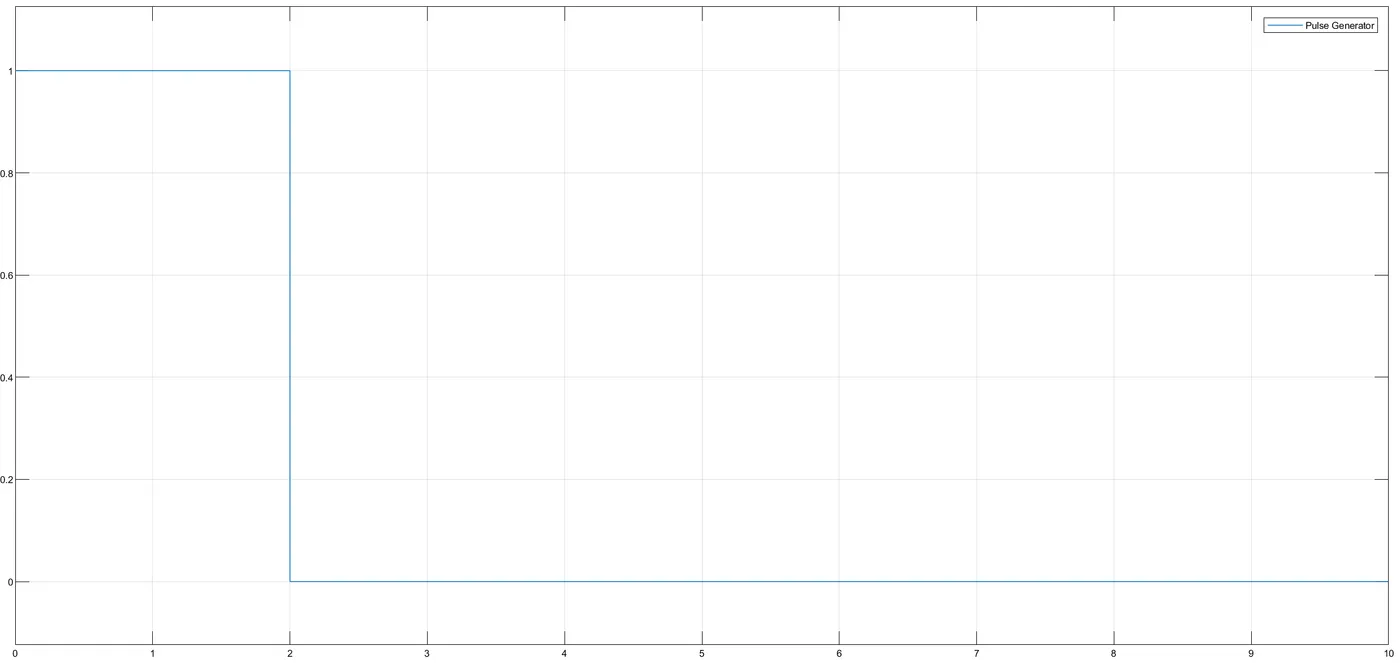

as per the manual pulse generation the output of the plulse generator taken.

this manual signal make the circuit closed for 2 seconds. A scope block is connencted to see the output of idea translation motion sensor to observe the position of the plunger.

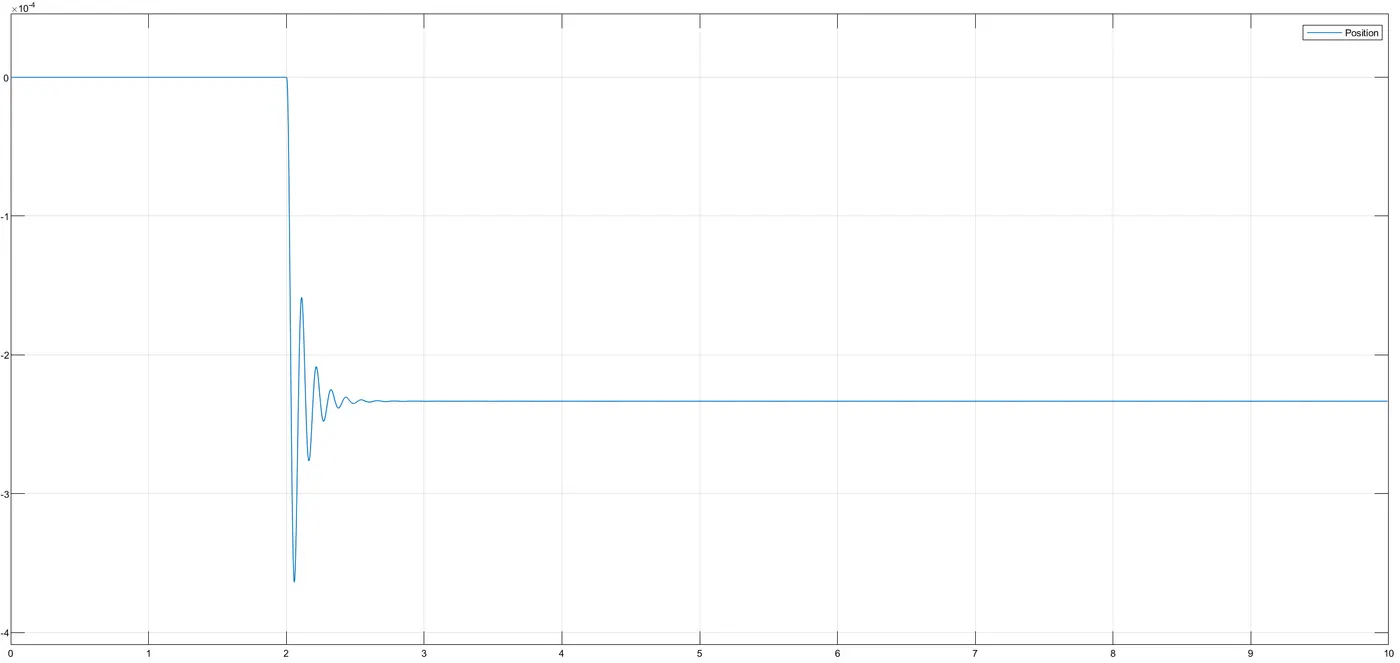

the plunger output is given below

now we can see the plunger is atracted to electromagnet after 2 seconds the pluger get its position into idle. we can make the contiues operation by implementing diffrent values.

MODEL 2

i have tried my best to complete my model but getting error on thermister block i dont know how to fix the error. kindly please teach me to how to fix the error it will be helpful for my next challenge. thank you
