Week -2

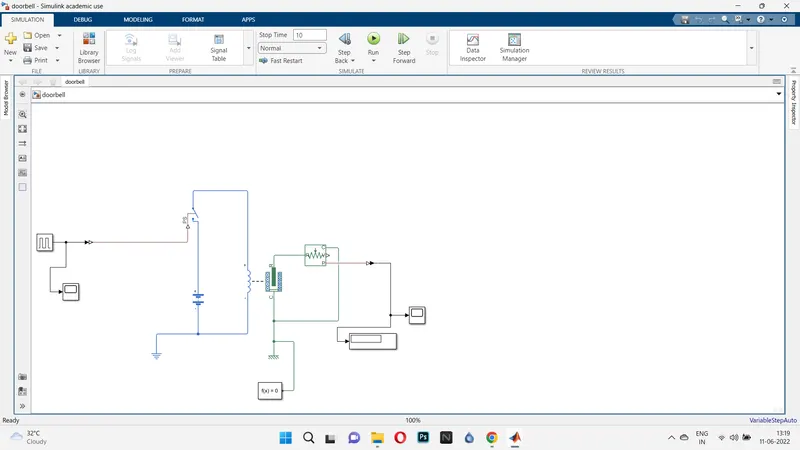

The aim is to create a solenoid doorbell , the model is created in simulink is attached and the plot has been attached;

the solenoid is an electromagnet with wire winding and a small metal piston when current pass there is an electromagnetic field is created and it push towards it,

used blocks are

pulse generator,simulink ps convertor, scope, battery,switch, electrical resistance, solenoid,mechnical reference,temperature motion sensor,display, scope, etc

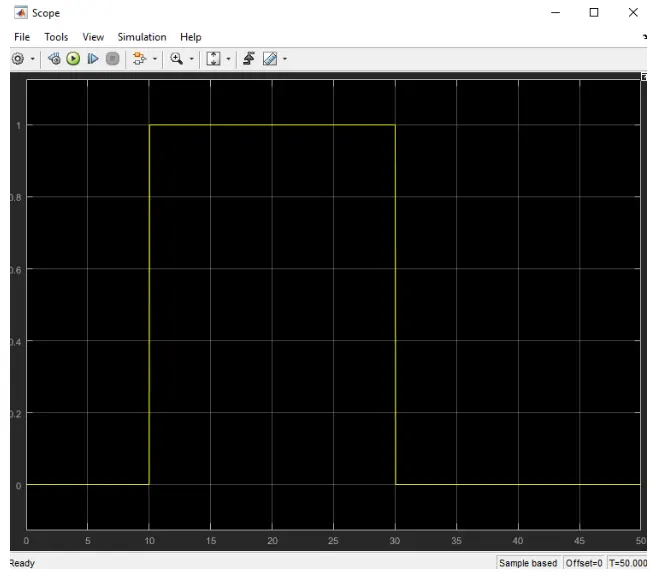

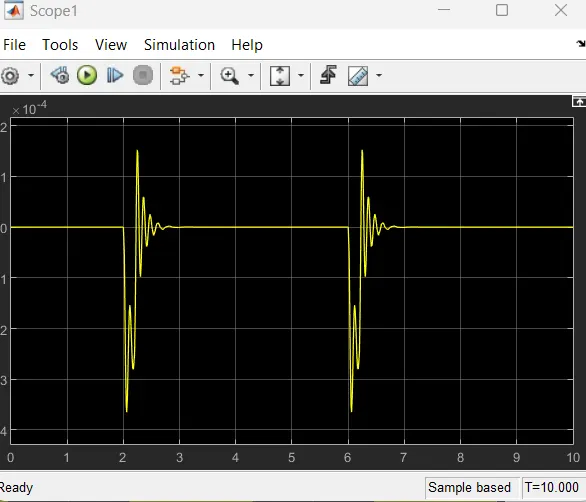

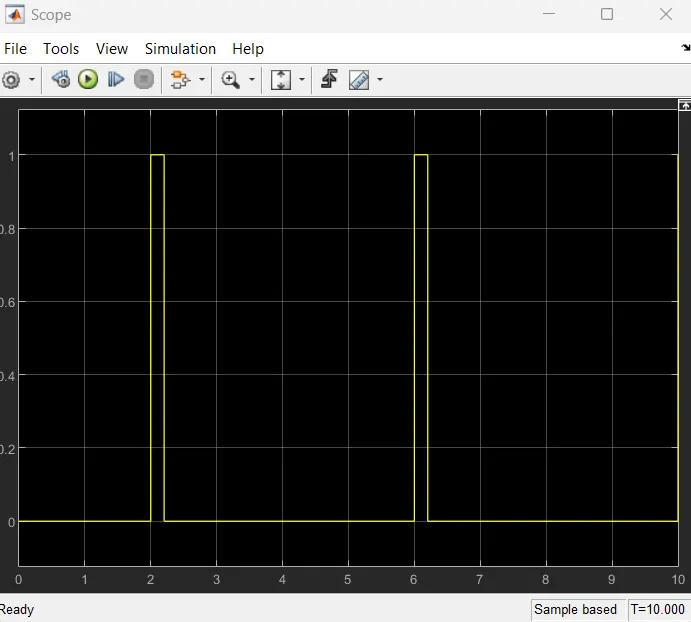

graph attached,

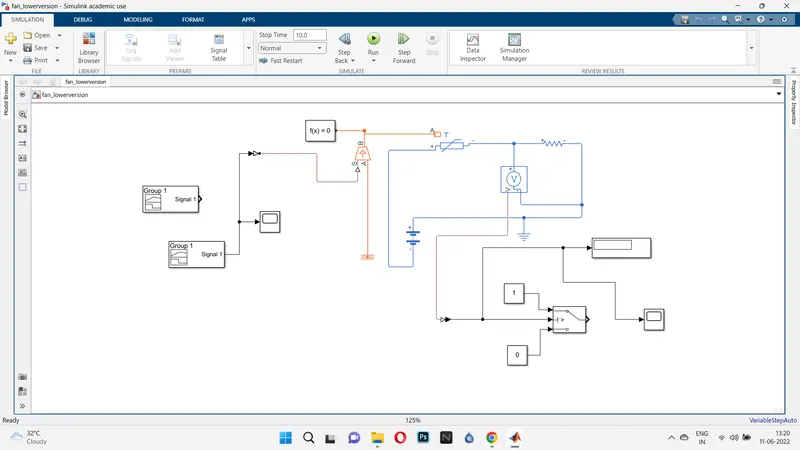

thermistor;

for given condition the model has been created;
