Week -2

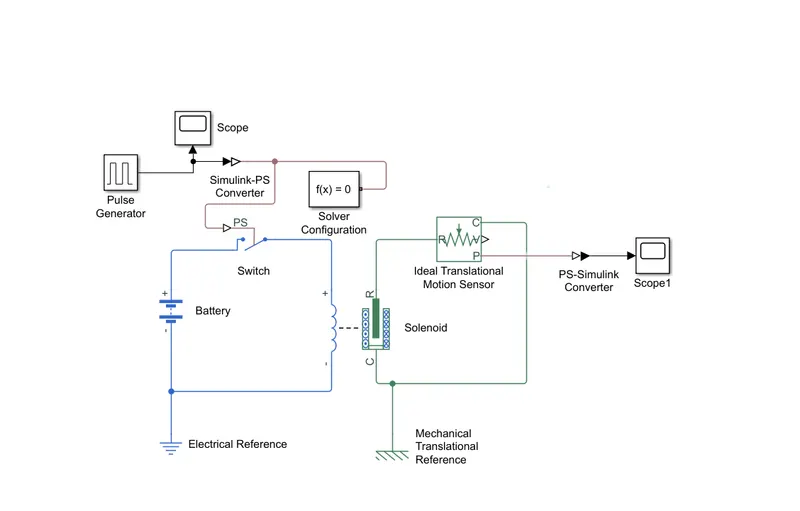

- Make a Simulink model of Doorbell using solenoid block with the following details:
In the above arrangement, when the switch is closed the electromagnet receives electrical power from the battery and pulls the metal arm to hit the bell producing sound.
Create a situation where the switch is closed for 2 seconds and then released.
Conclusion

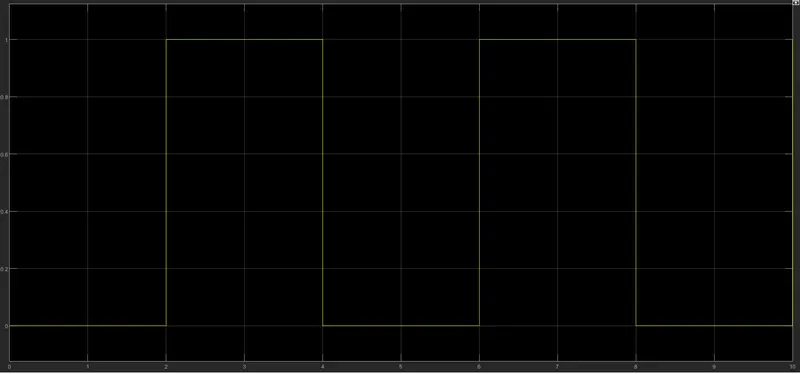

Giving input as time period for 2 seconds in the pulse generator to open & close the switch. When the switch is closed the solenoid block receives electrical power from the battery and plunger & produce sound.

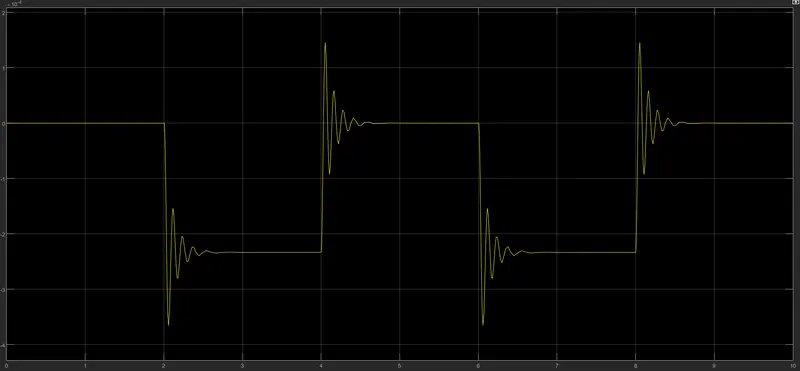

Physical movement of the plunger is observed by using translational motion sensor & physical output is converted into Simulink output model is displayed in the scope. By reducing the spring constant value and increasing the damping value vibrations will be reduced.
The simulink model of door bell using solenoid blockset is obtained.
