Week -2

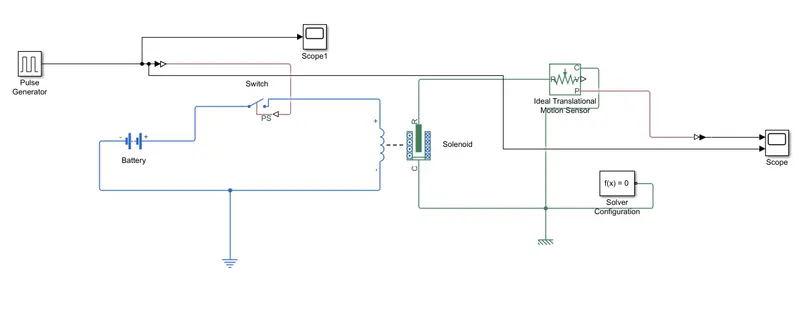

- Make a Simulink model of Doorbell using solenoid block with the following details:

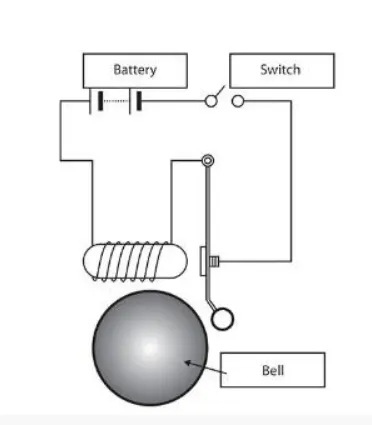

In the above arrangement, when the switch is closed the electromagnet receives electrical power from the battery and pulls the metal arm to hit the bell producing sound.

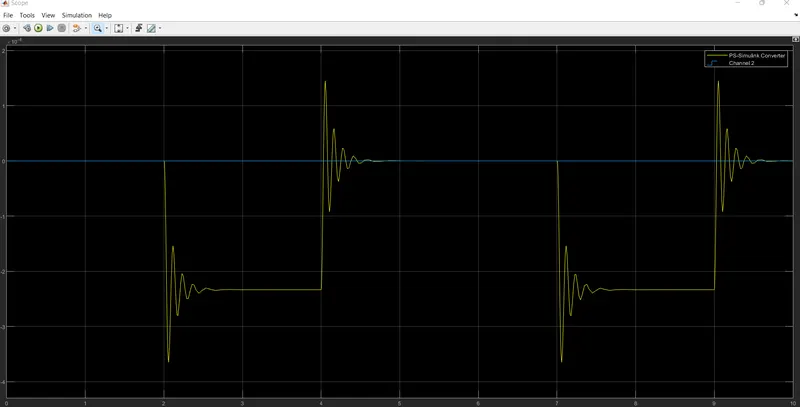

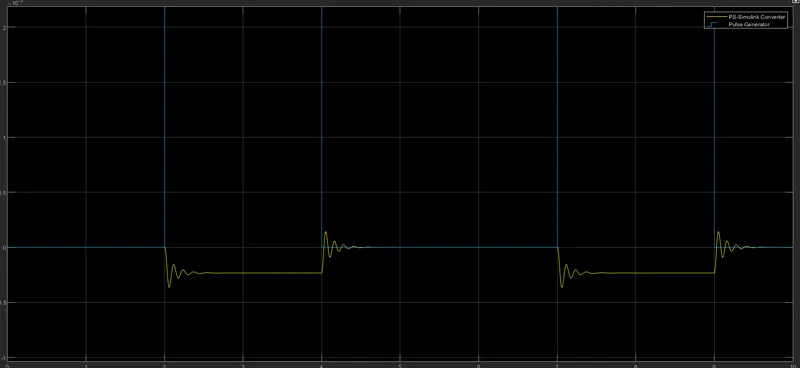

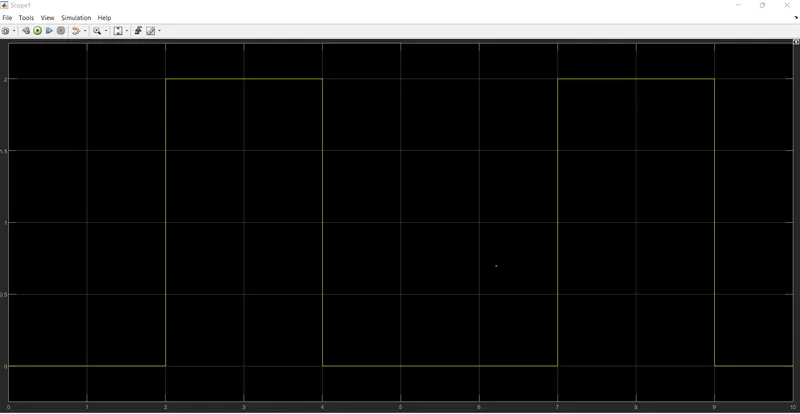

Create a situation where the switch is closed for 2 seconds and then released. Observe the physical movement of the plunger.

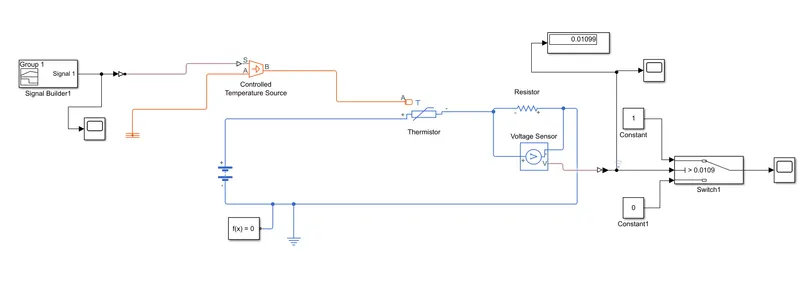

2. Use a thermistor to sense the temperature of a heater & turn on or turn off the fan as per the below conditions:

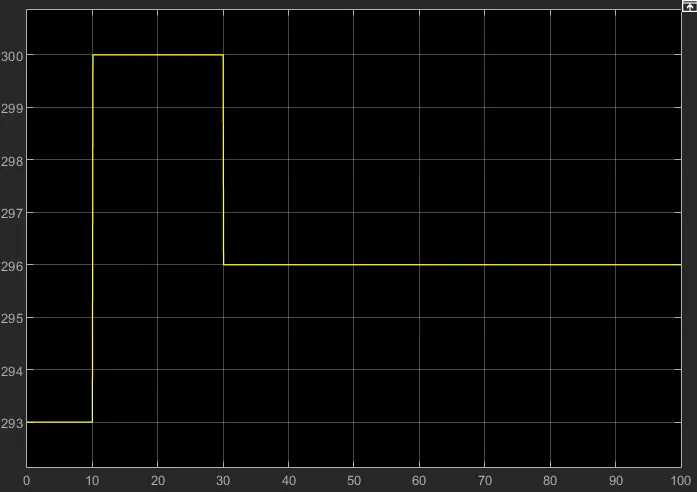

Temperature source: 20 °C from 0 to 10 seconds, 27 °C from 10 to 30 seconds, 23 °C from 30 to 50 seconds

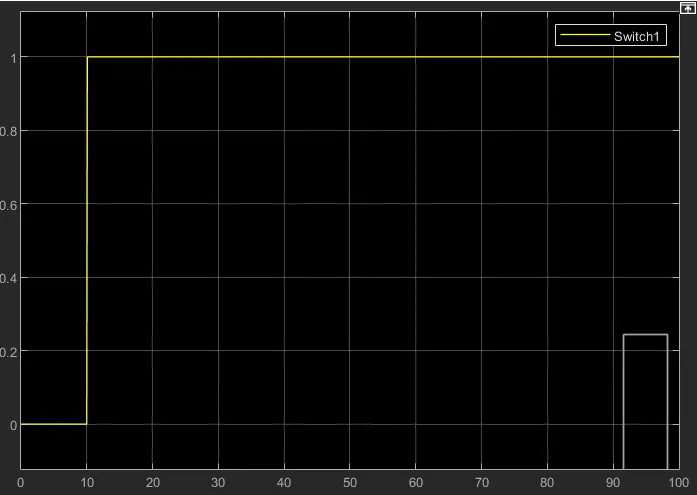

Fan conditions: ON if the temperature above 25 °C, OFF otherwise
