Week -2

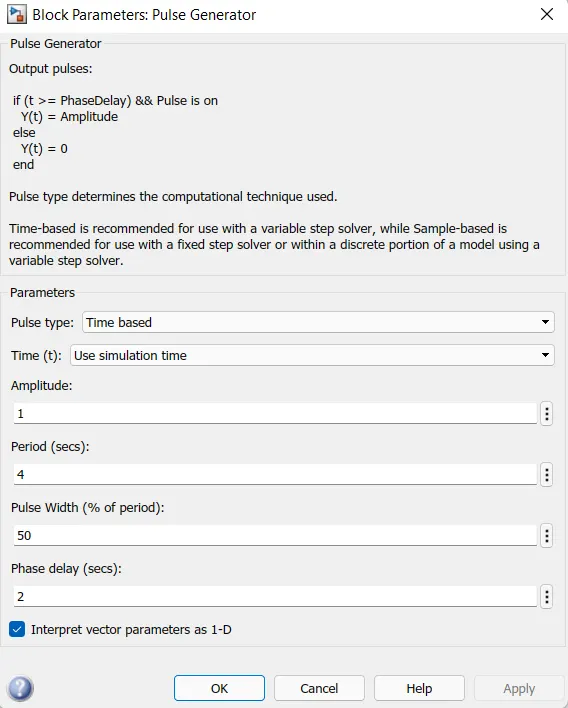

Q.1) Ans - 1. signal from the pulse generator was converted using simulink ps converter and given to input of the switch. solenoid and battery connected to other two points of switch.

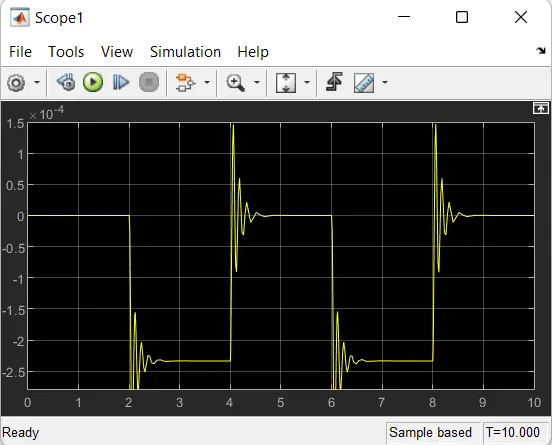

2. Other end of solenoid connected ideal translation motion sensor. solenoid plunger is measure from this sensor. Mechanical and electrical references connected to the circuit.

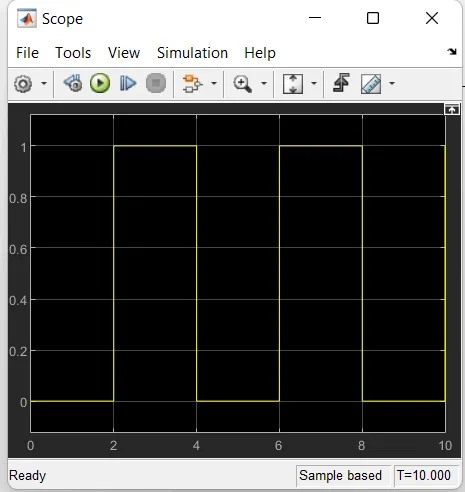

3. Output of the sensor converted through Ps simulink converter and given to the scope. scope use for show the result.

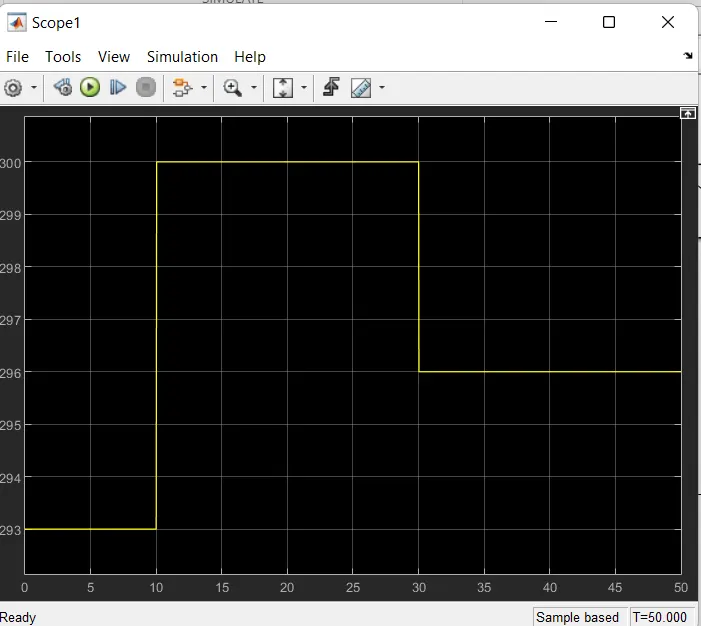

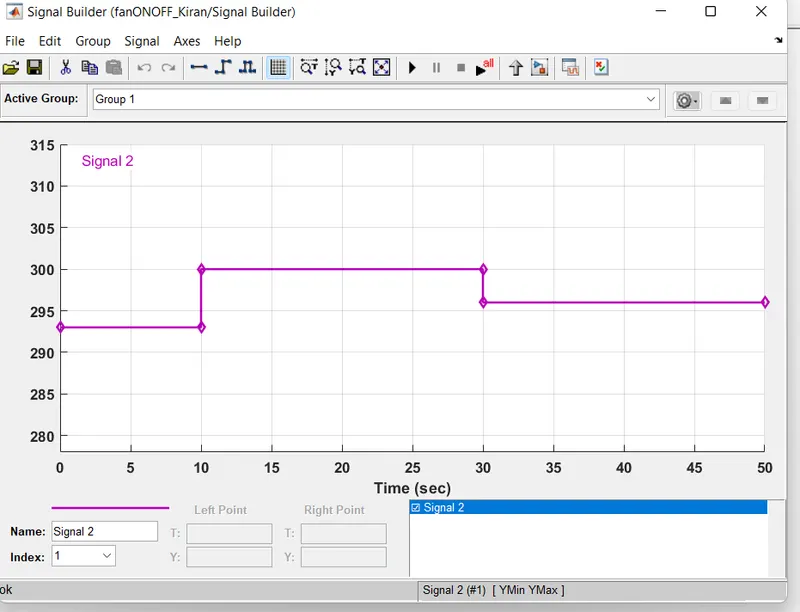

Q.2) Ans - 1. Input temperature given by signal builder. 3 Input given from signal builder in kelvin ( 25,27,23). The input signal converted by simulink ps converter and given to temperature controlled source.

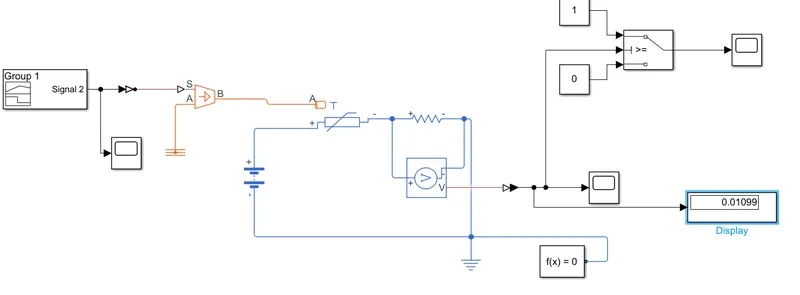

2. Temparature controlled source control temprature given to thermistor. Thermistor connected in series with the resistor and the voltage sensor which are connected parallel the resistor. voltage sensor determine the voltage output signal given by thermistor sinse same resistence will be exhibited by resistor.

3. An solver configuration and electrical reference is connected across circuit. The output of voltmeter is converted by PS simulink converter and given to switch. Voltage thresold value 25 degree as input to the switch as condition. if the temperature exceed thresold value given zero. if it below thresold value then output value signal. scope is connected output of switch.
