Week -2
Aim:
Make a Simulink model of Doorbell using solenoid block.
Conditions:
Switch is closed for 2 seconds and then released.
Blocks used in model:
- Pulse Generator
- Switch
- Battery
- Solenoid
- Ideal Translational Motion Sensor
- Mechanical Translational Reference
- Electrical refrences
- Scope

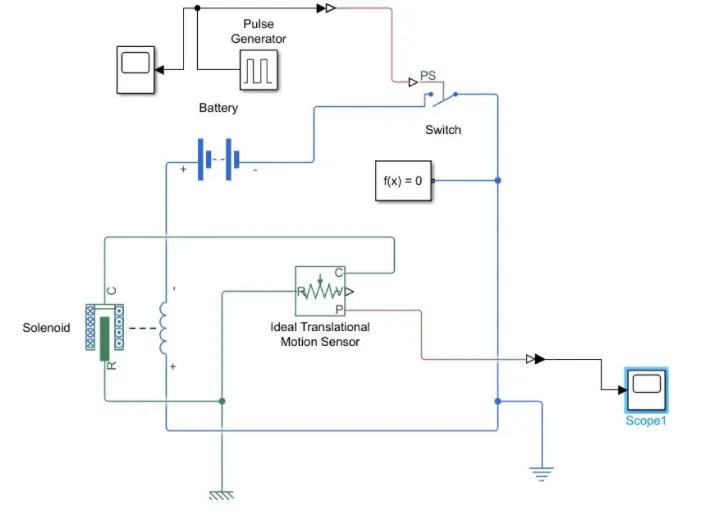

SIMULINK MODEL :

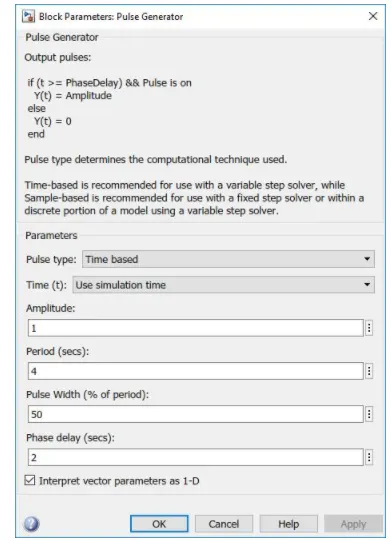

A pulse generator is given as input with the following and The condition was that the bell is engaged for 2 s and then released. it also Same for implemented by giving time as 4 seconds and pulse width as 50% of 4 seconds

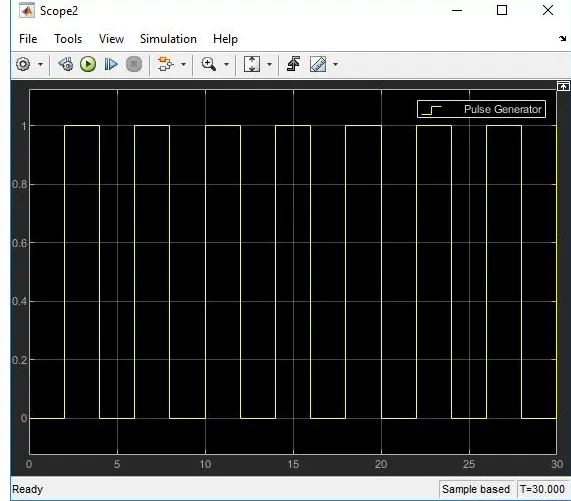

INPUT SIGNAL :

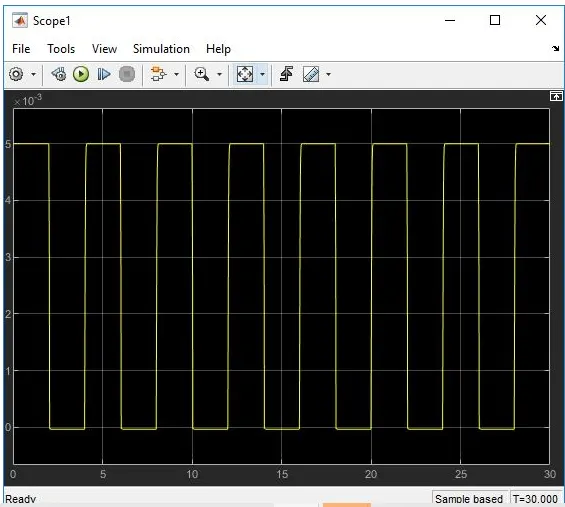

RESULT:
